Tyre Pressure Monitoring System TC215 User manual TyrePal Limited, Unit 2 Glen Industrial Estate, Essendine, Stamford, PE9 4LE. United Kingdom Tel: +44 (0)1780 755490 e-mail: enquiries@tyrepal.com www.tyrepal.co.uk © TyrePal Ltd 2013 TC215E 20130319... -
Page 2: Table Of Contents
7.2.3 Exchanging a trailer..........14 8. TROUBLESHOOTING AND ADDITIONAL INFORMATION ..14 9. SERVICE AND WARRANTY ..........15 10. SPECIFICATION SUMMARY ..........15 TyrePal Limited, Unit 2 Glen Industrial Estate, Essendine, Stamford, PE9 4LE. United Kingdom Tel: +44 (0)1780 755490 e-mail: enquiries@tyrepal.com www.tyrepal.co.uk ©... -
Page 3: System Components

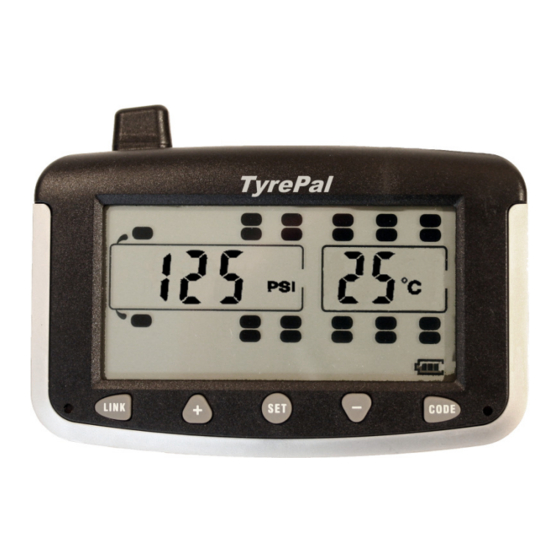

1.1 Monitor and accessories 1.2 Sensors The system is compatible with different types of TyrePal TC215 sensors. This manual is based on the standard external sensors, but your system may contain a different type which will be described in supplementary sheets. -
Page 4: Monitor Layout And Controls
Sensor low battery icon 2. IMPORTANT SAFETY NOTES The TyrePal system can help you maintain tyre pressures for safety, fuel economy, tyre life and environmental impact. It is your responsibility to ensure that it is suitable for your particular vehicle and that it is working correctly and properly maintained. -
Page 5: Before Installation
If the distance from the rear wheels to the monitor is greater than about 7 metres, we recommend the use of a TyrePal Smart Transceiver to increase the range of the sensors and improve the stability of the system. -
Page 6: Installation
Press + or – buttons to select the other tyres and repeat for all the tyres that are to be monitored. TyrePal Limited, Unit 2 Glen Industrial Estate, Essendine, Stamford, PE9 4LE. United Kingdom Tel: +44 (0)1780 755490 e-mail: enquiries@tyrepal.com www.tyrepal.co.uk... -
Page 7: Alternative Registration By Proximity
Press the SET button to save the ID code When all sensors are registered, press and hold the CODE button to exit. TyrePal Limited, Unit 2 Glen Industrial Estate, Essendine, Stamford, PE9 4LE. United Kingdom Tel: +44 (0)1780 755490 e-mail: enquiries@tyrepal.com www.tyrepal.co.uk... -
Page 8: Set Units And Alert Levels
The alert levels can be adjusted at any time using this procedure, for example if different pressures are required when not towing a trailer. The new settings take immediate effect. TyrePal Limited, Unit 2 Glen Industrial Estate, Essendine, Stamford, PE9 4LE. United Kingdom Tel: +44 (0)1780 755490 e-mail: enquiries@tyrepal.com... -
Page 9: Install The Monitor
(red wire to + positive, black to - negative). It operates on a rechargeable battery for about 60 hours on a full charge. TyrePal Limited, Unit 2 Glen Industrial Estate, Essendine, Stamford, PE9 4LE. United Kingdom Tel: +44 (0)1780 755490 e-mail: enquiries@tyrepal.com... -
Page 10: Operation
• Press any button to switch the alarm off. The red light will continue to flash until the problem is corrected. TyrePal Limited, Unit 2 Glen Industrial Estate, Essendine, Stamford, PE9 4LE. United Kingdom Tel: +44 (0)1780 755490 e-mail: enquiries@tyrepal.com www.tyrepal.co.uk... -
Page 11: Backlight
60 minutes. It will then give a short beep each time the alert and the trailer tyre position is accessed and stop displaying the tyre data. TyrePal Limited, Unit 2 Glen Industrial Estate, Essendine, Stamford, PE9 4LE. United Kingdom Tel: +44 (0)1780 755490 e-mail: enquiries@tyrepal.com www.tyrepal.co.uk... -
Page 12: Replacing Sensor Batteries
20 metres in open air, but in practice, screening by the vehicle chassis and bodywork reduce the working distance to about 7 metres. This can be increased by using the optional Smart Transceiver. TyrePal Limited, Unit 2 Glen Industrial Estate, Essendine, Stamford, PE9 4LE. United Kingdom Tel: +44 (0)1780 755490 e-mail: enquiries@tyrepal.com www.tyrepal.co.uk... -
Page 13: Smart Transceiver (Optional Equipment)
Press and hold the CODE button for thee seconds to store the ID. If no action is taken, for one minute, the system returns to the standby mode without making any changes. TyrePal Limited, Unit 2 Glen Industrial Estate, Essendine, Stamford, PE9 4LE. United Kingdom Tel: +44 (0)1780 755490 e-mail: enquiries@tyrepal.com www.tyrepal.co.uk... -
Page 14: Code The Transceiver For Trailer Exchange
8. TROUBLESHOOTING AND ADDITIONAL INFORMATION Additional information about the system, including detailed product specification, troubleshooting and advice on managing tyre pressures is provided on the TyrePal web site, www.tyrepal.co.uk, where it is regularly updated. TyrePal Limited, Unit 2 Glen Industrial Estate, Essendine, Stamford, PE9 4LE. United Kingdom Tel: +44 (0)1780 755490 e-mail: enquiries@tyrepal.com... -
Page 15: Service And Warranty
433.92MHz, power <10dBm Typically >7m in vehicle when screened by bodywork etc. Range can be Range extended with a Smart Transceiver. TyrePal Limited, Unit 2 Glen Industrial Estate, Essendine, Stamford, PE9 4LE. United Kingdom Tel: +44 (0)1780 755490 e-mail: enquiries@tyrepal.com www.tyrepal.co.uk ©... - Page 16 TyrePal Limited, Unit 2 Glen Industrial Estate, Essendine, Stamford, PE9 4LE. United Kingdom Tel: +44 (0)1780 755490 e-mail: enquiries@tyrepal.com www.tyrepal.co.uk © TyrePal Ltd 2013 TC215E 20130319...
