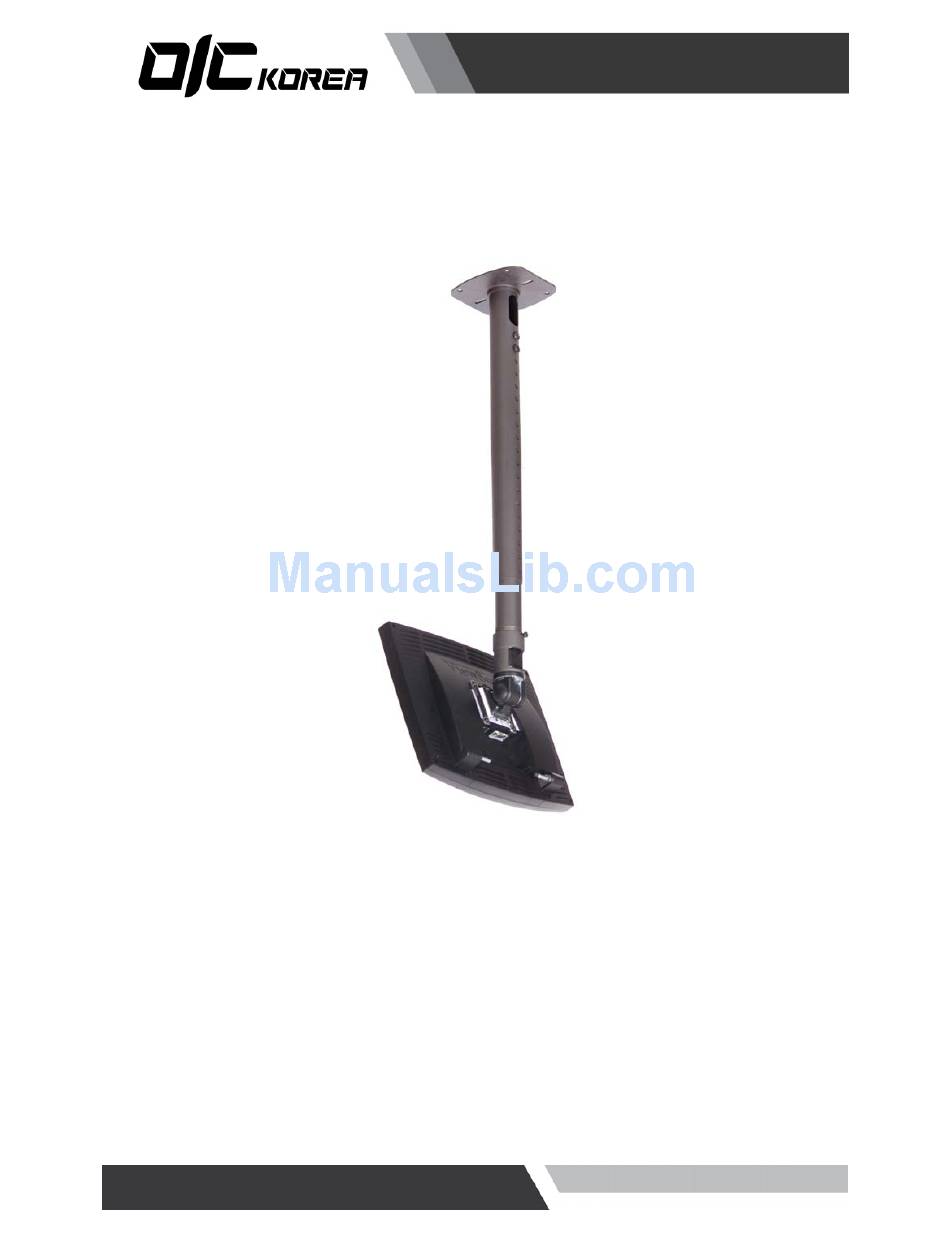

- Page 1 Installation and User’s Guide Installation and User’s Guide FLAT LCD DISPLAY MOUNT MODEL CMK-01 CEILING MOUNT http://www.oickorea.com All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein...
-
Page 2: Warning Statements
Installation and User’s Guide http://www.oickorea.com Warning Statements The wall, floor or ceiling should be capable of supporting a weight of at least five (5) times the monitor’s weight. If it cannot, the wall, floor or ceiling must be reinforced. Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to Failure to do so could result in serious personal injury. - Page 3 Installation and User’s Guide http://www.oickorea.com CMK-01 Installation STEP1 Screw the CMK-01 coupling adapter to the adjustable suspension adapters or 1½" (NTP) Pipe. Secure the coupling with the M6 security screw (supplied). Figure 1. Coupler Coupler Swivel lock (Located inside Coupler)
- Page 4 Installation and User’s Guide http://www.oickorea.com Solid Structure Installation Secure the ceiling plate to the ceiling structure (see WARNING). Use suitable hardware (commercially available) depending on your installation environment to secure the four (4) mounting points found on the ceiling plate to the ceiling structure (Figure 3). Refer to ceiling adapter installation instructions CEILING STRUCTURE...
- Page 5 Installation and User’s Guide http://www.oickorea.com VESA 100: Secure the VESA 75/100 mounting bracket to the VESA 75 Using the four M4 x 10 Phillip screws. Raise and secure your monitor to the plate that has the VESA 100 now on you CMK- 01 adapter and use the four (4) M4 x 10 (mm) Phillips screws (supplied) and a Phillips screwdriver.
-
Page 6: Technical Specifications
Installation and User’s Guide http://www.oickorea.com Technical Specifications Features: Tilt mount allows of adjustments up and down of ±90° from center and 360° swivel and cable access. Comes with a combination plate of VESA 75 and VESA 100 for optional mounting depending on monitor. M6 x 8mm set screw Coupler... - Page 7 2Year Limited Warranty All OIC Korea products carry a limited warranty from ship date against defects in materials and workmanship. OIC Korea is not liable for improper installation that results in damage to mounts, adapters, display equipment or personal injury.
