Summary of Contents for Douglas WNG-2133

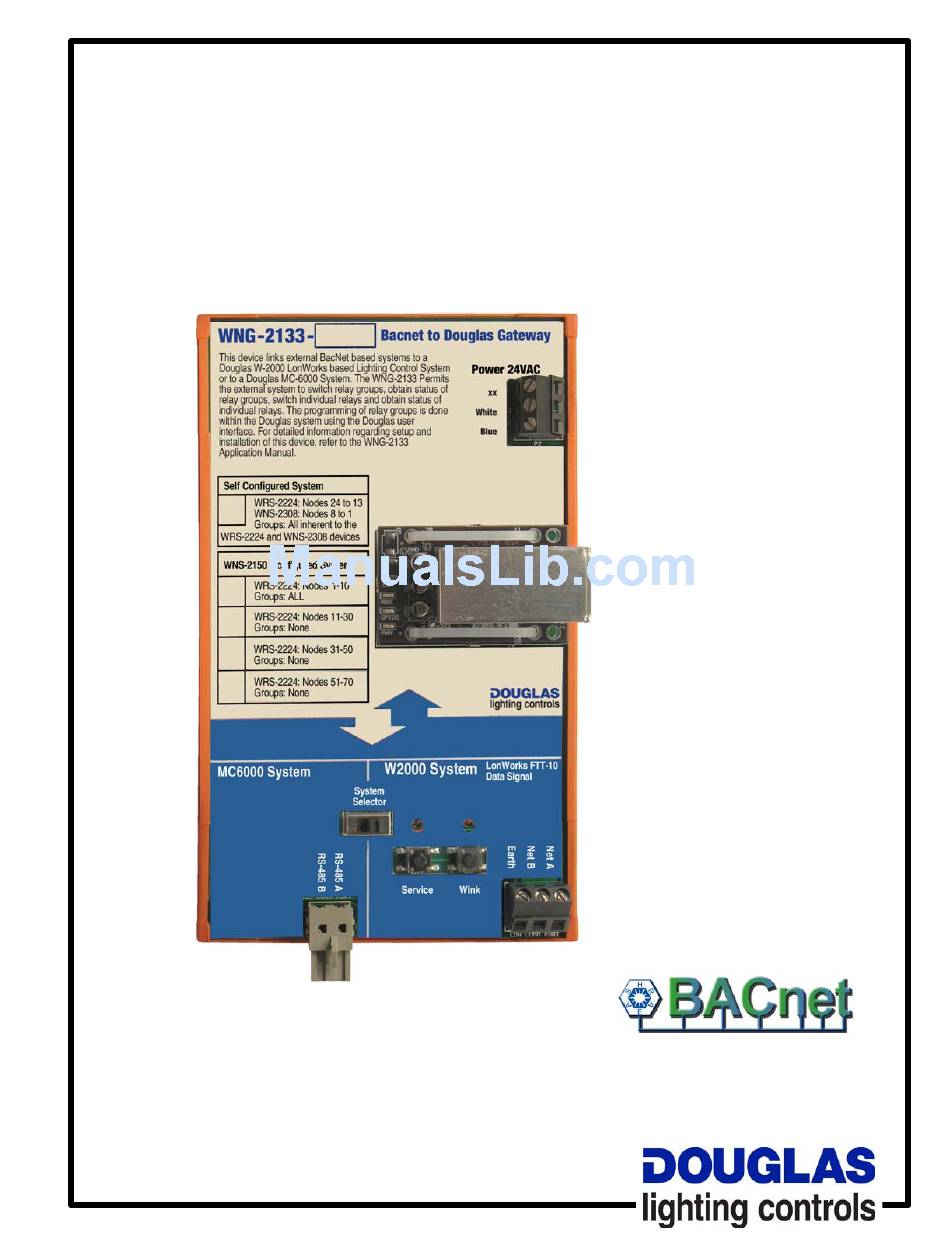

- Page 1 WNG-2133 BACnet Gateway Instruction Manual...
-
Page 2: Table Of Contents
Installation: Factory Pre-Assembled W-2000 Systems ------------------------------- 4 Installation: Factory Pre-Assembled MC-6000 Systems ---------------------------- 5 Setting the IP Address-----------------------------------------------------------------6 Douglas Network Groups Status and Control ----------------------------------------- 7 BACnet Points of Control, Changing the BACnet Node ID ---------------------------- 8 Setting the BACnet/IP Broadcast Management Device ------------------------------- 9... -
Page 3: Introduction

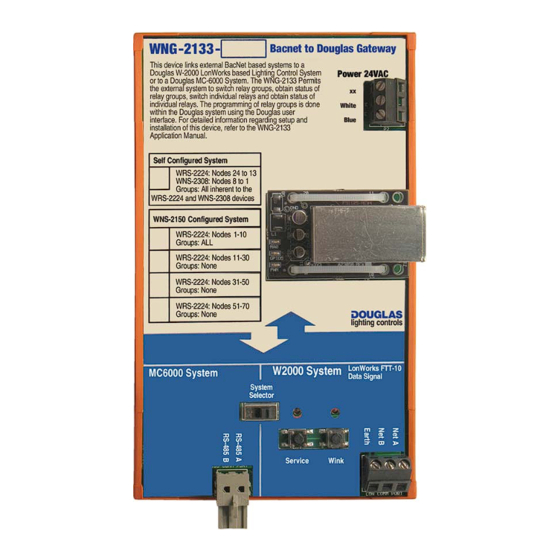

Introduction WNG-2133 Bacnet to Douglas System Gateway 24VAC Transformer Connections BACnet Data Signal Connection · IP from the external BACnet system. · BACnet data signal cable is CAT-5e and plugs into the socket on the right side: side view Data Signal Connection,... -
Page 4: Parts: Wng-2133 Bacnet Gateway
Douglas W-2000 LonWorks based Lighting Control System Power 24VAC Douglas System or to a Douglas MC-6000 System. The WNG-2133 permits the external system to switch relay groups, obtain status of Identification Label relay groups, switch individual relays and obtain status of individual relays. -
Page 5: Specifications & Dimensions
BACnet system. Douglas System. Outputs Environment · Data signals of either the Douglas MC-6000 Network or · Indoors, stationary, non-vibrating, non-corrosive the Douglas W-2000 Network connect to the unit. atmosphere and non-condensing humidity. · Output connection from the Douglas Network is activated ·... -
Page 6: Installation: Factory Pre-Assembled W-2000 Systems
9. (WNP-2150-CONFIGURED SYSTEMS) 2. Make sure the Douglas network select setting and connnections Use the browser interface of the WNP-2150 Network Manager to on the WNG-2133 BACnet Node are correct for a W-2000 assign the output relays to each group input: System. -
Page 7: Installation: Factory Pre-Assembled Mc-6000 Systems
Be sure to connect them in the exact order shown in the One-Line Diagram in the drawings supplied with the system. 7. Power the system up. LEDs will flash briefly on the WNG-2133 device and then begin blinking to indicate OK status. -
Page 8: Setting The Ip Address
10. Start Ruinet. The device should show up and be brought up to the screen. Recovering for Bad IP Address Setting (May not be recoverable). If in error, the WNG-2133 may revert back to a default IP address and go into Broadcast mode. To correct this: 1. Set your PCs address to: -IP Address: 192.168.1.1... -
Page 9: Douglas Network Groups Status And Control
Douglas Network Groups Status and Control The WNG-2133 BACnet Gateway is a BACnet device that is used to simplify and streamline the inclusion of a Douglas Lighting Controls network into a larger BACnet network. The WNG-2133 is designed to work with the main Douglas network configurations, LonWorks and MC-6000. -
Page 10: Bacnet Points Of Control, Changing The Bacnet Node Id
BACnet Points of Control, BACnet Node ID BACNET Control Points The WNG-2133 BACnet Gateway has 1000 control points. Extensive lighting control networks may require more, due to the vast amount of data required to represent as many as to 255 groups overall and 72 points per panel. -
Page 11: Setting The Bacnet/Ip Broadcast Management Device
Two steps are needed: 1. Creating a custom “bdt.ini” file and downloading it to the WNG-2133 2. Uploading the config.csv file to the PC, editing the config.csv file then downloading it to the WNG-2133 1. Creating and Downloading the bdt.ini File 2. -
Page 12: Troubleshooting
Troubleshooting: Douglas W-2000 Networks General Guidelines: · Make sure that 24V power exists in all panels (always measure between 22VAC and 30VAC); · Make sure that data signal is connected to all Nodes; · Make sure all inputs and outputs are tightly connected and inputs are configured properly;... - Page 13 Troubleshooting: Douglas MC-6000 Networks General Guidelines: · Make sure that 24V power exists in all panels (always measure between 22VAC and 30VAC); · Make sure that data signal is connected to all Nodes; · Make sure all inputs and outputs are tightly connected and inputs are configured properly;...
-
Page 14: Appendix A -Input/Output Log
Appendix A - Input/Output Log (copy this page for other panels used) Panel Date Node ID# Input Switches Output Relays (numbered by panel # / output#) Input Type Remarks Remarks Remarks Type Remarks Remarks Remarks Type Remarks Remarks Remarks Remarks Type Remarks Remarks... - Page 15 Appendix A - Input/Output Log (copy this page for other panels used) Panel Date Node ID# Input Switches Input Output Relays (numbered by panel # / output#) Type Remarks Remarks Remarks Type Remarks Remarks Remarks Type Remarks Remarks Remarks Type Remarks Remarks Remarks...
-
Page 16: Notes
Notes lighting controls BACnet Gateway: Directions & Applications page 14... -
Page 17: Notes ---------------------------------------------------------------------------
Notes lighting controls page 15 BACnet Gateway: Directions & Applications... - Page 18 WARRANTY DOUGLAS products are warranted for one year from the date of purchase by the consumer against defects due to materials and the company's worksmanship only. The sole obligation hereunder shall be to repair, or at the company's option to replace, products as aforesaid,...
