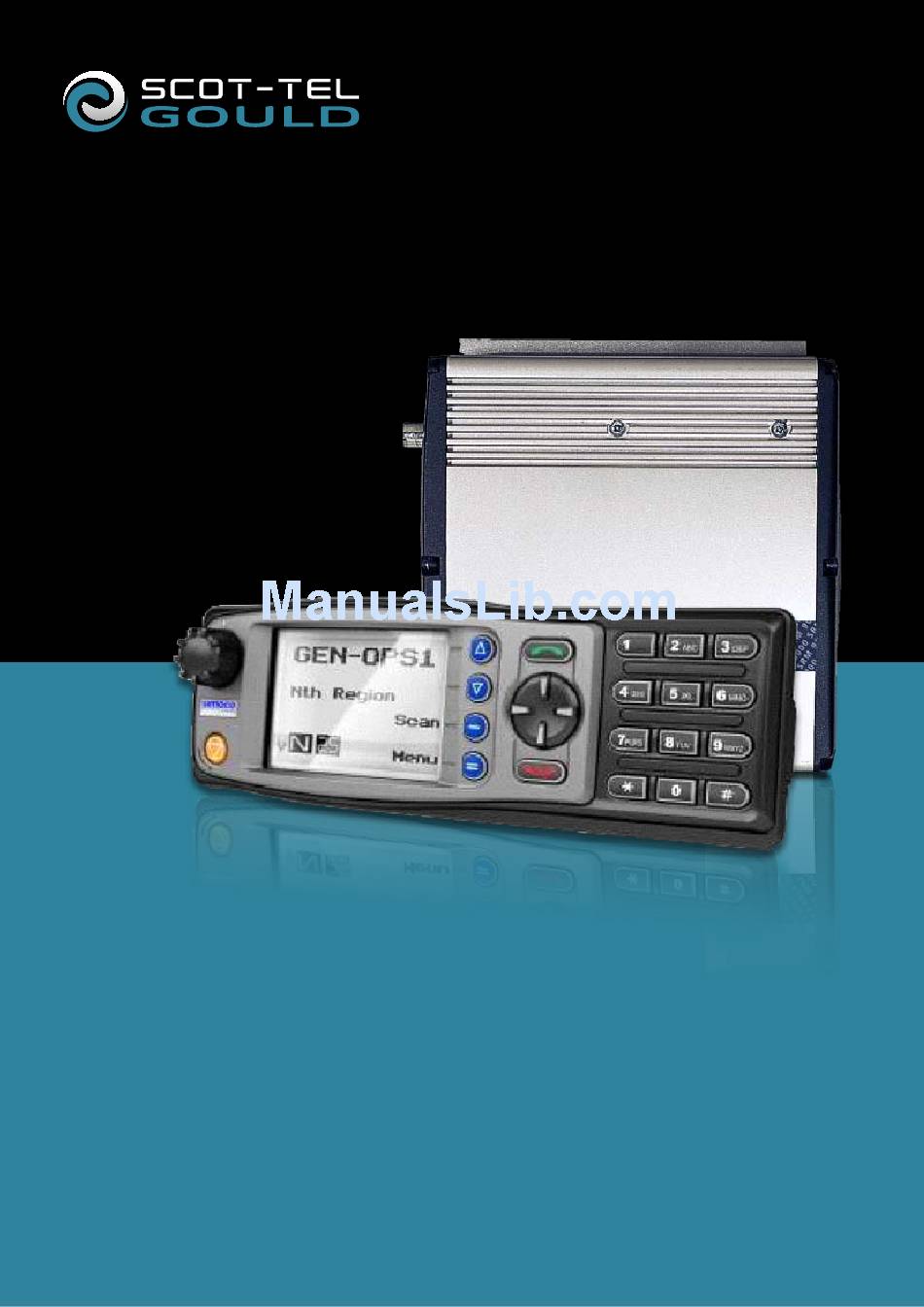

- Page 1 SRM9030plus Mobile Radio Transceiver MPT1327 Trunked Operating Instructions Issue 1.1...
-
Page 2: Table Of Contents
7.1 Setup Sub Menus Page 21 7.1.1 User Options Page 21 7.1.2 Group Page 22 7.1.3 Phone Book Edit Page 23 7.1.4 Contrast Page 24 7.1.5 Alert Volume Page 24 7.1.6 Information Page 24 Page 2 SRM9030plus - Trunked Mobile Radio User Guide... - Page 3 Appendix A - Alert Tones and Messages Page 26 Appendix B - Dial Strings Page 27 Appendix A - Call Progress Page 28 Appendix B - Numbering Conventions Page 29 Appendix C - Glossary Page 30 Page 3 SRM9030plus - Trunked Mobile Radio User Guide...
-
Page 4: Introduction
Your TMC Radio representative can help in programming your radios facilities to meet your present and future requirements. This guide describes the facilities that are currently available and can be programmed into the SRM9030plus. 1.2 INSTALLATION As the installation of your SRM9030plus Radio is a technical and possibly hazardous operation, we recommend that it is installed and set up for use by your dealer or an authorised installer. -
Page 5: Front Panel Controls
Function Button Function Button Function Button Function Button This button is programmable for a special operation, e.g. Emergency Call. Function Button F6 On Mic. This button is programmable for a special operation. Page 5 SRM9030plus - Trunked Mobile Radio User Guide... -
Page 6: Menu System
3. MENU SYSTEM The SRM9030plus radio software uses a programmed Menu structure to enable the operator to access all of the radio options. The structure of the menu (comprising up to fourteen screens) can be programmed to meet the specific needs of individual customers. Figure 2 illustrates a sample menu structure for the radio. The order and presence of menu items is configured by the radio Field Personality Programmer. -
Page 7: Main Menu Screens
Setup Programmer File description SW Version Information Trunk ID Radio Serial No. Trunk Network 1/2 Network Conventional Channel Selection Figure 2 - Example Menu Navigation Note: Not all menus shown Page 7 SRM9030plus - Trunked Mobile Radio User Guide... -
Page 8: Phonebook Screen
This icon indicates Call Pending, i.e. there is an outgoing call waiting for the radio to be In-Service. The Chevron is shown against a function to show that it is turned ON Page 8 SRM9030plus - Trunked Mobile Radio User Guide... -
Page 9: Stored Calls Screen
Phonebook Screen. • Press to go to the Phonebook Screen with the Call Dialstring ready for editing, the keypad is enabled for this step Page 9 SRM9030plus - Trunked Mobile Radio User Guide... - Page 10 Data Message • When a Data call is stored the first 14 characters of the data Message are displayed. Press More to display the full message (up to 100 characters). Page 10 SRM9030plus - Trunked Mobile Radio User Guide...
-
Page 11: Recall Screen
• Press the Red Handset to return to the Phonebook Screen without making a call. • Press (OK) to go to the Phonebook Screen with the Status Message Dialstring ready for editing (the keypad is enabled for this step). Status Screen Page 11 SRM9030plus - Trunked Mobile Radio User Guide... -
Page 12: Call Types Screen
• Press (OK) or the Left/Right Arrow buttons to show the first of the submenus, and then the Up/Down Arrow buttons to scroll these screens. • See Section 7 for further information. Page 12 SRM9030plus - Trunked Mobile Radio User Guide... -
Page 13: Common Functions And Facilities
The Volume Control adjusts the speech level at the loudspeaker. Rotating the knob clockwise increases the volume and anti-clockwise decreases the volume. Note: The radio can be programmed so that the volume cannot be turned off completely. Page 13 SRM9030plus - Trunked Mobile Radio User Guide... -
Page 14: Call Types
6. CALL TYPES The Trunking System allows the user to make a number of different types of call. The SRM9030plus supports most of the call types that can be accessed through the Trunk Network, including: • Voice calls between Individuals or Groups •... -
Page 15: Making A Voice Cal
• The Users ID number can be entered directly as a dialstring using the Keypad. e.g. 45# will call radio unit No 45. • Dialstrings of up to 30 digits can be used, refer to Appendix B. for numbering convention and valid dialstrings. Page 15 SRM9030plus - Trunked Mobile Radio User Guide... - Page 16 If the called radio cannot be contacted (radio off or out of range) within a short period of time about 10-30 seconds, a Radio Busy or Unavailable message is displayed and call-fail tones are emitted. Page 16 SRM9030plus - Trunked Mobile Radio User Guide...
-
Page 17: Making A Status Call
2 may mean : “At Lunch” 14 may mean : “Contact Home”, etc. The SRM9030plus automatically associates the number with the text when a Status is to be sent. A Status Message can be sent in a number of ways similar to making Voice Calls. -
Page 18: Receiving A Call
6.3 RECEIVING A CALL The SRM9030plus will respond to incoming calls according to the type of call being received. There are three types of call: • Voice Call. • Group Voice Call. • Status Message or Data Message. 6.3.1 Receiving a Voice Call When a call is received the radio will ring and display the audio enabled icon. -
Page 19: Receiving A Group Voice Call
Screen, refer to Section 4.2. If not already displayed, the icon appears on the Main Phonebook Screen and a short ‘bip’ is emitted to alert the user that a new message has been received. Page 19 SRM9030plus - Trunked Mobile Radio User Guide... -
Page 20: Dtmf Operation
Voice Call occurs. In this mode you can send DTMF tones for activating functions via a Voice Call or telephone connection. Tones are generated using the keys 0…9 # and *. Note: When DTMF is enabled, the keypad cannot be used to make Include calls. Page 20 SRM9030plus - Trunked Mobile Radio User Guide... -
Page 21: Setup
The User Options menu allows the Keybeeps, Display illumination and DTMF facilities to be set On or Off. • Use the Left/Right Arrow buttons to scroll between the different facilities. • The (Alter) button toggles the selection On/Off. The setting is saved on exit. User Options Page 21 SRM9030plus - Trunked Mobile Radio User Guide... -
Page 22: Group
(OK) to accept the name and go to the Main Menu. 7.1.3.2 DELETE AN ENTRY • Use the Left/Right Arrow buttons to scroll to the desired phonebook entry. • Use (Delete) to delete the current entry. Page 22 SRM9030plus - Trunked Mobile Radio User Guide... - Page 23 • Use # to toggle lower/upper case letters. • Use the Left/Right Arrow buttons to move to the next or previous character space to be entered/modified. • Press (OK) to accept and go to the next menu. Page 23 SRM9030plus - Trunked Mobile Radio User Guide...
-
Page 24: Contrast
7.1.6 Information This menu displays information that identifies the Programmer File description, Software Version and Trunk ID. This is a read only menu, press (OK) to go to the Main Menu. Page 24 SRM9030plus - Trunked Mobile Radio User Guide... -
Page 25: Function Buttons
Scrambler On/Off state is reset to Off at power-up. Only normal voice calls are scrambled in trunk mode. 8.8 SEND DTMF 1 AND 2 This function sends a predefined sequence of up to 16 DTMF tones. Page 25 SRM9030plus - Trunked Mobile Radio User Guide... -
Page 26: Troubleshooting
Wrong Key Press Call Diversion Call Fail System Busy 0.4 0.35 0.525 Call Fail Unavailable 1.5 Second Call Fail Radio Busy .375 .375 Low Tone High Tone Duration Indicated in seconds Page 26 SRM9030plus - Trunked Mobile Radio User Guide... -
Page 27: Appendix B - Dial Strings
CIA. Unobtainable Accepted Your request has been accepted by the Trunk System (e.g. Diversion request). Accepted Your request has been accepted by the Trunk System (e.g. Diversion request). Page 27 SRM9030plus - Trunked Mobile Radio User Guide... - Page 28 Appendix B - Dial Strings The following conventions and dial strings apply on the SRM9030plus radio. Dial Strings DESCRIPTION CALL MODIFIER Abbreviated PSTN Codes **nn nn = 1 to 45 Call Set up Abandon/Call Complete *# or Red Handset Button...
-
Page 29: Appendix B - Numbering Conventions
Unit/Group NNN in large fleet FFFF, in prefix PPP , PPP = 200-329, FFFF = 2001-6050, NN = 200-998 0NNN... PSTN Call to number NNN..., NNN... can be up to 30 digits in length Page 29 SRM9030plus - Trunked Mobile Radio User Guide... -
Page 30: Appendix C - Glossary
Service. The radio has established communications with the trunking structure. Status Number The code that transmits the status of the mobile to the controller automatically Page 30 SRM9030plus - Trunked Mobile Radio User Guide... - Page 31 Tel: 01224 471335 www.scot-tel-gould.co.uk...
