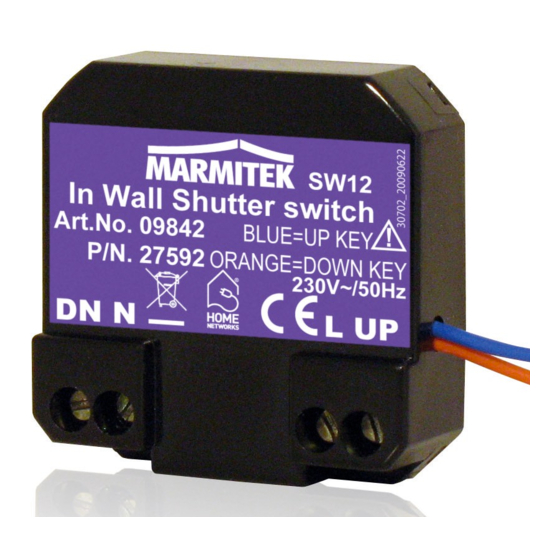

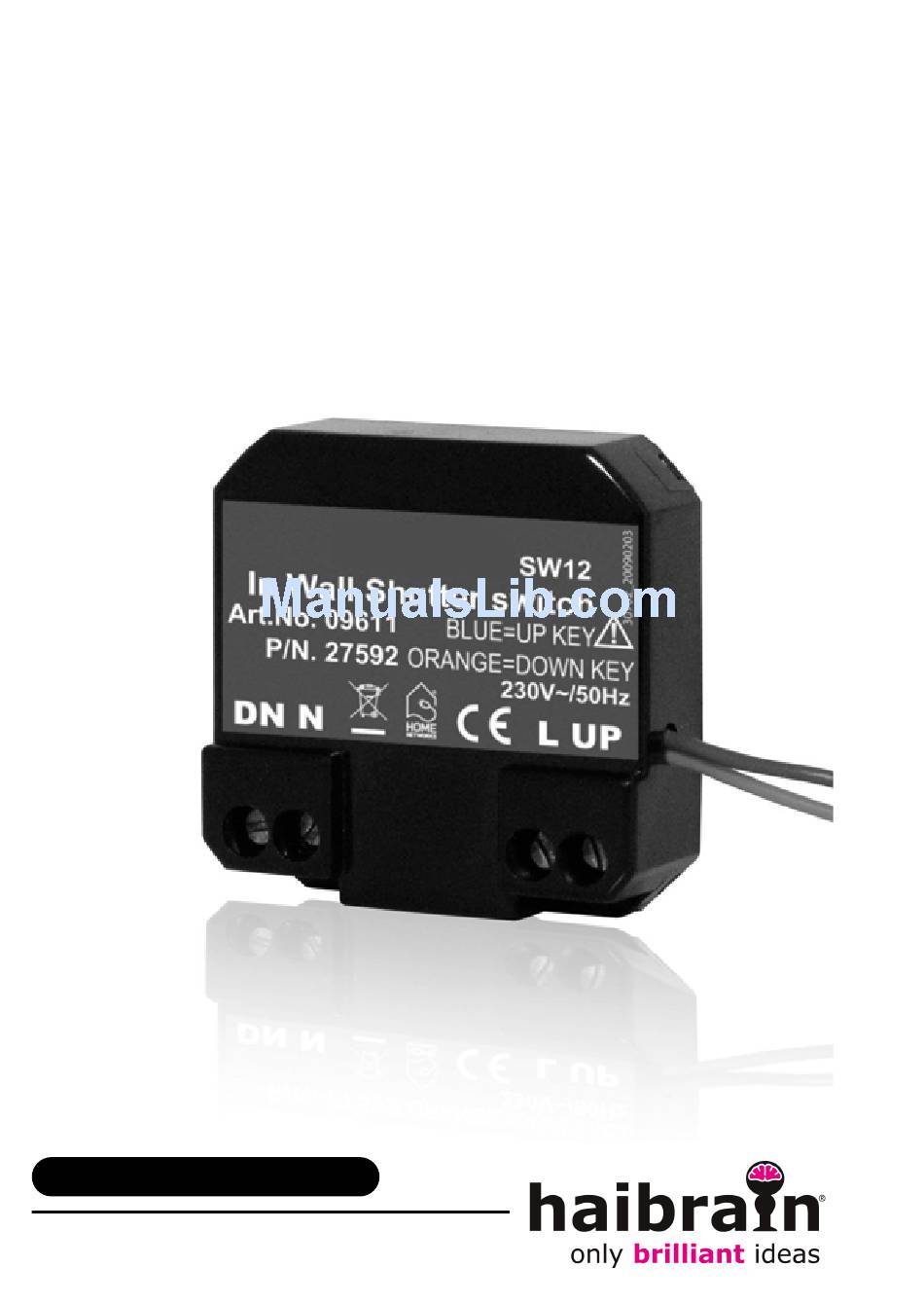

- Page 1 SW12 SW12 ™ IN-WALL SHUTTER SWITCH USER MANUAL 20516/20120530 • SW12 ALL RIGHTS RESERVED HAIBRAIN©...
-
Page 2: Safety Warnings
• In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Haibrain does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. - Page 3 HOW DOES HAIBRAIN X-10 WORK? Haibrain X-10 components use the existing mains wiring to communicate (using Haibrain X-10 signals). You can build a complete system using the three different kind of components of the Haibrain X-10 System: 1. Modules: These components will receive Haibrain X-10 signals and will switch or dim the attached lamp or appliance.
-
Page 4: Signal Range
SIGNAL RANGE Range of Haibrain X-10 signals over the Power Line and how to increase the range. The Haibrain X-10 System is based on power line communica- tion. The range of the Haibrain X-10 signals very much de- pends on the local circumstances. On average the range is a cable length of 80 meters. - Page 5 FM10 Filter to connect this device to the power line, the noise will be filtered. 4. The Haibrain X-10 protocol has several mechanism to avoid modules to be switched on or off by other sources than your Haibrain X-10 Controllers. However, it is possible that the Haibrain X-10 signals are disturbed by e.g.
- Page 6 Hereby make your house Haibrain X-10 compatible for these units. The FD10’s will not only filter but will also couple the phases (please see 1).
-
Page 7: Installation
INSTALLATION Switch off appropriate mains fuse and master switch! Important : 230V - 50Hz - 3A per channel max. Down © HAIBRAIN... - Page 8 • Take the wall switch out of the wall box. • Disconnect all wires from the switch. • Connect the live to the terminal wire L (3, Live) of the SW12 and to the switch as described in the drawing.
- Page 9 X-10 message ‘ADDRESS ON’ or ‘AD- DRESS OFF’ twice on your chosen House Code (using any Haibrain X-10 controller - i.e.: TM13 + RF remote control). Do not mix up ‘ON’s and ‘OFF’s. To be accepted, both messages must be exactly the same.
-
Page 10: Default Setting
P16 without the need to get into Install Mode. You can then get into Install Mode simply by pressing the UP Key for 5 seconds or so and then entering the settings you re- ally want to use. SW12... -
Page 11: Manual Control
The over travel is to ensure that the blind fully reaches its end stop before the unit switches off its drive relays. HAIBRAIN X-10 CONTROL The unit will respond to X-10 power line commands sent in ‘Standard’ and ‘Extended’ format. -
Page 12: Freqently Asked Questions
What is the reason for modules to switch on/off sponta- neously? It is possible that a Haibrain X-10 System is installed at one of your neighbours using the same House Code. To solve this problem try to change the House Code of your system, or have FD10 Phase Coupler/Filter installed at your incoming mains. - Page 13 Do I need to do anything extra if I want to replace my current switch by a SW12? Yes, the SW12 can be used in place of any normal switch, but you have to replace your normal switch with a momentary switch with two normally open contacts Does the SW12 respond to the commands ‘All lights on’...
-
Page 14: Technical Specifications
Do you still have questions? Please check out http://www.haibrain.com. for more information. TECHNICAL SPECIFICATIONS Supply voltage 230V ±10%, 50 Hz Power Consumption < 1W Maximum Load 700W/230V for motors Sensitivity to power 50mV p-pk @ 120 KHz. line signals For signals >50mV AGC is applied... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Hereby, Haibrain BV, declares that this SW12 is in compliance with the essential requirements and other relevant provisions of the following Directives: DIRECTIVE 2004/108/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 15 December 2004...
