Sven MS-370 Operation Manual

Sven MS-370 Operation Manual

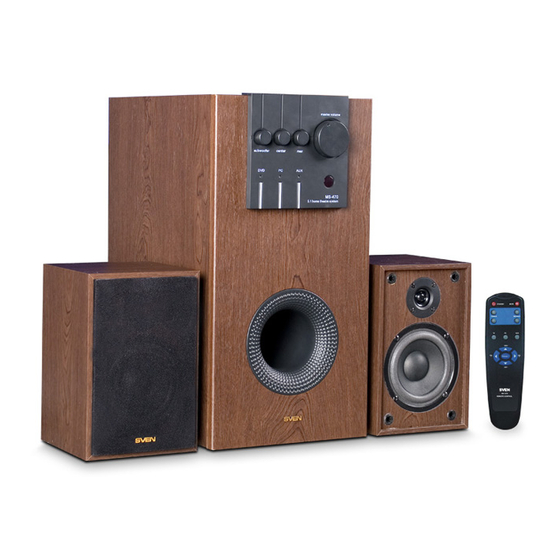

2.1 multimedia speaker system

Advertisement

2.1 Multimedia Speaker System
OPERATION
MANUAL
MS-370
www.sven.fi

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-370 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sven MS-370

  • Page 1 2.1 Multimedia Speaker System OPERATION MANUAL MS-370 www.sven.fi...
  • Page 2: Table Of Contents

    MS-350BL Operation Manual Congratulations on your purchase of the Sven speaker system! COPYRIGHT © 2014. SVEN PTE. LTD. Version 1.0 (V 1.0). This Manual and information contained in it are copyrighted. All rights reserved. TRADEMARKS All trademarks are the property of their legal holders.
  • Page 3: Package Contents

    • Do not use any chemical agents for cleaning. Clean it with dry soft cloth only. 4. TECHNICAL DESCRIPTION MS-370 Multimedia Speaker System 2.1 (MSS) is designed to play music and sound games, movies etc. MSS has built-in power amplifier, acoustic cables built-in satellites due to which it can be connected to virtually any audio source (CD/DVD-player, TV, PC, etc.) without an additional...
  • Page 4 MS-370 Operation Manual • Connected audio device LED • Magnetic shielding • MDF subwoofer and satellites cabinets Front and rear subwoofer panels a Subwoofer: subwoofer volume control knob b Treble: treble control knob c Balance: balance control knob between left and right channels...
  • Page 5: Preparation And Operation

    MSS сonnecting and control MS-370 Multimedia Speaker System can be connected to virtually any audio source: DVD/CD, PC, laptop, etc. (see connection diagram in Fig. 4). • Before connecting make sure that MSS is switched off. Then connect subwoofer AUDIO OUTPUT jacks m with satellite by using audio cables (included) (see diagram in Fig.
  • Page 6 MS-370 Operation Manual Subwoofer rear panel 2RCA to 2RCA signal cable 2RCA to mini-jack signal cable 2RCA to 2RCA РС Left signal cable speaker Right speaker Player Power cord Fig. 4. Connection diagram • To connect MSS to PC, МР3/CD-players, 2RCA to mini-jack stereo signal cable (included) should be used, as shown in Fig.
  • Page 7: Troubleshooting

    2.1 Multimedia Speaker System • To enhance sound quality, use Line-Out output of sound card. • In spite of MSS has three audio inputs at the same time you can turn on only the one audio sourse: TV, PC of AUX. 6.
  • Page 8: Technical Specifications

    MS-370 Operation Manual 7. TECHNICAL SPECIFICATIONS Parameter, measurement unit Value Output power (RMS), W 90 (total) subwoofer satellites 2 × 20 Frequency range, Hz 45 – 20 000 S/N ratio, dB ≥ 70 Speaker diameter, mm subwoofer Ø 165 satellites (tweeter + midrange) Ø...
  • Page 9 Произведено под контролем «Свен Скандинавия Лимитед», 48310, Финляндия, Котка, Котолахдентие, 15. Сделано в Китае. Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, № 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.
