Lift-Rite, 5975 Falbourne Street, Mississauga, Ontario L5R3L8
Fax: 1-905-456-1383 Owners Manual, Operating Instructions, and Replacement Parts Manual, Publications Number 1156119A ©2012
Owners Manual, Operating
Instructions Manual, and
Replacement Parts Manual
Lift-Rite Titan Series Hand Pallet Trucks

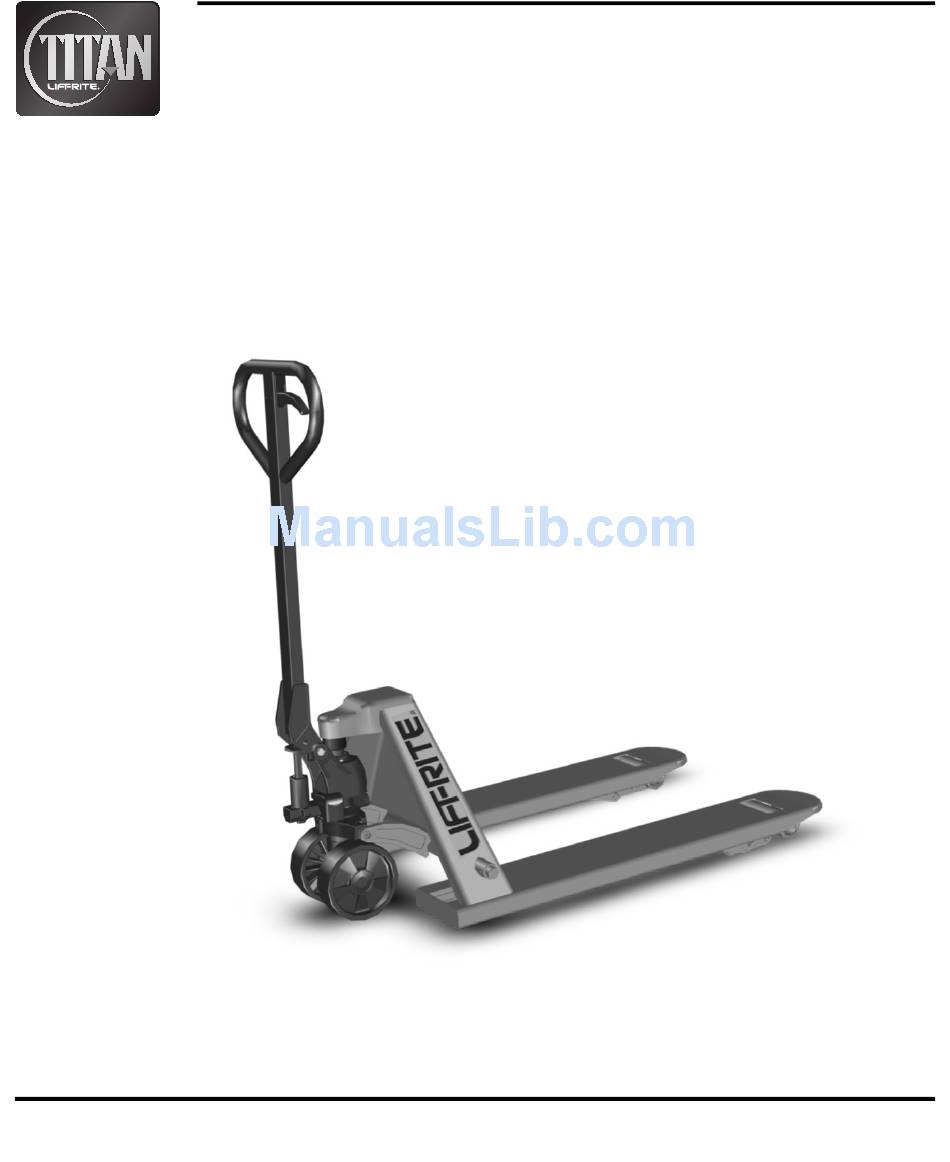

Model LCF55 - Freezer Special
Tel: Toll Free from USA: 1-800-558-6012; Tel: 1-905-456-2603 (Canada and International)
Dated 14 Aug 2012
Advertisement
Table of Contents
Related Manuals for Titan LCF55
Summary of Contents for Titan LCF55
- Page 1 Owners Manual, Operating Instructions Manual, and Replacement Parts Manual Lift-Rite Titan Series Hand Pallet Trucks Model LCF55 - Freezer Special Lift-Rite, 5975 Falbourne Street, Mississauga, Ontario L5R3L8 Tel: Toll Free from USA: 1-800-558-6012; Tel: 1-905-456-2603 (Canada and International) Fax: 1-905-456-1383 Owners Manual, Operating Instructions, and Replacement Parts Manual, Publications Number 1156119A ©2012...
- Page 2 This publication, 1156119A, applies to the Lift-Rite Titan Series Hand Pallet Trucks, Model LCF55 version, and to all subsequent releases of this product until otherwise indicated in new editions. Changes occur periodically to the information in this publication. To order additional copies of this manual, part number 1156119A, contact your local authorized Lift-Rite Sales and Service Center.
-
Page 3: Table Of Contents
DAILY INSPECTION MAINTENANCE TROUBLESHOOTING PARTS Hydraulic Assembly LCF55 Chassis Recycling Old Parts WARRANTY Lift-Rite, 5975 Falbourne Street, Mississauga, Ontario L5R3L8 Tel: Toll Free from USA: 1-800-558-6012; Tel: 1-905-456-2603 (Canada and International) Fax: 1-905-456-1383 Owners Manual, Operating Instructions, and Replacement Parts Manual, Publications Number 1156119A ©2012... -
Page 4: Delivery Inspection
AFETY SHOES Always wear safety shoes when working with hand pallet trucks. PROTECTIVE GLASSES When assembling or dismantling a hand pallet truck, protective glasses must be worn to avoid personal injury. OPERATOR’S RESPONSIBILITY While operating a hand pallet truck, always wear safety equipment and operate in a responsible manner to ensure a safe work area. -
Page 5: Safety Procedures
SAFETY PROCEDURES (Read and understand prior to using this product) • Read and obey all labels on this product. If you have any questions about these, ask your supervisor. • Do not operate this hand pallet truck unless you are authorized and trained to do so. •... -
Page 6: Maintenance
If the forks do not rise evenly at the tips, or the roller levers begin to drag on the floor, the following adjustment is necessary: LCF55 MODEL • Turn the hand pallet truck over so that the underside of the forks are accessible. - Page 7 Your hydraulic system is maintenance free. Do not add hydraulic oil unless there is, or has been, a leak. Use ISO VG 15 grade hydraulic oil or equal for LCF55 model trucks. Other oils, fluids, or solvents may damage your hydraulic system. If you suspect additional oil is required, follow these steps: 1.
-
Page 8: Troubleshooting
TROUBLESHOOTING CONDITION POSSIBLE CAUSE ACTION Pump does not lift load. An air lock in the hydraulic Pull up on fingertip control and hold system. while pumping the handle 8 to 10 times to bleed air from the system. Lifting, neutral, and lowering Chain anchor out of adjustment. -
Page 9: Hydraulic Assembly
COMPLETE HYDRAULIC ASSEMBLY (1151454/001) ITEM DESCRIPTION PART NO. COMPLETE HANDLE (ITEMS 2-10) 1154730/001 SPLIT PIN 20105 CONTROL LEVER 173765 CONTROL LEVER SLEEVE 54140BT CONTROL LEVER SPRING 218182 CHROME BALL 20065 CONTROL ROD ASSEMBLY 253089 SPLIT PIN 20461 AXLE 47930 ROLLER WITH BUSHING 165196 AXLE 7500087... -
Page 10: Lcf55 Chassis
MODEL LCF55 CHASSIS DIAGRAM ITEM DESCRIPTION PART NO. CHASSIS 1154178/001 TORSION BAR - 27 IN. WIDE TRUCK 1156049 BUSHING PN-20203A BULKHEAD PIN PN-20204 SPRING PIN PN-20269A EYE BOLT PIN PN-20227 SPRING PIN PN-20269B THRUST PLATE PIN 179328 BUSHING PL-30206 GREASE FITTING... -
Page 11: Parts
RECYCLING YOUR OLD LIFT-RITE PARTS Chassis Steel, zinc Roller suspension Steel, cast iron, zinc Bushings Brass Grease fittings Steel Rollers Nylon, steel Hydraulic body Cast iron, zinc Thrust plate Cast iron, zinc Handle Steel, zinc Wheel Nylon, steel Bushings Brass Hydraulic oil Disposal in accordance with local regulations Assembly parts... -
Page 12: Warranty
HAND PALLET TRUCK WARRANTY The Lift-Rite Titan Series Hand Pallet Trucks, Model LCF55 version, are warranted against defects in materials and workmanship for a period of six (6) months from date of installation. Components found to be defective by an authorized Lift-Rite Sales and Service Center during the warranty period will be replaced or repaired as indicated above. - Page 13 Lift-Rite, 5975 Falbourne Street, Mississauga, Ontario L5R3L8 Tel: Toll Free from USA: 1-800-558-6012; Tel: 1-905-456-2603 (Canada and International) Fax: 1-905-456-1383 Owners Manual, Operating Instructions, and Replacement Parts Manual, Publications Number 1156119A ©2012 Dated 14 Aug 2012...
