Apacer Technology PH150 User Manual

High-Speed USB 2.0 Hub
PH150 User's Manual
Introduction

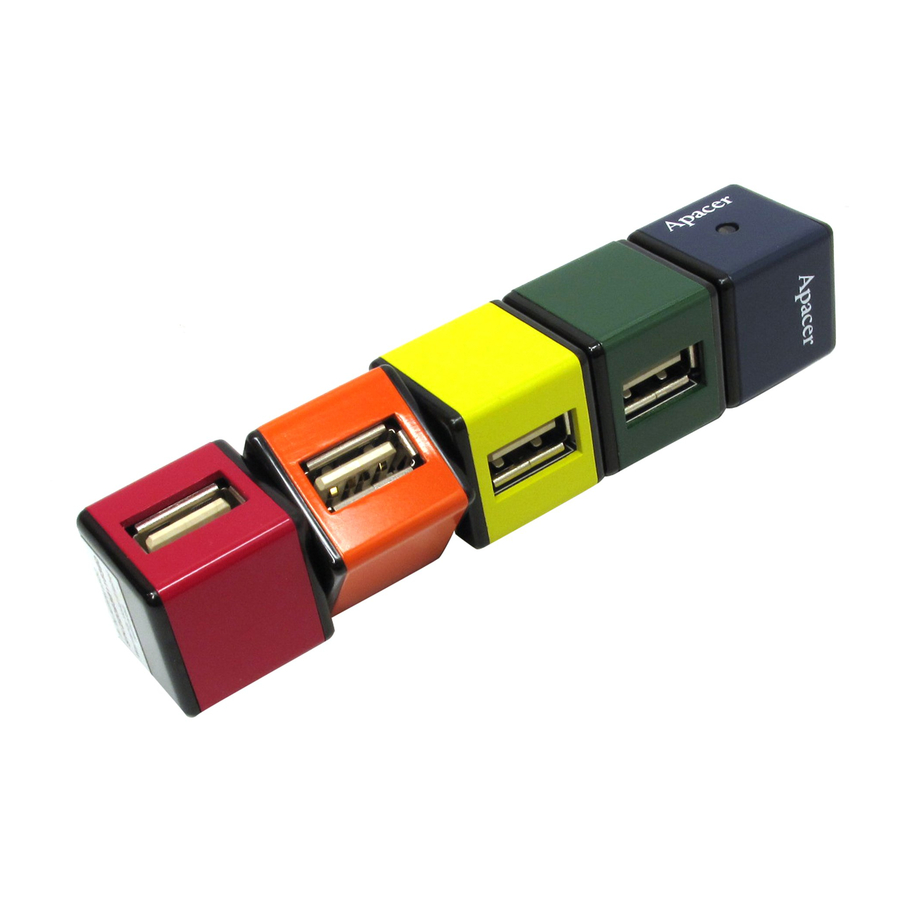

Thank you for purchasing the Apacer Hi-Speed USB 2.0 hub. The hub
provides four downstream USB ports allowing you to add more USB
peripherals to your computer. The PH150 is 100% compliant with USB 2.0
specification and is backwards compatible with USB 1.1 as well. The PH150
can support all of your existing USB devices.
Featuring a rotatable USB port design design, PH150 allows users to
easily connect multiple high performance USB peripherals and large devices
such as high-resolution video cameras, scanners, printers, storage devices and
others.
Features
USB 2.0 High-Speed interface, supports transfer rates up to
480Mbps
Backwards compatible with USB 1.1 specification
Offers both bus-powered mode and self-powered mode
Automatic connection and speed detection
Over-current detection and protection
Two rotatable ports, easy to connect multiple devices and large
USB devices
Plug-and-play, support hot swapping of USB devices
System Requirements
Pentium processor or higher
USB Interface: one free USB port (USB 2.0-compliant host is
required for operating at high-speed mode)
O/S Support: Windows 98SE/ME/2000/XP, MAC OS 8.6 & above,
Linux kernel 2.4.0 & above (except MAC OS X, devices under all
other MAC O/S will only operate at 1.2 to 12Mbps)
Packing List
PH150, High-Speed USB 2.0 4-port hub
USB extension cable
User's Manual
Installation Notice
Windows will detect PH150 and install the required driver
automatically, please don't connect any USB device to the hub
before auto installation is complete
If PH150 is connected to a USB 1.1 host controller, the max. USB
1.1 bandwidth of 12 Mbps is shared across all four ports
The hub can be used without the optional power adapter with
most USB devices
Specification
USB interface USB 2.0 High-Speed
Extended ports 4 downstream (two ports are rotatable)
Power source Bus-powered mode
Self-powered mode (max. 500mA)
Compatibility ACPI, OHCI and EHCI compliant
Operating system Windows 98SE/ME/2K/XP
MAC OS 8.6 & above
Linux Kernel 2.4.0 & above
Certifications CE, FCC, BSMI, RoHS
