Home Theater Audio Processor
GTV-HT-AUDPROC
User Manual
www.gefentv.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTV-HT-AUDPROC and is the answer not in the manual?

Questions and answers

Summary of Contents for GefenTV GTV-HT-AUDPROC

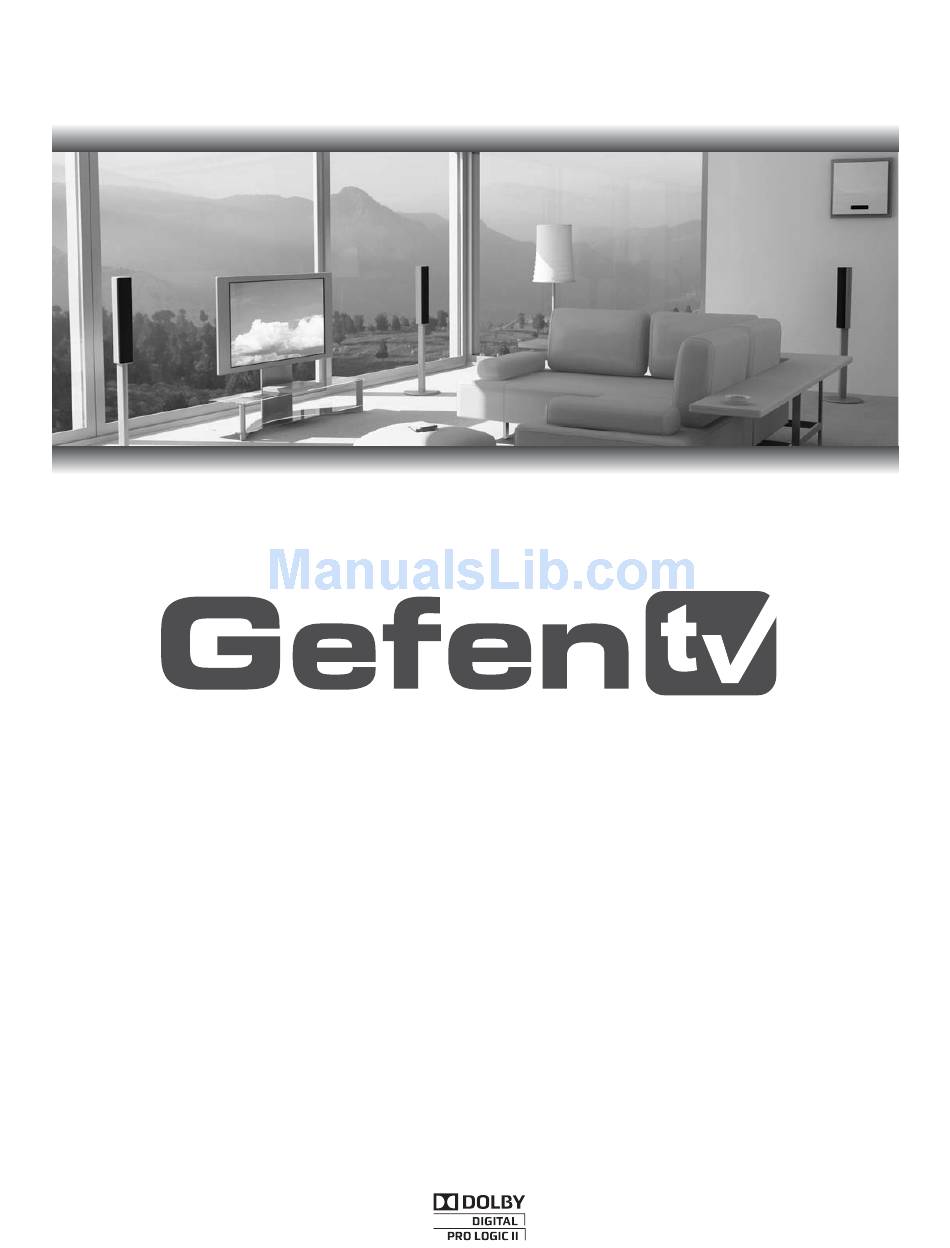

  • Page 1 Home Theater Audio Processor GTV-HT-AUDPROC User Manual www.gefentv.com...
  • Page 2 Gefen LLC reserves the right to make changes in the hard ware, packaging, and any accompanying doc u men ta tion without prior written notice. GefenTV Home Theater Audio Processor is a trademark of Gefen, LLC Manufactured under license from Dolby Laboratories.
  • Page 3: Table Of Contents

    CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting The Home Theater Audio Processor GTV-AUD-IR Remote Layout 10 GTV-AUD-IR Remote Descriptions 11 GTV-AUD-IR Remote Installation 11 Home Theater Audio Processor Remote Installation 12 Operating the Home Theater Audio Processor 20 Speaker Format Table 22 Bi-Amping 23 RS-232 Serial Control Interface...
  • Page 4: Introduction

    Gefen invites you to explore the distinct GefenTV product line and hope that you fi nd the solution that fi ts your needs.
  • Page 5: Operation Notes

    OPERATING THE HOME THEATER AUDIO PROCESSOR • The GefenTV Home Theater Audio Processor is designed to be used with speakers, using fi ve full-bandwidth channels and one low frequency channel. RCA outputs are provided for connecting the GefenTV Home Theater Audio Processor to a separate audio amplifi...
  • Page 6: Features

    Small in size • This product is HDMI and HDCP-compliant Package Includes (1) GefenTV Home Theater Audio Processor (1) 6 ft. HDMI cable (M-M) (1) 6 ft. S/PDIF cable (1) IR remote control (battery included) (1) 24V DC Power Supply...
  • Page 7: Panel Layout

    PANEL LAYOUT Front Back 22 21 20...
  • Page 8: Panel Descriptions

    PANEL DESCRIPTIONS Power Status LED Indicator This LED will indicate the current power state. When the LED is red, the unit is in standby mode. When the LED is green, the unit is on. Infrared Sensor This infrared sensor will accept commands from the included GTV-AUD-IR remote control.
  • Page 9 PANEL DESCRIPTIONS Mode / OK Button This button will change the Processing Mode when not in the Menu System. While in the Menu System this will be used as a confi rmation button. 10 Exit Button This button is used to exit the current menu level and return to the previous/ parent level.
  • Page 10 PANEL DESCRIPTIONS 17 Optical (TOSLINK) Audio Output This output is constantly active. Audio that is extracted from the input HDMI source device or via the coaxial input is directly output through this connector. Processing and features of the Home Theater Audio Processor are not applied to the audio passing through this connector.
  • Page 11: Connecting The Home Theater Audio Processor

    CONNECTING THE HOME THEATER AUDIO PROCESSOR How to Connect the Home Theater Audio Processor Connect an HDMI source device to the HDMI input port of the Home Theater Audio Processor using the included HDMI cable. Optionally, connect an additional audio source to the coaxial (S/PDIF) input using a user supplied coaxial cable.
  • Page 12: Gtv-Aud-Ir Remote Layout

    GTV-AUD-IR REMOTE LAYOUT Home Theatre Audio Processor Remote Control...
  • Page 13: Gtv-Aud-Ir Remote Descriptions

    GTV-AUD-IR REMOTE DESCRIPTIONS Power Off This is a discrete power off button. Pressing this button will turn the Home Theater Audio Processor off. Mode This button functions the same as the Mode button on the front panel. Left This button will navigate left when using the Menu System. Exit This button functions the same as the Exit button on the front panel.
  • Page 14: Gtv-Aud-Ir Remote Installation

    GTV-AUD-IR REMOTE INSTALLATION To use the GTV-AUD-IR remote, remove the battery cover on the back of the remote to reveal the battery compartment. Insert the included battery into the open battery slot. The positive (+) side should be facing up. Ensure that both DIP (Dual Inline Package) switches are in the OFF position.
  • Page 15: Operating The Home Theater Audio Processor

    OPERATING THE HOME THEATER AUDIO PROCESSOR NAVIGATION The Home Theater Audio Processor uses a series of buttons, located on the front panel, for all input selection and feature functions. All status information, such as the input audio type, are always available on the front panel LCD Screen. User adjustable features, such as speaker distance and processing modes, can be navigated and adjusted by referencing the LCD Screen.
  • Page 16 OPERATING THE HOME THEATER AUDIO PROCESSOR MAIN DISPLAY The Main Screen will display useful information to the user. It displays the currently selected input port and audio input format. The currently used output format can also be displayed by pressing the ▼ button. Pressing the ◄ or ► buttons while on this screen will have no effect.
  • Page 17 OPERATING THE HOME THEATER AUDIO PROCESSOR 3 - AUDIO FORMAT This portion of the screen will display the current audio inputs format. Please use the table below to determine what formats are accepted by each input type. Input Supported Audio Formats Supported Channels LPCM Dolby Digital...
  • Page 18 OPERATING THE HOME THEATER AUDIO PROCESSOR MENU SYSTEM NAVIGATION The Menu System will allow the user to confi gure features of the Home Theater Audio Processor. The front panel buttons are used to navigate the Menu System. Feature confi guration can also be accomplished via the IR remote control.
  • Page 19 OPERATING THE HOME THEATER AUDIO PROCESSOR SPEAKER SIZE This menu option will allow the user to select the speaker size to either SMALL or LARGE. When a speaker size is set to SMALL, all frequencies below 80Hz are automatically routed to the subwoofer channel. When a speaker size is set to LARGE, all frequencies will be routed to the speaker.
  • Page 20 OPERATING THE HOME THEATER AUDIO PROCESSOR • Front R - These settings will affect the front right channel output (default is +00dB). • Surr R - These settings will affect the surround right channel output (default is +00dB). • Surr L - These settings will affect the surround left channel output (default is +00dB).
  • Page 21: Tone Control

    OPERATING THE HOME THEATER AUDIO PROCESSOR TONE CONTROL This menu option will allow the user to adjust the bass and treble settings. These features were designed to allow the user to adjust the sound to their taste. Both the treble and bass settings can be adjusted in 1db increments between -12dB and +12dB .
  • Page 22 OPERATING THE HOME THEATER AUDIO PROCESSOR When fi nished, press the ▼ or ▲ to move to another selection. Alternately, the user can press the OK button to immediately cycle to the next option. To return to the previous menu, press the EXIT button. To exit the entire Menu System, press the MENU button.
  • Page 23: Speaker Format Table

    SPEAKER FORMAT TABLE SPEAKER AND FORMAT TABLE Speaker Size FavProcMode FL_R SL_R SL_R PLII(1) Direct(2) Stereo(3) Mono(5) Stereo(4) Small Small onsub Small 5.1ch 2.1ch 2.1ch 5.1ch 1.1ch Small Large onsub Large 5.1ch 2.1ch 2.1ch 5.1ch 1.1ch Large Small onsub Small 5.1ch 2.1ch 2.1ch...
  • Page 24 SPEAKER FORMAT TABLE SPEAKER AND FORMAT TABLE Speaker Size FavProcMode FL_R SL_R SL_R PLII(1) Direct(2) Stereo(3) Mono(5) Stereo(4) Small Small onsub Small — 5.1ch 2.1ch 5.1ch 1.1ch Small Large onsub Large — 5.1ch 2.1ch 5.1ch 1.1ch Large Small onsub Small —...
  • Page 25: Bi-Amping

    BI-AMPING BI-AMPING The Home Theater Audio Processor features 2 additional outputs, both speaker terminals and RCA outputs, for bi-amping the front right and left audio channels. These outputs were intended to supply an additional set of front right and left audio channels for use with an amplifi...
  • Page 26: Rs-232 Serial Control Interface

    RS-232 SERIAL CONTROL INTERFACE 5 4 3 2 1 1 2 3 4 5 9 8 7 6 6 7 8 9 Only Pins 2 (RX), 3 (TX), and 5 (Ground) are used on the RS-232 serial interface RS-232 Settings Bits per second ....................
  • Page 27: Rs-232 Commands

    RS-232 COMMANDS RS-232 Command Table Command Code Response Description POWER 0 > POWER OFF POWER OFF POWER 1 > POWER ON POWER ON Audio volume adjust from maximum to VOL +10~-60 > VOL +10~-60 minimum VOL + > VOL +10~-60 Increase audio by 1 VOL - >...
  • Page 28 RS-232 COMMANDS Command Code Response Description SIZEFLR 0 Front speaker Small SIZEFLR 0 Front speaker Large SIZEC 0 Center speaker Small SIZEC 1 Center speaker Large SIZEC 2 Center speaker Off SIZELR 0 Surround speaker Small SIZELR 1 Surround speaker Large SIZELR 2 Surround speaker Off SUB 0...
  • Page 29: Specifications

    SPECIFICATIONS Pixel Clock ....................165 MHz Input DDC Signal ................5 V p-p (TTL) Single Link Range .............. 1080p @ 60 Hz (max.) Maximum Power Output ................25 W RMS Digital Audio Input ..............1 x S/PDIF coaxial HDMI Input ..............1 x HDMI Female 19-pin HDMI Outputs ..............
  • Page 30: Warranty

    WARRANTY Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
  • Page 31 Rev A4 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
