Norton CT601MP Operating Instructions Manual

Power float
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CT 601 MP
OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT601MP and is the answer not in the manual?

Questions and answers

Summary of Contents for Norton CT601MP

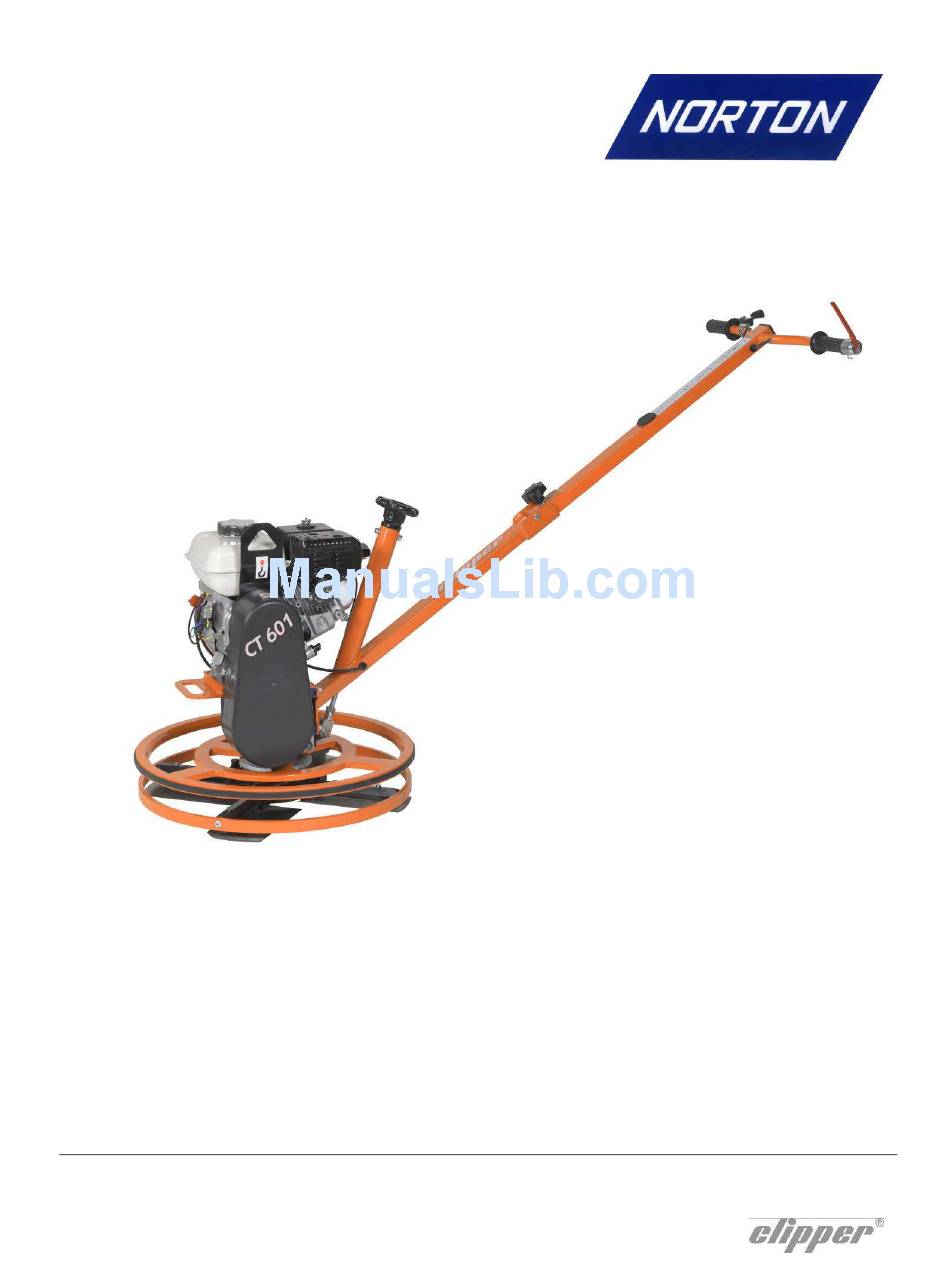

  • Page 1 CT 601 MP OPERATING INSTRUCTIONS...

  • Page 3: Declaration Of Conformity

    Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD J.F. KENNEDY L- 4930 BASCHARAGE Declares that this product: CT 601 MP 70184629945 Power Float Code: is in conformity with the following Directives: • European Machinery Directive 2006/42/EC Pierre Mersch Business Manager Machines Europe...

  • Page 5: Table Of Contents

    CT601MP OPERATING INSTRUCTIONS AND SPARE PARTS LIST Basic Safety Instructions Symbols 1.2 Machine plate Safety instructions for particular operating phases Machine description Short description Purpose of use Layout Technical Data Assembly and commissioning Handle Tool assembly Starting the machine Transport and storing...

  • Page 6: Basic Safety Instructions

    1 Basic Safety Instructions The CT601MP is exclusively designed for the finishing of wet concrete floors mainly on construction sites. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne entirely by the user.

  • Page 7: Safety Instructions For Particular Operating Phases

    • Always use the machine with the safety guard ring and protection guards in position. • Only fit NORTON blades or plates to the machine! The use of other tools can damage the machine! • Attention is drawn to the use of BS2092 safety goggles in conformity with specified Processes No.8 of the Protection of Eyes Regulation 1974, Regulation 2(2) Part 1.

  • Page 8: Layout

    2.3 Layout Handle (1) Jig welded steel construction including 2 rubber grips. A dead-man handle (7) allows the operator to work safely and to stop the machine at any moment. The angle of the machine arm can be adjusted to operate the machine comfortably. Pitch of the blades (2) The pitch of the blades is controlled over a knob on the handle.

  • Page 9: Technical Data

    3.2 Tool assembly Only NORTON blades or plate with a maximum diameter of 600 mm can be used with the CT601MP. Before mounting a new tool into the machine, switch off the machine and make sure the tools are not rotating anymore.

  • Page 10: Starting The Machine

    3.3 Starting the machine Turn the fuel valve to the ON position. Fully Move the choke lever to the CLOSED position. press the dead-man handle against the main NOTE: do not use the choke if the engine is handle. warm or the air temperature is high. Move the throttle control lever slightly to the Pull the starter grip lightly until you feel left.

  • Page 11: Transport And Storing

    4 Transport and storing 4.1 Securing for transport Before transporting the machine, always remove the blades and the plate. 4.2 Transport procedure Conform yourself to work regulations, in order to transport the machine safely. To lift the machine, use the lifting eye. Make sure that your lifting device is securely fastened to the lifting eye.
  • Page 12 • To the right (IV), push down the handle. Tilting the blades Floating the slab is done with the blades nearly flat on the surface of the concrete; however it is recommended that the blades are just slightly tilted to avoid the suction and drag created in normal operation of float blades on wet concrete.

  • Page 13: Maintenance And Servicing

    6 Maintenance and servicing 6.1 Maintenance of the machine To ensure a long-term quality from the use of the CT601MP, please follow the maintenance plan below: Whole machine Visual control (general aspect, water tightness) Clean Surface of blades or plate...

  • Page 14: Maintenance Of The Engine

    6.2 Maintenance of the engine Regular service period Perform at every indicated month or operating hour interval, whichever comes first Check level Engine oil Change Check Air cleaner filter Clean Fuel strainer cup Clean Spark plug Check-Clean Fuel line Check (Replace if necessary) Every 2 years Engine oil To change the oil,...
  • Page 15 • Paper element: tap element lightly several times on a hard surface to remove excess dirt blow compressed air lightly through the filter from the inside out. Never brush the dirt off; brushing will force dirt into the fibres. • Foam element: clean in warm soapy water, rinse...
  • Page 16 • Install the plug fingertight to seat the washer, then tighten with a plug wrench (an additional ½ turn if a new plug) to compress the sealing washer. If you are reusing a plug, tighten 1/8- 1/4 turn after the plug seats. Fuel line To service the fuel line, follow these instructions:...

  • Page 17: Faults: Causes And Cures

    This machine has been manufactured by Saint-Gobain Abrasives S.A. 190, Bd. J.F. Kennedy L- 4930 BASCHARAGE Grand-Duché de Luxembourg. Tel.: 00352-50401-1 Fax: 00352- 50 16 33 http://www.construction.norton.eu e-mail: sales.nlx@saint-gobain.com...
  • Page 18 Austria e-mail: nortonbp@axelero.hu Saint-Gobain Abrasives GmbH Telsenberggasse 37, Czech Republic A-5020 SALZBURG Norton Diamantove Nastroje Sro Tel: 0043 662 43 00 76 77 Vinohrdadska 184 Fax: 0043 662 43 01 75 CS-13000 PRAHA 3 e-mail: office@sga.net Tel: 0042 0267 13 20 21...
  • Page 20 SAINT-GOBAIN ABRASIVES 190, Bd. J. F. Kennedy L-4930 BASCHARAGE LUXEMBOURG Tel.: ++352 50401-1 Fax: ++352 501633 e-mail: sales.nlx@saint-gobain.com www.construction.norton.eu 18.02.2009...
