Summary of Contents for Peachtree Audio DAC•iTx
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these instructions – All the safety and operating instructions should be read before this product is operated. Keep these instructions – The safety and operating instructions should be retained for future reference. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. - Page 3 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. - The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage”...
- Page 4 Introduction Front Panel Back Panel Connections Remote Control Useful Tips and more... Troubleshooting Product Guarantee and Service Technical Specifications...
- Page 5 Welcome to your Peachtree Audio DAC•iT x ! Our goal at Peachtree is to design products that provide you with a magical musical experience. We believe the DAC•iT x reaches that goal. At the heart of the DAC•iT x is an advanced ESS Sabre DAC. The secret to the sonic performance of the DAC•iT x is the Peachtree design team’s carefully-engineered...

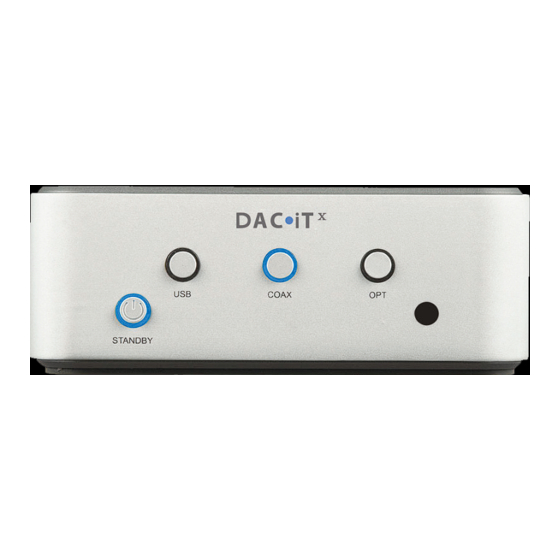

- Page 6 COAX STANDBY Standby: The DAC•iT x is in standby mode when this button glows green. Push to turn on the DAC•iT x ; the button will light up blue. When you are finished listening, push again to return to standby mode. Digital USB Input: Push to hear music from your connected computer or other USB audio source.
- Page 7 SERIAL NO Designed in USA Made in China LINE OUT COAX Line Out: To connect the analog output of the DAC•iT x to your preamplifier, integrated amplifier or receiver. The level is fixed (non-variable). Use your audio system’s volume control to adjust listening levels. USB Digital Input: To connect directly to your computer via a USB cable.
- Page 8 • Coaxial Digital Input: Connect the coaxial output from any digital source, using a coaxial digital cable. Push the “COAX” input button on the front of the DAC•iT x to listen. • Optical Digital Input (sometimes called Toslink): Connect the optical output from any digital source, using an optical digital cable.
- Page 9 On/Standby: Puts the DAC•iT x in or out of “Standby”. Mute: Mutes or un-mutes the output of the DAC•iT x . OPT: Selects a source connected to an optical (Toslink) digital input. COAX: Selects a source connected to a coaxial digital input. USB: Selects a digital audio source connected to the USB input.
- Page 10 At Peachtree Audio we think products should be easy to use. No custom USB drivers are needed for Mac OS. Windows PCs do not comply with USB 2.0 standards so single driver is needed to insure 24/192 streaming. The DAC•iT x ’s USB digital input accepts music files from your computer’s hard drive and streams from internet radio Apps like MOG, Pandora, RDio, and Spotify.
- Page 11 For critical listening to music from your computer, avoid keeping multiple programs open. It can compromise the sound quality and even cause signal dropouts. Avoid plugging and unplugging the USB input multiple times in a short time span. It usually is not a problem but increases the chance of a voltage spike to the USB input.
- Page 12 When you switch from one Sometimes this is from static buildup but it should not occur consistently source to another you get a over a long period of time. Contact your dealer or Peachtree Audio if this loud “click” or “pop” persists.
- Page 13 Units that are covered under this guarantee include DAC•iT x s purchased from an authorized DAC•iT x distributor or dealer. Peachtree Audio can take no responsibility for defects arising from accident, mis- use, abuse, wear and tear, neglect or through unauthorized adjustment and/or repair.
- Page 14 • 3 digital inputs USB, Coax, Optical • Fixed line-level RCA stereo output • ESS ES9023 Sabre DAC • 24Bit/192kHz USB capability • 24Bit/192kHz coaxial digital capability • 24Bit/192kHz optical digital capability • S/N 120dB • Output voltage 2.0V • Output impedance 200 ohms •...
