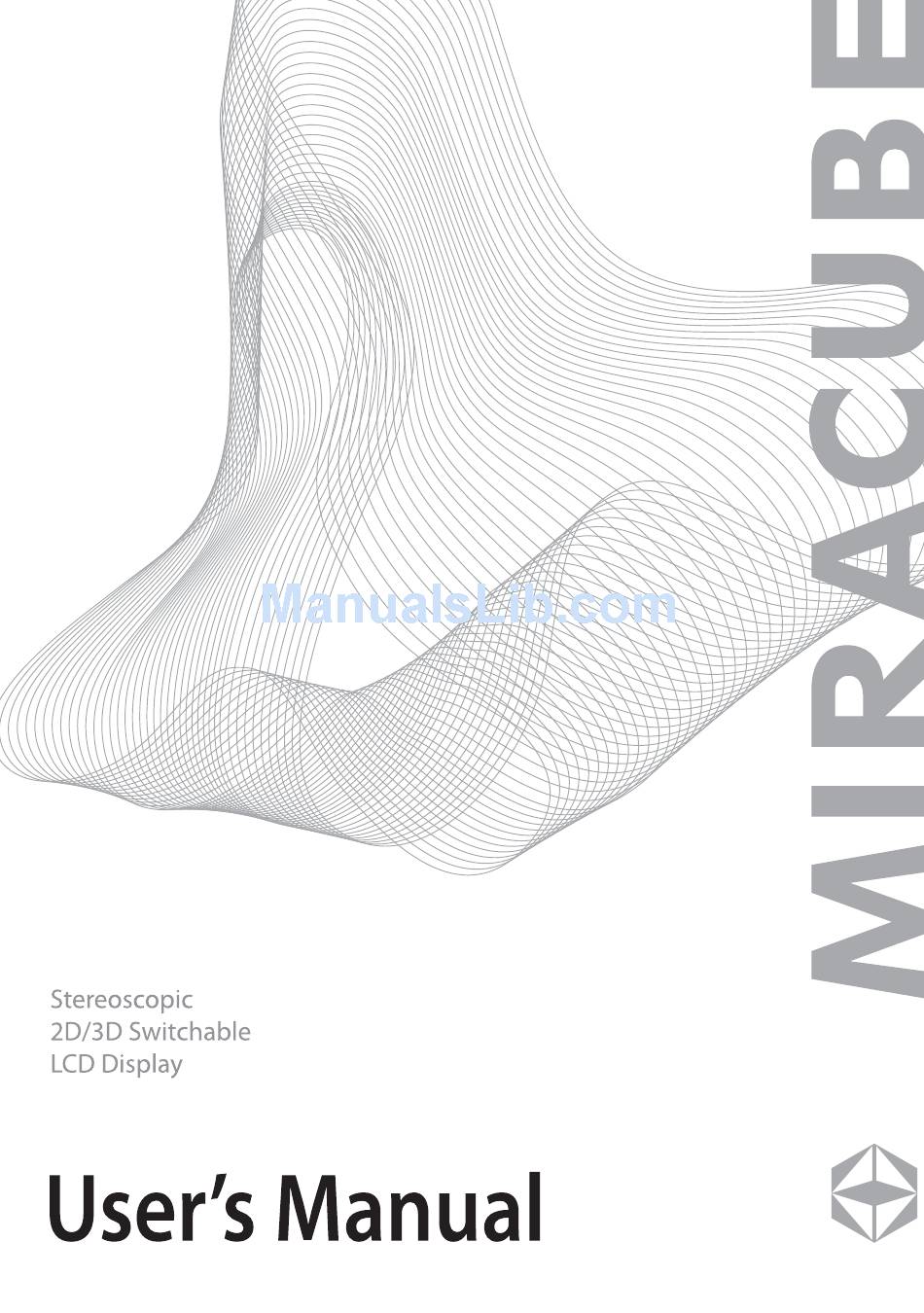

Summary of Contents for Miracube Stereoscopic 2D/3D Switchable
-
Page 2: Table Of Contents
Contents Chapter 1 Precautions Chapter 3 How to Use 1. 2D and 3D Modes 1. Power 2. Installati on 2. 2D Mode Screen Adjustment 3. Move ① Change in Video Input Channel 4. Usage ② Screen Auto Adjustment ③ Fine Adjustment 3. - Page 3 For safe and effi cient use of the product, read the manual thoroughly. Warning : Neglecti ng this sign and misusing the product may result in fatality or severe injury. Cauti on : Neglecti ng this sign and misusing the product may result in injury or physical damage. Prohibited : This sign indicates the acti ons that should be prohibited.
-
Page 4: Power
Precautions 1. Power 2. Installation 3. Move 4. Usage... - Page 5 Precauti ons . Power Warning Connect the power plug to an outlet which is GROUNDED. Otherwise electric shock or injury may occur (limited to insulati on-type 1 devices). During thunder and lightning, disconnect the power cable and signal cable from the monitor, otherwise electric shock or fi...
-
Page 6: Installati On
Precauti ons Disconnecti ng the power cord during the use of the monitor may cause electric shock and damage the monitor. Contact the service center fi rst for the usage of a power other than 110-220V. This 110v- 220v product is set to be used at the power of 110-220V / 60Hz when shipped from the plant. -
Page 7: Move
Precauti ons DO NOT place heavy objects on the monitor or climb up on the monitor. Injuries may occur for being dropped down from the monitor: especially for children. Please do not let your children play with the monitor and always supervise their usage of the monitor. -
Page 8: Usage
Precauti ons Ensure that the product is not dropped or bumped in any way while being moved. Keep the box in which the product was delivered. It will be of use for moving the product. Ensure that the product’s panel faces forward, carry by grabbing it with both front hands. - Page 9 Precauti ons Cauti on DO NOT stab or scratch the panel with a hand or any sharp objects (nail, pencil, pen, etc.). The panel can be scarred, which may cause malfuncti oning. In cases where 3D images are watched for a long ti me, dizziness or fati gue can be felt.
-
Page 10: Product Components
Product Description 1. Product Components 2. Name of Components ① Front ② Back ③ Side 3. Product Connection and Usage ① Power Connection ② PC and Monitor Connection ③ Connection with Video Devices ④ Connection Status Checkup... - Page 11 Product Descripti on . Product Components Check if all the parts and accessories are in the box. If any components are missing from what is stated below, please contact the retail store where the product was purchased. For purchasing additi onal parts or accessories, contact the service center.
-
Page 12: Name Of Components
Product Descripti on . Name of Components ① Front 3D LCD Panel Monitor Prop ② Back Venti lati on Outlet ※ The power and input/output terminals of the 32/46 inch monitor are located inside at the back of the monitor. - Page 13 Product Descripti on Detailed Descripti on on Input Terminal ※Ensure that only Power Input DVI Input RGB Input Terminal the provided adaptor is used. Terminal Terminal ※The 32 inch monitor and 46 inch monitor have diff erent locati on for the power and input/output terminals.
-
Page 14: ③ Side
Product Descripti on ③ Side Detailed Descripti on on Butt ons 2D/3D screen conversion / Enter at OSD menu Auto butt on on the 2D screen / Reverse butt on on the 3D screen Entering OSD menu or moving to other menus Confi... -
Page 15: Product Connecti On And Usage
Product Descripti on . Product Connecti on and Usage ① Power Connecti on ※ The power code is connected to the 32/46 inch monitor with no adaptor DC 24V Connect the power cord to the DC power device (DC 24V adaptor). -
Page 16: ② Pc And Monitor Connecti On
Product Descripti on ② PC and Monitor Connecti on Monitor Backside ※ If the D-SUB and DVI cables are connected to a single computer at the same ti me, the screen may fail to display the off image with some types of the video cards used. -
Page 17: ③ Connecti On With Video Devices
Product Descripti on ③ Connecti on with Video Devices The component (Y, CB, CR) cable should be purchased separately. For purchasing, contact the service center. Monitor Backside ※ Specifi c models are available to connect with video devices. Connect the component cables as is shown above. -
Page 18: ④ Connecti On Status Checkup
Product Descripti on ④ Connecti on Status Checkup Turn on the monitor by pressing the Power On butt on of the monitor. See whether the screen works aft er the PC is turned on. If the monitor works well, the LED indicati on will turn green (2D mode), or yellow (3D mode). -
Page 20: D And 3D Modes
How to Use 1. 2D and 3D Modes 2. 2D Mode Screen Adjustment ① Change in Video Input Channel ② Screen Auto Adjustment ③ Fine Adjustment 3. Screen Adjustment for 3D Mode ① Conversion to 3D Mode ② 3D Format Confi guration ③... -
Page 21: D Mode Screen Adjustment
How to Use . 2D Mode and 3D Modes Aft er turning on the monitor, see which mode it is through the LED lamp. green mode : 3D mode yellow ※ If the screen does not work normally, or the LED lamp indicates yellow, the monitor is then operated by the 3D mode. -
Page 22: ① Change In Video Input Channel
How to Use ① Change in Video Input Channel (Hot Key) In the 2D mode, press the “ ” butt on to link automati cally to the Analog, DVI, or Component. The monitor remains at its original status if there is no input. - Page 23 How to Use Select Input Port DO NOT connect to the product the RGB cable and component cable at the same ti me. Signal collision may arise. Select Analog RGB Port : Analog RGB Press “ ” → Press “...
- Page 24 How to Use Brightness, Contrast, Hue and Saturati on Adjust Brightness : Bright Control Press “ ” → Move to “ ” by pressing “ ” and “ ” Brightness butt ons → Press “ ” → Move to “...
- Page 25 How to Use Adjust Color : Adjust the colors (Red, Green and Blue) of the monitor’s image at the menu of Manual Adjustment, Automati c Adjustment, Color Temperature Selecti on, Standard Selecti on (SRGB), etc. Adjust Image : For the opti mal display of images on the monitor panel, adjust at the menu of Screen Size Adjustment, Screen Coordinates Adjustment, Phase Adjustment, Auto Adjustment, etc.
- Page 26 How to Use Confi gure Environment : Return to the initi al confi gurati on value, and change in the input values (RGB, DVI) are available in this menu. If the screen does not work properly due to unskilled confi...
-
Page 27: D Mode Screen Adjustment
How to Use . 3D Mode Screen Adjustment ① Conversion to 3D mode In the 2D mode, press “ ” butt on and the OSD menu, as is shown below, will indicate that the conversion to 3D mode is progressing, and disappear aft er a while. - Page 28 How to Use Frame sequenti al format : As an image format which displays sequenti ally the images of left eye and right ※ the frame rate is reduced to one half, the images may look eye (hereinaft er L and R images) over the whole monitor (1280x1024 resoluti on), like they are fl...
- Page 29 How to Use Subfi elds format : ※ The verti cal resoluti on is This format displays the L and R images over the whole monitor (1280x1024 reso- reduced to one half. luti on) with each resoluti on of them halved (1280x512 resoluti on) and laid from top to bott om.
-
Page 30: ③ Left - Right Image Converter
How to Use ③ Left - Right Image Converter The reason why we are able to disti nguish how far an object is located from us is because we have two eyes. In other words, both the left and right eyes sense the same object, but each looks at it in a diff... -
Page 31: Others
How to Use . Others System Capacity Recommended for 3D Mode CPU: Penti um4 3Ghz or higher (For playing the videos and games) RAM: 1GB SDRAM or higher OS: Windows 98, Windows 2000, Windows XP Graphic Card: NVIDIA Geforce FX 5700 or higher or other graphic cards which support Stereo Driver (For playing the 3D games) On-and off... -
Page 32: Chapter 4 Troubleshooting
Troubleshooting Checkpoints... - Page 33 Troubleshooti ng Checkpoints Problem: The CRT monitor works. But, the LCD monitor doesn’t work. Answer: Checkpoint: Does the sign “Out of Range” appear on the screen? Soluti on 1: Reboot the PC. Soluti on 2: Change the resoluti on and the frequency.
- Page 34 Troubleshooti ng Problem: The lett ers and shapes are blurred. There is horizontal noise. Answer: Checkpoint: Are the resoluti on and frequency confi gurati ons set right? AUTO Soluti on: Press the “ ” butt on. Problem: The monitor is out of focus in the 3D Subfi eld Mode? Answer: There can be some gaps between the 3D contents produced in the Subfi...
-
Page 36: Chapter 5 Service Information
Service Information Inquiry & A/S Request Product Specifi cations... - Page 37 URL : www.miracube.net Manufacturer : Pavonine Korea Inc (82-32-851-6060) Collect the informati on from the internet From the internet, download the manual on Miracube’s website. www.miracube.net/support/ The above website provides a variety of drivers and contents, too. Pavonine Korea Inc...
-
Page 38: Product Specifi Cati Ons
Service Informati on Product Specifi cati ons G460X G320S G240M Screen Size 31.51”(80.04cm) 24”(60.96cm) 46”(116.84cm) Panel Type TFT color LCD TFT color LCD TFT color LCD 3D Type Glasses Glasses Glasses Resoluti on 2D : 1920 X 1080 2D : 1360 X 768 (PC) - Page 39 Service Informati on Product Specifi cati ons G170S C190X C190S Screen Size 17”(43.2cm) 19”(48.0cm) 19”(48.0cm) Panel Type TFT color LCD TFT color LCD TFT color LCD 3D Type Glasses Non Glasses Non Glasses Resoluti on 2D : 1280 X 1024...
