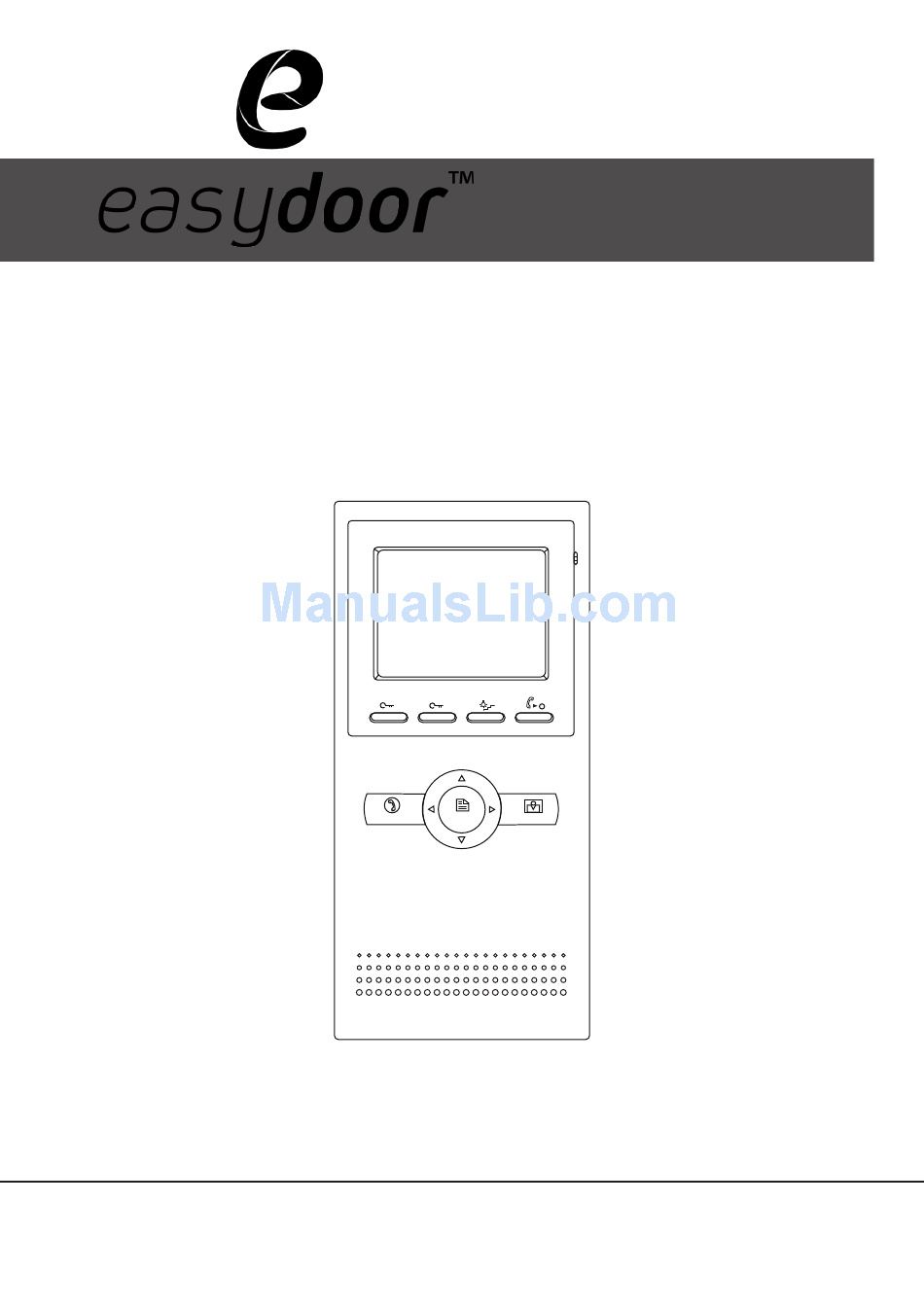

  • Page 1 VM 35 User Manual TALK MONITOR MENU...

  • Page 2: Table Of Contents

    CONTENTS 1.Parts and Functions ..........1 2.Monitor Mounting ............ 1 3.Operations ............... 2 3.1 Answering a door call ........2 3.2 Door release ............. 2 3.3 Entrance monitoring ......... 3 3.4 Intercom function ..........3 3.5 Image and Volume Adjust ........ 3 3.6 Basic Setup Instructions ........

  • Page 3: Parts And Functions

    1.Parts and Functions LCD Screen Microphone UNLOCK Button Second UNLOCK Button Connection Port Staircase Light Button LED Indicator CALL Button MENU Button Extend Port DIP Switches 1 2 3 4 5 6 TALK MONITOR MENU MONITOR Button Direction Button TALK Button Mounting Hook Speaker 2.Monitor Mounting...

  • Page 4: Operations

    3.Operations 3.1 Answering a door call Press "CALL" button on doorstation. The monitor rings,and the visitor will be seen on video monitor. note: the screen turns off after 40 seconds if nobody answers. TALK MONITOR MENU iii. Press "TALK" button,you can communicate hands free with the visitor for 90 seconds. After finishing communication,press "TALK"...

  • Page 5: Entrance Monitoring

    3.3 Entrance monitoring Press "MONITOR" button when in standby. The screen will show the icon , press choose the first camera,the screen will display the image from the first door camera.Similarly, Press TALK MENU MONITOR TALK MONITOR MENU to choose the second one,Press to choose the third one, Press to choose the fourth one.

  • Page 6: Basic Setup Instructions

    SCREEN modes can be selected in sequence: NORMAL, USER, SOFT and BRIGHT. Whenever you modify BRIGHTNESS or COLOUR, SCENE item will be set to USER mode automatically. iv. The BRIGHTNESS and COLOR item is for the image quality setting, adjust the value to get the best image you like.

  • Page 7: Specifications

    vi. The Slave Addr Set item is for the master and Slave Addr Set -- 0 slave user code setting, it is set by installer. Guard Unit Set -- 0 Date/Time Set... vii. Guard Unit Set: if the item is set to 1, the Other Settings...
