Polaris INDY TRAIL RMK Service Manual page 378

TPS Testing - Continued

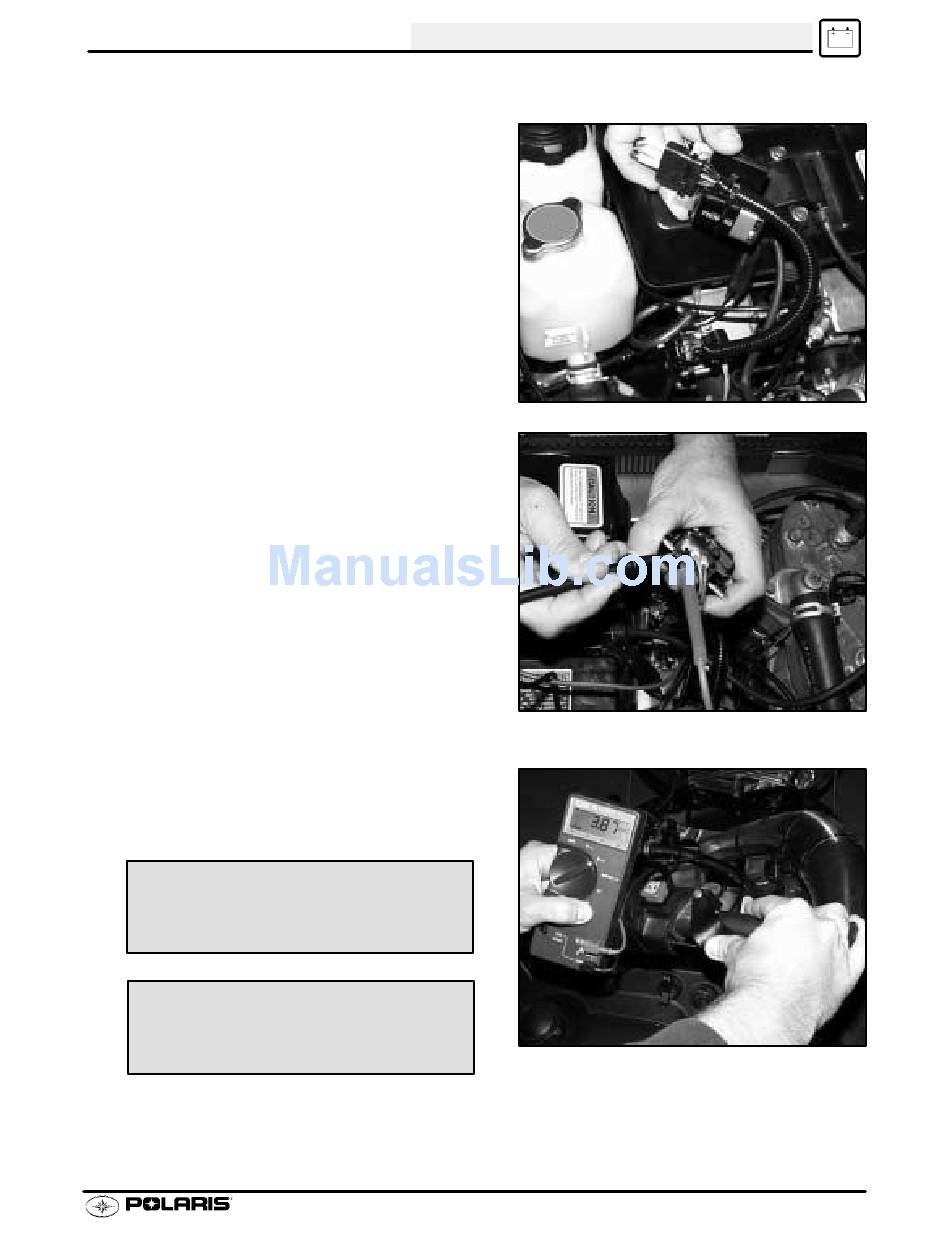

4. Install test harness connector on TPS.
5. Insert red voltmeter lead into yellow terminal, and
black lead to black terminal. Slowly open throttle
and check for smooth voltage change.
NOTE:The fluke meter will change scales and show
O.L. momentarily when throttle is opening.
6. Voltage at yellow terminal should be 4.0 to 4.2
volts at Wide Open Throttle for domestic engines,
and 3.77 volts for Fuji engines (800 XCR). If not,
the TPS must be adjusted to this specification.
TPS Volts at Wide Open Throttle -
Polaris Domestic Engines:
4.0 to 4.2 volts
TPS Volts at Wide Open Throttle -
Fuji 800 XCR Engine:
3.77 Volts
ELECTRICAL
9.25
