WARRANTY
(For the Original Owner Only)
K-Star Pool/Spa Heater is guaranteed for a period of one year from the date
of its purchase to the original owner against any manufacturing defects.
Exception: factory installed heating elements carry a 90 day limited
manufacturer warranty from date of heater installation only.
Any warranty claim must be pre-authorized by Consolidated Pool & Spa
Industries Inc. and claim must include: Model number, Serial number and
Date of purchase. Any defective unit shall be returned freight prepaid only.
Consolidated Pool & Spa Industries Inc. will not be responsible for
disconnection-reconnection charges.
The above warranty shall be considered void if:
i.
The installation instructions are not followed.
ii.
Unit is powered without any water circulation.
iii.
The power is disconnected and unit is not thoroughly drained at time of
winterizing.
iv.
The Unit has been mishandled.
v.
If corrosion of the unit's internal parts occurs by unit being exposed to a
salt water system, a system that uses salt to create a sanitizer or improper
water chemistry (applies to all non-titanium heater models only). Warranty
Registration must be done within ten days of purchase of the unit, by
mailing warranty card below to:
361 Rowntree Dairy Road, Unit 4
Woodbridge, ON L4L 8H1 Canada
Tel: 905.264.6496 Fax: 905.264.6508
Email:info@consolidatedpool.com
(For Warranty Information, Please Mail to Manufacturer.)
Customer's Name :
Address :
Phone :
Unit
Serial # :
Model # :
Date Purchased :
Installer's Name :
INSTRUCTION MANUAL

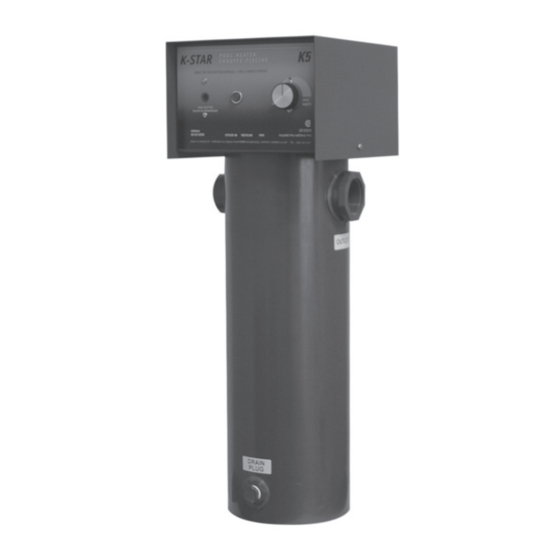

"K-STAR" ELECTRIC
POOL / SPA HEATERS
APPROVED LR 51670
MODELS:
K-5 / K-10 / K-15
361 Rowntree Dairy Road, Unit 4
Woodbridge, ON Canada L4L 8H1
Tel: 905.264.6496 Fax: 905.264.6508
Email: info@consolidatedpool.com
Advertisement
Summary of Contents for Consolidated K-STAR K-5
- Page 1 Exception: factory installed heating elements carry a 90 day limited POOL / SPA HEATERS manufacturer warranty from date of heater installation only. Any warranty claim must be pre-authorized by Consolidated Pool & Spa Industries Inc. and claim must include: Model number, Serial number and APPROVED LR 51670 Date of purchase.
- Page 2 READ AND FOLLOW ALL INSTRUCTIONS K-Star Heater may be installed indoors or outdoors at least 6” from any object. Ensure that the installation allows access for electrical and plumbing connections and that the Thermostat control is conveniently located. The installation of current leakage collectors should be done as per Figure 01 before permanently positioning Heater.
- Page 3 MECHANICAL INSTALLATION DIAGRAM Apply electric power to the heater, then rotate the thermostat control clockwise to the max. position. SHOWING BY PASS The red indication lamp will be lit when the heater is on. Caution: After the desired temperature is reached, re-adjust the thermostat i) Do not store chlorine near or in the same room as heater.
- Page 4 2 a) Electrical: Electrical work must be performed by a qualified Electrician supplying this equipment. Addition, bonding lugs are provided and marks and comply with the Canadian Electrical Code or the American National “Bonding Lugs” . To reduce the risk of electric shock connect the bonding lugs Standard Electrical Code lnforce.
