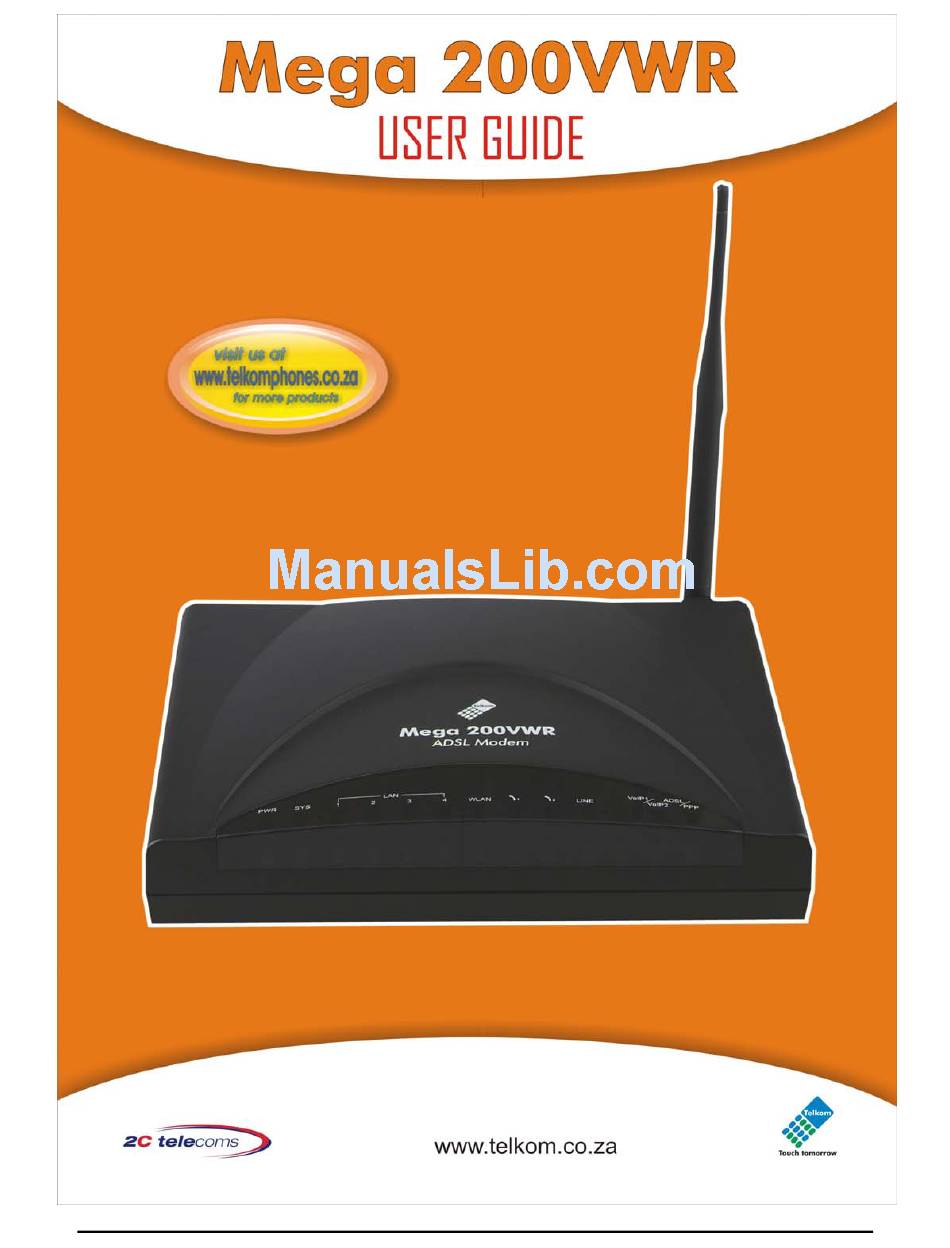

Mega 200VWR User Manual

Table of Contents

Quick Links

Download this manual

Table of Contents

Summary of Contents for Mega 200VWR

Page 1 Table of Contents...
Page 2: Table Of Contents
CHAPTER 1: INTRODUCTION ......................5 INTRODUCTION TO YOUR ROUTER....................5 FEATURES .............................. 5 CHAPTER 2: INSTALLING THE ROUTER ..................8 IMPORTANT NOTE FOR USING THIS ROUTER ................8 PACKAGE CONTENTS.......................... 8 THE FRONT LEDS ..........................9 THE REAR PORTS..........................10 CABLING ...............................11 CHAPTER 3: BASIC INSTALLATION ....................
Page 3 WAN - Wide Area Network........................43 ISP ..............................43 DNS ..............................53 ADSL.............................. 54 System ..............................56 Time Zone............................56 Remote Access..........................57 Firmware Upgrade.......................... 58 Backup / Restore..........................59 Restart Router ..........................60 User Management........................... 61 Firewall and Access Control ......................62 General Settings..........................
Page 4 PROBLEMS WITH THE LAN INTERFACE ..................157 APPENDIX A: WINDOWS 98 SETUP ....................158...
Page 5: Chapter 1: Introduction
Chapter 1: Introduction Introduction to your Router Your Mega 200VWR router is an “all-in-one” VoIP ADSL router, combining an ADSL 2+ modem, ADSL router, Ethernet network switch and 2 telephone ports for Voice over IP functionality, providing everything you need to get the computers on your network connected to the Internet over your ADSL connection.
Page 6 Mega 200VWR Router Multi-Protocol to Establish a Connection This router supports PPPoA, RFC 1483 encapsulation over ATM (bridged or routed), PPP over Ethernet and IPoA to establish a connection with the ISP. It also supports VC-based and LLC-based multiplexing. Quick Installation Wizard The router has a WEB GUI page to allow quick installation of the router.
Page 7 Mega 200VWR Router packets to and from the Internet, and provides a higher level of security control. Dynamic Host Configuration Protocol (DHCP) Client and Server On the WAN interface, the DHCP client can get an IP address from the Internet Service Provider (ISP) automatically.
Page 8: Chapter 2: Installing The Router
Mega 200VWR Router Chapter 2: Installing the Router Important note for using this router Do not use this router in high humidity or high temperatures. Do not use the same power source for this router and other equipment. Do not open or repair the case yourself. If this router is too hot,...
Page 9: The Front Leds
Mega 200VWR Router The Front LEDs Meaning Lit when power is ON. Lit when the system is ready. LAN Port Lit when connected to an Ethernet device. 3 – 6 1X — 4X Green for 100Mbps; Orange for 10Mbps. (RJ-45 connector) Blinking when data is Transmitted / Received.
Page 10: The Rear Ports
Mega 200VWR Router The Rear Ports The Ethernet Port # 4 can be used as a console port. You need a special console tool which is included in the package, to connect between LAN port 4 and a PC’s RS-232 port (9-pin serial port).
Page 11: Cabling
Mega 200VWR Router Use the supplied RJ-11 (“telephone”) cable to connect this port ADSL to the ADSL/telephone wall jack . Antenna Connect the detachable antenna to this port. Cabling One of the most common causes of ADSL problems is bad cabling or ADSL lines. Make sure that all devices connected to your telephone line are turned on, and that all telephones used on the line are connected via micro filters..
Page 12: Chapter 3: Basic Installation
Mega 200VWR Router Chapter 3: Basic Installation The router can be configured with your web browser. A web browser is included as a standard application in the following operating systems: Linux, Mac OS, Windows 98/NT/2000/XP/Me, etc. The product provides an easy and user-friendly interface for configuration.
Page 13: Connecting Your Router
Mega 200VWR Router Connecting Your Router 1. Connect this router to a LAN (Local Area Network) and the ADSL/telephone (ADSL) network. 2. Power on the device. 3. Make sure the PWR and SYS LEDs are lit steadily and that the LAN LED is lit.
Page 14 Mega 200VWR Router Configuring PCs in Window XP Go to Start / Control Panel (in Classic View). In the Control Panel, double-click Network Connections. Double-click Local Area Connection. (See Figure 3.1) Figure 3.1: LAN Area Connection In the LAN Area Connection Status window, click Properties.
Page 15 Mega 200VWR Router Configuring PCs in Windows 2000 Go to Start / Settings / Control Panel. In the Control Panel, double-click Network and Dial-up Connections. Double-click Local Area (“LAN”) Connection. (See Figure 3.5) Figure 3.5: LAN Area Connection In the LAN Area Connection Status window, click Properties.
Page 16 Mega 200VWR Router Configuring PC in Windows 95/98/ME Go to Start / Settings / Control Panel. In the Control Panel, double-click Network and choose the Configuration tab. Select TCP / IP -> NE2000 Compatible, or the name of the Network Interface Card (NIC) in your PC. (See Figure 3.9) Click Properties.
Page 17 Mega 200VWR Router Configuring PC in Windows NT4.0 Go to Start / Settings / Control Panel. In the Control Panel, double-click Network and choose the Protocols tab. Select TCP/IP Protocol and click Properties. (See Figure 3.12) Figure 3.12: TCP / IP Select the Obtain an IP address from a DHCP server radio button and click OK.
Page 18: Factory Default Settings
Mega 200VWR Router Factory Default Settings Before configuring your, you need to know the following default settings. Web Interface (Username and Password) Username: admin Password: admin The default username and password are “admin” and “admin” respectively. If you ever forget the username/password to login to the router, you may press the RESET button for more than 6 seconds to restore the factory default settings.
Page 19: Information From Your Isp
Mega 200VWR Router Information from your ISP Telkom ADSL connections use PPPoE, and automatically assign a WAN IP address to your router; The following information is provided should you wish to connect to an alternative ISP. . Gather the information as illustrated in the following table and keep it for reference.
Page 20: Configuring With Your Web Browser
Mega 200VWR Router Configuring with your Web Browser Open your web browser, enter the IP address of your router, which by default is 10.0.0.2, and click “Go”, a user name and password window prompt will appear. The default username and password are “admin”...
Page 21: Chapter 4: Configuration
Mega 200VWR Router Chapter 4: Configuration On the configuration homepage, the left navigation pane, where bookmarks are provided, links you directly to the various setup pages, including: Status ARP Table Wireless Association Routing Table DHCP Table PPTP Status IPSec Status...
Page 22: Status
Mega 200VWR Router Status ARP Table This section displays the router’s ARP (Address Resolution Protocol) Table, which shows the mapping of Internet (IP) addresses to Ethernet (MAC) addresses. This is useful as a quick way of determining the MAC address of the network interface of your PCs when you wish to use with the router’s Firewall –...
Page 23: Dhcp Table
Mega 200VWR Router Gateway/Interface: The IP address of the gateway, or existing interface, that this route will use. Cost: The number of hops counted as the cost of the route. RIP Routing Table Destination: The IP address of the destination network.
Page 24: Pptp Status
Mega 200VWR Router MAC Address: The MAC Address that you want to assign the fixed IP address. Maximum Lease Time: The maximum lease time interval you allow to this client. PPTP Status This shows details of your configured PPTP VPN Connections.
Page 25: L2Tp Status
Mega 200VWR Router L2TP Status This shows details of your configured L2TP VPN Connections. Name: The name you assigned to the particular L2TP connection in your VPN configuration. Type: The type of connection (dial-in/dial-out). Enable: Whether the connection is currently enabled.
Page 26: Event Log
Mega 200VWR Router Event Log This page displays the router’s Event Log entries. Major events are logged to this window, such as when the router’s ADSL connection is disconnected, as well as Firewall events when you have enabled Intrusion or Blocking Logging in the Configuration – Firewall section of the interface. Please see the Firewall section of this manual for more details on how to enable Firewall logging.
Page 27: Nat Sessions
Mega 200VWR Router NAT Sessions This section lists all current NAT sessions between interface of types external (WAN) and internal (LAN). Diagnostic It tests the connection to computer(s) which is connected to LAN ports and also the WAN Internet connection. If PING www.google.com...
Page 28: Upnp Portmap
Mega 200VWR Router UPnP Portmap The section lists all port-mappings established using UPnP (Universal Plug and Play). See the Advanced section of this manual for more details on UPnP and the router’s UPnP configuration options. Chapter 4: Configuration...
Page 29: Quick Start
Mega 200VWR Router Quick Start While it is recommended that you use the installation utility that was supplied with your router, It is also possible you use the built-in Quick Start function in order to configure your router. For detailed instructions on configuring your WAN settings, please see the WAN section of this manual.
Page 30 Mega 200VWR Router Click Start to begin scanning for encapsulation types offered by your ISP. If the scan is successful you will then be presented with a list of supported options: Select the desired option from the list and click Apply to return to the Quick Start interface to continue configuring your ISP connection.
Page 31: Configuration
Mega 200VWR Router Configuration When you click this item, you will be able to following sub-items to configure the ADSL router. - LAN, Wan, System, Firewall, VPN, VoIP, QoS, Virtual Server, Time Schedule and Advanced These functions are described below in the following sections.
Page 32: Ethernet
Mega 200VWR Router Ethernet Primary IP Address IP Address: The default IP on this router. SubNetmask: The default subnet mask on this router. RIP: RIP v1, RIP v2, and RIP v2 Multicast. Check to enable RIP function. IP Alias This function supports to create multiple virtual IP interfaces on this router. this helps if you wish to connect two or more local networks using different IP ranges to internet via the router.
Page 33: Ethernet Client Filter
Mega 200VWR Router Ethernet Client Filter The Ethernet Client Filter supports up to 16 Ethernet network machines and helps you to manage your network control, accepting traffic from specific authorized machines or restricting unwanted machine(s) from access your LAN. There are no pre-define Ethernet MAC address filter rules; you can add the filter rules that meet your requirements.
Page 34 Mega 200VWR Router Active PC in LAN displays a list of individual Ethernet device’s IP Address & MAC Address which are connected to the router. You can easily allow or block a computer by checking the box next to the IP address. Then click Add to insert to the Ethernet Client Filter table.
Page 35: Wireless
Mega 200VWR Router Wireless Parameters WLAN Service: Default setting is Enable. If you do not have any wireless devises (802.11g or 802.11b) on your network, select Disable. Mode: The default setting is 802.11b+g (Mixed mode). If you do not know what type of wireless devises you have, or have both 11g and 11b devices on your network, then keep the default setting (mixed mode).
Page 36 Mega 200VWR Router being used , and wich are available for use. Note: Wireless performance will be degraded if you select a channel that is already being occupied by other AP(s). TX PowerLevel: This function enhances the wireless transmitting signal strength. Users may adjust this power level from minimum 0 up to maximum 255.
Page 37: Wireless Security
Mega 200VWR Router Wireless Security You can disable or enable WPA or WEP for protecting your wireless network. The default mode of wireless security is Enabled. And the default security mode is WPA WPA-PSK (TKIP) / WPA-PSK (AES) Pre-Shared Key WPA Algorithms: There are two types of WPA-PSK security : WPA1 and WPA2.
Page 38 Mega 200VWR Router WEP Encryption: To prevent unauthorized wireless stations from accessing data transmitted over the network, the router offers highly secure data encryption, known as WEP. If you require high security for transmissions, there are two alternatives to select from: WEP 64 and WEP 128. WEP 128 will offer increased security over WEP 64.
Page 39: Wireless Client / Mac Address Filter
Mega 200VWR Router Wireless Client / MAC Address Filter The MAC Address supports up to 16 wireless network machines and helps you to manage your network control to accept traffic from specific authorized machines or to restrict unwanted machine(s) from accessing your LAN.
Page 40 Mega 200VWR Router address and selecting Add to insert to the client into the Wireless Client (MAC Address) Filter table. Chapter 4: Configuration...
Page 41: Port Setting
Mega 200VWR Router Port Setting This section allows you to configure the settings for the router’s Ethernet ports to solve some of the compatibility problems that may be encountered while connecting to the Internet, as well as allowing users to tweak the performance of their network.
Page 42: Dhcp Server
Mega 200VWR Router DHCP Server You can disable or enable the DHCP (Dynamic Host Configuration Protocol) server or enable the router’s DHCP relay functions. The DHCP protocol allows your router to dynamically assign IP addresses to computers on your network if they are configured to obtain IP addresses automatically.
Page 43: Wan - Wide Area Network
Mega 200VWR Router WAN - Wide Area Network WAN refers to your Wide Area Network connection, i.e. your router’s connection to your ISP and the Internet. Here are the items within the WAN section: ISP, DNS ADSL. The factory default is PPPoE. Telkom uses this access protocol. If you wish to change any of these parameters, click Edit.
Page 44 Mega 200VWR Router RFC 1483 Routed Connections Description: User-definable name for the connection. VPI and VCI: Enter the information provided by your ISP. ATM Class: The Quality of Service for ATM layer. NAT: The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single IP account, sharing a single IP address.
Page 45 Mega 200VWR Router RFC 1483 Bridged Connections Description: User-definable name for the connection. VPI and VCI: Enter the information provided by your ISP. ATM Class: The Quality of Service for ATM layer. Encapsulation method: Select the encapsulation format, this is provided by your ISP.
Page 46 Mega 200VWR Router PPPoA Routed Connections Description: User-definable name for the connection. VPI/VCI: Enter the information provided by your ISP. ATM Class: The Quality of Service for ATM layer. NAT: The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single IP account, sharing a single IP address.
Page 47 Mega 200VWR Router Detail: You can define destination port and packet type (TCP/UDP) information that will not result in the router checking the timer. It allows you to set which outgoing traffic will not trigger and reset the idle timer.
Page 48 Mega 200VWR Router IPoA Routed Connections Description: User-definable name for the connection. VPI/VCI: Enter the information provided by your ISP. ATM Class: The Quality of Service for ATM layer. NAT: The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single IP account, sharing a single IP address.
Page 49: Pppoe Connections
Mega 200VWR Router PPPoE Connections Description: User-definable name for this connection. VPI/VCI: Enter the information provided by your ISP. The Telkom standard settings are 8 and 35. ATM Class: The Quality of Service for ATM layer. NAT: The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single ISP account, sharing a single IP address.
Page 50 Mega 200VWR Router Connect on Demand: If you want to establish a PPPoE session only when there is a packet requesting access to the Internet (i.e. when a program on your computer attempts to access the Internet). Idle Timeout: Auto-disconnect the router when there is no activity on the line for a predetermined period of time.
Page 51 Mega 200VWR Router PPPoE with Pass-through Connections PPPoE with pass-through adopts the following method: PPPoE Routed mode + 1483 Bridge Mode. With pure PPPoE connection, the router can get one WAN address for the router. With the PPPoE and PPPoE pass-through, concurrently, it allows users to have a WAN address assigned to the router but also able to get another WAN IP from their ISP using PPPoE dialer (e.g WinPoETor Windows XP PPPoE...
Page 52 Mega 200VWR Router Authentication Protocol: Default is Chap(Auto). Your ISP will advise you whether to use Chap or Pap. Connection: Always on: If you want the router to establish a PPPoE session when starting up and to automatically re-establish the PPPoE session when disconnected by the ISP.
Page 53: Dns
Mega 200VWR Router Give Subnet Mask To DHCP Server: Enable to change your DHCP Server settings by using the given information in IPCP negotiation process. A Domain Name System (DNS) contains a mapping table for mapping between Domain Names and IP addresses.
Page 54: Adsl
Mega 200VWR Router ADSL Connect Mode: This mode will automatically detect your ADSL line mode, ADSL2+, ADSL2, G.dmt, G.lite, T1.413, AnnexM2 or AnnexM2+. But in some areas, multimode cannot detect the ADSL line mode very well. If it is the case, please adjust the ADSL line code to G.dmt first. If it still fails, ,please check with your ISP for line connect information.
Page 55 Mega 200VWR Router SNR Margin: This is known as Signal to Noise Ration Margin. It is the ratio between DSL strength and signal noise. This margin is measured in decibels (dB). Higher the dB figures better the DSL strength is relative to the noise, and better chance to get faster speed.
Page 56: System
Mega 200VWR Router System Here are the items within the System section: Time Zone, Remote Access, Firmware Upgrade, Backup/Restore, Restart User Management. Time Zone This router does not have a real time clock on board; instead, it uses the Simple Network Time Protocol (SNTP) to get the current time from an SNTP server outside your network.
Page 57: Remote Access
Mega 200VWR Router Remote Access To temporarily permit remote administration of the router (i.e. from outside your LAN), select a time period the router will permit remote access for and click Enable. You may change other configuration options for the web administration interface using Device Management options in the Advanced section of the GUI.
Page 58: Firmware Upgrade
Mega 200VWR Router Firmware Upgrade Your router’s “firmware” is the software that allows it to operate and provides all its functionality. Think of your router as a dedicated computer, and the firmware as the software it runs. Over time this software may be improved and modified.
Page 59: Backup / Restore
Mega 200VWR Router Backup / Restore These functions allow you to save and backup your router’s current settings to a file on your Computer, or to restore a previously saved backup. This is useful if you wish to experiment with different settings, knowing that you have a backup handy in the case of any mistakes.
Page 60: Restart Router
Mega 200VWR Router Restart Router Click Restart with option Current Settings to reboot your router (and restore your last saved configuration). If you wish to restart the router using the factory default settings (for example, after a firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to reset to factory default settings.
Page 61: User Management
Mega 200VWR Router User Management In order to prevent unauthorized access to your router’s configuration interface, it requires all users to login with a password. You can set up multiple user accounts, each with their own password. You are able to Edit existing users and Create new users who are able to access the device’s configuration interface.
Page 62: Firewall And Access Control
Mega 200VWR Router Firewall and Access Control Your router includes a full SPI (Stateful Packet Inspection) firewall for controlling Internet access from your LAN, as well as helping to prevent attacks from hackers. In addition to this, when using NAT, the router acts as a “natural”...
Page 63: General Settings
Mega 200VWR Router General Settings You can choose not to enable the Firewall and still have access to URL Filter and IM/P2P Blocking, or you can enable the Firewall using preset filter rules and modify the port filter rules as required. The Packet Filter is used to filter packets based-on Applications (Port) or IP addresses.
Page 64: Packet Filter
Mega 200VWR Router Packet Filter This function is only available when the firewall function is enabled and one of these four security levels is chosen (All blocked, High, Medium and Low). The preset port filter rules in the Packet Filter must be modified according to the level of Firewall which is selected.
Page 65 Mega 200VWR Router Example: Predefined Port Filters Rules The predefined port filter rules for High, Medium and Low security levels are listed. See Table 1. Note: Firewall – For Blocked/User-defined, you must define and create the port filter rules yourself. No predefined rules are configured for these modes.
Page 66 Mega 200VWR Router MSN (7001) UDP(17) 7001 7001 YES VEDIO TCP(6) 9000 9000 NO (9000) Inbound: Internet to LAN ; Outbound: LAN to Internet. YES: Allowed ; NO: Blocked ; N/A: Not Applicable Chapter 4: Configuration...
Page 67 Mega 200VWR Router Packet Filter – Add TCP/UDP Filter Rule Name: Specify a User-defined description identifying this entry or click to select existing predefined rules. The maximum name length is 32 characters. Time Schedule: This is the user-defined time period applicable to the rule. You may specify a time schedule for your prioritization policy.
Page 68 Mega 200VWR Router Packet Filter – Add Raw IP Filter Rule Name: Specifies a user-defined description identifying this entry or click to select existing predefined rules. Time Schedule: this is the user-defined time period applicable to the rule. You may specify a time schedule for your prioritization policy.
Page 69 Mega 200VWR Router Example: Configuring your firewall to allow for a publicly accessible web server on your LAN The predefined port filter rule for HTTP (TCP port 80) is the same no matter whether the firewall is set to a high, medium or low security level.
Page 70 Mega 200VWR Router Configuring Packet Filter: Click Port Filters. You will then be presented with the predefined port filter rules screen (in this case, for the low security level) shown below: Note: You may edit the predefined rule instead of deleting it. This is an example showing to how you add a filter on your own.
Page 71 Mega 200VWR Router The new port filter rule for HTTP is shown below: Configure your Virtual Server (“port forwarding”) settings so that incoming HTTP requests on port 80 will be forwarded to the PC running your web server: Note: For how to configure the HTTP in Virtual Server mode , go to Add Virtual Server in the Virtual Server section for more details.
Page 72: Intrusion Detection
Mega 200VWR Router Intrusion Detection The router’s Intrusion Detection System (IDS) is used to detect hacker attacks and intrusion attempts from the Internet. If the IDS function of the firewall is enabled, inbound packets are filtered and blocked depending on whether they are detected as possible hacker attacks, intrusion attempts or other connections that the router determines to be suspicious.
Page 73 Mega 200VWR Router Table 2: Hacker attack types recognized by the IDS Type of Block Intrusion Name Detect Parameter Blacklist Drop Packet Show Log Duration Ascend Kill Ascend Kill data Src IP WinNuke Port 135, 137~139, Src IP Flag: URG...
Page 74: Url Filter
Mega 200VWR Router URL Filter URL (Uniform Resource Locator – e.g. an address in the form of http://www.abcde.com http://www.example.com) filter rules allow you to prevent users on your network from accessing particular websites by their URL. There are no pre-defined URL filter rules; you can add filter rules to meet your requirements.
Page 75 Mega 200VWR Router connection attempt will be dropped. If the packet does not match either of the above two items, it is sent to the remote web server. Please note that the completed URL, “www” + domain name should be specified. For...
Page 76: Im / P2P Blocking
Mega 200VWR Router IM / P2P Blocking IM, short for Instant Messaging, is required to use client program software that allows users to communicate, exchanging text message, with other IM users, in real time, over the Internet. A P2P application, known as Peer-to-Peer, is a group of computer users who share files to specific groups of people across the Internet.
Page 77: Firewall Log
Mega 200VWR Router Firewall Log The Firewall Log displays log information of any unexpected action with your firewall settings. Select the Enable box to activate the logging. Log information can be seen in the Status – Event Log screen after enabling.
Page 78: Vpn - Virtual Private Networks
Mega 200VWR Router VPN - Virtual Private Networks Virtual Private Networks are a way to establish secured communication tunnels to an organization’s network via the Internet. Your router supports three main types of VPN (Virtual Private Network), PPTP, IPSec L2TP.
Page 79 Mega 200VWR Router PPTP Connection - Remote Access Connection Name: A user-defined name for the connection (e.g. “connection to office”). Type: Select Dial Out if you want your router to operate as a client (connecting to a remote VPN server, e.g.
Page 80 Mega 200VWR Router performance. Click Apply button to apply your changes. Chapter 4: Configuration...
Page 81 Mega 200VWR Router Example: Configuring a Remote Access PPTP VPN Dial-out Connection A company’s office establishes a PPTP VPN connection with a file server located at a separate location. The router is installed in the office, and connected to a couple of PCs and Servers.
Page 82 Mega 200VWR Router Configuring the PPTP VPN in the Office You can either input the IP address (69.1.121.33 in this case) or hostname to reach the server. Item Function Description Connection Name VPN_PPTP Given name of PPTP connection Dial out...
Page 83 Mega 200VWR Router PPTP Connection - LAN to LAN Connection Name: User-defined description of the connection. Type: Select Dial Out if you want your router to operate as a client (connecting to a remote VPN server, e.g. your office server) or select Dial In operates as a VPN server.
Page 84 Mega 200VWR Router Click Apply button to apply your changes. Chapter 4: Configuration...
Page 85 Mega 200VWR Router Example: Configuring a PPTP LAN-to-LAN VPN Connection The branch office establishes a PPTP VPN tunnel with head office to connect two private networks over the Internet. The routers are installed in the head office and branch office accordingly.
Page 86 Mega 200VWR Router Configuring PPTP VPN in the Head Office The IP address 192.168.1.200 will be assigned to the router located in the branch office. Please make sure this IP is not used in the head office LAN. Item Function...
Page 87 Mega 200VWR Router Configuring PPTP VPN in the Branch Office The IP address 69.1.121.30 is the Public IP address of the router located in head office. If you registered a DDNS account (please refer to the DDNS section of this manual), you can also use the domain name instead of the IP address to reach the router.
Page 88: Ipsec (Ip Security Protocol)
Mega 200VWR Router IPSec (IP Security Protocol) Click Create to create a new IPSec VPN connection account. After you have created the IPSec connection, account information will be displayed. (See example above). Enable / Disable: This function activates or deactivates the IPSec connection. If you wish to disable the tunnel, select Disable and click Apply to deactivate the connection.
Page 89 Mega 200VWR Router IPSec VPN Connection Connection Name: The user-defined name for the connection (e.g. “connection to office”). Local Network: Set the IP address, subnet or address range of the local network. Single Address: The IP address of the local host.
Page 90 Mega 200VWR Router 3DES: Stands for Triple Data Encryption Standard, it uses 168 (56*3) bits as an encryption method. AES: Stands for Advanced Encryption Standards, you can use 128, 192 or 256 bits as encryption method. Perfect Forward Secrecy: Choose whether to enable PFS using Diffie-Hellman public-key cryptography to change encryption keys during the second phase of VPN negotiation.
Page 91 Mega 200VWR Router Advanced Option This function is only available after completely creating an IPSec account. Click Advanced Option to change the following settings: IKE (Internet key Exchange) Mode: Select IKE mode to Main mode or Aggressive mode. This IKE provides secured key generation and key management.
Page 92 Mega 200VWR Router AES: Stands for Advanced Encryption Standards, you can use 128, 192 or 256 bits as encryption method. Diffie-Hellman Group: It is a public-key cryptography protocol that allows two parties to establish a shared secret over an unsecured communication channel (i.e. over the Internet). There are three modes, MODP 768-bit, MODP 1024-bit and MODP 1536-bit.
Page 93 Mega 200VWR Router Example: Configuring a IPSec LAN-to-LAN VPN Connection Table 3: Network Configuration and Security Plan Branch Office Head Office Local Network ID 192.168.0.0/24 192.168.1.0/24 Local Router IP 69.1.121.30 69.1.121.3 Remote Network ID 192.168.1.0/24 192.168.0.0/24 Remote Router IP 69.1.121.3 69.1.121.30...
Page 94 Mega 200VWR Router Configuring IPSec VPN in the Head Office Item Function Description Connection Name IPSec_HeadOffice Given name of the IPSec connection Subnet Select the Subnet button IP Address 192.168.1.0 Head office network Netmask 255.255.255.0 Secure Gateway Address IP address of the head office router (WAN 69.121.1.30...
Page 95 Mega 200VWR Router Configuring IPSec VPN in the Branch Office Item Function Description IPSec_Branch Connection Name Given name of the IPSec connection Office Subnet Select the Subnet button IP Address 192.168.0.0 Branch office network Netmask 255.255.255.0 Secure Gateway Address IP address of the head office router (in WAN 69.121.1.3...
Page 96 Mega 200VWR Router Example: Configuring a IPSec Host-to-LAN VPN Connection Chapter 4: Configuration...
Page 97 Mega 200VWR Router Configuring IPSec VPN in the Office Item Function Description Connection Name IPSec Given name of the IPSec connection Subnet Select the Subnet button IP Address 192.168.1.0 Head office network Netmask 255.255.255.0 Secure Gateway Address IP address of the head office router (in WAN 69.121.1.30...
Page 98: L2Tp (Layer Two Tunneling Protocol)
Mega 200VWR Router L2TP (Layer Two Tunneling Protocol) Two types of L2TP VPN are supported Remote Access and LAN-to-LAN (please refer below for more information.). Click Create to create a new VPN connection account. After you have created L2TP connection, the account status will be displayed. (As shown above).
Page 99 Mega 200VWR Router L2TP Connection - Remote Access L2TP VPN Connection Connection Name: A User-defined name for the connection (e.g. “connection to office”). Type: Select Dial Out if you want your router to operate as a client (connecting to a remote VPN server, e.g.
Page 100 Mega 200VWR Router connection is Auto-disconnected. 0 means this connection is always on. Active as default route: Normally used when the mode is set to Dial-out. If this is selected, all packets, including internet packets, will route through the VPN tunnel; If this function is enabled, the performance of your Internet connection may be degraded Click Apply after changing the settings.
Page 101 Mega 200VWR Router Example: Configuring a L2TP VPN - Remote Access Dial-in Connection A remote worker establishes a L2TP VPN connection with the head office using Microsoft's VPN Adapter (included with Windows XP/2000/ME, etc.). The router is installed in the head office and is connected to a couple of PCs and Servers.
Page 102 Mega 200VWR Router Configuring L2TP VPN in the Office The LAN IP address 192.168.1.200 will be assigned to the remote computer (client). Please make sure this IP is not used on the Office LAN. Item Function Description Connection Name VPN_L2TP...
Page 103 Mega 200VWR Router Example: Configuring a Remote Access L2TP VPN Dial-out Connection A company’s office establishes a L2TP VPN connection with a file server located at a separate location. The router is installed in the office and is connected to a couple of computers and Servers.
Page 104 Mega 200VWR Router Item Function Description L2TP Connection Name VPN_L2TP iven name of the connection select Dial out Dial out Server IP Address (or 69.121.1.33 The Dialed server’s IP address. Hostname) Username username The username & password that is required to connect to the VPN server.
Page 105 Mega 200VWR Router Example: Configuring your Router to Dial-in to the Server Currently, Microsoft Windows operation system does not support L2TP incoming service. Additional software may be required to set up your L2TP incoming service. L2TP Connection - LAN to LAN L2TP VPN Connection Connection Name: A User-define description of the connection.
Page 106 Mega 200VWR Router PPP Authentication Type: Default is Auto. Use this setting if you want the router to determine which authentication type to use. You can manually specify CHAP (Challenge Handshake Authentication Protocol) or PAP (Password Authentication Protocol) if you know which type the server is using (when acting as a client) If the router is acting as a server enter the authentication type you want clients connecting to you to use.
Page 107 Mega 200VWR Router Click Apply after changing settings. Example: Configuring L2TP LAN-to-LAN VPN Connection The branch office establishes a L2TP VPN tunnel with head office, connecting the two private networks over the Internet. The routers are installed in both the head office and branch office.
Page 108 Mega 200VWR Router Configuring L2TP VPN in the Head Office The IP address 192.168.1.200 will be assigned to the router located in the branch office. Please make sure this IP is not used in the head office LAN. Item Function...
Page 109 Mega 200VWR Router Configuring L2TP VPN in the Branch Office The IP address 69.1.121.30 is the Public IP address of the router located in head office. If you registered a DDNS account, (please refer to the DDNS section of this manual), you can also use the DDNS domain name instead of the IP address to reach the router.
Page 110: Voip - Voice Over Internet Protocol
Mega 200VWR Router VoIP - Voice over Internet Protocol The VoIP functionality enables telephone calls to be placed through your existing Internet connection instead of going through the PSTN (Public Switched Telephone Network). It is not only cost-effective, especially for long distance telephone calls, but also allows toll-quality voice calls to be placed over the Internet.
Page 111: Wizard
Mega 200VWR Router Wizard This section provides an easy setup process for your VoIP service. Phone port 1 and 2 can be registered to different SIP Service Providers. Voice QoS DSCP Marking: Differentiated Services Code Point (DSCP), it is the first 6 bits in the ToS byte. DSCP Marking allows users to assign specific application traffic to be executed in priority by the next Router on the backbone network, based on the DSCP value.
Page 112 Mega 200VWR Router Setting for Phone Port 2 Select the Same as Phone Port 1 box to set phone port 2 parameters to be identical to phone port 1. Otherwise, please refer to descriptions in “Setting for Phone Port 1”.
Page 113: General Settings
Mega 200VWR Router Display Name: This is what will be displayed on a Caller ID system. General Settings This section contains the basic settings for the VoIP module from the selected provider in the Wizard section. If you do not provide correct information here, you will be unable to make calls over the Internet.
Page 114 Mega 200VWR Router endpoints and the different call sessions that may exist within an end-point. (Range from 5100 to 65535, default value is 5100) Region: This selection is a drop-down box, which allows user to select the country for which the VoIP device must work.
Page 115 Mega 200VWR Router The ideal setting is to have the same frame size for both Caller and Receiver. PSTN Auto-fallback: Whenever VoIP SIP response is an error code that matches the codes in the Edit section, the VoiP calls will automatically fall back to a PSTN.
Page 116: Phone Port
Mega 200VWR Router Phone Port This section displays status and allows you to edit the account information of your Phones. Click Edit to update your phone information. Login Account Configuration Phone Number: This parameter is the registration ID of the user as recorded in the VoIP SIP registrar.
Page 117 Mega 200VWR Router Display Name: This is what will be shown when using the Caller ID function . Codec Preference A codec is a Coder-Decoder and is used for data signal conversion. The priority position sets the priority of each codec; Priority 1 is the top priority.
Page 118: Pstn Dial Plan
Mega 200VWR Router PSTN Dial Plan This section enables you to configure “VoIP with PSTN switching” on your system. You can define a range of dial plans to select which calls are routed over VoIP and which are routed over the PSTN line.
Page 119 Mega 200VWR Router Phone port 1 and 2 will automatically default to the PSTN line when: - The router is Powered Down - Internet Service Fails, i.e., lost of WAN IP Address/connection - The SIP option is disabled. See the VoIP General Setting section.
Page 120 Mega 200VWR Router PSTN Dial Plan Examples: 1) Dial with Prefix If you dial 01223 707070, the number 01223707070 will be dialed out via the FXO port, to make a regular (PSTN) phone call. 2) Dial without Prefix If you dial 9102, the number 102 will be dialed out via the FXO port, to make a regular (PSTN) phone call.
Page 121 Mega 200VWR Router 4) Dial at Timeout no Prefix If you dial 97070 and no more numbers, after the timeout activates, 7070 will be dialed (without the prefix), to make a regular (PSTN) call via the FXO port. Even though 7070 (only 4 digits) does not match the number of digits (6) defined in the Number of Digits field, 7070 is still a valid phone number since it has not exceed this Number.
Page 122: Voip Dial Plan
Mega 200VWR Router VoIP Dial Plan This section helps you to make a VoIP call as easily as a regular call. You no longer need to memorize a long dial string of numbers in order to make a VoIP call.
Page 123 Mega 200VWR Router Dial Plan Rules List Click Add to create and define VoIP dial-plan rule(s). Prefix Processing: Prepend xxx unconditionally: The entered number, xxx, is appended unconditionally to the front of the dialing number when making a call. This prefix can include any number and/or character such as +, *, #.
Page 124 Mega 200VWR Router <@ PSTN>: This referes to making calls via the PSTN line. <@ENUM>: This referes to making a VoIP SIP call, via an E.164 number (“ENUM”), to an ENUM callee. Electronic Number (ENUM) is a system that uses DNS (Domain Network System) based technology to map between a traditional phone number (PSTN) and an Internet address/ SIP URL.
Page 125 Mega 200VWR Router Localcheap.com is the default VoIP provider I set on phone port 1. When I dial any number starting with 1 or 2 or 3 , , 03 is always prepended in front of these number. If 23295 is dialed, 03-2-32935 is the actual phone number dialed using localcheap.com as a provider.
Page 126 Mega 200VWR Router mobile call, 123 is replaced with 09 and 09-39-45678 is the actual phone number dialed using Mobilecheap.com as a provider. The Intelligent Call Gateway not only saves time when changing VoIP settings to different providers so as to ensure a call gets routed using a specific gateway automatically, but it allows you to take advantage of different call rate.
Page 127: Ring & Tone
Mega 200VWR Router Ring & Tone This section allows advanced users to change the parameters for the various phone tones. (dialtone, busy tone, answer tone and etc.)The default settings are the same as the South African PSTN, but advanced users are welcome to customize these values to suit their requirements.
Page 128: Special Dial Codes
Mega 200VWR Router Special Dial Codes The following table lists the special dial codes that are built into the router: Option Description Switch to PSTN line Flash-hook Note: This is a quick press of the hook switch. On most phones, a button is provided which provides Flash-hook functionality.
Page 129: Qos - Quality Of Service
Mega 200VWR Router QoS - Quality of Service The QoS function helps you to control your network traffic for each LAN (Ethernet and/or Wireless) application that accesses the WAN (Internet). It allows you to control the quality and speed of throughput for each application, when the system is running with a fully loaded upstream channel.
Page 130 Mega 200VWR Router Source IP Address Range: The source IP address or range of packets to be monitored. Destination IP address Range: The destination IP address or range of packets to be monitored. DSCP Marking: Differentiated Services Code Point (DSCP), it is the first 6 bits in the ToS byte. DSCP Marking allows users to assign specific application traffic to be executed in priority by the backbone routers, based on the DSCP value.
Page 131: Outbound Ip Throttling (Lan To Wan)
Mega 200VWR Router Outbound IP Throttling (LAN to WAN) IP Throttling allows you to limit the speed of IP traffic. The value entered will limit the speed of the specified application to the specified value (Set in multiples of 32kbps.) You can click Clear to delete the existing Application.
Page 132: Inbound Ip Throttling (Wan To Lan)
Mega 200VWR Router Inbound IP Throttling (WAN to LAN) IP Throttling allows you to limit the speed of IP traffic. The value entered will limit the speed of the specified application to the specified value (Set in multiples of 32kbps.) Click Clear You can click Clear to delete the existing Application.
Page 133 Mega 200VWR Router Example: QoS for your Network Connection Diagram VoIP Normal PCs Restricted PC Information and Settings Upstream: 928 kbps Downstream: 8 Mbps VoIP User : 192.168.1.1 Normal Users : 192.168.1.2~192.168.1.5 Restricted User: 192.168.1.100 Throughput VoIP/VPN HIGH Others kbps...
Page 134 Mega 200VWR Router Mission-critical applications Often, a VPN connection is a mission-critical application for exchanging data between Head and Branch offices. This mission-critical application must be connected smoothly. without any dropping. To ensure this, you should set the priority to the high level to preventing any other applications from saturating the bandwidth.
Page 135 Mega 200VWR Router Sometime your customers or friends may upload their files to your FTP server and that will saturate your downstream bandwidth. The settings below will help you to limit bandwidth for such a application that needs restriction. Chapter 4: Configuration...
Page 136: Virtual Server (Known As Port Forwarding)
Mega 200VWR Router Virtual Server (known as Port Forwarding) In TCP/IP and UDP networks, a port is a 16-bit number used to identify which application program incoming connections should be delivered to. Some ports have numbers that are pre-assigned to them by the IANA (the Internet Assigned Numbers Authority), and these are referred to as “well-known ports”.
Page 137: Add Virtual Server
Mega 200VWR Router Add Virtual Server Because NAT can act as a “natural” Internet firewall, your router protects your network from being accessed by outside users when NAT is enabled - all incoming connection attempts will point to your router unless you specifically created Virtual Server entries to forward those ports to a computer on your network.
Page 138: Edit Dmz Host
Mega 200VWR Router Example: If you would like to remotely access your routers’ Web/HTTP interface all the time, you would need to enable port number 80 (Web/HTTP) and map it to the Router’s LAN IP Address. All incoming HTTP requests on the WAN network will then be forwarded to the router’s IP address of 192.168.1.254. Since port number 80 is already a predefined rule, click Helper in the Application section.
Page 139: Edit Dmz Host
Mega 200VWR Router Edit DMZ Host A DMZ Host is a computer on the LAN that is completely exposed to the Internet. When you have configured a particular internal IP address as the DMZ Host, all incoming packets will be checked by the...
Page 140: Edit One-To-One Nat (Network Address Translation)
Mega 200VWR Router Edit One-to-One NAT (Network Address Translation) One-to-One NAT maps a specific private/local (LAN) IP address to a particular global/public (WAN) IP address. If you have multiple public/WAN IP addresses provided by your ISP, you are will be able to use the One-to-One NAT function to utilize these IP addresses.
Page 141 Mega 200VWR Router Time Schedule: The user-defined time period during which your virtual server is enabled. You may specify a time schedule or you can select Always on for this Virtual Server Entry. For setup and details, refer to the Time Schedule section Application: This is a user-defined description to identify this entry.
Page 142 Mega 200VWR Router The Internet Assigned Numbers Authority (IANA) is the central coordinator for the assignment of unique parameter values for Internet protocols. Port numbers range from 0 to 65535, but only ports numbers 0 to 1023 are reserved for privileged services and are designated as “well-known ports” (Please refer to Table 5).
Page 143: Time Schedule
Mega 200VWR Router Time Schedule The Time Schedule function supports up to 16 time slots, helping you to manage your Internet connection. In each time profile, you may schedule specific day(s) i.e. Monday through Sunday to restrict or allowing the usage of the Internet by users or applications.
Page 144: Configuration Of Time Schedule
Mega 200VWR Router Configuration of Time Schedule Edit a Time Slot 1. Choose any Time Slot (ID 1 to ID 16) to edit, click Edit. Click Edit Note: The days that you have selected will show as capital letters. Lower case letters show the day(s) that are not selected, and no rule will apply on these days.
Page 145: Advanced
Mega 200VWR Router Advanced The Configuration options of the Advanced section are for users who wish to take advantage of the more advanced features of the router. Users who do not understand the features should not attempt to reconfigure their router, unless advised to do so by support staff.
Page 146: Dynamic Dns
Mega 200VWR Router Dynamic DNS The Dynamic DNS function allows you to alias a dynamic IP address to a static hostname, allowing users whose ISP does not assign them a static IP address to use a domain name. This is especially useful for hosting servers via your ADSL connection, so that anyone wishing to connect to you may use your domain name, rather than having to use your dynamic IP address, which changes from time to time.
Page 147: Check Email
Mega 200VWR Router Check Email This function allows you to have the router check your POP3 mailbox for new Email messages You may view the status of this function using the Status – Email Checking section of the web interface, which also provides details on the number of new messages waiting.
Page 148: Device Management
Mega 200VWR Router Device Management The Device Management configuration settings allow you to control your router’s security options and device monitoring features. Embedded Web Server ( 2 Management IP Accounts) HTTP Port: This is the port number of the router’s embedded web server. (for web-based configuration) The default value is the standard HTTP port, 80.
Page 149 Mega 200VWR Router 100 seconds, the device will automatically logout User A. Universal Plug and Play (UPnP) UPnP offers peer-to-peer network connectivity for PCs and other network devices, along with control and data transfer between devices. UPnP offers many advantages for users running NAT routers through UPnP NAT Traversal.
Page 150 Mega 200VWR Router Address Translation group IP group ICMP group TCP group UDP group EGP (not applicable) Transmission SNMP group From RFC1650 (EtherLike-MIB): dot3Stats From RFC 1493 (Bridge MIB): dot1dBase group dot1dTp group dot1dStp group (if configured as spanning tree)
Page 151: Igmp
Mega 200VWR Router IGMP IGMP, known as Internet Group Management Protocol, is used to management hosts from multicast group. IGMP Forwarding: Accepting multicast packet. Default is Enable. IGMP Snooping: Allowing switched Ethernet to check and make correct forwarding decisions. Default is Disable.
Page 152 Mega 200VWR Router VLAN groups need to be created. Ethernet: P1 (Port 1) Ethernet1: P2, P3 and P4 (Port 2, 3, 4) Please deselect P2, P3, P4 from Ethernet VLAN Port first. Note: You should setup each VLAN group with caution. Each Bridge Interface is arranged in this order.
Page 153 Mega 200VWR Router Spaces next to VPI and VCI, type 0 and 33 in respectively. Select appropriate ATM Class, Encapsulation Method, Acceptable Frame Type, Filter Type and PVID for Untagged Frames. VPI and VCI: Enter the information provided by your ISP.
Page 154 Mega 200VWR Router Step 3: Setup VLAN Service Go to Configuration Advanced VLAN Bridge DefaultVlan lists all member ports. It is necessary to group specific member ports for each VLAN. From the example, two VLAN groups are requested: Data and Video.
Page 155: Save Configuration To Flash
Mega 200VWR Router Having mapped the VLAN Bridge with the Bridge Interface created in Step1, you will see the comfortable relationship in these two screenshots. Step 4: IGMP Snooping Enable Select Configuration Advanced IGMP. IGMP Snooping must be enabled in order to allow the video stream forwarding to correctly function.
Page 156: Logout
Mega 200VWR Router Logout To exit the router’s web interface, choose Logout. Please ensure that you have saved the configuration settings before you logout. Be aware that the router is restricted to only one PC accessing the configuration web pages at a time.
Page 157: Chapter 5: Troubleshooting
Mega 200VWR Router Chapter 5: Troubleshooting If the router is not functioning properly, first check this chapter for simple troubleshooting before contacting the Help desk . Problems starting up the router Problem Corrective Action None of the LEDs are Check the connection between the power adapter and the router. If the on when you turn on error persists, you may have a hardware problem.
Page 158: Hardware Installation
Mega 200VWR Router APPENDIX A: Windows 98 setup Installation & Setup: (Windows 98, 98SE, ME or NT4) Hardware Installation: Follow the installation instructions below, referring to the images provided for each step. Also note the hardware overview diagram (Figure 1) and the corresponding letter indicators.
Page 159 If the “ADSL/PPP” LED does not become lit, please refer to the troubleshooting section at the end of this guide. d) The Mega 200VWR router is, by default, distributed with a guest ISP username and password. This guest account allows you access to the www.telkom.co.za website only.
Page 160 Confirm that the corresponding LAN LED is lit. If it is not lit, you may have plugged the cable into the wrong port on the back panel of your PC. d) You can connect up to 4 network devices directly to the Mega 200VWR. 4. Connect the ADSL micro filters a) If you also intend to use traditional telephones (for normal voice calls) on the ADSL line, you need to connect the included ADSL micro filters.
Page 161 Step 4 above is used when you still want to be able to use your ADSL line to make normal traditional analog calls. Setting up your Mega 200VWR hardware to be able to make VoIP calls will be covered later in the Quick Start Guide.
Page 162 Mega 200VWR Router Network Card Configuration: Using Windows 98/ME: 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Configuration tab. 2. Select TCP/IP -> NE2000 Compatible, or the name of your Network Interface Card (NIC) in your PC.
Page 163 Mega 200VWR Router Using Windows NT4.0: 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Protocols tab. 2. Select TCP/IP Protocol and click Properties. 3. Select the Obtain an IP address from a DHCP server radio button.
Page 164 1) Verify that your computer meets the minimum requirements for Telkom ADSL 2) Verify your Telkom ADSL service on the Telkom website 3) Setup your own ISP account on your Mega 200VWR router 4) Test your Internet connection by opening a webpage...
Page 165 Click the “Setup ISP account” button. The Mega 200VWR utility will now open and allow you to enter your ISP(Internet Service Provider) username and password in the fields indicated by the two arrows in Figure 3 and save it to the Mega 200VWR.
Page 166 If the utility does not seem to respond or encounter errors, please refer to error 3 in the troubleshooting section. If you want to rerun this utility in future, insert the Mega 200VWR CD, then click on “Start”, “Run” and type “D:\ RouterUtil\setup.exe”.
Page 167 Mega 200VWR Router 4) Test your Internet connection by opening a webpage: Click the ‘Test your connection’ button. This will open the website www.aardvark.co.za and will serve as a test to determine whether you have performed the previous steps correctly.
Page 168 Communicator VoIP accounts. A VoIP account is needed for making cheap Internet voice calls using your Mega 200VWR, much like an ISP account is needed for connecting to the Internet. A VoIP account has two parts, the phone number and password.
Page 169 & received one VoIP account, it is recommended to use the Phone port 1 fields. (More VoIP accounts can be obtained from the Telkom VoIP website, but please be aware that the Mega 200VWR can only accommodate two VoIP accounts at a time.
Page 170 CD. It is recommended that you read this manual should you want to make use of some of the advanced features on the Mega 200VWR. The manual is in Adobe Acrobat PDF format and requires Acrobat reader to open the file.
