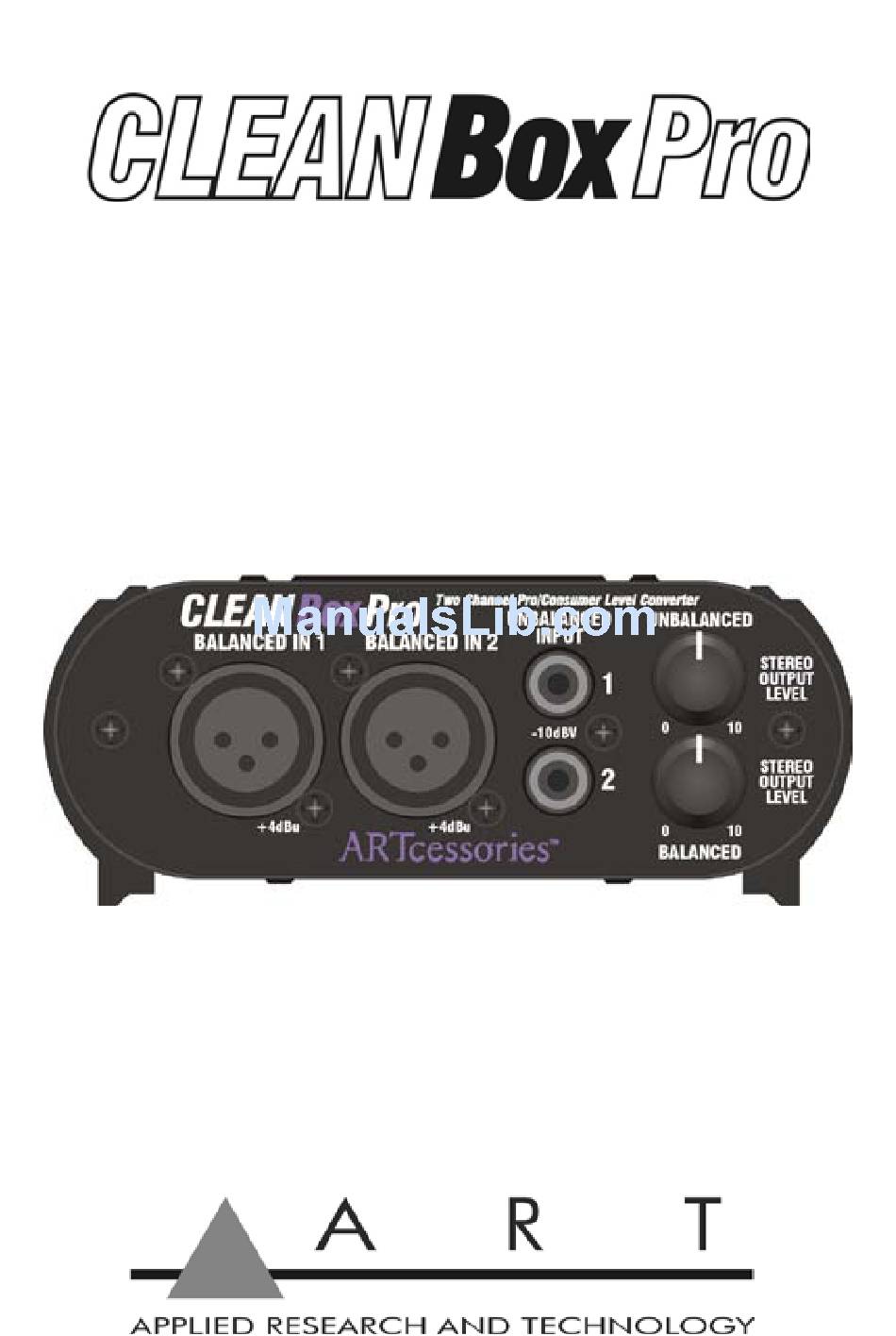

- Page 1 Two Channel Pro/Consumer Level Converter Artcessories User's Manual...
- Page 2 IMPORTANT SAFETY INSTRUCTION – READ FIRST This symbol, whenever it appears, This symbol, whenever it appears, alerts you to important operating alerts you to the presence of and maintenance instructions in uninsulated dangerous voltage the accompanying literature. inside enclosure-voltage that may be Please read the manual.
- Page 3 Installation: Install the unit in accordance with the instructions printed in the user guide.

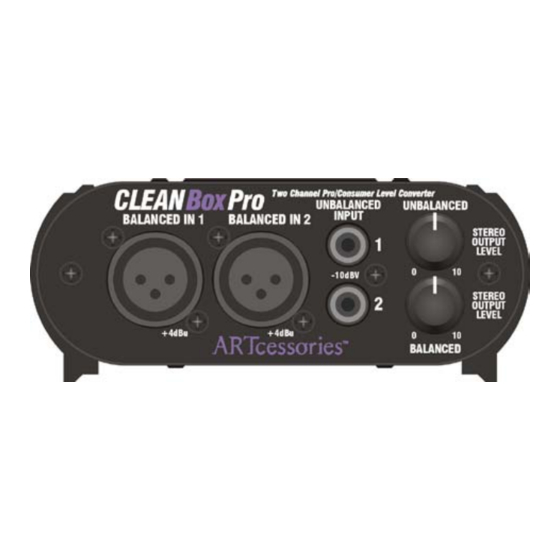

- Page 4 It has two RCA jack inputs and a stereo mini- phone jack input connected in parallel. The balanced output feeds two XLR male jacks. The other section of the CLEANBoxPro converts two channels of line-level balanced input signals into two channels of consumer unbalanced output signals. It has two XLR female input jacks.
- Page 5 DJ, AV, consumer HiFi, podcasting and broadcasting. The CLEANBoxPro can be used with: mixers, audio processors, laptop computers, computer sound cards, CD/DVD players, video gaming machines, MP3 player/recorders, powered monitors and digital audio workstations.
-
Page 6: Installation And Operation
Connect the left and right stereo outputs of the consumer audio unit (CD/DVD player, MP3 player, computer sound card, etc.) to the CLEANBoxPro’s - 10dBV UNBALANCED INPUT 1 & 2 RCA connectors or to the –10 dBV UNBAL INPUT 1/8”... - Page 7 (computer sound card, digital recorder, stereo sound system, etc.) with the appropriate cable. With power applied, adjust the UNBALANCED OUTPUT LEVEL control for best signal strength and clarity. Inline Balanced or Unbalanced Level/Gain Control Loop unbalanced outputs to unbalanced inputs to provide an inline balanced level / gain control.
- Page 9 Signal Flow Chart...
-
Page 10: Specifications
SPECIFICATIONS: Frequency Response : 20 Hz – 20 kHz, ± 1 dB THD : < .01% @ 1 kHz Signal to Noise Ratio : > 90 dB CMRR : > 40 dB Input Impedance: balanced - 20k Ohms unbalanced -100k Ohms Output Impedance : balanced -100 Ohms unbalanced - 300 Ohms... -
Page 11: Warranty Information
This warranty is void if the serial number is altered, defaced, or removed. ART reserves the right to make changes in design or make additions to or improvements upon this product without any obligation to install the same on products previously manufactured. - Page 12 or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific rights and you may have other rights, which vary, from state to state. The warranty terms listed above are only valid within the United States of America. For units purchased outside the United States, an authorized distributor...
- Page 13 You may want to consult with your dealer for assistance in troubleshooting or testing your particular configuration. If you believe that the ART unit is at fault, go to www.artproaudio.com. Select "Support", then "Return Authorization Request"...
