Summary of Contents for COHU 5935-1000/T100
-

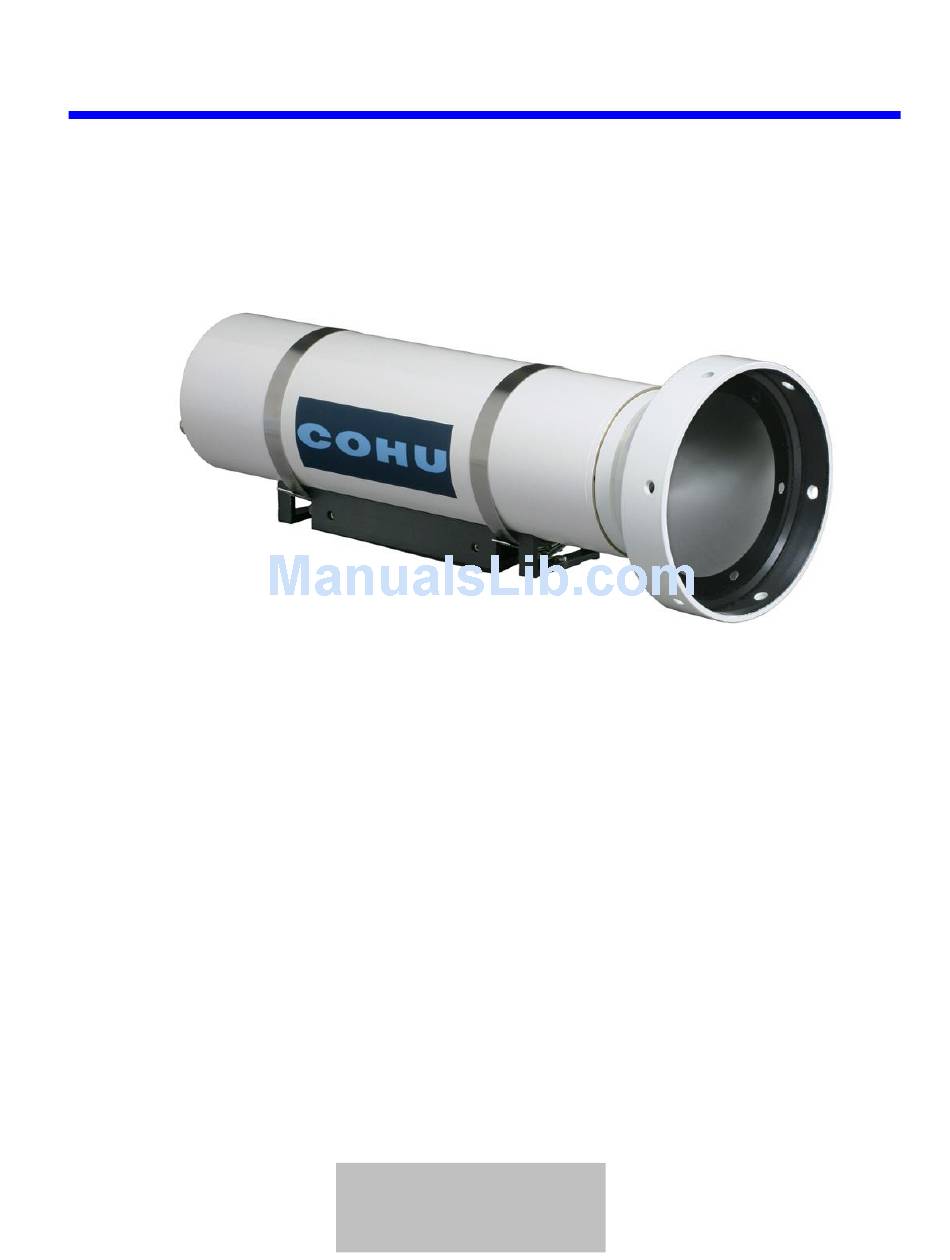

Page 1: Figure 1 - 5930 Series Thermal Camera
Cohu Electronics 5930 Series Thermal Camera User's Manual Figure 1 – 5935-1000/T100 Thermal Camera with 100mm Lens Installed Technical Manual 6X-1060 January 3, 2006 Cohu Electronics 3912 Calle Fortunada San Diego, CA 92123-1827 Phone: 858-277-6700 Fax: 858-277-0221... -
Page 2: Table Of Contents
Cohu Electronics 5930 Series Thermal Camera User's Manual Table of Contents Product Description............................4 FPA Description ..........................4 Hardware Description ........................4 1.2.1 FPA Support PCB ......................... 4 1.2.2 Camera Controller PCB ........................ 4 1.2.3 Camera Support PCB ........................5 1.2.4... - Page 3 Cohu Electronics 5930 Series Thermal Camera User's Manual List of Tables Table 1 - FPA Support Functions........................4 Table 2 - Camera Controller Functions......................5 Table 3 - Camera Support Functions......................5 Table 4 - Fixed Focus Lenses........................7 Table 5- Camera Performance........................7 Table 6 - Main Signal Pin Descriptions .......................
-
Page 4: Product Description
5930 Series Thermal Camera User's Manual Product Description The Cohu 5930 series is a long wavelength (LWIR) Infrared microbolometer based camera system. The embeddable electronics provides the foundation for the processing and signal generation for the camera. Below is a description of all the different aspects that make up the complete camera assembly. -
Page 5: Camera Support Pcb
Cohu Electronics 5930 Series Thermal Camera User's Manual Table 2 – 5930 Series Camera Controller Functions Specifications 320 x 240 FPA Format NTSC: 59.94 Hz FPA Frame Rate PAL: 50 Hz ≤ 6 FPA Clock Generation ≤ 4 FPA Adjustable Bias Generation... -
Page 6: Camera Power Supply Pcb
For specific information on the capabilities of this application please refer to Cohu CCI manual. Cohu Electronics also sells a developer's software guide for end-users that intend on designing a custom software interface for their own application. -
Page 7: Camera Performance
Cohu Electronics 5930 Series Thermal Camera User's Manual Table 4 - Fixed Focus Lenses Cohu Part Focal Length Minimum Focus Field of View (H x V) Number Distance T013 13mm 2 inches 69º x 53º T025 25mm 12 inches 36º x 28º... -
Page 8: Mechanical Characteristics
Should you receive this item in damaged condition, claims for shipping damage must be filed against the carrier. To return the camera to the factory for any other service, please contact Cohu Electronics Customer Service Department for a Return Authorization Number. -
Page 9: Electrostatic Discharge (Esd) Precautions
The installation procedures in this user's manual do not require entry into the Enclosure of the Camera. However in the event that the camera needs to be opened as directed by Cohu Electronics , the following ESD precautions should be followed: ... -
Page 10: Camera Main Signal Connector
Cohu Electronics 5930 Series Thermal Camera User's Manual Figure 5 - Camera Rear Panel 2.5.1 Camera Main Signal Connector The main signal connector that is mounted to the rear panel of the Camera is manufactured by Amphenol and the part number is PT07H-14-18P. This connector is hermetically sealed which means it is gastight therefore exceeds the NEMA 4 and IP67 water resistance rating of the Camera. -
Page 11: Mating Rear Panel Connector
Cohu Electronics 5930 Series Thermal Camera User's Manual 2.5.2 Mating Rear Panel Connector The connector that mates with the main signal connector of the Camera is manufactured by Amphenol and the part number is a PT06A-14-18S-SR. This connector must be manufactured to the assembly procedure provided by Amphenol. -
Page 12: Mating Digital Signal Connector
6.2-6.7mm Power Input Selection The camera input power is specified by model configuration when originally ordered from Cohu Electronics, and is delivered to accept the specified voltage configuration of 120VAC, or 24VAC or 12VDC. Refer to Table 6 for connector pin assignments. -
Page 13: Camera Software Features
Cohu Electronics 5930 Series Thermal Camera User's Manual lying inside the Camera must be plugged into header J2 as shown in Figure 6 (Figure 6 is drawn without Transformer Support Plate and mating connectors for clarity). Warning: Never power the Camera up with a connector plugged into headers J1 and J2 simultaneously. - Page 14 Cohu Electronics 5930 Series Thermal Camera User's Manual Camera Software Feature Host Application Notes Control (C) or Monitor (M) Lumitron for specific information. Video Color Bar Enable Video Polarity Invert Video Color Gamma Boost Gamma boost built into color palette.
-
Page 15: Environmental Specifications
Cohu Electronics 5930 Series Thermal Camera User's Manual Camera Software Feature Host Application Notes Control (C) or Monitor (M) Static Configuration Data Modification of factory static configuration data reserved for specific OEM’s. Individual Operational Mode Configuration Modification of factory operational mode data reserved for specific OEM’s. -
Page 16: Shock And Vibration
Cohu, in no event, whether as a result of breach of contract or warranty, tort (including negligence) or otherwise, shall be liable for any penalties regardless of reason; collateral, consequential, incidental, or exemplary damages, including without limitation, any loss of profit or revenues, loss of use of any equipment or goods, or removal or re-installation of equipment without prior written approval.
