Summary of Contents for Konig SEC-DVR210

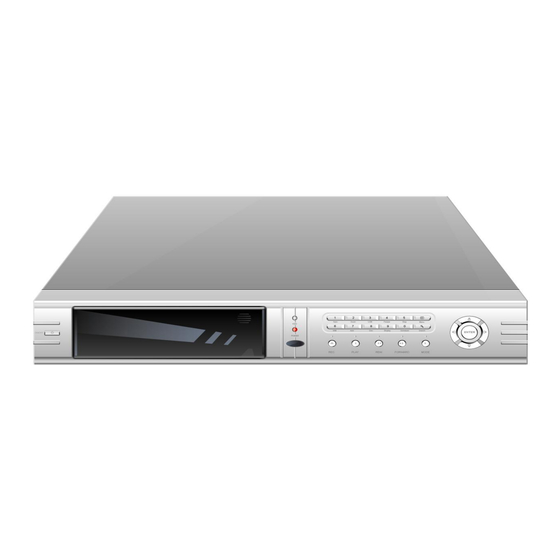

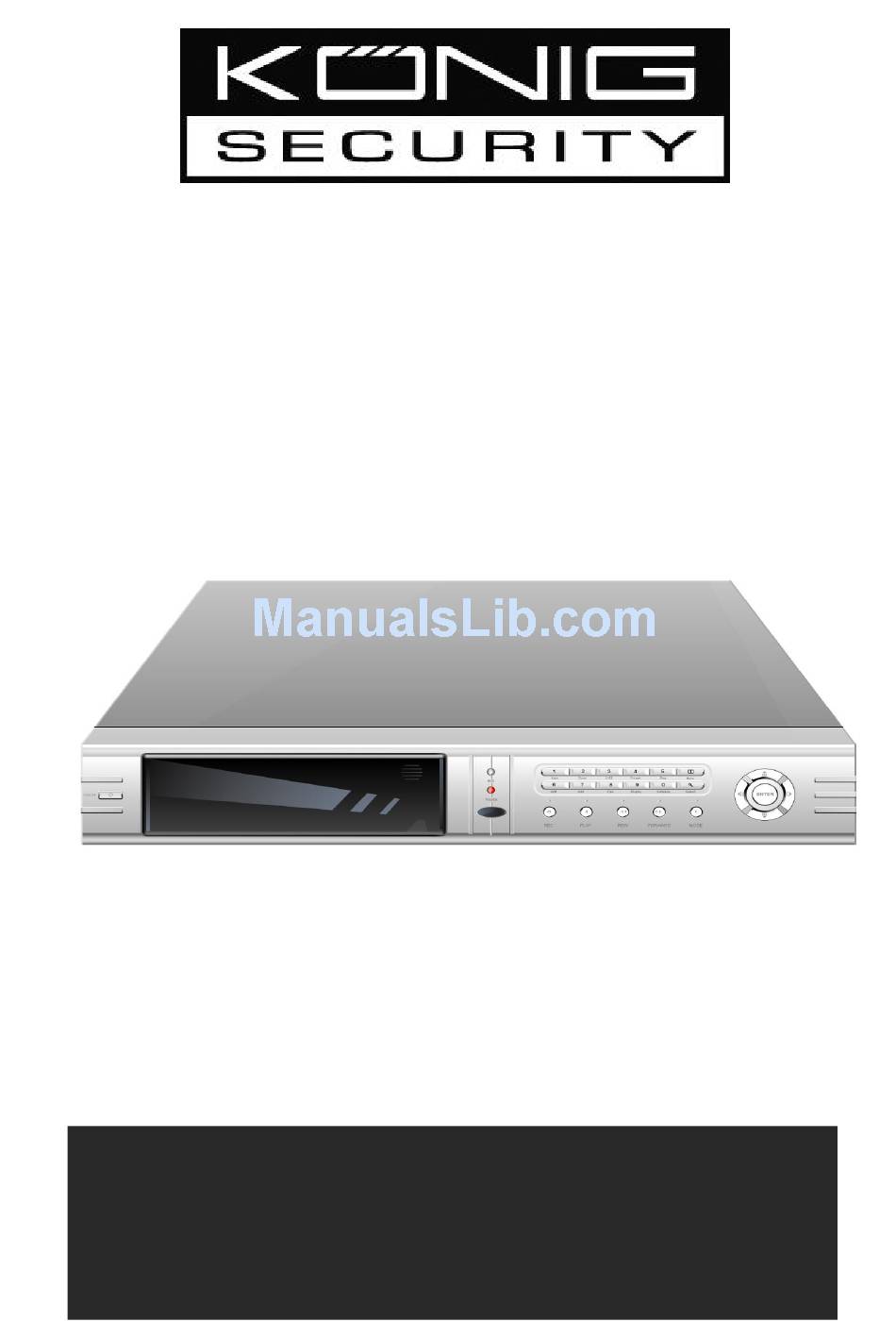

- Page 1 SEC-DVR210 4 CHANNEL HARDDISK RECORDER ADVANCED ENGLISH MANUAL...
- Page 2 Remarks • Read this manual carefully before use • This product is for indoor use, do not expose the product to water or moist environment. • To avoid electrical shock, do not open this product. It may expose high voltage and the product may be destroyed. •...
-
Page 3: Table Of Contents
Contents 1. Features ………………………………………………………..……….. 2. Front Panel Function Description …………………………….. 3. Rear Panel Function Description ……………………………… 4. Remote control ……..………………………………………………… 5. System Setup …………………………………………………………. 6. User Guideline ……………………………………………………….. 1. Hard Disk Connection ………………………………………………… 2. Normal Recording ……………………………………….……………. 3. Alarm Recording ………………………………………………………. 4. -
Page 4: Features
Features: Video input: 4ch; video output: 2ch. Audio input: 4ch; audio output: 1ch Compression mode: M-JPEG Compatible with NTSC and PAL system Support zoom, auto, PIP, triplex function Support alarm (motion & event) recording and time recording ... - Page 5 2). TRIP: push this button, the DVR will be in triplex mode. Both live and playback picture can be displayed on screen simultaneously while recording. Also you can push “search” button to choose the record events. Re-push this button to stop this mode. 3).
- Page 6 9). ZOOM: push this button, the DVR will be in zoom mode. Use “Up, Down, Left, Right” button to move the zoom area, then press “ENTER” to zoom up. Re-push this button to exit. 10). PAUSE: to stop playing temporarily, and the DVR will be in single frame mode simultaneously.
-
Page 7: Rear Panel Function Description
4). Forth channel / Right: push this button to see full screen display form channel 4. While selecting menu items, push this button to move right the cursor. 5). Quad / Enter: push this button to see all pictures of 4 channels. While selecting menu items, push this button to select the item. - Page 8 B: If the sensor output low voltage (0V) normally and output high voltage when triggered (5V), then users must set DVR to “N.C”. Please follow the steps: MENU SENSOR SET ALARM ENABLE ”NC” N.O: Normal open, close when triggered. N.C: Normal close, open when triggered. ②.
-
Page 9: Remote Control
Remote control PIP: picture in picture. 0~4: select the channel to full screen. 2x2: 2x2 Screen Mode AUTO: Auto Sequence Mode TRIP: triplex mode. DISPLAY: DVR Information USB: Still Picture Backup ZOOM: 2X zoom up FREEZE: Freeze all the pictures. PTZ (IRIS, FOCUS, ZOOM, SPEED, SET): control key of high- speed domes. - Page 10 1). Access Menu Press the menu button on the keyboard or remote controller, the password input window will be appeared. The password is a random combination of 4 digits of “0~9”. The default password is “0000”. You can push “Up” or “Down” button to input the digit, and “Left”...
- Page 11 2). System set ① . Time / date set: It allows user to change the system time, display on/off, position, etc. if the DVR is in recording mode, you aren’t allowed to access to this menu unless you stop record first. ②...
- Page 12 ⑦ . Buzzer sound: turn ON/OFF the buzzer. ⑧ . Password enable: ON/OFF. ⑨ . Password change: it allows user to change the password with “Up, Down, Left, Right” button. 3). Video set: ① . Name setup: set a name for each channel. (Cam1, Cam2, ) ②...
- Page 13 4). Record set: ① . Over write: set the HDD whether to be over write. If you select “YES” , the DVR will automatically over write the HDD from the beginning when the HDD is full. ② . REC speed: set recording speed. PAL: 100, 50, 25, 12, 10, 5, 3, 2, 1 (f/s), 1 (f/2s) NTSC: 120, 60, 30, 20, 12, 5, 3, 2, 1 (f/s), 1 (f/2s) ③...
- Page 14 5). Network set: If you want to view the picture on PC, please set this item first! When change the digits, you can press ”ENTER” to change every bit. ① . Network state: if the network condition is well, you can set “LOCAL_LAN”, and it can transmit more quickly.
- Page 15 ① . Channel select: select a channel to set. ② . Alarm enable: alarm trigger switch, can be set to off, NC or NO. ③ . Motion enable: motion alarm switch. ④ . Motion level: motion sensitivity level, (VERY HIGH, HIGH, NORMAL, LOW, VERY LOW) ⑤...
- Page 16 8). Schedule set: it allows user to change a recording schedule during a week using “Up, Down, Left, Right, enter” key. ① . Schedule enable: switch for schedule. Push “ENTER” to select one item, “Up / Down” to open; “Left / Right” to select start or stop time, then “Up / Down”...
-
Page 17: User Guideline
④. Protocol: there are 4 types to select: “PELCO_P”, ”PELCO_D”, ”NEON”, ”SAMSUNG”. User Guideline 1. Hard Disk Connection 1. Push out the hard drive rack from DVR 2. Open the top cover of the drawer. side panel. 4. Connect the ribbon cable (IDE) cable & 3. -
Page 18: Normal Recording
If you have another HDD, please jump that HDD to SLAVE, and open the machine, put the HDD to the HDD shelf, then connect the power and digit cable. 2. Normal Recording Check recording parameter setup before recording; select video quality, frame rate. You can’t change record setting during the process of recording. -
Page 19: Playback
MODE*” will display on the screen top, without pushing the schedule button, the time recording parameter setup will not work. ● The prerequisite condition of whether the time recording takes effective is system must be set on schedule. Push “SCHEDULE” again to cancel this mode. 5. -
Page 20: Event Search
6.1 REC START/STOP SEARCH When the cursor moves to “REC START/STOP SEARCH”, then push enter button, the Start stop search window will appear, which is illustrated as below. All record segments are displayed here, push “Up / Down” button to move the cursor among the segment list, push “Left / Right”... -
Page 21: Usb Backup
Push “Up / Down” button to move the cursor among the event list, push “Left / Right” button to see previous or next page, push “enter” button to play the segment you select. Push “MENU” button back to Search Play menu. 6.3 Time Search When the cursor moves to “Time Search”, then push enter button, the time search window will appear, which is illustrated as below. -
Page 22: Usb Update
If you want to save still picture, please make the channel that you want to saved to full screen, then push the “USB” button shortly on keyboard or in remote controller, it will be begin to backup one frame of the video to USB device. you can plug the USB device out and see the picture on a computer with net viewer software. -
Page 23: Zoom
NOTE: do not shut down the DVR when the DVR is updating, it may cause fatal problem. 9. Zoom Press “Zoom” button to enter into the zoom mode. On the screen for zooming, the bright rectangle is the area to be zoomed up. Press “Up, Down, Left or Right”... -
Page 24: Ptz Operation
11. PTZ OPERATION This DVR can control high-speed domes, which are connected to the DVR. To control the high-speed dome, make sure all the wires are correctly connected, first you must set the right protocol, baud rates, and high-speed dome’s address for each speed dome, please refer to protocol set. -
Page 25: Triplex Mode
button in remote controller you can set PIP picture. When one channel name is in yellow, push “Left / Right” button to change selected channel, push “Up / Down” button to change the selected channel’s picture, then push “Enter” button to confirm. Push channel select button to exit this mode. - Page 26 1. Setting Please click button, you will see the window below. enter the IP address and click “OK” button. IP Address: Set the IP of the DVR. Port: Set the communication port and AV port. Local rec: setting the path of “.dvr” file which recorded on PC’s HDD. Video size: Fullsize / Halfsize.
-
Page 27: Live Play
<Connect success> <Connect fail > 3. Live play You can select “ button to see live picture. Just click this button, pictures will be ” show. Any item is changed, please click this button to make active. 4. Playback Click “Playback” label, net searching window will be appeared. First, you have to select the HDD of the DVR. - Page 28 Double click the record list item and press “ ” button; you will be seeing the playback video. The event list operation is the same as record list operation 5. Scandisk If you connect the HDD that used in the DVR directly to a PC, this function will be used. Select Scandisk label, scandisk window will be show.
-
Page 29: Trouble Shooting
1. Press this button, you can record the video to your PC’s HDD with “.avi” file system, the “avi” button on bottom will be turning green. Re-push to stop record. You can see the below figure. Click Save to AVI button and determine the file name, the location and channels to save. - Page 30 Q: Can my desktop PC read the video data on hard disk drive in DVR? es, you can use our software to read all video data on hard disk. Q: What happens if I install my PC hard disk drive into the DVR? A: you can use a PC hard disk drive in the DVR.
- Page 31 Q: I push stop button, but the DVR doesn’t stop recording, why? A: If the DVR is recording in schedule mode, you can’t stop recording unless you exit schedule mode first. Push schedule button to cancel schedule mode. Q: There is a moment, but the DVR does not start recording? A: Make sure the motion enable of that channel is on, the area set is ok, the Event REC time is not set to off, that time of schedule table is enable, and the DVR is in schedule mode.
-
Page 32: Reference Time To Recording
A: If you select overwrite the HDD, when it is full, it will be overwrite some events. These events that have been overwritten were in blue or gray. It just indicates which event has been overwritten. Reference Time to Recording HDD: 160GB (MAXTOR), PAL system. - Page 33 NTSC: 720 X 240 or 360 X 240 Triplex Live/PB, recording during Playback Sensor Input 4CH Enable (NO/NC) Alarm Out 1CH (NO/NC,2A 28VDC / 2A 125VAC) Audio Input RCA X 4 Audio Output 1CH (200HZ～4KHZ) Display Mode QUAD, PIP, Zoom, Freeze Recording Mode Manual / Event / Alarm / Motion / Network Motion Detect...
