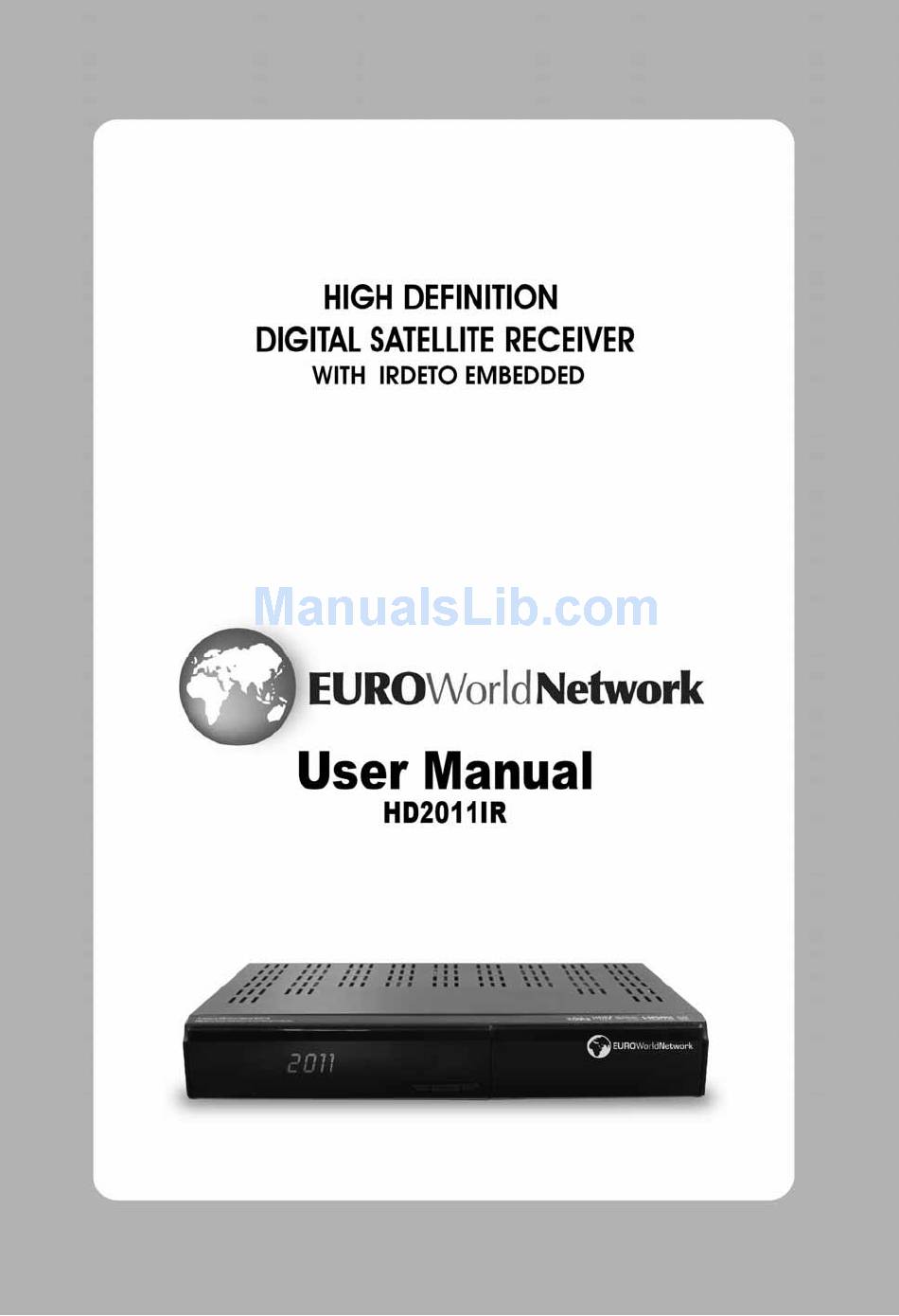

EuroWorldNetwork HD2011IR User Manual

High definition digital satellite receiver with irdeto embedded
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Contents | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD2011IR and is the answer not in the manual?

Questions and answers

Summary of Contents for EuroWorldNetwork HD2011IR

  • Page 1 Contents | 1...
  • Page 2 2 | HD2011IR User Manual Notice This manual can help you to become familiar with the many great features of our high definition digital Satellite receiver, as well as how to use and operate these functions of our receiver. All the safety and operating instructions should be read before the receiver is operated.
  • Page 3 User Manual | HD2011IR Safety and Precautions Attention when installing the receiver Install on an even plane. Don’t install in the cold or under direct sunlight. Leave a minimum 10cm gap all around the product. Don’t disassemble, repair or reorganize the product.

  • Page 4: Fcc Interference Statement

    4 | HD2011IR User Manual FCC INTERFERENCE STATEMENT FCC ID: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 5: Table Of Contents

    User Manual | HD2011IR Table of Contents Chapter 1. Before You Begin ························ 7 4.6 Managing Channel List ····················· 32 1.1 Features·············································· 8 4.6.1 Displaying Channel List ················· 32 1.2 Package Contents ······························ 9 4.6.2 Editing Channels···························· 33 1.3 Names of Each Part·························· 10 4.7 Managing Favorite Channel Lists ·····...
  • Page 6 6 | HD2011IR User Manual...

  • Page 7: Chapter 1. Before You Begin

    HD2011IR User Manual | 7 Chapter 1 Before You Begin...

  • Page 8: Features

    8 | HD2011IR User Manual 1.1 Features The satellite receiver is one of the best Digital Satellite receivers for the new High-Definition Multimedia Interface. The satellite receiverI adopts the latest MPEG-4 technology thus you can enjoy the various TV and radio programs. The simple connection and easy-of-use operation, user- friendly three-dimensional OSD, highest quality audio output with S/PDIF for Dolby Digital.

  • Page 9: Package Contents

    HD2011IR User Manual | 9 1.2 Package Contents Please check to make sure the following contents are in the product package. Product contents may be subject to change. Cables not specified above must be purchased separately.

  • Page 10: Names Of Each Part

    10 | HD2011IR User Manual 1.3 Names of Each Part 1.3.1 Front Panel 1. STANDBY/ON Switches the digital receiver between standby mode and operation mode. Operation mode Front Panel displays the 7-Segment (current service number). Active Standby Mode Front Panel displays the 7-Segment (current time).

  • Page 11: Rear Panel

    HD2011IR User Manual | 11 1.4 Rear Panel 1. USB USB2.0 connector for software upgrade. 2. S/PDIF Connect S/PDIF to audio input of your amplifier with optical digital port via an optical cable. 3. VIDEO (YPbPr) Connect Y/Pb/Pr output of VIDEO to Y/Pb/Pr video input of your TV via a RCA cable.

  • Page 12: Names Of Remote Button

    12 | HD2011IR User Manual 1.4 Names of Remote Button STANDBY Switches the digital Receiver between standby mode and operation mode. Operation mode Front Panel displays the 7-Segment (current service number). Active Standby Mode Front Panel displays the 7-Segment (current time).
  • Page 13 HD2011IR User Manual | 13 ▲/▼ To change the TV/radio channels Up/Down. ◄/► To increase or decrease TV/Radio volume level or change the value of an item with preprogrammed values. VOL +/- To change the TV/Radio volume. P +/- To change the TV/Radio channels Up/Down.
  • Page 14 14 | HD2011IR User Manual : Angle of remote control use The remote control can be used at a distance of up to 7 to 10 meters, and at an angle of 30 degrees from the remote control led.

  • Page 15: Chapter 2. Connections

    HD2011IR User Manual | 15 Chapter 2 Connections...

  • Page 16: Connecting A Tv

    16 | HD2011IR User Manual This chapter describes how to connect the product to your home entertainment system. Choose the most appropriate procedure depending on your environments. : If you encounter with any problems or have any questions during connecting the product, please contact your local product distributor.
  • Page 17 HD2011IR User Manual | 17 2. Connecting a TV with CVBS 1) Connect the VIDEO to CVBS input of your TV. 2) Connect the AUDIO L/R to Audio input of your TV. 3) Go to 2.2 Connecting to Dish, and then connect your dish.

  • Page 18: Connecting A Dish

    18 | HD2011IR User Manual 2.2 Connecting a Dish 1. Dish Connect the satellite antenna cable to the LNB IN. 2 Fixed Dishes Using DiSEqC Connect the output of DiSEqC to the LNB IN of the receiver.

  • Page 19: Connect The Optical S/Pdif

    HD2011IR User Manual | 19 2.3 Connect the Optical S/PDIF If you watch a program encoded by a Dolby Digital, you can enjoy the higher quality sound of the Dolby Digital audio Connect the optical S/PDIF to Dolby Digital decoder or Digital television.

  • Page 20: Starting Up

    20 | HD2011IR User Manual 2.4 Starting Up Connect the power cord of the product to a power outlet and press the “Power” button at the rear panel to turn the product on. The first time you power up the product, it will display the initial screen, then some parameters for system configuration should be set.

  • Page 21: Chapter 3. Basic Settings

    HD2011IR User Manual | 21 Chapter 3 Basic Settings...
  • Page 22 22 | HD2011IR User Manual If you use the product for the first time after connecting, you have to perform basic settings. Once the setup procedure is finished successfully, you can start watching TV or listening to radio. Press the “MENU” button to save the previous input information and exit the basic settings. If you exit the basic settings without fully completing the setting procedures, you may not watch any broadcasting normally.
  • Page 23 HD2011IR User Manual | 23 2. Select the appropriate language from the list using the “ ” button and press the “Blue” button to move to the next setting. 3. Press the “Blue” button to move to the next setting.
  • Page 24 24 | HD2011IR User Manual 4. Select the Audio, Subtitle language the “ ” button and press the “Blue” button. 5. Select the screen mode the “ ” button and press the “Blue” button.
  • Page 25 HD2011IR User Manual | 25 6. When completing basic settings, the following Menu will appear. If you encounter with any problems or have any questions when setting up the antenna, please contact your local product installer or distributor. Now you have completed all steps required for watching TV or listening to radio. Press the “MENU”...
  • Page 26 26 | HD2011IR User Manual...

  • Page 27: Chapter 4. Operations

    HD2011IR User Manual | 27 Chapter 4 Operations...

  • Page 28: [Basic Functions]

    28 | HD2011IR User Manual [Basic Functions] 4.1 Changing Channels There are several ways to change the channels. Press the “P+/-“ button on the remote control to access the channels sequentially. Press the “OK” button to display TV channel list, and then select the desired channel.

  • Page 29: Viewing Program Information

    HD2011IR User Manual | 29 4.3 Viewing Program Information You can view the 2 steps information window by pressing the “INFO” button while watching a program. Press the “EXIT” button to hide the program information. Step 1: Basic Information The Basic Information is displayed as following on the screen.

  • Page 30: Changing Subtitle Language

    30 | HD2011IR User Manual 4.4 Changing Subtitle Language If the current program provides Subtitle information, you can select the subtitle language. 1. Press the “SUBT” button to display the subtitle language list. 2. Select the desired subtitle language using the “▲▼” button, and press the “OK” button. The subtitle language will be displayed at the bottom of the screen.

  • Page 31: Changing Audio Language

    HD2011IR User Manual | 31 4.5 Changing Audio Language If the current program provides multiple audio languages, you can select the desired language. 1. Press the “OPTIONS” button to display the audio language list. If the mode is not the audio language, press the “◄►”...

  • Page 32: [Advanced Functions]

    32 | HD2011IR User Manual [Advanced Functions] 4.6 Managing Channel List 4.6.1 Displaying Channel List You can see various channel lists and change the channels from the channel list more conveniently. 1. Press the “OK” button while watching a program to display the selected channel list.

  • Page 33: Editing Channels

    HD2011IR User Manual | 33 4.6.2 Editing Channels You can edit (such as lock, rename, delete, and favorite group) each channel. 1. Press the “OK” button while watching a program to display the selected channel list. 2. Press the “Yellow” button to edit the channel.

  • Page 34: Managing Favorite Channel Lists

    34 | HD2011IR User Manual 4.7 Managing Favorite Channel Lists You can create and edit favorite channel list(s) or group(s). 1. Press the “MENU” button. Move to the Channel Manager menu using the “ ▼” button and press the “OK” button.
  • Page 35 HD2011IR User Manual | 35 4. You can edit favorite channel list(s) or group(s). Select the Favorite group using the “ ▼” button and press the “OK” button. If you want to add channel(s), select the desired channel, and then press the “OK”...

  • Page 36: Managing Edit Channel Lists

    36 | HD2011IR User Manual 4.8 Managing Edit Channel Lists You can create and edit channel list(s) or group(s). 1. Press the “MENU” button. Move to the Channel Manager menu using the “ ▼” button and press the “OK” button.

  • Page 37: Changing Channel Mode

    HD2011IR User Manual | 37 4.9 Changing Channel Mode You can change the channel mode by group. 1. Press the “OK” button to display All Channel or Favorite Channel lists according to the current channel mode. 2. Select the channel mode using the “◄►” button and press the “OK” button.

  • Page 38: Viewing Program Guide

    38 | HD2011IR User Manual 4.10 Viewing Program Guide The Program Guide shows program information about each channel-by date and time. 1. Press the “EPG” button. Red: Changes the schedule mode. Green: Views the channel group(s). Yellow: Moves to the Next Day.

  • Page 39: Viewing Teletext

    HD2011IR User Manual | 39 4.11 Viewing Teletext Teletext Service is text data service from Service Provider. It is available only when the program provides teletext data service. 1. Press the “ ” or “OPTIONS” button. Teletext Service Data is displayed.

  • Page 40: Changing Video Format

    40 | HD2011IR User Manual 4.13 Changing Video Format Press the V.Format” button. You can select the video output format among 576i, 576p, 720p, 1080i, 1080p and auto.

  • Page 41: Chapter 5. Settings

    HD2011IR User Manual | 41 Chapter 5 Settings...
  • Page 42 42 | HD2011IR User Manual This chapter describes how to search for channels, edit channel, setup for language (OSD, Timer, etc.), and show tools. 1. Press the “MENU” button to display the Menu OSD. 2. Move to the appropriate Menu using the “...

  • Page 43: Channel Search

    HD2011IR User Manual | 43 5.1 Channel Search You can search channel. Manual Search: Searches the channel manually. Automatic Search: Searches the channel automatically. Move to the Channel Search menu using the “ ”button and press the “OK” button. Move to the desired sub-menu using the “...

  • Page 44: User Setting

    44 | HD2011IR User Manual 5.3 User Setting You can setup additional function such as Language, Display, A/V Output, Time & Timer Setting, and Lock Control. Language: Selects the language such as menu, primary/secondary audio, subtitle, and primary/secondary subtitle. Display: Sets the infobar display time, OSD transparency, and load default.

  • Page 45: Common Interface & Irdeto

    HD2011IR User Manual | 45 5.5 Irdeto You can view the current status of smart cart. Irdeto CA Status Move to the Irdeto menu using the “ ”button and press the “OK” button. Move to the desired sub-menu using the “...
  • Page 46 46 | HD2011IR User Manual...

  • Page 47: Chapter 6. Appendix

    HD2011IR User Manual | 47 Chapter 6 Appendix...

  • Page 48: Trouble Shooting

    48 | HD2011IR User Manual 6.1 Trouble Shooting If the product does not work properly after checking it, please contact your local dealer. Don't open the product. It may result in a dangerous electric shock and will invalidate your warranty...

  • Page 49: Specification

    HD2011IR User Manual | 49 6.2 Specification 1. Tuner & Demodulator RF Tuner Input Frequency 950MHz ~ 2150MHz) RF Tuner Input Connector F-Type Female (With Loop-Through Output) RF Tuner Input Impedance 75[Ohm] RF Tuner Input Level -69dBm ~ -25dBm Multi- Standard Demodulation...

  • Page 50: Power Supply

    50 | HD2011IR User Manual 4. Conditional Access Interface Smart Card Interface 1 Slot For Irdeto CAS Support 5. System Resource Information CPU/Decoder STi7111 Flash ROM Default 8Mbytes(Secure Flash) DDR SDRAM Default 256Mbytes(Program 128Mbytes & Graphic 128Mbytes) EEPROM Default 128Kbits 6.
  • Page 51 HD2011IR User Manual | 51...
  • Page 52 52 | HD2011IR User Manual C/KRS/EUROHD2011IR_GP7_REV1.0_ENG...
