BACnet and LONworks Protocol Gateway for OnTrac
When a BAS interface with OnTrac, TempTrac or the XR requires a protocol other than the standard
Modbus TCP/IP for OnTrac or Modbus RTU for TempTrac and XR, Riverside Hydronics offers a
premapped gateway from FieldServer Technologies. The ProtoNode currently supports BACnet MSTP,
BACnet IP, and Lonworks. Consult factory for other protocols.
This manual is meant to be a general overview of the application of this gateway, for additional
information specific to the Protocessor product, please visit: www.protocessor.com or contact FieldServer
Technologies at 800-317-8319 Email: sales@protocessor.com for technical assistance.

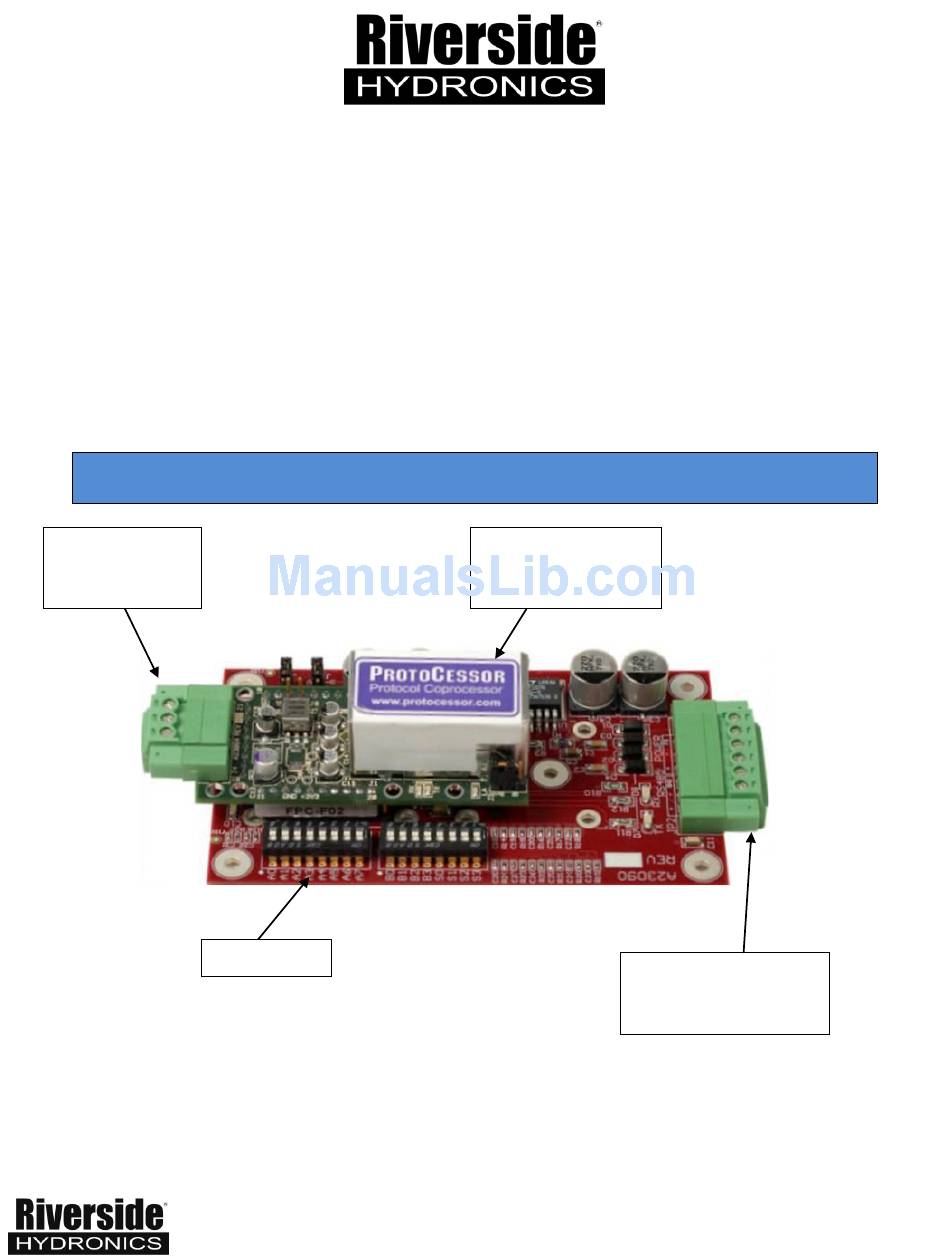

HARDWARE DESCRIPTION
RS-485 port for Host
or Field serial
protocol support
Dip switches
Riverside Hydronics
3220 Galvez Ave. - Fort Worth, Texas 76111 - Tel 1-800-990-5918
ProtoNode Gateway Manual
®
TempTrac
and XR Boiler Control
®
, LLC
Ethernet port for
Diagnostics and Host or
Field Protocol support
6 Pin RS-485 +/- and FG
Power +/- and FG, 9-30 VAC
or VDC
®
,
34-525 04/14
Page 1
Advertisement
Summary of Contents for Riverside Hydronics ProtoNode
-
Page 1: Hardware Description
When a BAS interface with OnTrac, TempTrac or the XR requires a protocol other than the standard Modbus TCP/IP for OnTrac or Modbus RTU for TempTrac and XR, Riverside Hydronics offers a premapped gateway from FieldServer Technologies. The ProtoNode currently supports BACnet MSTP, BACnet IP, and Lonworks. - Page 2 SETTINGS AND DEFAULTS BACnet ProtoNode BACnet ProtoNode KIT PN: 115734 Includes ProtoNode, Power Supply, ProtoNode Manual, Supplemental Documentation based on requested configuration 34-525A-1 or 34-525B-1 or 34-525C-1. BAS is to interface with: OnTrac Boiler Management System using BACnet MSTP or IP (PROF1.CSV)
- Page 3 Number of Tire 2 Boilers: (8) _____________ SETTINGS AND DEFAULTS LONworks ProtoNode LONworks ProtoNode KIT PN: 118068 Includes ProtoNode, Power Supply, ProtoNode Manual 34-525, Supplemental Documentation based on requested configuration 34-525A-2 or 34-525B-2 or 34-525C-2. BAS is to interface with: OnTrac Boiler Management System using LONworks (PROF1.CSV) SUPPLEMENTAL DOCUMENTATION 34-525C-2 DEVICE IP ADDRESS for utility interface: 192.168.1.24 ________________________...
- Page 4 Dip switches S0 to S3 select the register profile to be used. The profile, is a text file located inside the ProtoNode gateway. By selecting the file to be used, it will allow the gateway to be configured for interface with different devices.
- Page 5 SYSTEM OVERVIEW for the ONTRAC PROFILE (PROF1) The Protonode is external protocol gateway and should be powered and located external to the OnTrac. Customer Customer Protocol Protocol Ethernet Serial Ethernet (TCP/IP) Router/Switch Modbus TCP/IP ® Riverside Hydronics , LLC 34-525 04/14 3220 Galvez Ave.
- Page 6 BACnet MSTP BACnet IP BUILDING AUTOMATION SYSTEM BACnet GATEWAY 1 – 8 TEMPTRAC Modbus RTU OPERATING CONTROLS 1-8 XR OPERATING CONTROLS Protonode C GND OPTIONAL FIELD INSTALLED Power 9-30 Vac TERMINATION RESISTOR or Vdc COMMON/SHIELD RS-485 +/- TempTrac XJ485 SERIAL INTERFACE Optional serial cable must be ordered with the heater/boiler.
- Page 7 The Default IP Address of the ProtoNode IP address is 192.168.1.24, Subnet Mask is 255.255.255.0. If the PC and the ProtoNode are on different IP Networks, assign a Static IP Address to the PC on the same network. Example, with the default settings of the gateway on 192.168.1.24, the network is 192.168.1.XXX then 192.168.1.8 will be a valid IP address for your computer.
- Page 8 VIEW COMMUNICATION: Select “O” from the main menu screen for Connect Overview to see the number of messages on each protocol. If the ProtoNode gateway is communicating correctly with the device then the display will show Tx and Rx messages without any errors. Below SMT is the communication of your computer with the gateway, and can be disregarded.
- Page 9 The default IP for the OnTrac is 192.168.1.100 and the Default for the gateway is 192.168.1.24. If the building IP network require different IP addresses, it is necessary to change both the Protonode PROF1.CSV client configuration for the OnTrac and the OnTrac IP. This topic is covered in detail in the 34-525C-1 BACnet document, and the 34-525C-2 LONworks Document.
- Page 10 LED, press “set” key. 9. The address is programmed. After approximately 30 seconds, the LED readouts will return to the default temperature reading mode. ® Riverside Hydronics , LLC 34-525 04/14 3220 Galvez Ave. - Fort Worth, Texas 76111 - Tel 1-800-990-5918...
