Summary of Contents for Percon Phoenix 104

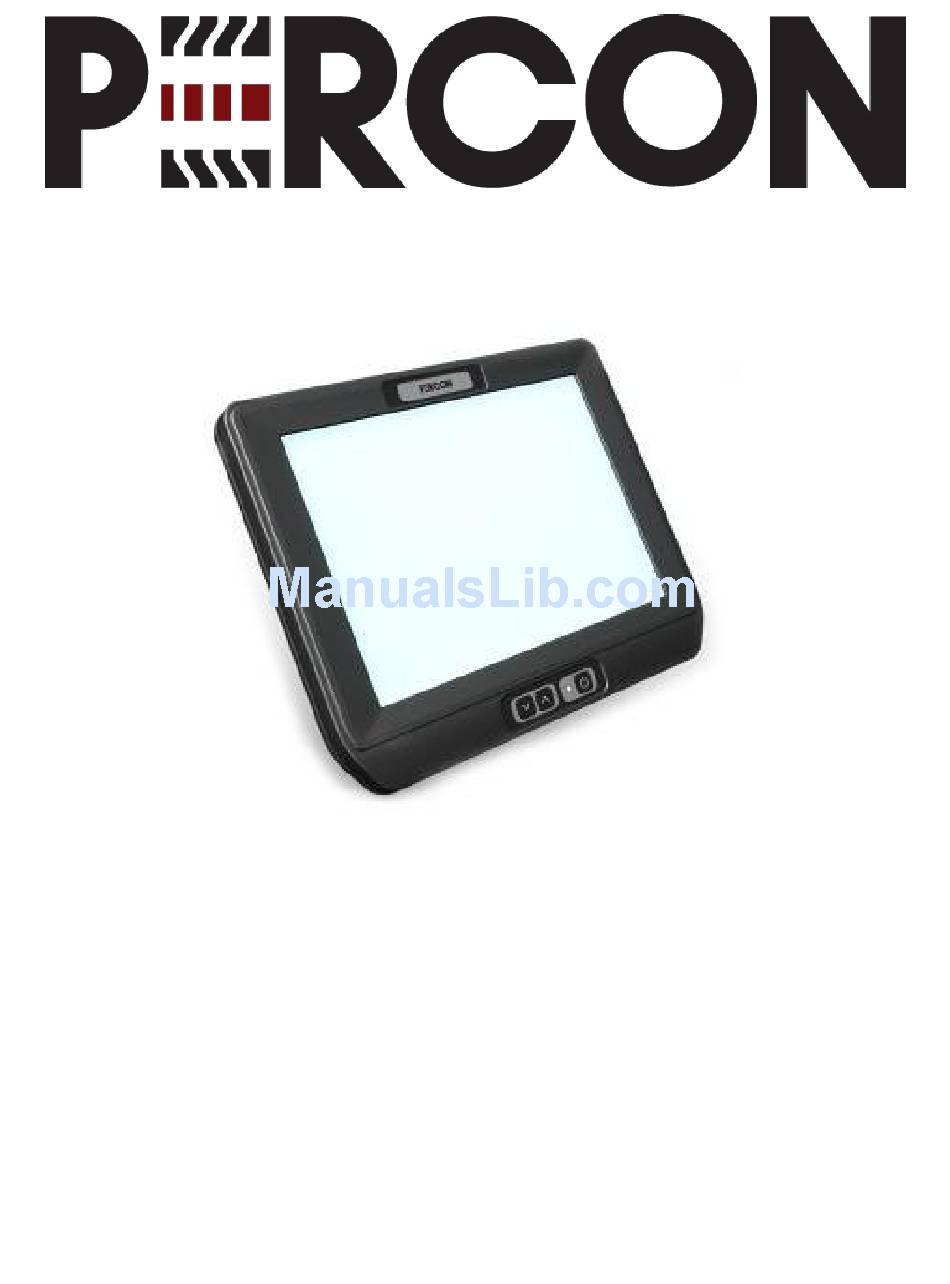

- Page 1 Percon Phoenix 104 Vehicle and Forklift Computer Installation Manual...
- Page 2 The information contained herein is provided solely for the purpose of allowing customers to Install, operate, configure, and develop applications for Percon-manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Percon Incorporated.
-
Page 3: Table Of Contents
Related Documents ..........................4 Telephone Support ..........................4 The Phoenix Vehicle Computer ........................5 Features of the Phoenix 104 ........................5 Additional Features of the Phoenix 104e Only ..................5 Connector Description ..........................5 USB 1 and USB 2 ..........................6 COM 1 &... -
Page 4: Before You Begin
Web Support Visit the Percon web site at www.percon.com and select Support on the menu bar at the top of the page. Our site has details on how to Contact Us, Frequently Asked Questions and answers, and links to download our current manuals. -
Page 5: The Phoenix Vehicle Computer
The Phoenix Vehicle and Forklift Computer The Percon Phoenix 104 is a rugged Vehicle and Forklift Computer designed for real-time data collection applications in warehousing, distribution, work-in-process, time and attendance, and stationary applications. Use this chapter to familiarize yourself with the Phoenix Vehicle and Forklift Computer. -
Page 6: Usb 1 And Usb 2
USB 1 and USB 2 Provides two USB Host port to connect USB peripheral devices to the Phoenix. Power is provided on the USB ports at 5VDC up to a maximum of 1 amp total for both connectors. COM 1 & 2 The Phoenix connects to RS-232 devices such as Barcode scanners, RFID readers, PC’s or printers via two DB-9 male serial connectors with standard PC style pinout with the addition of power on Pin 9, either 5 VDC or 12 VDC, up to a maximum or 1 amp total for both connectors. -
Page 7: Mounting The Phoenix
Mounting the Phoenix Caution: The touchpanel consists of a plastic film covering glass. Use care when handling the Phoenix during mounting to avoid damage to the touch panel. Physical damage to the panel is NOT COVERED BY THE WARRANTY. Add Mounting Base to Unit Lay the Phoenix on a flat surface with padding to protect the touchpanel (the bag the unit is shipped in works well for this). -
Page 8: Mount The Base To The Vehicle
Mount the base to the vehicle Select the location on the vehicle for the mount base. For the rail base, insert one screw through the two base parts and turn on the lock nut finger tight. Hold the base up to the post or rail selected, and insert the second bolt through the base. Swing the back plate around and over the bolt. -
Page 9: Attaching The Phoenix To Power
Attaching the Phoenix to Power For the Phoenix to operate, you must provide power from the vehicle DC power supply (12V – 48V) or from an AC/DC power supply. Vehicle Connection For vehicles with 12 to 48VDC power available, the Phoenix should be connected directly to the battery or to a main power connection. -
Page 10: Status Led
Status LED The Phoenix uses three brightness levels on the green status LED to indicate the status of power and operation. LED State Status Not connected to a power source or the power source is off. Connected to a live power source, unit is in the suspend state. Blinking Unit running Bright... -
Page 11: Increasing Memory Storage
3) Wipe dry. Contacting Product Support If you cannot find the answer to your problem in this manual, you can visit the Percon Customer Services site at www.percon.com to review technical information or to request technical support. If you still need help after visiting the web site, you may need to call Product Support. -
Page 12: Specifications
Rechargeable Nickel Metal Hydride Electrical rating: 12, 4A max, 48V 1A Operating temperature: Phoenix 104: 0° to 50° C (32° to 122°F) Phoenix 104e: -30° to 60° C (-22° to 122°F) Storage temperature: -30° to 70° C (-4° to 158°F)
