Summary of Contents for Hydel Falcon Eye BNA501
-
Page 1: Installation Guide
Falcon Eye BNA501 Bridge Navigational Watch Alarm System Installation Guide rev A 8/2011... - Page 2 FALCON EYE BNA501 BNWAS This page intentionally left Blank page 2 Revision A 8/2011...
-
Page 3: Safety Notices
FALCON EYE BNA501 BNWAS Safety Notices WARNING WARNING D a n g e r o u s v o l t a g e s Mains supply indicators inside the Main Unit. warning devices Always disconnect mains and do not warranty the... -
Page 4: Table Of Contents
FALCON EYE BNA501 BNWAS Table of Contents Safety Notices ....................3 List of used Abbreviations ................6 INSTALLATION ....................7 Equipment List..................7 1.2 Mounting and wiring considerations ..........9 1.2.1 General requirements................9 1.2.2 Master Control Unit..................9 1.2.3 Control Panel....................10 1.2.4 PIR/MW Detectors..................10 1.2.5 Bridge Reset and Alarm Units................10... - Page 5 FALCON EYE BNA501 BNWAS Table of Contents cont. List of Figures. Figure 1. BNA501 Block Diagram ..................8 Figure 2. Spring Loaded Terminals..................9 Figure 3. DIP Switches......................12 Figure 4. PLC Mode Switch....................12 page 5 Revision A 8/2011...
-
Page 6: List Of Used Abbreviations
FALCON EYE BNA501 BNWAS List of used Abbreviations BNWAS: Bridge Navigational Watch Alarm System. MCU: Main Control Unit. CP: Control Panel. BRU: Bridge Reset and Alarm Unit. CAU: Cabin Alarm Unit. MAU: Messroom Alarm Unit. GPS: Global Positioning System. SOG: Speed Over Ground. -
Page 7: Installation
FALCON EYE BNA501 BNWAS 1. INSTALLATION 1.1 Equipment List BNA 501 in standard configuration consists of the following equipment: Master Control Unit Order code: (MCU) BNA501_MCU Control Panel Order code: (CP) BNA501_CP Order code: Bridge Reset and BNA501_BRU Alarm Unit... -
Page 9: Mounting And Wiring Considerations
All wiring should be securely fastened Protect wiring from sharp edges using suitable sleeves and/or cable glands. Hydel supplies all required cables but if a substitude is to be made ensure that it fullfils safety requirements. 1.2.2 Master Control Unit (dwg. 01, 02, 03) Master Control Unit (MCU) can be installed in bridge or in an equipment room, taking in account the maximum cable run from the Control Panel which is 50 meters. -
Page 10: Control Panel

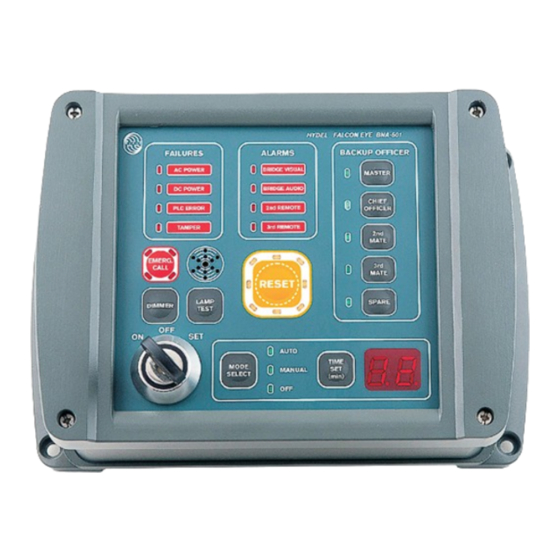

FALCON EYE BNA501 BNWAS 1.2.3 Control Panel (dwg. 04) Control Panel must be positioned in a bridge location providing proper lookout. It can be flush mounted or bulkhead mounted. Bulkhead mount Use the template on page 31 to mark hole positions. Drill the appropriate pilot holes. Unscrew the four screws (page 23). -
Page 11: Connections With Other Equipment
FALCON EYE BNA501 BNWAS Connections with other equipment 1.3.1 VDR MCU talks with ships' VDR through a standard IEC 61162 (NMEA) interconnection. Refer to Appendix B for NMEA sentence details. Refer to interconnection diagram (dwg.11) for wiring details. The transmission of the $BNALR sentence is not periodic so the VDR must be configured accordingly. -
Page 12: Commissioning
FALCON EYE BNA501 BNWAS 2. COMMISSIONING 2.1 DIP Switch settings Installation specific settings are adjusted by means of six DIP Switches located at the back of MCU front door (fig. 3) Settings SW No. Function 3rd stage alarm 90 sec... - Page 13 FALCON EYE BNA501 BNWAS Verify that the Control Panel is powered up. Press the LAMP TEST button on Control Panel . Check that all indicators are OK. Check the Control Panel for any displayed failures . Refer to ' 3.2 if any failures are displayed.
-
Page 14: First Line Troubleshooting
FALCON EYE BNA501 BNWAS 3. FIRST LINE TROUBLESHOOTING 3.1 Fuse replacement Any blown fuse should be replaced by the same type and rating to avoid the risk of fire. Always check for obvious short circuits etc. before replacing a blown fuse. Call for service if a fuse repeatedly blows. -
Page 15: Troubleshooting Table
FALCON EYE BNA501 BNWAS 3.2 Troubleshooting table In case of system malfunction try to restore normal operation by checking the following troubleshooting table. which lists common simple symptoms. Call for service if normal operation cannot be restored. WARNING D a n g e r o u s v o l t a g e s inside the Main Unit. -
Page 16: Appendix A. Nmea Interface Sentences
FALCON EYE BNA501 BNWAS APPENDIX A NMEA INTERFACE SENTENCES BNA501 uses a number of NMEA sentences to communicate with ships GPS,VDR ,Autopilot and Other bridge equipment. Below is a description of the used sentences. Speed over ground (SOG) from GPS. - Page 17 FALCON EYE BNA501 BNWAS BNWAS status to ships VDR. $BNALR,,000,A,A,C1=xxx;C2=xx;C3=x*hh<CR><LF> – A: A = Dormant period exceeded V = Dormant period not exceeded – A: A = Alarm acknowledged V = Alarm unacknowledged c1 = AUT or MAN or OFF c2 = Dormant period in min, (03 –...
-
Page 18: Appendix Β Specifications
FALCON EYE BNA501 BNWAS APPENDIX B SPECIFICATIONS Power supply: Primary: 100-240 VAC 50/60 Hz Backup: 24 VDC Dormant Time selection : 3-12 minutes in 1 minute intervals. Modes of operation: Manual, Off, Auto Bridge audible alarm level: 78 dB Cabin audible alarm level:... -
Page 19: Appendix C. Outline Drawings And Interconnection Diagrams
FALCON EYE BNA501 BNWAS APPENDIX C OUTLINE DRAWINGS AND INTERCONNECTION DIAGRAMS Page 19 Revision A 8/2011... - Page 20 FALCON EYE BNA501 BNWAS page 20 Revision A 8/2011...
- Page 21 FALCON EYE BNA501 BNWAS page 21 Revision A 8/2011...
- Page 22 FALCON EYE BNA501 BNWAS Page 22 Revision A 8/2011...
- Page 23 FALCON EYE BNA501 BNWAS Page 23 Revision A 8/2011...
- Page 24 FALCON EYE BNA501 BNWAS Page 24 Revision A 8/2011...
- Page 25 FALCON EYE BNA501 BNWAS Hydel Overseas (Shanghai). Ltd. SCALE: No. 218 Kang Wu Rd, Bldg 7, Pudong District, Shangai, China web: www.hydel.com email: overseas@hydel.com TITLE: BRIDGE RESET AND ALARM UNIT INTERNAL OUTLINE REV: REF.NO: MODEL NO: DATE: BNA501 FalconEye Page 25...
- Page 26 FALCON EYE BNA501 BNWAS Page 26 Revision A 8/2011...
- Page 27 FALCON EYE BNA501 BNWAS Hydel Overseas (Shanghai). Ltd. SCALE: No. 218 Kang Wu Rd, Bldg 7, Pudong District, Shangai, China web: www.hydel.com email: overseas@hydel.com TITLE: CABIN ALARM UNIT INTERNAL OUTLINE REV: REF.NO: MODEL NO: DATE: BNA501 FalconEye Page 27 Revision A 8/2011...
- Page 28 FALCON EYE BNA501 BNWAS Hydel Overseas (Shanghai). Ltd. SCALE: No. 218 Kang Wu Rd, Bldg 7, Pudong District, Shangai, China web: www.hydel.com email: overseas@hydel.com TITLE: MESSROOM ALARM UNIT INTERNAL OUTLINE REV: REF.NO: MODEL NO: DATE: BNA501 FalconEye Page 28 Revision A 8/2011...
- Page 29 FALCON EYE BNA501 BNWAS ο 12 m 15 m COVERAGE DIAGRAM Hydel Overseas (Shanghai). Ltd. SCALE: No. 218 Kang Wu Rd, Bldg 7, Pudong District, Shangai, China web: www.hydel.com email: overseas@hydel.com TITLE: PIR/MW DETECTOR OUTLINE REV: REF.NO: MODEL NO: DATE:...
- Page 30 4 5 6 MASTER CHIEF OFFICER 2nd MATE 3rd MATE SPARE SCALE: TITLE: INTERCONNECTION DIAGRAM Hydel Overseas (Shanghai). Ltd. REV: REF.NO: No. 218 Kang Wu Rd, Bldg 7, Pudong District, Shangai, China web: www.hydel.com email: overseas@hydel.com MODEL NO: DATE: BNA501 FalconEye...
- Page 31 FALCON EYE BNA501 BNWAS This page intentionally left Blank Page 31...
- Page 32 FALCON EYE BNA501 BNWAS This page intentionally left Blank Page 32...
-
Page 33: Revision History
FALCON EYE BNA501 BNWAS Revision History Revision Date Description rev. A 08/2011 Initial document release. Hydel Overseas (Shanghai) 218, kangwu Road Building No3 Nan Hui District, Shanghai P.R.C. 201315 www.hydel.com Page 33 Revision A 8/2011...
