Summary of Contents for Measurement Computing CIO-EXP16

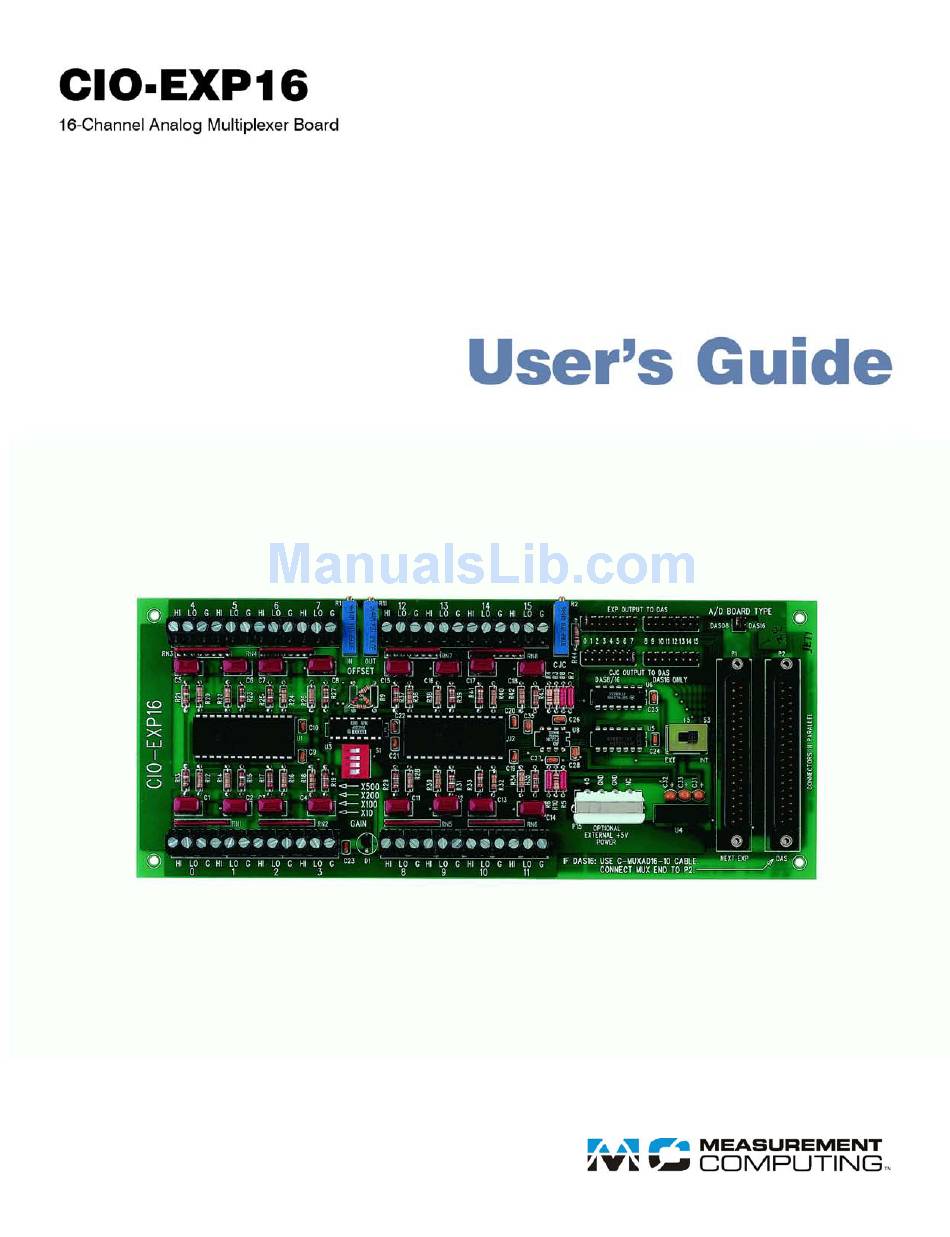

- Page 2 CIO-EXP16 Analog Multiplexer board User's Guide Document Revision 1, January, 2007 © Copyright 2007, Measurement Computing Corporation...
- Page 3 © 2007 Measurement Computing Corporation. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form by any means, electronic, mechanical, by photocopying, recording, or otherwise without the prior written permission of Measurement Computing Corporation.
- Page 4 Information furnished by Measurement Computing Corporation is believed to be accurate and reliable. However, no responsibility is assumed by Measurement Computing Corporation neither for its use; nor for any infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of Measurement Computing Corporation.
-
Page 5: Table Of Contents
Introducing the CIO-EXP16 ........................8 Overview: CIO-EXP16 features .........................8 Software features ..............................8 Chapter 2 Installing the CIO-EXP16 ........................9 What comes with your CIO-EXP16 shipment? ....................9 Hardware ..................................9 Optional components ................................ 9 Additional documentation..............................9 Unpacking the CIO-EXP16 ..........................10 Connecting to the A/D board..........................10 Signal cable..................................10... - Page 6 CIO-EXP16 User's Guide Digital input..............................24 Power consumption ............................24 Environmental ..............................24 Main connector and pin out ..........................25...
-
Page 7: Preface
About this User’s Guide What you will learn from this user’s guide This user’s guide explains how to install, configure, and use the CIO-EXP16 so that you get the most out of its analog input and digital I/O features. This user’s guide also refers you to related documents available on our web site, and to technical support resources. -
Page 8: Introducing The Cio-Exp16
You can power the CIO-EXP16 internally from the A/D board, or externally from the computer's +5 V power supply connectors. The CIO-EXP16 board is mounted externally to the PC. It can be placed in the open on a benchtop or in a case. Software features For information on the features of InstaCal and the other software included with your CIO-EXP16, refer to the Quick Start Guide that shipped with your device. -
Page 9: Installing The Cio-Exp16
In addition to this hardware user's guide, you should also receive the Quick Start Guide (available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf). This booklet supplies a brief description of the software you received with your CIO-EXP16 and information regarding installation of that software. Please read this booklet completely before installing any software or hardware. -
Page 10: Unpacking The Cio-Exp16
Connecting to the A/D board There are two 37-pin D type connectors on the CIO-EXP16 — P1 and P2. They are wired 1:1. Connector P1 is labeled , and is provided to daisy chain additional CIO-EXP16 boards. Use a C37FF-x cable to daisy NEXT EXP chain the CIO-EXP16 boards together. -
Page 11: Cabling
DAS16 position. Connection to a DAS16 series board requires a special 37-conductor cable (C-EXP2DAS16-10) since the pin relationship of the CIO-EXP16 and DAS16 signals is not 1:1. Refer to the C-EXP2DAS16-10 cable pin out table below. C-EXP2DAS16-10 cable pin out... -
Page 12: Configuring The Cio-Exp16
Connections (available at www.mccdaq.com/signals/signals.pdf). Configuring the CIO-EXP16 Before using the CIO-EXP16, there are switches and jumpers to set, and one or more cables to install. Please turn the PC power OFF before proceeding. The CIO-EXP16 is shipped with the factory-default settings listed in the following table. -
Page 13: Power Source
Figure 3. Switch, jumper, and connector locations Before using the CIO-EXP16, verify that the board is configured with the settings that you want. Review the following information to change the default configuration of a jumper, switch, or solder gap. - Page 14 CIO-EXP16 User's Guide Installing the CIO-EXP16 External +5 V PC power connections You can power the CIO-EXP16 with your computer’s +5V power supply using the optional C-PCPOWER-10 ® cord. Each end of the cable has a keyed Molex type connector. To connect to your computer’s power connectors, do the following: Turn off power to the computer and remove the cover.
-
Page 15: A/D Board Type
MUX board’s output(s). Each CIO-EXP16 output, if used, must be exclusively assigned to an A/D channel using these jumpers. In other words, for all CIO-EXP16 boards attached to an A/D board, only one jumper on any of the jumper blocks should be assigned to a particular channel. -
Page 16: Exp Gain
(refer to the hardware user's manual supplied with your A/D board for more information). You can connect up to eight banks of 16 CIO-EXP16 inputs to a DAS08 series board, for a total of 128 inputs. Channel selection for the DAS16 family The CIO-EXP16 jumper positions 0-7 and 8-15 can be used with the CIO-DAS16. -
Page 17: Configuring The A/D Board
If the range on your A/D board is fully programmable, the software you use for temperature measurement will determine the correct range to use. Calibrating the CIO-EXP16 You should calibrate the CIO-EXP16 after you first connect to a A/D board, if you change the gain setting of the input amplifier, and at 6 month intervals. -
Page 18: Chapter 3 Functional Details
Functional Details CIO-EXP16 inputs The CIO-EXP16 inputs are screw terminals which will accept 12-22 AWG wire. Each channel has a screw terminal for signal high, signal low and ground. The inputs are differential, which require three connections from the signal source to the CIO-EXP16 — Signal High, Signal Low, and Signal Ground. -
Page 19: Thermocouples
A floating differential input has two wires from the signal source, and a 100 K ground reference resistor installed at the CIO-EXP16 input. The two signals from the signal source are Signal High (CH#-HI) and Signal Low (CH#-LO). The reference resistor is connected between the CH#-LO and #-G (Signal Ground) pins. -
Page 20: Cold Junction Compensation
Ground reference The CIO-EXP16 inputs are fully differential, which help reject noise on thermocouple wires. Close the ‘G’ pad thermocouples to work properly. The 'G' pad provides a reference from ground to the analog low input via a 100 K resistor. - Page 21 350°C 244°C 152°C 98°C 1035°C 697°C 1445°C 961°C 658°C To read the maximum usable temperature for type K and E thermocouples, set the gain to or less. After you change the gain setting, calibrate the CIO-EXP16 using the InstaCal utility.
-
Page 22: Programming And Developing Applications
Programming languages Measurement Computing’s Universal Library provides access to board functions from a variety of Windows programming languages. If you are planning to write programs, or would like to run the example programs for ... -
Page 23: Chapter 5 Specifications
Chapter 5 Specifications Typical for 25 °C unless otherwise specified. Specifications in italic text are guaranteed by design. Analog input Table 1. Analog input specifications Parameter Specification Number of channels 16 differential (1 bank) Input range ±10 V Gain Switch selectable by bank, additive values of X1, X10, X100, X200 and X500 Calibration Two offset potentiometers per bank (16 channels) and one Cold Junction Compensation adjustment potentiometer per board. -
Page 24: Analog Output
CIO-EXP16 User's Guide Specifications Analog output Table 3. Analog output specifications Parameter Specification Number of channels 2 (one from multiplexed inputs, one from CJC circuit) Output voltage range ±10 V Configuration Single – ended Current drive ±5 mA Output coupling Output impedance 0.1 Ohms max... -
Page 25: Main Connector And Pin Out
Table 7. Connector specifications Connector type P1 and P2: 37-pin D type connectors Compatible cables with connector P1 C37FF-x (connecting to additional CIO-EXP16 boards) C37FF-x (connecting to a DAS08 board) Compatible cables with connector P2 C-EXP2DAS16-10 (connecting to a DAS16 board) Table 8. -
Page 26: Declaration Of Conformity
Norton, MA 02766 Category: Electrical equipment for measurement, control and laboratory use. Measurement Computing Corporation declares under sole responsibility that the product CIO-EXP16 to which this declaration relates is in conformity with the relevant provisions of the following standards or other... - Page 27 Measurement Computing Corporation 10 Commerce Way Suite 1008 Norton, Massachusetts 02766 (508) 946-5100 Fax: (508) 946-9500 E-mail: info@mccdaq.com www.mccdaq.com...
