Summary of Contents for Telex PW24ND

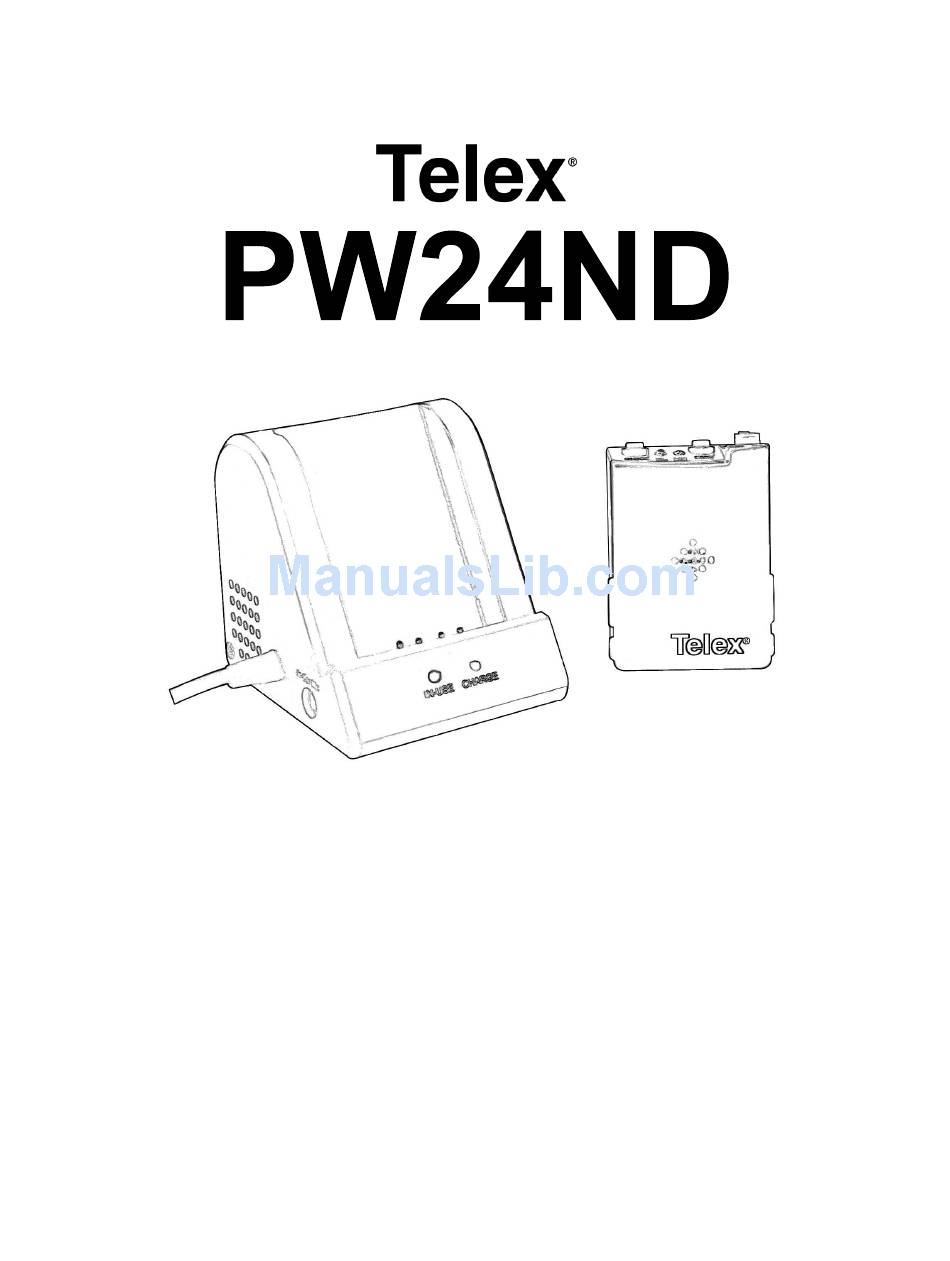

- Page 1 2.4GHZ WIRELESS SYSTEM FOR POLICE VIDEO RECORDING USER GUIDE Revision A Page 1 of 10 6/24/09...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Quick Set Up and Operation ............3 Component Details............... 5 Installation ..................6 Guidelines For Best Performance ..........7 Troubleshooting Guide..............8 Technical Specifications............... 9 Service and Warranty..............10 Components and Accessories ............. 10 Revision A Page 2 of 10 6/24/09... -
Page 3: Quick Set Up And Operation
QUICK SET UP AND OPERATION Synching Up The Transmitter and Base The synch operation only needs to be performed the first time a system is used, or a new bodypack is used with a base previously synched to another bodypack. Do not perform the synch operation multiple times; it only needs to be done one time when a new bodypack is used with a new base. - Page 4 Out of Range 1) If you use the Transmitter too far away from the Receiver during recording, the transmitter will alert you with audible warning beeps (two tone) (or feel vibrations) and the In-Use LED will blink in red. 2) Move closer to the receiver base and the link will be re-established once you return to normal range.
-
Page 5: Component Details
COMPONENT DETAILS PR24ND RECEIVER Controls, Connectors and Details 1. In-Car Microphone Input 2. Control and Audio Cable 3. In-Use LED (Green) 4. Charge LED (Red or Green) 5. Video Trigger Relay Signal Switch(Ground or +12V DC) 6 7 8 PB24ND TRANSMITTER Controls, Connectors and Details 1. -
Page 6: Installation
INSTALLATION 1. Wire the un-terminated signal wires to the control unit according to the signal chart. A 5 Amp fast blow fuse is recommend in the 12VDC power supply line to protect the equipment. Audio In 12 FT Description Color Power +12V DC Video Trigger Blue... -
Page 7: Guidelines For Best Performance
The PW24ND operates in the 2.4MHz ISM band and other devices in that band may interfere. The spread spectrum technique used in the PW24N is very robust and should operate even in the presence of other 2.4MHz devices such as walkie-talkies, LANs, cordless phones, etc. -
Page 8: 5) Trouble Shooting Guide
Interference Another 2.4GHz device in the Push the In-Use button twice area causing interference. and the PW24ND will automatically select a clearer channel. If the interference is too strong, this may not completely eliminate it. Short range or drop-outs... -
Page 9: Technical Specifications
PR24ND RECEIVER BASE STATION Controls Video Trigger Active +12/GND Indicators IN-USE LED: GREEN CHARGE LED: CHARGING -> RED FULL CHARGED -> GREEN Connections In Car Mic 2.5mm Mono Plug Un-terminated Cord +12V DC Power BLUE Microphone Trigger (Ground or 12VDC = Transmitter On) BLACK AUX (Panic) Trigger (+12V when EMG is pushed) YELLOW... -
Page 10: Service And Warranty
Enclose a note describing the problem along with any other pertinent information and how to contact you. Warranty (Limited) Telex products are guaranteed against malfunction due to defects in materials or workmanship for a specified period, as noted in the individual product-line statement(s) below, or in the individual product data sheet or owner's manual, beginning with the date of original purchase.
