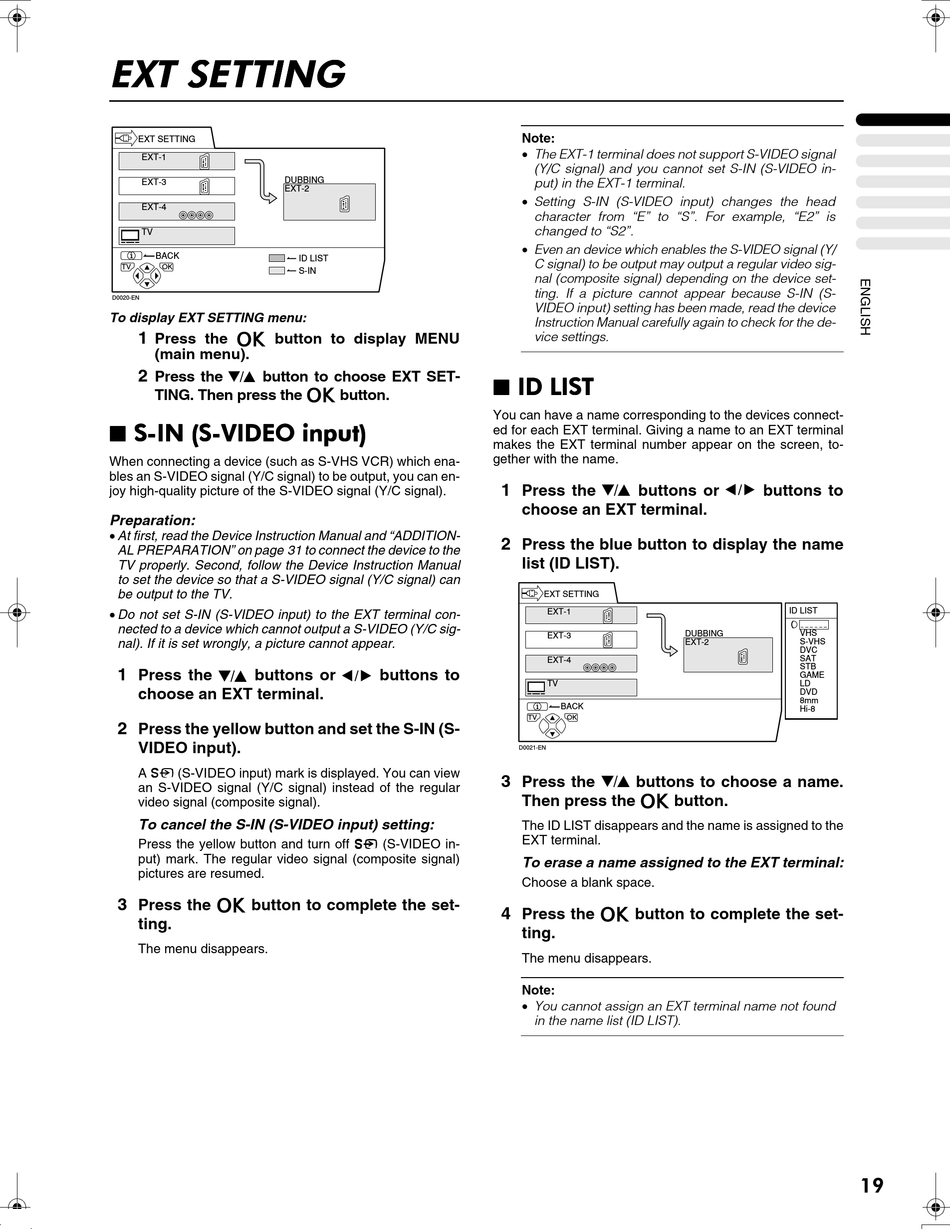

EXT SETTING

EXT SETTING
EXT SETTING EXT SETTING
EXT SETTING
EXT-1
EXT-3
EXT-4
TV
BACK
TV OK
D0020-EN
To display EXT SETTING menu:
a
1
Press the
(main menu).
Press the 6 button to choose EXT SET-
2
TING. Then press the

S-IN (S-VIDEO input)

S-IN (S-VIDEO input) S-IN (S-VIDEO input) S-IN (S-VIDEO input)
I I I I
When connecting a device (such as S-VHS VCR) which ena-
bles an S-VIDEO signal (Y/C signal) to be output, you can en-
joy high-quality picture of the S-VIDEO signal (Y/C signal).
Preparation:
• At first, read the Device Instruction Manual and "ADDITION-
AL PREPARATION" on page 31 to connect the device to the
TV properly. Second, follow the Device Instruction Manual
to set the device so that a S-VIDEO signal (Y/C signal) can
be output to the TV.
• Do not set S-IN (S-VIDEO input) to the EXT terminal con-
nected to a device which cannot output a S-VIDEO (Y/C sig-
nal). If it is set wrongly, a picture cannot appear.
1 Press the 6 buttons or 5 buttons to
choose an EXT terminal.
2
Press the yellow button and set the S-IN (S-
VIDEO input).
A y y (S-VIDEO input) mark is displayed. You can view y y
an S-VIDEO signal (Y/C signal) instead of the regular
video signal (composite signal).
To cancel the S-IN (S-VIDEO input) setting:
Press the yellow button and turn off y
put) mark. The regular video signal (composite signal)
pictures are resumed.
a
3
Press the button to complete the set-
ting.
The menu disappears.
DUBBING
EXT-2
ID LIST
S-IN
button to display MENU
a
button.
y (S-VIDEO in- y y
Note:
• The EXT-1 terminal does not support S-VIDEO signal
(Y/C signal) and you cannot set S-IN (S-VIDEO in-
put) in the EXT-1 terminal.
• Setting S-IN (S-VIDEO input) changes the head
character from "E" to "S". For example, "E2" is
changed to "S2".
• Even an device which enables the S-VIDEO signal (Y/
C signal) to be output may output a regular video sig-
nal (composite signal) depending on the device set-
ting. If a picture cannot appear because S-IN (S-
VIDEO input) setting has been made, read the device
Instruction Manual carefully again to check for the de-
vice settings.
ID LIST ID LIST ID LIST ID LIST
I I I I
You can have a name corresponding to the devices connect-
ed for each EXT terminal. Giving a name to an EXT terminal
makes the EXT terminal number appear on the screen, to-
gether with the name.
Press the 6 buttons or 5 buttons to
1
choose an EXT terminal.
2
Press the blue button to display the name
list (ID LIST).
EXT SETTING
EXT-1
EXT-3
EXT-4
TV
BACK
TV OK
D0021-EN
Press the 6 buttons to choose a name.
3
a
Then press the
The ID LIST disappears and the name is assigned to the
EXT terminal.
To erase a name assigned to the EXT terminal:
Choose a blank space.
a
4
Press the button to complete the set-
ting.
The menu disappears.
Note:
• You cannot assign an EXT terminal name not found
in the name list (ID LIST).
ID LIST
DUBBING VHS
S-VHS
EXT-2
DVC
SAT
STB
GAME
LD
DVD
8mm
Hi-8
button.
19
