TSRC TOUCH SCREEN REMOTE CONTROL
INCLUDES MANUAL, THERMOSTAT AND PROGRAMMABLE FEATURES
FOR USE WITH FMI PRODUCTS, LLC MANUFACTURED
"REMOTE READY" GAS HEARTH PRODUCTS
INTRODUCTION
This remote control system was developed to provide a safe, reliable, and user-friendly remote
control system for gas heating appliances or other compatible appliances. The system can
be operated manually from the transmitter.
Review COMMUNICATION SAFETY under TRANSMITTER section and
THERMO SAFETY under REMOTE RECEIVER section. These signal/
temperature safety features shut down the fireplace system when a po-
tentially unsafe condition exists.
The transmitter operates with (4) AAA 1.5V
batteries that are included. Install the batteries
supplied with the unit into the battery com-
partment. It is recommended that ALKALINE
batteries always be used for this product. Be
sure the batteries are installed with the (+)
and (-) ends facing the correct direction.
When you start up the remote, if a low battery
signal appears or if they LCD screen does not
illuminate when you touch it, check battery
position and if the batteries are fully charged.
PROG
SET
MODE
FRONT
PROG MODE

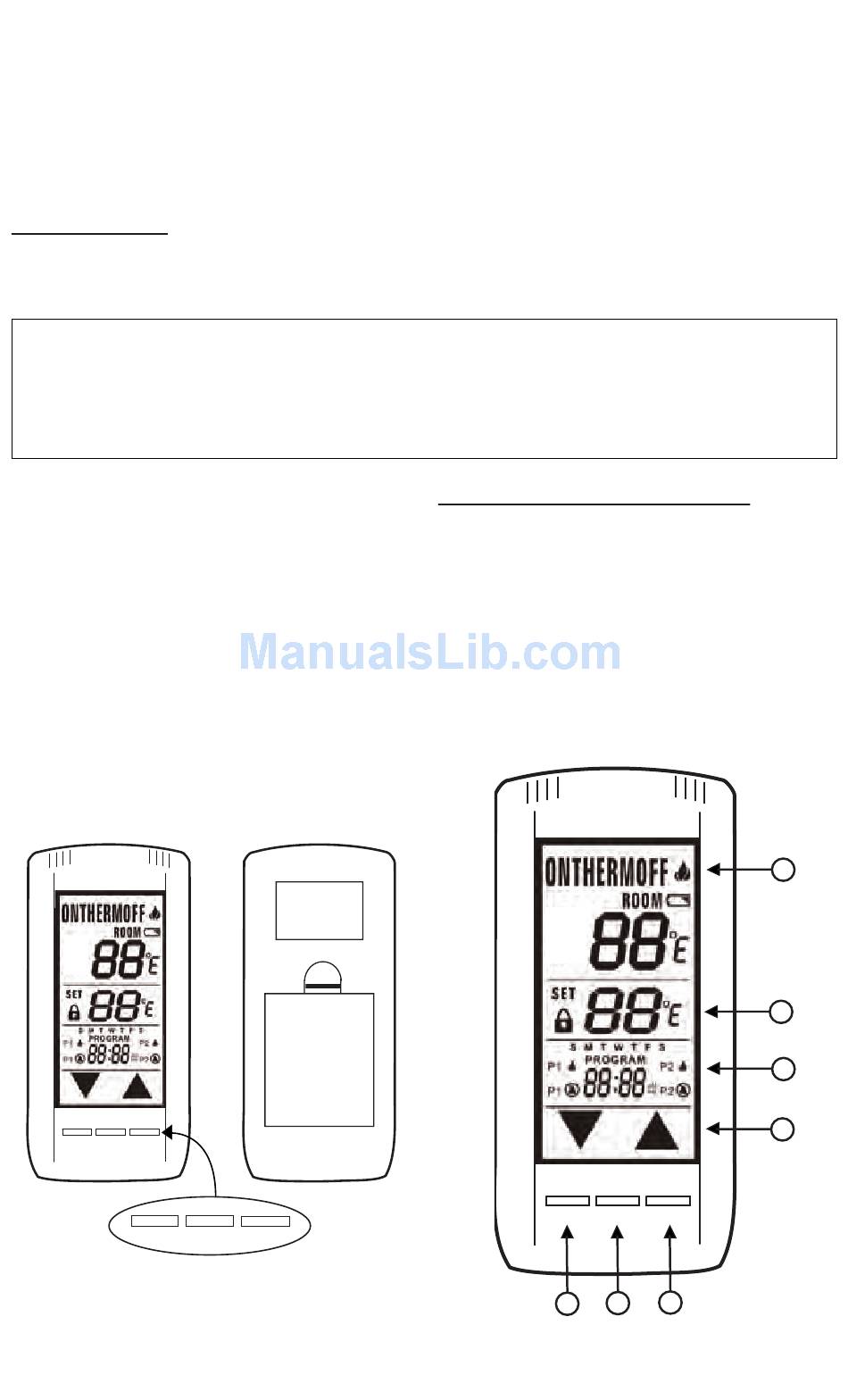

Figure 1 - Remote Control Battery
Compartment
FMI PRODUCTS, LLC
BATTERY
COMPARTMENT
BACK
SET
KEY TOUCHSCREEN SETTINGS
1.
MODE - Switches the appliance on/
thermo/off.
2.
PROGRAM - Turns on and off the pro-
gram function.
3.
SET - Used in different functions to
confirm settings.
4.
UP and DOWN - Used to change the
time, set temp, and programming func-
tions.
PROG
2
Figure 2 - Touchscreen Settings
SET
MODE
1
3
1
3
2
4
