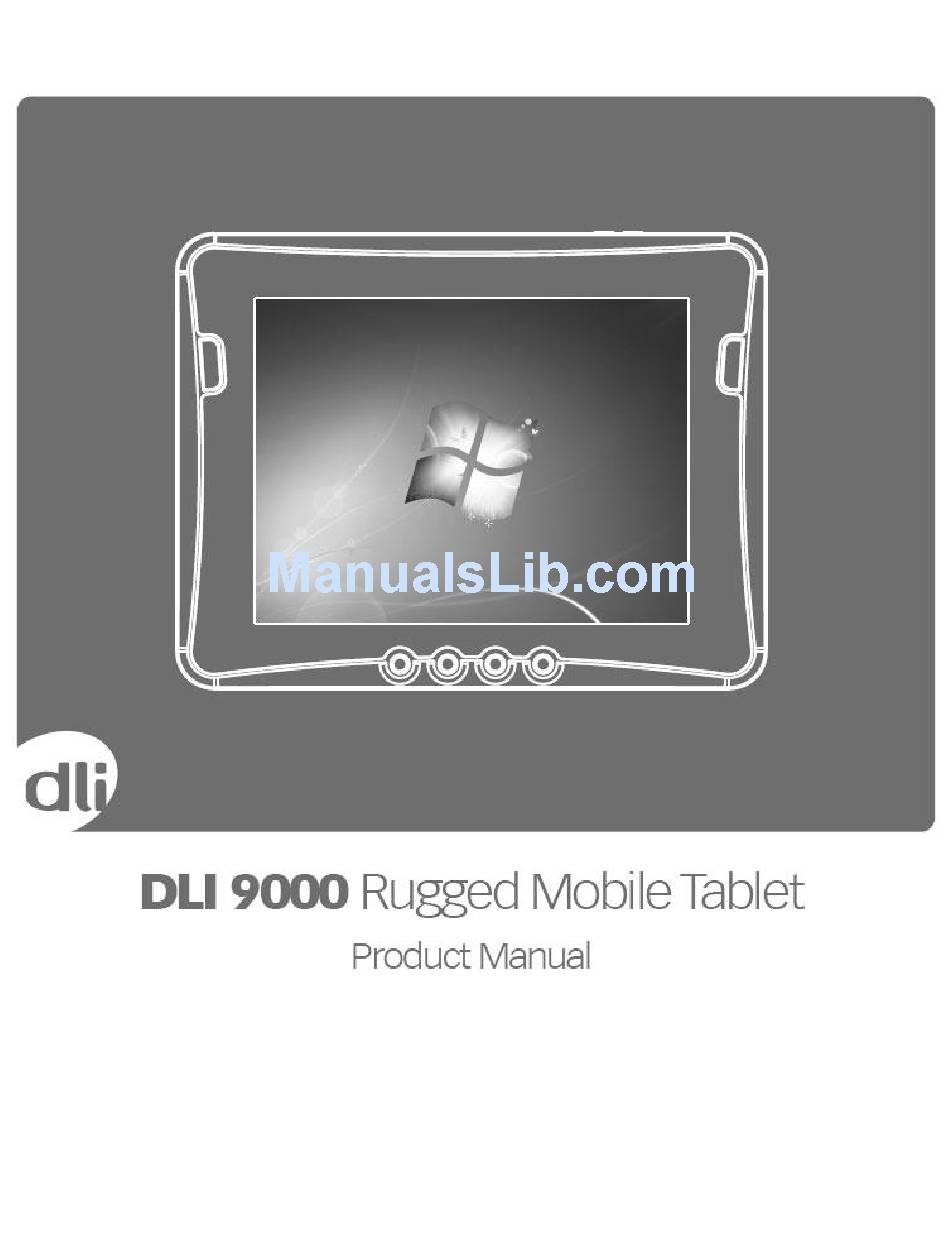

DLI 9000 Product Manual

Rugged mobile tablet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Rev. 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9000 and is the answer not in the manual?

Questions and answers

Related Manuals for DLI 9000

Summary of Contents for DLI 9000

  • Page 1 Rev. 3...
  • Page 2 Data Ltd., Inc. (DLI) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult DLI to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of DLI.

  • Page 3: Table Of Contents

    Table of Contents Thank You!………………………………………………………….………………………………….....4 DLI 9000 Peripherals and Accessories…………………………………………………………………………..4 Hardware Overview………………………………………………………………………………………………….5 Setting Up the DLI 9000 Terminal………………………………………………………………………………….9 Unpack the Carton and Verify its Contents………………………………………………………………………..9 Battery Status LED…………………………………………………………………………………………………10 Power Management Utility………………………………………………………………………………………...10 Optional Auto Power On & Off Setup…………………………………………………………………………….11 Adjusting the Backlight……………………………………………………………………………………………..11 Using the Stylus…………………………………………………………………………………………………….12...

  • Page 4: Thank You

    Thank You! Data Ltd Inc. would like to thank you for selecting the DLI 9000. The DLI 9000 was designed as a forward thinking product that is modular in design and upgradeable. We thank you, the customer, for giving us the inspiration for the following features: •...

  • Page 5: Hardware Overview

    Hardware Overview Front Panel 1.3MP Camera Ambient Light Sensor Programmable Programmable Button Button Programmable Keyboard LCD with Touch Screen Impact Resistant Case DLI 9000 Product Manual Rev. 3...

  • Page 6: Bottom Panel

    20% of battery life Top Panel Smart Card Magstripe Reader 1D/2D Imager Reader 5-in-1 Module Power Button Battery Status Button Bottom Panel RF Cradle RF Cradle Master Reset Pass-Thru Cradle Interface Pass-Thru Button 5-in-1 Module Microphone DLI 9000 Product Manual Rev. 3...
  • Page 7 Side Panels w/ Optional 5-in-1 Module Left Side Right Side SIM Card Slot AC Power Mini HDMI Headphone Jack K-Lock Speakers DLI 9000 Product Manual Rev. 3...
  • Page 8 Back Panel w/ Optional 5-in-1 Module Magstripe 2MP Camera w/ flash Debit Pin Pad RFID SAM Support Contactless Payment Handstrap Handstrap Hooks Hooks DLI 9000 Product Manual Rev. 3...

  • Page 9: Setting Up The Dli 9000 Terminal

    If you ordered peripherals and/or accessories, verify that they are also included with the order. Be sure to keep the original packaging in case the DLI 9000 needs to be returned for service– See page 41. DLI 9000 Product Manual...

  • Page 10: Battery Status Led

    (5 LEDs) (from left to right) For charging, use only DLI 9000 peripherals and the power cables. Use of peripherals or cables not sold/manufactured by Data Ltd will void the warranty and may damage the terminal. Charging the Battery in the DLI 9000 1.

  • Page 11: Power Management Utility

    Power Management Utility The DLI 9000 includes a comprehensive suite of power management functions. The power management is based upon the ACPI Standard (Advanced Configuration and Power Interface Specification) and is operated within the Embedded Controller (EC) at low level management.

  • Page 12: Adjusting The Backlight

    Brightness levels of the liquid crystal display (LCD) are adjustable based on the lighting conditions by using the Windows Screen Brightness Bar. The DLI 9000 has a built-in Ambient Light Sensor which will auto dim or increase brightness pending the ambient light. Example: if moving into a dark area, the display will dim to help the eyes view the display.

  • Page 13: Using The Stylus

    The terminal stores calibration data and settings on a per-user basis. Calibration: 1. Open Control Panel and select Tablet PC Settings. 2. It is recommended to select Reset before calibrating the display. Once reset, select Calibrate. DLI 9000 Product Manual Rev. 3...
  • Page 14 3. Follow the instructions and the crosshairs to calibrate. 4. Finally select Apply and then OK. The calibration is complete. Do not write on the terminal display with ink pens or use other sharp objects that may damage the display. DLI 9000 Product Manual Rev. 3...

  • Page 15: Using The Programmable Keys

    Using the Programmable Keys The DLI 9000 has 6 integrated function keys. Each key is user configurable via the DLI KeyMon Utility. The keys can be assigned to perform executable applications or Data Ltd. predefined functions. The predefined functions are as follows: Left Button –...
  • Page 16 5. The user is returned to the assign menu once the selection has been chosen from the browser icon. Selecting the apply button saves the change to the key. The path to the application will appear in blue below the Current Assignment. DLI 9000 Product Manual Rev. 3...
  • Page 17 Once you have selected the command, tap the apply button to save. 7. To Close the DLI KeyMon select File and then Exit or tap on the “X” on the top right of the Main Window. This will close the KeyMon GUI but remain in the system tray.

  • Page 18: Using The Wifi Radio

    Using the WiFi Radio The DLI 9000 has a PCIe 802.11a/b/g/n integrated radio. In Windows 7 the radio is configured using the Windows Network and Sharing Center. With older versions of Windows the radio is configured by Intel PROSet. Please contact Technical Support (See page 40) if you have any questions configuring your radio.
  • Page 19 Selecting Set Up a Connection or Network brings up an easy to use wizard that helps create a connection to your network and or the Internet. Choose the option that fits what you need to do. DLI 9000 Product Manual Rev. 3...
  • Page 20 If the SSID is not broadcasted you will need to select ‘Manually connect to a wireless network’. This option will allow to you create a profile to add the SSID, Security type, and Encryption type. Select Next to connect. DLI 9000 Product Manual Rev. 3...

  • Page 21: Using The Bluetooth Radio

    Using the Bluetooth Radio The internal Bluetooth Class II wireless radio in the DLI 9000 is enabled by default. Microsoft™ Bluetooth software comes pre-installed on your terminal. Pairing an Accessory to the DLI 9000 The icon in the system tray offers shortcuts to the Bluetooth Settings window, the Bluetooth File Transfer Wizard and the Add New Connection Wizard.
  • Page 22 5. After you make the Bluetooth device discoverable, it will show up in the wizard. Select the Bluetooth device and select Next. The Add Bluetooth Device Wizard will search for the Bluetooth device. DLI 9000 Product Manual Rev. 3...
  • Page 23 You have a limited time after selecting Enter the device’s pairing code to input the code. Select Next. If a pairing code is required, please read documentation that came with your Bluetooth device or contact the manufacturer. DLI 9000 Product Manual Rev. 3...
  • Page 24 7. When the device has been successfully paired and added, the wizard is complete and the device is ready to use. Select Close to finish. DLI 9000 Product Manual Rev. 3...

  • Page 25: Using The Barcode Scanner

    Newland® Class 2 Standard Range Imager To Decode a Barcode 1. Point the top of the DLI 9000 terminal directly at the barcode. The Imager faces straight toward of the top panel. The aimer should be oriented in line with the barcode to achieve optimal decoding.

  • Page 26: 5-In-1 Demo

    5-in-1 Demo The DLI 9000 has an optional 5-in-1 Module and by default comes with a 5-in-1 Demo App on the Desktop. This demo will allow you to test and demonstrate proof of concept of the module. Desktop Icon 5-in-1...
  • Page 27 You can now scan barcode and display the data in the ScanData field.  To close the Scanner, select Disable, Release and Close in that order. Status should display successfully for all three. (Continued on next page) DLI 9000 Product Manual Rev. 3...
  • Page 28 You can now swipe your test card and display the data in the track fields.  To close the MSR, select Disable, Release and Close in that order. Status should display successfully for all three. (Continued on next page) DLI 9000 Product Manual Rev. 3...
  • Page 29 Smartcard Reader 0. With the reader selected and Smartcard inserted select ConnectReader. The card data will display in the tan data field.  You can remove the Smartcard at any time. (Continued on next page) DLI 9000 Product Manual Rev. 3...
  • Page 30 Pin Pad is part of the optional 5-in-1 Module located on the back of the unit.  To close the Pin Pad, select Disable, Release and Close in that order. Status should display successfully for all three. (Continued on next page) DLI 9000 Product Manual Rev. 3...
  • Page 31 You can now wave your test RFID card and display the data in the track fields.  To close the RFID, select Disable, Release and Close in that order. Status should display successfully for all three. If you have any questions please contact our Support. support@dataltd.com 800.526.1299x774 DLI 9000 Product Manual Rev. 3...

  • Page 32: Sim Card Insertion

    SIM card in with the card contacts facing toward the back of the unit. The SIM Card Slot is intended for use of GPRS Wireless Radio ONLY. If you are unaware of what type of WWAN Radio you have please contact DLI Technical Support; (800) 526-1299 x774 or support@dataltd.com.
  • Page 33 SAM Card Installation Part of the DLI 5-in-1 Module option is an RFID Reader that requires a SAM Card to function correctly. The SAM Card slot is found on the back of the 5-in-1 Module and has special instructions for installation.

  • Page 34: Using The Gps

    Data Ltd has included in the DLI 9000 a GPS software tool to verify that all functions of the GPS module are working properly.
  • Page 35 Once connected you can verify the Signal Quality, Satellite Location, Latitude, Longitude and Altitude. You can also view the Streaming NMEA data. You must be outside a building as GPS antennas do not work inside buildings. The green bars indicate a lock to a satellite. DLI 9000 Product Manual Rev. 3...

  • Page 36: Dli 9000 Desktop Cradle

    DLI 9000 Desktop Cradle Overview The DLI 9000 Cradle is a Desktop and Vehicle Cradle all in one. It features quick release and lock, flexible mounting, and power options for all types of applications and devices. When the DLI 9000 is seated in the Cradle, the Main Battery is charged in 2 hours. The patent pending RF design provides easier operation using internal and external antennas.

  • Page 37: Back Panel

    Quick Lock & Release Arms Custom Cradle Interface Solid green Connection LED indicates connection established with Terminal. Back Panel The I/O ports and power supply connector are located on the back of the unit. (Continued on next page) DLI 9000 Product Manual Rev. 3...
  • Page 38 Data Ltd. sales representative. Connector Locations Left Panel K-Lock USB Port VMC Back Panel Power Port Serial Port WiFi 2 Locking USB Ports Serial Port Ethernet 2 USB Ports Power Port DTC Back Panel DLI 9000 Product Manual Rev. 3...

  • Page 39: Installing The Vehicle Mount Cradle

    Please ensure that you give a minimum of 2.75 inches of clearance from the base and back of the cradle. Proper cable routing and clearance will help with less strain on cables and connectors, while also allowing for better access to the ports. DLI 9000 Product Manual Rev. 3...

  • Page 40: Installation Clearance & Airflow

    DLI devices must be installed pre-ignition (directly to battery terminals) with a 5 AMP in-line fuse.  Failure to connect to battery terminals could damage the power conversion circuitry.  For 24 volt to 48 volt systems, the DLI Surge Suppressor p/n: 5400020 is required. DC Converter: 10~60V Input Positive Black Ground together Yellow Please consult your fork truck manufacturer for proper installation instructions.

  • Page 41: Technical Assistance

    Contact the appropriate location below to obtain a Return Material Authorization number (RMA #) before returning the product. Telephone: (800) 526-1299 ext. 766 Fax number: (219) 362-1937 E-mail: RMA@dataltd.com Website: http://dataltd.com/rma-request DLI 9000 Product Manual Rev. 3...

  • Page 42: Shipping Your Dli Device

    Shipping your DLI Device Proper way to pack your DLI device DO NOT ship any DLI Device without a proper UPS or FedEx container. The DLI Container is not meant for stand-alone shipping.  Place device in foam cover as shown.
  • Page 43   Using a proper UPS or FedEx container, line the bottom Place the closed DLI container inside the lined Shipping with Bubble Wrap, Air Pillows, Packing Foam, etc. Container. The dimensions of the box shown are 27x17x10.  ...

  • Page 44: Limited Warranty

    All provisions of this Limited Warranty are separate and severable, which means that if any provision is held invalid and unenforceable, such determination shall not affect the validity of enforceability of the other provisions hereof. (Continued on next page) DLI 9000 Product Manual Rev. 3...

  • Page 45: Regulatory And Safety Approvals

    The DLI 9000 has the following safety information on the back label of the terminal DLI 9000 RF terminal is designed to comply with the most current applicable standards on safe levels of RF energy developed by the Institute of Electrical and Electronics Engineers (IEEE) and the American National Standards Institute (ANSI) and has been recommended for adoption by the Federal Communications Commission (FCC).
  • Page 46 DLI 9000 GSM/GPRS FCC ID: NCMOMO6892 IC: 2734A-MO6892 Model: GTM689W DLI 9000 802.11 B/G/N Radio 802.11 Radio FCC ID: RYK-WUBR507N The CE Mark on the product indicates that the system has been tested to and conforms to the provisions noted within the 89/336/EEC Electromagnetic Compatibility Directive and the 73/23/EEC and 93/68/EEC Low Voltage Directive.

  • Page 47: Fcc Compliance

    When using accessories where the terminal is worn on the body, the terminal’s touch screen must face away from the body. CAUTION! Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment DLI 9000 Product Manual Rev. 3...
  • Page 48 Data Ltd. Inc. shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive DLI 9000 Product Manual Rev. 3...
  • Page 49 DLI 9000 Product Manual Rev. 3...
