NCA 450U Kit-RM
NCA 450U Kit-RM
High Performance Front & Rear Speaker Kit with 200 Watt Amplifier
High Performance Front & Rear Speaker Kit with 200 Watt Amplifier
For Use on 1998-2013 Ultra ClassiCs and tri‐Glides
For Use on rUshmore platForm models
installation Manual
installation Manual
Advertisement
Related Manuals for Hogtunes NCA 450U Kit-RM
Summary of Contents for Hogtunes NCA 450U Kit-RM

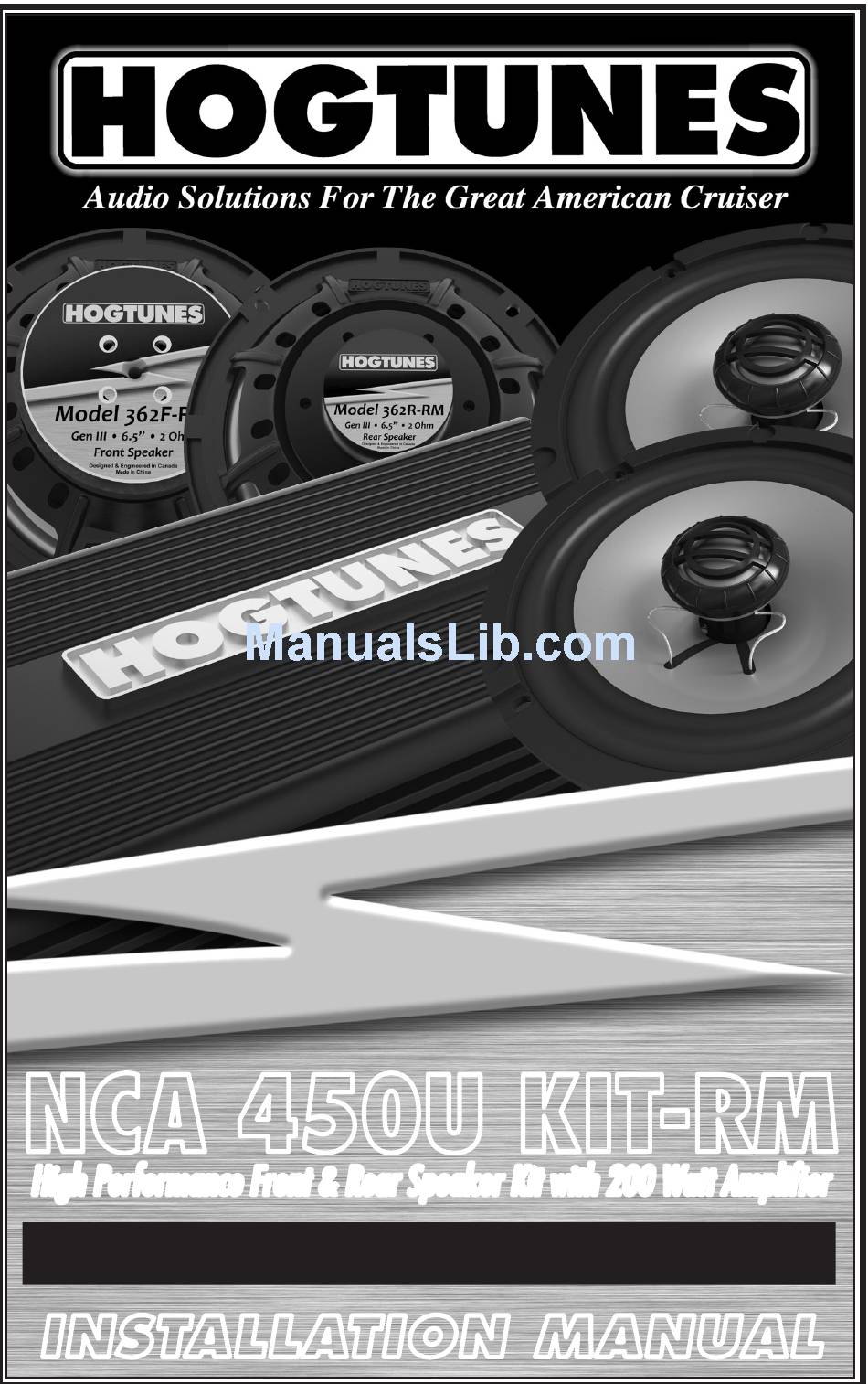

- Page 1 NCA 450U Kit-RM NCA 450U Kit-RM High Performance Front & Rear Speaker Kit with 200 Watt Amplifier High Performance Front & Rear Speaker Kit with 200 Watt Amplifier For Use on 1998-2013 Ultra ClassiCs and tri‐Glides For Use on rUshmore platForm models...
- Page 2 Thank you for choosing the Hogtunes REV 450U KIT-RM speaker and amplifier kit for “Rushmore” platform Ultra Classics. Since positive word of mouth is the best way to grow our business, we want your new system to work as well as it was designed to.
- Page 3 362F-RM FRont SpeakeR InStallatIon InStRuctIonS Step #1: Remove the seat and both wires (+ and -) from the battery. Remove the outer fairing/headlamp assembly and set aside. Refer to a service manual if you need help with this. NOTE: Placing a towel on the front fender can help prevent scratches or “dings”...
- Page 4 Using the factory screws, attach the Hogtunes speaker to the cabinet noting that there is a locator “peg” on the cabinet and a hole in the speaker’s frame which needs to line up so the speaker sits flush to the cabinet.
- Page 5 Carefully lift up on each speaker and take the two wires off by pulling one at a time from the stock speaker. Remove the speakers. Step #2: Hogtunes 362R-RM rear speakers are a direct replacement for the OE speakers. The female OE “in-line” connectors mate with the male connectors on each speaker and only go on one way.
- Page 6 Sit the amp on top of the silver plate so when standing in front of the bike you can read the Hogtunes logo on top of the amp. On the side of the amp, you will see a switch labeled “fader/no fader.”...
- Page 7 Step #4: Figure 1.2 shown here. Figure 1.2 - Amplifier and mounting plate correctly oriented. The plate with four small holes is for mounting a popular Harley accessory. The white circles show tabs which are there for the “Christmas Tree” fasteners to re-secure the harnesses lifted earlier.
- Page 8 One side of the plug has wires that go to each rear speaker pod. Separate this large factory plug. One plug from the Hogtunes rear harness will plug into each side of the factory plug just separated. They will only go together one way.
- Page 9 Step #3: Next to the “fader/no fader” switch is a 3 position switch to adjust the rear channel volume. On Ultra Classics, we use the bike’s built in fader control to allow you to adjust the front/rear volume from the radio itself. For best performance, this switch needs to be left in the +3 position.
-
Page 10: Technical Specifications
AVC position works and sounds best. Your new amplifier has been specifically set-up for this radio setting. 2) Your Hogtunes system is designed specifically for a motorcycle at speed. Exhaust noise and wind noise have been taken into careful consideration in how your system performs. -
Page 11: Warranty Information
WarrantY inforMation Please Record Your Amplifier’s Serial # Here_________________________ Hogtunes speakers are warranted for a period of 20 years. The NCA 450-RM Amplifier is warranted for 3 years from original purchase date. Proof of purchase is required for all warranty claims. The warranty applies to the original retail customer and is not transferable. - Page 12 Any audio system can be a distraction to the rider and/or passenger. Please use caution when playing your stereo, eSPeCIAlly IN TRAffIC. www.hogtunes.com...
