DWG DV04HD Instruction Manual

H.264 video compression hdcctv digital video recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

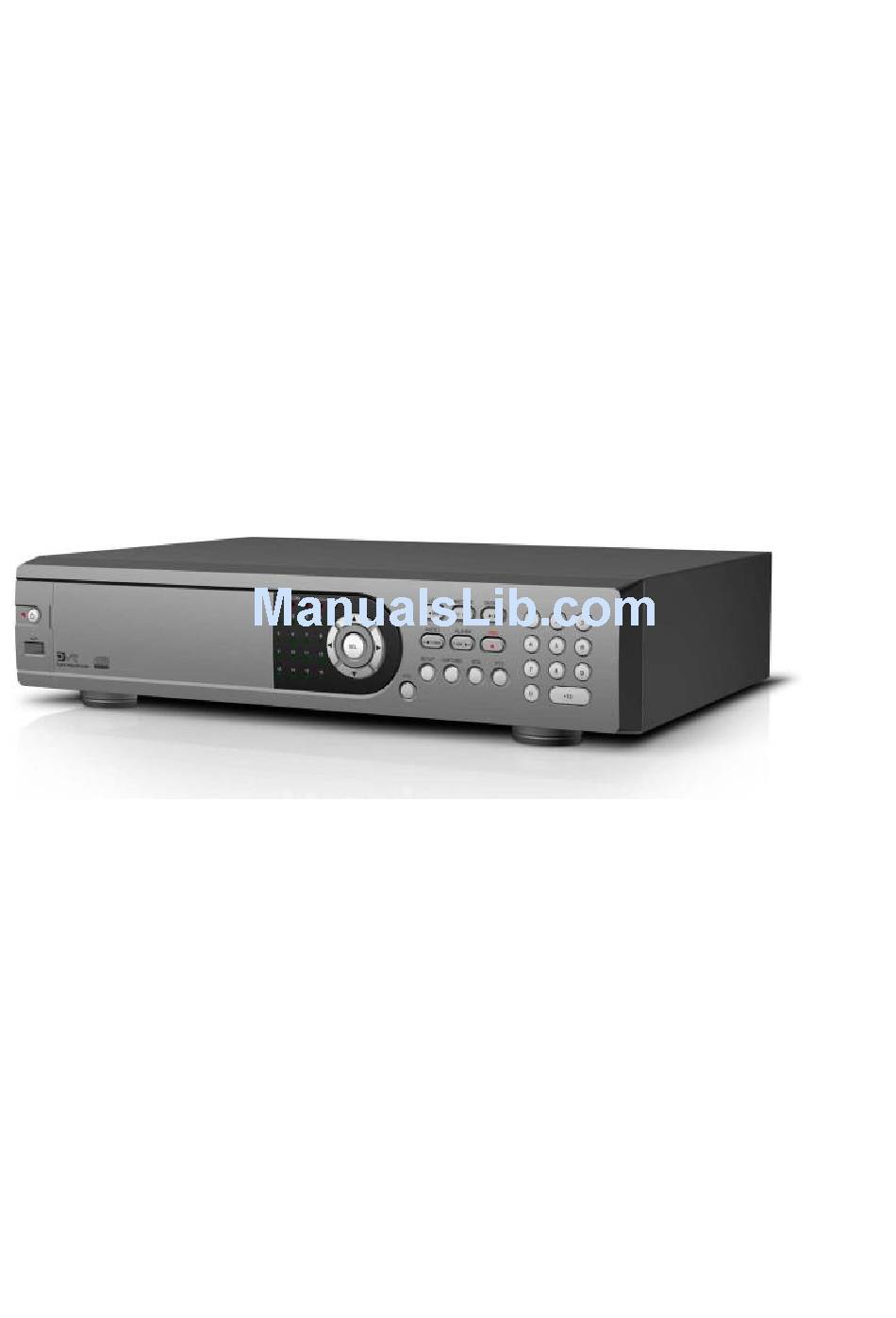

INSTRUCTION MANUAL
(Ver. 1.4_HDcctv (20110422)
H.264 Video Compression
HDcctv Digital Video Recorder
About This User's Guide
Before operating the unit, please read this user's guide thoroughly and retain it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DV04HD and is the answer not in the manual?

Questions and answers

Summary of Contents for DWG DV04HD

  • Page 1 INSTRUCTION MANUAL (Ver. 1.4_HDcctv (20110422) H.264 Video Compression HDcctv Digital Video Recorder About This User’s Guide Before operating the unit, please read this user’s guide thoroughly and retain it for future reference.

  • Page 2: Explanation Of Graphical Symbols

    Cautions Explanation of Graphical Symbols This symbol indicates the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. This symbol indicates the presence of “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock, property damage, personal injury, or death.
  • Page 3 These precautions must be followed for safety reasons. Warning  Do not use if the unit emits smoke.  Do not disassemble the unit.  Do not place any heavy or sharp objects on the unit.  Do not place on uneven surface. ...

  • Page 4: Product Components

    Product Components Please make sure the following components are included as specified below. DVR Unit Client Software CD Remote Control Battery1.5V (AAA x 2EA) User’s Guide HDD SATA Cable HDD Mounting Brackets & Screws HDD Mounting Screws Power Cable (110V or 220V) Mouse Items Quantity...

  • Page 5: Hard Drive Installation

    Hard Drive Installation 1. Remove the screws and the top cover as specified below. 2. Mount the HDD into the mounting bracket as specified below. Insert the HDD bracket and mounting screw as specified below. 4. Connect the HDD SATA and HDD power cable as specified below. NOTE: Additonal HDD should be connected in the following order;...

  • Page 6: Compatible Hdd Models

    Compatible HDD Models Seagate ST32000542AS (Barracuda LP) 2 TB 5900 RPM 32 MB Seagate ST31000340SV (Surveillance) 1 TB 7200 RPM 32 MB Seagate ST3100528AS (Barracuda) 1 TB 7200 RPM 32 MB Seagate ST3500830SCE 500 GB 7200 RPM 8 MB Seagate ST3500418AS (Barracuda) 500 GB 7200 RPM...
  • Page 7 Storage Estimation 4-Channel, Continuous, 1280x720@30fps, Audio On Level 5 (H) Level 4 Level 3 Level 2 Level 1 (L) Capacity day(s) hour(s) day(s) hour(s) day(s) hour(s) day(s) hour(s) day(s) hour(s) 250GB 320GB 500GB 1.5TB 4-Channel, Continuous, 640x360@30fps, Audio On Level 5 (H) Level 4 Level 3 Level 2...

  • Page 8: Booting The Dvr And Basic Time Setting

    Booting the DVR and Basic Time Setting 1. During the first start up, the following message will be displayed. 2. After the system initializing is completed, select the language and set date and time as specified below. Setting Daylight Saving Time If the DVR is to be set Day Light Saving Time and be synchronized NTP (Network Time Protocol), Take next steps.

  • Page 9: Setting Ntp (Network Time Protocol)

    Setting NTP (Network Time Protocol) 1. When the DVR is connected with internet and the DVR need to be syncronized with NTP (Network Time Protocol), set SETUP>SYSTEM>NTP ON. 2. Select proper TIME ZONE time. Pacific Time Zone  Los Angles, CA, USA : GMT - 8:00 for Standard time / GMT - 7:00 for Daylight time Mountain Time Zone ...
  • Page 10 State Standard Time Daylight-Saving Time Alabama GMT-6 GMT-5 Alaska GMT-9 GMT-8 Alaska (Aleutian Islands) GMT-10 Arizona GMT-7 Arizona (Navajo) GMT-7 GMT-6 Arkansas GMT-6 GMT-5 California GMT-8 GMT-7 Colorado GMT-7 GMT-6 Connecticut GMT-5 GMT-4 District of Columbia GMT-5 GMT-4 Delaware GMT-5 GMT-4 Florida GMT-5...
  • Page 11 New Jersey GMT-5 GMT-4 New Mexico GMT-7 GMT-6 New York GMT-5 GMT-4 North Carolina GMT-5 GMT-4 North Dakota GMT-6 GMT-5 North Dakota (W) GMT-7 GMT-6 Ohio GMT-5 GMT-4 Oklahoma GMT-6 GMT-5 Oregon GMT-8 GMT-7 Oregon (E) GMT-7 GMT-6 Pennsylvania GMT-5 GMT-4 Rhode Island GMT-5...

  • Page 12: Specifications

    Specifications 4 CH Channel Input Level 4 CH HDcctv 720p Input Video Loss Check Video Main Monitor Output 1 HDMI Output Sub Monitor Output 1 VGA Spot 1 BNC Input and Output 4 CH Input & 1 CH Output Audio Codec G.726 (ADPCM) Sensor Input 4 (NC / NO Selectable)
  • Page 13 Dual Network Streaming H.264 CIF 120fps Web viewer (1:1) Live, Search, Backup, PTZF 3G Mobile Viewer (1:1) Live, Search/PTZF (Option) Network Access Client Software (1:1) Live, Search, Backup, PTZF Multi sites Monitoring Software(1:N) Live, Search, Backup, PTZF DLS (Day Light Saving) Internal Beep By Alarm, Motion, Video Loss, HDD Error Multi Language...

  • Page 14: Table Of Contents

    Table of Contents Main Features ......................17 Name, Function and Connection ..................20 2-1. Front Panel ............................. 20 2-2. Remote Control ..........................22 2-3. Rear Panel ............................23 Setting up the DVR ......................25 3-1. Setup – Main Screen and Menu Tree ....................25 3-2.
  • Page 15 6-2. Video Backup onto USB Flash Drive ....................61 6-3. Transferring Still Images or Video from the ARCHIVE List ..............62 6-4. Playback of Backup Video ......................... 63 7. Network Access Using the Single Site Network Viewer ............64 7-1. PC Requirements ..........................64 7-2.
  • Page 16 10-2. Live Monitoring ........................... 105 APPENDIX: How to Connect the Network ................107 How to set the IP address of the DVR and open TCP port of the router? ............. 107 How to access DVR from a Remote PC? ....................110 16 | P a g e...

  • Page 17: Main Features

    1. Main Features  HDcctv Compatible  H.264 Video compression  Reliable File System  HDMI Output  4 Channel Audio Recording Under federal law, the Omnibus Crime Control and Safe Streets Act, 18 U.S.C. Section 2510 et seq., NOTE: ...
  • Page 18  Automatic Video Input, Video Loss, and HDD Error Detection  Covert Camera Operation Provides Enhanced Security.  Built-in PTZ Camera Control  Motion Detection  Easy and Simple Graphic User Interface  Simple Scheduler  Easy Software Upgrade by USB port and Network SW. ...
  • Page 19  Variety of Ways Network Access via Network Client Software, Web-Viewer, CMS, and Mobile Viewer Web-Viewer Network Client Software Mobile Viewer  S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology for HDD)  Simple Quick Setup 19 | P a g e...

  • Page 20: Name, Function And Connection

    2. Name, Function and Connection 2-1. Front Panel The following information will help you to operate the front panel controls. Figure 2.1.1. Front Panel Table2.1.1. Indication lamps Name Description CH1~16 Indicating that the channel is being recorded. Indicating that the system is accessing the hard disk. RECORD Indicating that the system is recording video data.
  • Page 21 Press to fast forward the footage in playback mode. Press to enable/disable ALARM operation. Jump/Step forward. In playback mode, the playback position moves 60 seconds forward. Press to start or stop manual recording. Press to go to SEARCH menu in live display mode. Press to play/pause the footage in playback mode.

  • Page 22: Remote Control

    Press for temporary storage of the changed value or to return to the previous menu screen. DVD drive This model does not support DVD-RW for Backup. USB Port To archive still-image or video into a USB memory or upgrade firmware with USB memory stick, connect a USB memory to the USB terminal on the front panel.

  • Page 23: Rear Panel

    2-3. Rear Panel Table 2.2.1. Rear Panel Connections Connection Purpose VIDEO IN connectors for video input. (HD-SDI) 4 BNC AUDIO IN 4 connectors for audio input. AUDIO OUT 1 connector for audio output. VIDEO OUT Spot output Connector for VGA monitor. RS-232 POS Interface HDMI OUT...
  • Page 24 A1, B1 Alarm output connector for alarm device SENSOR IN 4 connectors for sensor device connection. (S1 ~ S4) TERMINATE RS-485 termination switch for 1 and 2 UNIT ID Reserve PIN for additional feature ETHERNET RJ-45 connector for network function E-SATA To archive still-image or video into an external storage HDD.

  • Page 25: Setting Up The Dvr

    3. Setting up the DVR The following sections detail the initial setup of the DVR. 3-1. Setup – Main Screen and Menu Tree To enter the setup menu, right click on the mouse and select setup from the submenu or press the setup button on the front panel or the remote control.
  • Page 26  DISPLAY – – OSD CONTRAST – SEQUENCE – SEQUENCE DWELL TIME – CHANNEL NAME COVERT  RECORD – CHANNEL RESOLUTION FRAME RATE QUALITY RECORDING SENSOR RECORDING PRE RECORD POST EVENT RECORD AUDIO SCHEDULE  DEVICE – ALARM OUT SENSOR IN MOTION ON VIDEO LOSS ON ALARM DURATION...
  • Page 27 – OVERWRITE – DISK FORMAT – DISK INFO – RECORDING LIMIT RECORDING LIMIT DAYS – S.M.A.R.T  SYSTEM – DVR-ID – DESCRIPTION – LANGUAGE – DATE FORMAT – SET DATE & TIME DAYLIGHT SAVING SET DATE & TIME – CLIENT ACCESS –...
  • Page 28 – CUSTOMER SETTINGS RESOLUTION FRAME RATE QUALITY RECORDING DAYS TO RECORD – DUAL STREAM DUAL RESOLUTION DUAL FRAME RATE DUAL QUALITY 28 | P a g e...

  • Page 29: Setup - Display Mode

    3-2. Setup – Display Mode In the SETUP menu, select the DISPLAY tab. Then, the DISPLAY menu is displayed as pictured below. Navigate through ◀ ▲ ▶ ▼ the menu items using the mouse or the control button ( ) on the remote control and change the value of the menu item.

  • Page 30: Setup - Recording Mode

    3-3. Setup – Recording Mode In the SETUP menu, select the RECORD tab. Then, the RECORD menu is displayed as pictured below. Navigate through ◀ ▲ ▶ ▼ the menu items using the mouse or the control button ( ) on the remote control and change the value of the menu item.
  • Page 31 Select either 1280x720 or 640x360 using the mouse or the control button (◀ ▲ RESOLUTION ▶ ▼) on the remote control. FRAME RATE Set the frame rate for the specified channel. The sum of the frame rate values from each channel cannot exceed the maximum frame rates for a specific recording resolution.

  • Page 32: Recording Schedules

    3-3-1. Recording Schedules To setup a recording schedule, select SCHEDULE in the RECORD menu. Navigate through the items using ◀ ▲ ▶ ▼ the control button ( Once the channel 1 is selected, SCHEDULE-CH1 screen is displayed. Select ALL or each day using the ◀...

  • Page 33: Setup - Device Mode

    3-4. Setup – Device Mode In the SETUP menu, select the DEVICE tab. Then, the device menu is displayed as pictured below. Navigate through ◀ ▲ ▶ ▼ the menu items using the mouse or the control button ( ) on the remote control and change the value of the menu item.

  • Page 34: Alarm-Out

    3. An icon will be displayed on the Live Screen that corresponds to the remote control ID number.0 The options are from 0 to 99 SENSOR Select sensor NO from 1 to 4. TYPE Set the type of sensor for the specified channel. Options are: OFF, NORMAL OPEN, and NORMAL CLOSE.

  • Page 35: Ptz Setup

    3-4-2. PTZ Setup To control the PTZ functions of the camera, connect a controller to the RS-485 port. ① Connect the RS-485 cables of the PTZ camera to the RS-485 port on the rear panel. ② Press the PTZ menu button. Then PTZ menu screen is displayed as below. Figure 3.4.4.

  • Page 36: Motion Zone Setup

    3-4-3. Motion Zone Setup ◀ ▲ ▶ ▼ Select MOTION ZONE using the mouse or the control button ( ) on the remote control and select either PARTIAL ZONE or FULL ZONE using the mouse control. The default value is FULL ZONE. If FULL ZONE is selected, the motion zone grid screen is not displayed.

  • Page 37: Setup - Storage Mode

    3-5. Setup – Storage Mode In the SETUP menu, select the STORAGE tab. Then, the STORAGE menu is displayed as pictured below. Navigate ◀ ▲ ▶ ▼ through the menu items using the mouse or the control button ( ) on the remote control and change the value of the menu item.

  • Page 38: Setup - System Mode

    RECORDING LIMIT DAYS Set the recording limit days. (1- 90 days) If the RECORDING LIMIT DAYS is set to 1, the data will be overwritten after 24 hours. S.M.A.R.T Set the alarm and beep by setting the HDD temperature limit. 3-6.
  • Page 39 Table 3.6.1. Menu Items in SYSTEM Setup Screen Item Description ◀ ▲ ▶ ▼ DVR ID Set DVR ID using the mouse or the control button ( ) on the remote control. Press OK to apply the DVR ID. CAPS (Select either Capital or Lower Case) Backspace: Erase a previous character / Clear: Erase all characters The DVR ID can be made by 10 characters at most.
  • Page 40 ◀ ▲ ▶ ▼ DAY LIGHT SAVING Select DAYLIGHT SAVING using the mouse and the control button ( on the remote control and select the appropriate daylight saving time zone. If choosing EU or OTHERS, set the applicable conditions. The options are: OTHERS 1.
  • Page 41 PRIMARY SNTP SERVER: Input the address of the primary NTP time server. SECONDARY SNTP SERVER: Input the address of the secondary NTP time server. TIME ZONE: Greenwich Mean Time (GMT) is a term originally referring to mean solar time at the Royal Observatory, Greenwich, London.

  • Page 42: Setup - Security Mode

    MAIL TO: Enter the appropriate email address to enable sending e-mail reports using a virtual keyboard. MAIL SERVER: Enter the appropriate mail server information to enable sending daily e-mail reports using a virtual keyboard. ID: To set the connection user ID for the mail server using a virtual keyboard. (ex.abcd@abcdefg.com) PASSWORD: To set the connection password for the mail server using a virtual keyboard.
  • Page 43 Table 3.7.1. Menu Items in PASSWRORD Setup Screen Item Description USER AUTHENTICATION Only the Admin will have access to the menu. PASSWORD CHECK: Select the Checkbox to enable the functions or leave the Checkbox blank to disable the functions. Setup, Playback(PB), PTZ, Record OFF(R/OFF), and Network Selected Checkbox: The DVR will ask for a password when the given function is selected for all users.

  • Page 44: Setup - Network Mode

    3-8. Setup – Network Mode In the SETUP menu, select the NETWORK tab. Then, the network menu is displayed as pictured below. Navigate ◀ ▲ ▶ ▼ through the menu items using the mouse or the control button ( ) on the remote control and change the value of the menu item.

  • Page 45: Network Types

    DDNS Enable/disable using domain name address through DDNS server. SERVER 1: Select ddnscenter.com from four DDNS server. (If a different DDNS server is selected, the DVR may not connect properly) SERVER 2: Select this type when wants to use other general-purpose DDNS Server.
  • Page 46 3-8-1-2. STATIC 1. For the use of static IP. (See your network administrator if you do not have this information) 2. When the DVR is installed on an IP sharer that is connected with ADSL modem, the user can assign a fixed IP address to the DVR from IP sharer itself using “DMZ”...

  • Page 47: Ddns

    3-8-2. DDNS User can use the function to connect to a network with a domain name. The user can select one type among three DDNS Servers which is supported for free service. The DDNS interval can be set from 5 to 60 minutes. To connect to a network with a domain name, the user must register a MAC address and serial number of the DVR, and create a unique domain name on http://www.ddnscenter.com.

  • Page 48: Setup - Config Mode

    3-9. Setup - CONFIG Mode In the SETUP menu, select the CONFIG tab. Then, the configuration menu is displayed as pictured below. Navigate ◀ ▲ ▶ ▼ through the menu items using the mouse or the control button ( ) on the remote control and change the value of the menu item.
  • Page 49 LOAD DEFAULT Press the button to reset the system to the default settings. (The following settings such as Language, DVR ID, Security User Authentication, Security User P/W, Date format, DLS settings, Network settings, HDD overwrite, Limit recording, HDD serial number, and HDD ERROR time will not be included.) LOAD FACTORY Press the button to reset the system to the factory default settings.

  • Page 50: Quick Setup

    3-10. Quick Setup In the MENU, select the QUICK SETUP tab. Then, the QUICK SETUP menu is displayed as pictured below. Navigate ◀ ▲ ▶ ▼ through the menu items using the mouse or the control button ( ) on the remote control and change the value of the menu item.

  • Page 51: Live, Search And Playback

    4. Live, Search and Playback 4-1. Live Viewing Screen In the Live screen, video inputs from the cameras are displayed as they are configured in the Display Setup screen. Various On-Screen Display (OSD) symbols, which indicate the status of the DVR, are described in Table 4.1.1. Figure 4.1.1.
  • Page 52 Sequence button. Click this button to use a sequence function. Manual Record button. Click this button to enable manual recording. Alarm-out function On/Off button. Select this button to disable the alarm. Click the split screen icon to change the current split screen mode using the mouse or SEL button.

  • Page 53: Search Screen

    Button Description Select channel to be displayed in full screen mode. Switch between full screen and quad display mode. Press to start auto sequencing of the screen in full screen mode. (Toggle) RECORD Press to start and stop manual recording. Press to go to the search menu.

  • Page 54: Time-Line Search

    How to Search Data On the Time-Line Using the Mouse or Front Key Button ① 1 hour moving: 1-hour time bar (Mouse)/ F/REW and F/ADV button (Front Key) ② 5 minute moving: ◀ 12:00:00 ▶(Mouse)/ control button ◀ ▶(Front Key) There are 7 ways of search menu such as TIMELINE, EVENT, GO TO FIRST TIME, GO TO LAST TIME, GO TO SPECIFIC TIME, ARCHIVE and LOG on the screen.

  • Page 55: Event Search

    When the Timeline menu is selected, the user can see a calendar which has the recorded data. Select a specific date and time. Use a drag-and-drop function of the mouse control. User can select a specific minutes using a button in the above red box.

  • Page 56: Go To Last Time

    4-2-4. Go To Last Time You can access from the last minute recorded data on the DVR hard drive by selecting GO TO LAST TME on the SEARCH window. Press the PREV to return to the SEARCH window. 4-2-5. Go To Specific Time Figure 4.2.3.

  • Page 57: Log Search

    When the Archive menu is selected, the user can see a calendar which has recording data. Select a specific date and then the archived data will be displayed. Press the Display button to view the still image or the first frame of the selected video, then the user can save the selected data.

  • Page 58: Play Mode

    4-3. Play Mode During playback of a recorded event, the mode changes from SEARCH to PLAY. While in PLAY mode, you may return to the SEARCH screen by pressing the X button on the status bar or the ESC button of a remote control. Figure 4.3.1.

  • Page 59: Ptz Control

    5. PTZ Control To control the PTZ functions of the camera, select PTZ menu on the screen using the mouse. Select the item you ◀ ▲ ▶ ▼ wish to control the PTZ camera and control them using the mouse or the control button ( ) on the remote control.
  • Page 60 Press the ESC button to return to the main menu. Table 5.2. Description of RS-485 Port Data + Data - 60 | P a g e...

  • Page 61: Back Up

    6. Back Up 6-1. Still Image Backup onto USB Flash Drive Still images can be captured and archived onto a USB flash drive or an external hard drive in live mode or while playing back recorded video. In the live mode, press the BACKUP button to launch the archive function or select BACK UP menu on the screen using the mouse.

  • Page 62: Transferring Still Images Or Video From The Archive List

    Figure 6.2.1. Video Archiving and Backup Screen 6-3. Transferring Still Images or Video from the ARCHIVE List The stored data in the hard drive can be found in the ARCHIVE list in the SEARCH window. User can back up still images or video into the storage device from the ARCHIVE list. 1.

  • Page 63: Playback Of Backup Video

    Figure 6.3.1. Archive Search Screen 6-4. Playback of Backup Video  NSF format: NSF format video can be played back using the player (the HD player) that the DVR copies on USB flash drive with video. This format is only available when the user selects a huge backup. Three files are copied on USB flash drive.

  • Page 64: Network Access Using The Single Site Network Viewer

    7. Network Access Using the Single Site Network Viewer The DVR provides a live remote monitoring feature. Remote monitoring requires installation of the network viewer on your PC. NOTICE In a high bandwidth network, a maximum of four users can access one DVR simultaneously. In a low bandwidth network it is recommended that only one user access the DVR at a time.

  • Page 65: Installing The Network Viewer

    7-2. Installing the Network Viewer 1. Insert the provided CD in the CD drive and double-click “UMS Client(XXXX).exe” 2. Select a destination folder and click “Next” 3. Select the Program Folder and click “Next” 4. The installation process will begin. After the installation is completed, “UMS Client”...
  • Page 66 Button Function Description DATE & TIME Displays the current date and time. CONNECT/DISCONNECT Connect/disconnect network connection. SEARCH Switches the live mode to search mode. DISPLAY MODE Select a channel and screen display mode. PAN/TILT/ZOOM/ FOCUS Control the PAN/TILT/ZOOM/FOCUS features on the remote camera. CAPTURE Capture a still image from the live screen.
  • Page 67 Operations of the display mode of the main screen  Single channel display - Click the one of channel button or double-click the channel screen.  Digital Zoom Feature – Enable digital zoom feature from single channel display. Use mouse scroll to digitally zoom in and out.

  • Page 68: Bi-Directional Audio

    3. Set the SAVE PATH, FILE NAME, and FILE FORMAT and click the OK button to save the captured still image. 7-4. Bi-directional Audio The UMS Client allows for bi-directional audio between the client and the DVR unit. The DVR must have an audio input connected, and the PC must have an audio output.
  • Page 69 MARK OUT Set the ending time for video backup. BACKUP Backup the selected recorded video as AVI format. SEARCH CALENDAR The calendar shows dates with recorded video in a light blue and the selected date in dark blue. TIMELINE SCALE The timeline shows recorded data in dark blue on the bar.
  • Page 70 Backing up video from the remote DVR Video recorded in the remote DVR can be backed up on the PC HDD as an AVI format or NSF format. 1. Connect to the remote DVR and play the video recorded in the remote DVR. 2.

  • Page 71: Pc System Configuration

     Select Channels: Select channels to backup.  Start Time / Stop Time: Backup time can be changed.  File Path: Shows the folder that the backup file is recorded.  File Format: Select backup file format. (NOTE: File format selection may not be available depending on the firmware version, software version, and the DVR model) 7-6.
  • Page 72 Setting Site The remote DVRs can be added, modified, and removed. Setting Event Set the record path and the size of local disk space for the log files.  LOG – Select to save event log into ‘log file’.  ICON – Select to display the event on live video. ...
  • Page 73 Setting Record Set the recording conditions and select channels to record. Select the local disk to use and the amount of disk space you want to allow the program to use for recording. 73 | P a g e...

  • Page 74: Network Access Using The Multi-Sites Network Viewer

    8. Network Access Using the Multi-Sites Network Viewer 8-1. Overview The UMS Multi-Client is a multiple site monitoring client software with; video, audio, and alarm signals from the DVRs over networks. The UMS Multi-Client does not limit the number of DVR units to register. The program displays to up 256 live videos on one display and even playback videos window on the same or another display monitor.
  • Page 75 3. Select the program folder and click “Next”. 4. The installation status screen is displayed. 5. After the installation is completed, “UMS Multi Client” icon displays on the desktop screen. 75 | P a g e...

  • Page 76: Live Window

    8-4. Live Window When installation is completed, double click the “UMS Multi Client” icon on your desktop to start the program. 8-4-1. Main User Interface 8-4-2. Control Buttons Button Description Click this icon to run a playback window to search and play videos that are recorded in the local PC.
  • Page 77 Click this icon to connect the selected site/sites. CONNECT Click this icon to disconnect the selected site/sites. DISCONNECT Click this icon to setup configuration of UMS MULTI CLIENT. SETUP Click this icon to capture a still image. CAPTURE Opens list of events logged by the UMS Multi Client. EVENT LIST Click this icon to play/pause live video.

  • Page 78: Search And Playback Window

    8-5. Search and Playback Window 8-5-1. Main User Interface You can access to search window by clicking the search icon (Local Playback / Remote Playback) on the upper left of the Live Window. 8-5-2. Main Control Panel Button Description Click this icon to run a playback window to search and play videos that are LOCAL PLAYBACK recorded in the local PC.
  • Page 79 Click this icon to connect the selected site/sites. CONNECT Click this icon to disconnect the selected site/sites. DISCONNECT Click this icon to setup configuration of UMS MULTI CLIENT. SETUP Click this icon to capture a still image. CAPTURE Opens list of events logged by the UMS Multi Client. EVENT LIST Click this icon to set the beginning time for backup of the recorded video in MARK IN...

  • Page 80: Setup Of Ums Multi Client

    Playback buttons. Digital Zoom Window in Live and Playback. (Only available in Single Channel Viewing) 8-6. Setup of UMS Multi Client Click the setup icon to setup the configuration of UMS Multi Client software. The SETUP window is displayed as below. 8-6-1.

  • Page 81: Event

    8-6-2. Event Event log can be archived and searched. 8-6-2-1. Archiving Event Log: Specify the location to save event logs and select event to archive. 81 | P a g e...

  • Page 82: Record

    8-6-2-2. Archiving Event Log: Event log can be searched from selected time. 8-6-3. Record 8-6-3-1. Record Setup: You can set the recording conditions as the following; Always, Event, or Auto record. And you can also select target DVR/DVRs and channel/channels. When you set the recording condition to event, you can set event for motion or alarm with duration.

  • Page 83: Osd

    8-6-3-2. Record Local Storage Setup: You can select the local disk to record and the amount of disk space you want to allow the program to use for recording. You can also select the option to overwrite data or stop recording when the maximum amount of disk space is full.

  • Page 84: Language

    8-6-5. Language You can select a language to be display. 8-6-6. About “About” provides network client version information. 84 | P a g e...

  • Page 85: Remote Setup

    8-7. Remote Setup The menu settings for the DVR unit can be set from a PC, via network. Put the cursor of the mouse on the channel which is connected to the site and right click on the mouse to open the submenu.

  • Page 86: Record

    These settings apply to all channels. OSD: Sets whether to display or not date and time as well as channel number on the screen. OSD Contrast: Adjust the character contrast on the screen. Sequence: Setting for automatically switching the displayed video. Sequence-Dwell Time: Sets the interval for automatically switching the screens.

  • Page 87: Device

    8-7-3. Device Select Device to set the motion zone, sensor input/alarm output conditions, PTZ control and spot setting conditions. 8-7-3-1. Device Setting the Motion Zone/Sensitivity: Select the zone where the motion sensor is active. It is necessary to set a detection frame when PARTIAL ZONE is selected.

  • Page 88: Storage

    8-7-3-3. PTZ Setting the PTZ Control: Sets the communication environment for remotely operating PTZ dome cameras connected to RS485 terminals. Camera channel designation Name: Sets the protocol type for the specified channel. When connecting multiple cameras, set the same protocol for all.

  • Page 89: System

    8-7-5. System Select System to set system and time settings. 8-7-5-1. System Setting the System DVR ID: Sets individual designation to DVRs. Date Format: Select the date display format (YYYY/MM/DD, MM/DD/YYYY, DD/MM/YYYY, YYYY-MM-DD, MM-DD- YYYY, DD-MM-YYYY) NTP: Sets whether to synchronize the time using NTP server or not. Primary SNTP Server: Input the NTP primary server address.
  • Page 90 Event Alarm: Sets whether to enable/disable sending e-mail reports on the channel that triggered the alarm when an alarm event is triggered. Mail Address: Input the destination address. Mail Server Name: Input the SMTP server name as well as the user ID and password. Return Mail Address: Set the source e-mail address to be notified to the destination.

  • Page 91: Operation

    Remote Upgrade Browse: Select BROWSE to locate the firmware file. Upgrade: Select UPGRADE to upgrade the firmware of the DVR. 8-8. Operation 8-8-1. Addition, Delete, and Modify of DVR Sites 8-8-1-1. Addition of Sites 1. Click SITE ADDITION button. And then the following window will be displayed as below. o Model: User has to select the proper DVR model.
  • Page 92 2. Click OK button. And then the registered site is added on the directory window. 8-8-1-2. Deleting a Site 1. Select the site/sites to delete from the directory window. 2. Click SITE DELETE button. And then the selected site/sites is/are deleted. 8-8-1-3.
  • Page 93 3. Click MODIFY button. And then the modified information is applied. 93 | P a g e...

  • Page 94: Connect And Disconnect

    8-8-2. Connect and Disconnect 8-8-2-1. Connect 1. Select site/sites to connect from the directory window. 2. Click CONNECT button, and then site/sites displays/display as connected. 8-8-2-2. Disconnect 1. Select site/sites to disconnect from the directory window. 2. Click DISCONNECT button, and then selected site/sites disconnected. 94 | P a g e...
  • Page 95 8-8-3. Still-image Capture During Live 1. Double-click a channel to capture from the display screen. (Otherwise all channels will be captured.). 2. Click CAPTURE button. And then a Capture window will be displayed as below. 3. Set Save path, File Name, and File Format. And then click OK button. 4.

  • Page 96: Recording Video On Local Pc During Live

    8-8-4. Recording Video on Local PC during Live 1. Click SETUP button. And then a setup window will be displayed as below. 2. Select Record and set the values. 3. Select Disk and set the values. 4. Click RECORD ON button. And the color of button is changed. 5.

  • Page 97: Local Playback And Remote Playback

    8-8-5. Local Playback and Remote Playback 8-8-5-1. Playback of recorded video on local PC 1. Click LOCAL PLAYBACK button. And then Playback Window will be displayed over the Live Window. 2. Select site/sites to connect from the directory window. 3. Click CONNECT button.
  • Page 98 8-8-5-2. Playback of Recorded Video on Remote DVR 1. Click REMOTE PLAYBACK button. And then Playback Window will be displayed over the Live Window. 2. Select the site to connect from the directory window. 3. Click CONNECT button. And then Green bar displays on Search calendar and timeline scale window. 4.

  • Page 99: Avi Backup During Playback

    9-8-6. AVI Backup During Playback You can back up the recorded videos in AVI format during playback. 1. Double-click the target channel to backup. 2. Select the beginning time by using the search calendar and timeline scale bar. 3. Click MARK IN button on the timeline scale to select the beginning point of the backup.
  • Page 100 7. AVI video data is recorded as set in AVI Backup window. AVI format video can be played back by Window Media Player™ or other media player that is compatible with AVI format video. Notice When backing up as a NSF format, the user can playback using the HD Player, which is downloaded into the USB flash drive or the CD-R, DVD-R with the backup data.

  • Page 101: Network Access Using The Web-Browser Viewer

    9. Network access using the Web-browser Viewer The DVR provides a live remote monitoring feature by web-browser viewer. (NOTE: Web-Brower is only available for Internet Explorer) 1. Check the IP address of the DVR from SETUP>SYSTEM>DESCRIPTION>IP ADDRESS. 2. Input the IP address or Domain name address that you pre-registered on www.ddnscenter.com . 3.
  • Page 102 6. Click the CONNECT button on the Left upper corner of web-viewer. Then “Connect” dialog is displayed. Enter IP address (or Domain name address that you pre-registered on www.ddnscenter.com, Port number and Password and click “Connect”  Server Address: Input IP address of the DVR from SETUP>SYSTEM>DESCRIPTION>IP ADDRESS or Domain name address that you pre-registered on www.ddnscenter.com ...
  • Page 103  ID: Input ID of DVR.  Password: Input network password of DVR. (The number is set on SETUP>SYSTEM>NETWORK PASSWORD.) 7. Then the cameras connected to the DVR are displayed on the screen. 8. Use mouse scroll to digitally zoom in and out from a single channel display. 8.

  • Page 104: Network Access Using The Smart Phone Viewer

    10. Network access using the Smart Phone Viewer 10-1. Installing the 3G App Viewer 1. Enter the Apple App Store (For Apple iPhone Users) or the Android Market (For Android Phone users) ⓒ ⓒ 2. Search “iUMS” in the App Store or the Android Market 3.

  • Page 105: Live Monitoring

    10-2. Live Monitoring 1. Open the installed “iUMS” App 2. Select the ADD in the top right corner for “Site Information” 3. Input the “Site Information” and select to save the “Site Information” Android phone iPhone 4. Select the saved site from “My Devices” 5.
  • Page 106 Android phone iPhone 6. Double tap a single channel to switch to single channel display. 7. Use the pinch zoom to digitally zoom. (Only available in single channel display) Notice 3G Data Usage applied without Wi-Fi connection. Please check with your Phone Carrier. 106 | P a g e...

  • Page 107: Appendix: How To Connect The Network

    APPENDIX: How to Connect the Network How to set the IP address of the DVR and open TCP port of the router? The port forwarding steps will vary depending on the brand and model of the router. Port Forwarding is required to access the DVR remotely.
  • Page 108 3. Open the default DVR port 5445 and the Default Web Port 80 on the router if the DVR’s NETWORK TYPE is set to DHCP. If the DVR’s NETWORK TYPE is set the LAN, input the following information in the DVR; IP Address, Subnet Mask, and Default Gateway.
  • Page 109 5. Select the Port Range Forwarding tab. 6. Enter the each field. Application: Enter a description of the DVR (Example: store1) Start: Enter the first number of the port you need to port forward (Example: 5445) iii. End: Enter the last number of the port you need to port forward (Example: 5445) Protocol: Select Both.

  • Page 110: How To Access Dvr From A Remote Pc

    How to access DVR from a Remote PC? LAN Connection – Using a Switching Hub Connect an Ethernet cable (10BASE-T/100BASE-TX CAT 5 LAN Cable) from the system to a router (hub) 1. Run the pre-install the network client software on the supplied CD. 2.
  • Page 111 Input Site Name, Site Address (IP address), Port No., and Password on the connect window. o Site Name: Input a name that properly describes a site. o IP Address: Input IP address (Public IP address of a router that DVR is connected.) or Domain name that is registered at www.ddnscenter.com o Port No.: Input port number of DVR.
  • Page 112 Internet (ADSL) Connection Using DDNS Connect an Ethernet cable (10BASE-T/100BASE-TX CAT 5 LAN Cable) from the system to a router (hub) 1. Go to SETUP>NETWORK. Set NETWORK TYPE as DHCP or LAN and set the DDNS SERVER to ON. And select ddnscenter.com on DDNS1.
  • Page 113  MAC Address: Input the Mac address of the unit (EX. 0002690XXXXX) without any spaces.  Serial Number: Input the Serial Number of the unit (EX. N1640Mxxxxxxxxx) without any spaces.  Domain Name: Input Domain Name for your DVR system (NOTE: Letters A-Z, numbers 0-9 are only applicable.
  • Page 114 o Site Name: Input a name that properly describes a site. o IP Address: Input IP address (Public IP address of a router that DVR is connected.) or Domain name that is registered at www.ddnscenter.com o Port No.: Input port number of DVR. Default Port Number is “5445”. o ID: Input ID of DVR.
