Sony KDF-E55 A20 Quick Manual

Hide thumbs


Advertisement

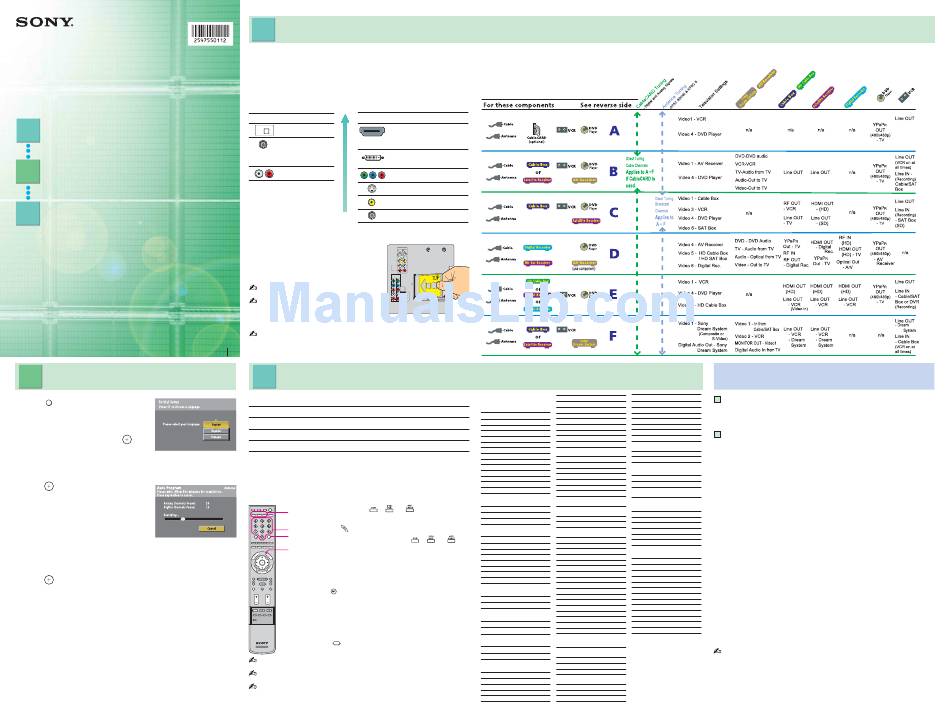

2-597-550-11(2)
KDF-E55 A20
KDF-E60 A20
Quick Setup Guide
For further information, see the operating instruction supplied with the TV.
Please retain this guide for your future reference.
Please follow the steps to setup your TV:
1
Connecting Your LCD Projection TV
(See reverse side)
2
Running Initial Setup
3
Programming
the Remote Control
For service and technical assistance, call our Customer Information Service Center
(Toll Free)
US residents: 1-800-222-SONY (7669) or visit http://www.sonystyle.com/tv/
Canadian residents: 1-877-899-SONY (7669) or visit http://www.sonystyle.ca/tv/
DO NOT RETURN TO THE STORE
Sony Corporation © 2005
Printed in U.S.A.
2
Running Initial Setup
1
Press
TV POWER
to turn on the TV.
The Initial Setup screen appears.
2
Press V or v to highlight the on-screen
display language. Then press
.
The message "First please connect
cable/antenna" appears. This may require 50+ minutes for
completion and "Start auto program now?" appears.
3
Press
(Yes) to start Initial Setup.
Initial Setup automatically creates a list
of receivable channels from both VHF/
UHF antenna and cable TV channels if
both sources are connected.
When Initial Setup is complete, the TV
will display the total number of analog channels and the total
number of digital channels found.
4
Press
to exit this screen.
To run Auto Program again at a later time.
Refer to the manual on "Initial Setup" and "Auto Program" sections.
1
Connecting Your LCD Projection TV
Making Audio/Video Connections
Your new TV includes various types of video inputs and two types
of audio jacks; composite-RCA type and digital audio (optical).
Use the outputs/inputs that are available on your components that
provide the best video/audio performances:
Best Audio/Video
Performance
Connector type
PCM/DOLBY DIGITAL
Digital Optical
DIGITAL
AUDIO
(OPTICAL
OUT)
Digital Coaxial
Will require an adapter
to connect to this TV's
digital audio input.
Analog Audio
Activating CableCARD™ Service
Before you can use CableCARD service,
you need to insert the CableCARD
(supplied by your cable provider) and
activate the service.
Y
Inserting the CableCARD incorrectly may result in
P
P
permanent damage to the card and the TV.
L
AUDIO
R
The connection diagrams shown in the reverse side
are recommendations only; other possible solutions
may exist. Connections that include an A/V
:
receiver can often be complex, so check your A/V receiver's instruction manual for
additional details.
See the "Cables Required" chart that appears with the diagram to determine which
cables you'll need. Depending on the components you plan to connect, you may need to
purchase extra cables.
3

Programming the Remote Control

The remote control is preset to operate Sony brand video equipment.
Sony Equipment
Programmable Code Number
DVR
772
DVD/VCR
601 (Sony Dream System)
SAT/Cable
801 (Sony Satellite Receiver)
Follow the steps below to program your TV's remote control to
operate the non-Sony video equipment.
Find the three-digit code for your equipment from the
"Manufacturer's Codes". If more than one code number is listed, try
entering from the code listed first.
1
Press and hold the
,
MUTING
TV/VIDEO
POWER TV POWER
1
DVD/
SAT/
DVR
VCR
CABLE
TV
button you want to program on the remote control and
press the
button simultaneously.
2
3
ENT
The selected FUNCTION button (
JUMP
ANT
MTS/SAP
FREEZE
will flash.
SOUND
TV/SAT
WIDE
SUR
1
2
Enter the three-digit manufacturer's code number
using the 0-9 buttons while the button is lit. If code is
not entered within 10 seconds, you must perform the
PREV
REPLAY
ADVANCE
NEXT
step 1 again.
PLAY
VISUAL SEARCH
PAUSE
STOP
3
Press
button.
VOL
CH
When programmed correctly, the selected FUNCTION
button will flash twice, and when not, it flashes five
REC
REC PAUSE
REC STOP
times.
TOP MENU MENU
F1
F2
POWER SAVING
To check if the code works
Aim your TV's remote control at the equipment, and press
the green
POWER
button. If the equipment responds, the
TV
programming is completed. If not, try the next code listed.
If no code is input within the above specified time, or an invalid or incorrect code
number is input, the remote control automatically goes back to the previous setting.
In some cases, you may not be able to program your remote control to operate other
equipment. In such cases, use the equipment's own remote control.
Removing the batteries or dead batteries may cause the programmed codes to be lost
and revert back to the factory setting. Reprogramming the codes may be necessary.
Review the following chart to determine which diagram to use to connect the components in your system:
Turn off and unplug all components before making connections.
Connector type
HDMI
(High-Definition Multimedia
Interface)
DVI
(Digital Visual Interface)
Will require an adapter to connect to this TV.
Component video
S VIDEO
Composite video
RF/Coaxial
VIDEO IN
1
3
VHF/UHF
CABLE
S VIDEO
VIDEO
L
(MONO)
AUDIO
R
HD/DVD IN
(1080i/720p/
480p/480i)
4
5
6
CableCARD
B
L
AUDIO
OUT
R
(VAR/FIX)
L
L
PCM/DOLBY DIGITAL
DIGITAL
R
AUDIO
AUDIO
R
(OPTICAL)
OUT
AUDIO IN
EJECT
Manufacturer's codes
Manufacturer
Broksonic
DVD Players
Canon
Manufacturer
Code
Citizen
Craig
Sony
751
Curtis Mathes
General Electric
755
Hitachi
758
Daewoo
DBX
JVC
756
Dimensia
Magnavox
757
Mitsubishi
761
Emerson
Panasonic
753
Fisher
Philips
757
Funai
Pioneer
752, 778
General Electric
RCA/PROSCAN
755
Go Video
Samsung
758
Goldstar
Toshiba
754
Hitachi
Zenith
760
Instant Replay
JC Penney
DVD Changers
or
FUNCTION
Manufacturer
Code
JVC
Sony
765
Kenwood
Panasonic
766
LG
LXI (SEARS)
DVD/VCR Combo Units
,
or
)
Manufacturer
Code
Magnavox
Sony
767
Marantz
Marta
Broksonic
776
Memorex
JVC
775
Panasonic
777
Minolta
Mitsubishi/MGA
Samsung
774
Multitech
Toshiba
773
Zenith
768
NEC
Olympic
HDD/DVD Combo Units
Optimus
Orion
Manufacturer
Code
Panasonic
Sony
772, 770, 771
Pentax
Philco
5.1ch DVD AV System
Philips
Manufacturer
Code
Pioneer
Sony (DAV)
601, 602, 603, 604
Quasar
RCA/PROSCAN
AV Receivers
Manufacturer
Code
Realistic
Sony
764
Sansui
Samsung
VCRs
Sanyo
Manufacturer
Code
Scott
Sony
301, 302, 303
Admiral (M. Ward)
327
Sharp
Aiwa*
338, 344
Signature 2000 (M.Ward) 338, 327
Audio Dynamic
314, 337
SV 2000
Notes on your new LCD Projection TV
Manufacturer
Code
Code
Projection Lamp: Periodic replacement of the projection lamp
319, 317
Sylvania
308, 309, 338, 310
will maintain the picture quality.
309, 308
Symphonic
338
See Replacement Lamp section of the manual, page 76.
332
Tashiro
332
302, 332
Tatung
314, 336, 337
304, 338, 309
Teac
314, 336, 338, 337
Wide Mode: Selecting appropriate screen mode will increase
341, 312, 309
Technics
309, 308
314, 336, 337
Toshiba
312, 311
enjoyment of your TV viewing.
304
Wards
327, 328, 335, 331,
332
319, 320, 316, 317,
318, 341
Yamaha
314, 330, 336, 337
When watching a Standard Definition source (4:3 aspect
330, 335
Zenith
331
ratio) on this TV, you will see bars on both the left and right
338
Cable Boxes
329, 304, 309
sides of the screen. Press the WIDE button on your remote to
322, 339, 340
Manufacturer
Code
cycle through different screen modes to fill the screen in
332
Sony
230
306, 304, 305, 338
various ways. (Wide Zoom enlarges the center, Normal is
Hamlin/Regal
222, 223, 224, 225,
309, 308
226
how your TV receives the signal, Full stretches horizontally
309, 305, 304, 330,
Jerrold/
201, 202, 203, 204,
314, 336, 337
General Inst./
205, 206, 207, 208,
and Zoom enlarges the image proportionately to fill the
314, 336, 337, 345,
Motorola
218, 222
346, 347
Oak
227, 228, 229
screen.)
314, 336, 332, 337
Panasonic
219, 220, 221
332
Pioneer
211, 214, 215
332, 305, 330, 335,
Scientific Atlanta
209, 210, 211
When watching a High Definition source (16:9 aspect ratio)
338
Tocom
216, 217
308, 309, 310
on this TV, you will see screen filled with a image. Press the
Zenith
212, 213
314, 336, 337
WIDE button on your remote to toggle through different
332
Satellite Receivers
screen modes, especially zooming in to the center of the
309, 335
Manufacturer
Code
305, 304
screen. (Wide Zoom enlarges the center, Full displays the
323, 324, 325, 326
Sony
801
Dish Network
810
image at its original size, Zoom enlarges the image
325, 338, 321
Echostar
810
314, 336, 337
proportionately to fill the screen.)
309, 308
General Electric
802
Hitachi
805
327
Hughes
804
317
When the TV receives a 720p or 1080i formatted signal, the
308, 309, 306, 307
Mitsubishi
809
Panasonic
803
Normal mode is not available. See Using WIDE Button section
305, 304
Philips
811
308, 309
of the manual, page 50.
308, 309, 310
RCA/PROSCAN
802, 808
Toshiba
806, 807
308
Samsung
812
308, 309, 306
304, 305, 308, 309,
* If an Aiwa VCR does not
311, 312, 313, 310,
329
work even though you enter
If you feel the images on the screen is stretched, press the WIDE button to select a
309, 330, 328, 335,
the code for Aiwa, enter the
324, 338
different screen mode.
code for Sony instead.
314
322, 313, 321
330, 335
312, 313, 321, 335,
323, 324, 325, 326
327, 328
338
