Summary of Contents for Amptone Lab XY MIDIpad

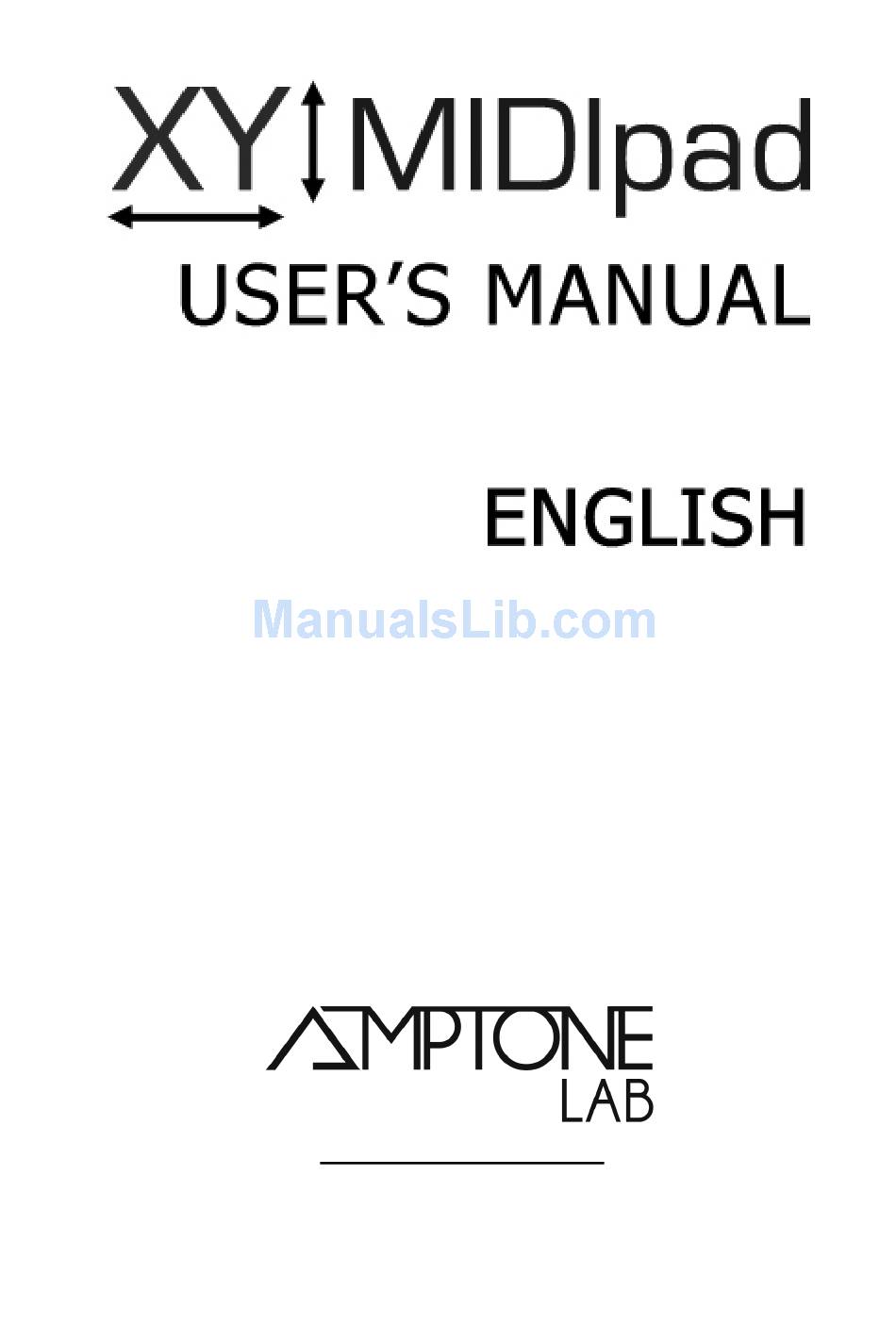

- Page 1 www.amptonelab.com...
-
Page 2: Table Of Contents
CONTENTS: Information The kit III. Installation How to use it 1. Launching 2. Sending messages 3. Hold mode 4. Changing programs 5. Changing the MIDI channel 6. Connecting other devices Devices and MIDI data 1. KORG Kaoss Pad 2 2. KORG Kaoss Pad 3 3. -
Page 3: Information
I. INFORMATION XY MIDIpad is a MIDI controller based on the touch screen mounted in guitar body. Every MIDI device is assigned to different channel (Kaoss Pad – 1, Whammy – 2, synth – 3). XY MIDIpad sends two MIDI messages: X and Y positions. -
Page 4: Installation
To change the channel, you need to press the encoder. - MIDI socket It is used to connect XY MIDIpad controller to the controlled device. Two mounting screws are included. - on/off switch This switch is used to turn the controller on and off. - Page 5 You can now begin mounting the touch screen frame. Drill four holes for the screws and mount the frame. Then put the battery into the clip – XY MIDIpad is now ready to use.
-
Page 7: How To Use It
MIDI channel. While moving the finger on the touch screen, LED blinks depending on the speed of the finger. After taking the finger away from the touch screen, XY MIDIpad sends two value 0 MIDI messages and goes to standby mode. 3. Hold mode If hold button is pressed, XY MIDIpad goes to hold mode. -
Page 8: Changing The Midi Channel
For a direct connection between XY MIDIpad and the controlled device, you need to use a MIDI cable (DIN5). You need to plug one MIDI jack into the XY MIDIpad MIDI socket (mounted in your guitar) and the other jack to a controlled device, usually named MIDI IN or MIDI INPUT. -
Page 9: Devices And Midi Data
V. DEVICES AND MIDI DATA XY MIDIpad works KORG Kaoss Pad 2 and 3, DigiTech Whammy 4 and any MIDI instrument/synthesizer. Transmitted MIDI messages chart: Device X-axis Y-axis Touching Taking Encoder finger away screen from the screen KORG Kaoss CC12... -
Page 10: Digitech Whammy
Press the footswitch again to exit the MIDI set up menu and apply the change. 4. MIDI instrument/synthesizer If you want to use XY MIDIpad with MIDI instrument, you need to set it to receive messages on the 3 channel. In... -
Page 11: Technical Support
VI. TECHNICAL SUPPORT If you have any problems with XY MIDIpad, please visit www.amptonelab.com. If you can’t find solutions to your problems, please write at info@amptonelab.com. - Page 12 www.amptonelab.com...
