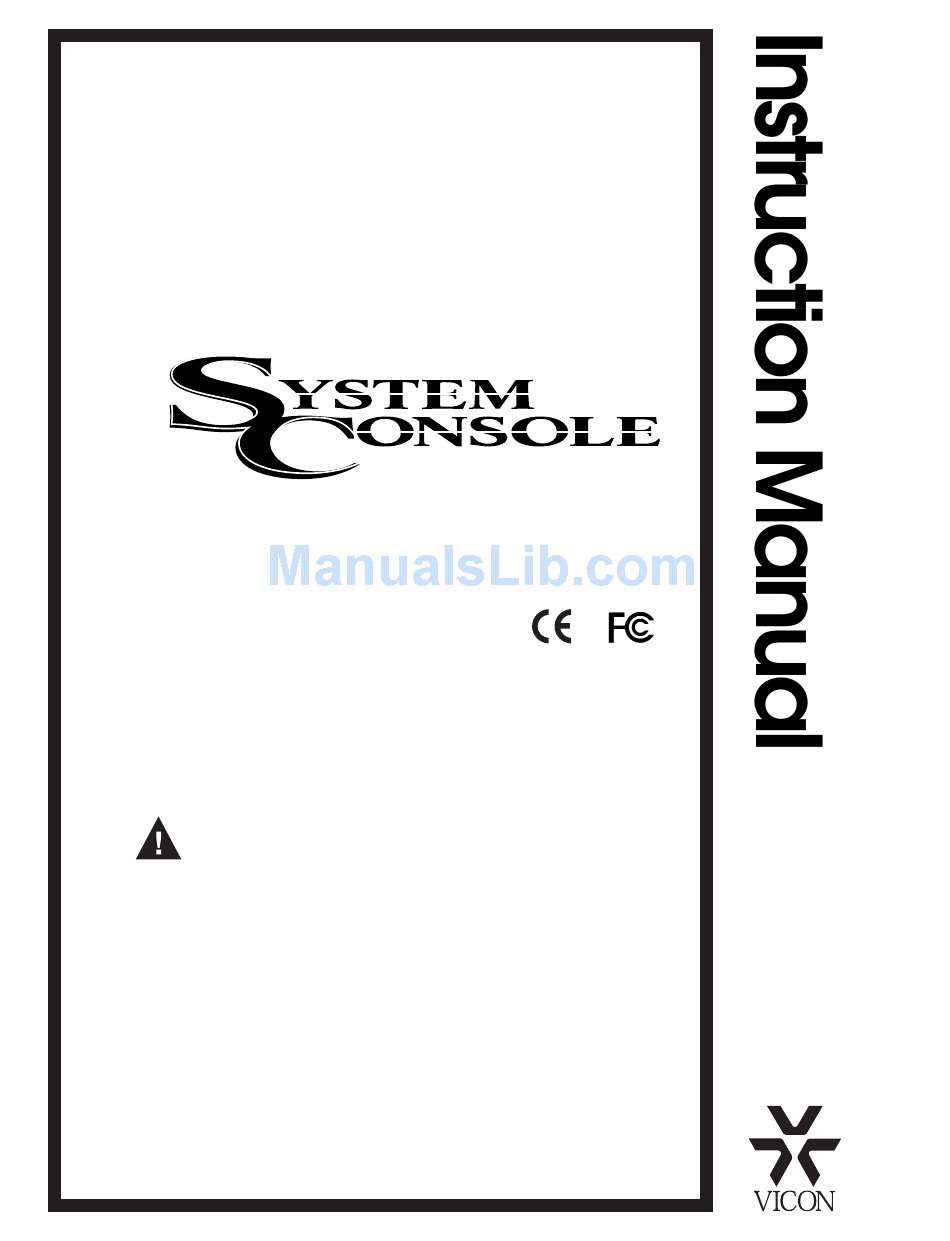

Vicon V1400X-DVC-3 Instruction Manual

System console master control station
Hide thumbs Also See for V1400X-DVC-3:
Table of Contents

Advertisement

Quick Links

Download this manual
Warning: To reduce a risk of fire or electric shock, do not
expose this product to rain or moisture.
Vicon Industries Inc. does not warrant that the functions contained in this
equipment will meet your requirements or that the operation will be entirely
error free or perform precisely as described in the documentation. This
system has not been designed to be used in life-critical situations and
must not be used for this purpose.
Copyright © 2002 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300 INFOFAX: 800-287-1207 WEB: www.vicon-cctv.com
Vicon Part No. 8009-8090-02-00
V1400X-DVC-3
Master Control Station
XX090
TM
Rev 1102 Section 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V1400X-DVC-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vicon V1400X-DVC-3

Summary of Contents for Vicon V1400X-DVC-3

  • Page 1 Warning: To reduce a risk of fire or electric shock, do not expose this product to rain or moisture. Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation.

  • Page 4: Table Of Contents

    Contents Introduction .........................1 System Configurations ..........................2 System Maximums ............................2 Installation and Programming Overview .....................3 Installation: Standalone System ..................4 Installation: AURORA/VCR ONLY ..................6 Installation: NOVA/AURORA/VCR..................8 Installation: MSS/NOVA/AURORA/VCR................10 The AurorANet Bus ......................12 Joystick Devices .......................14 V1400X-DJT Desk-Top Joystick........................14 V1400X-JST Joystick Keypad ........................15 Passcodes &...
  • Page 5 Defining Buzzer Control ..........................29 Returning to Preset 1 in an Alarm Condition .................... 31 Activating Auxiliary Devices in an Alarm Condition ................31 Download/Upload ......................32 Operation: 1300 & 1400 Series ..................33 System ................................34 Monitor ................................34 Camera ................................
  • Page 6 RS-485 Cabling ............................53 Messages ..............................54 Monitors ..............................54 Presets................................54 Cameras ..............................54 Miscellaneous .............................54 Alarms and Communication Failures......................55 Technical Information .......................55 V1400X-DVC-3 System Console........................55 V1400X-JST Joystick Keypad ........................56 V1400X-DJT Desk-Top Joystick........................56 Shipping Instructions .......................57 Index...........................58 Contents • iii XX090-02-00 Rev 1102 System Console...

  • Page 8: Introduction

    System Console. The installation procedures should only be performed by a qualified technician using approved materials in accordance with national, state and local wiring codes. The V1400X-DVC-3 System Console is a central control station capable of controlling camera stations connected to Vicon’s NOVA CPU-based matrix control systems, digital multiplexers and video cassette recorders (VCRs).

  • Page 9: System Configurations

    • A NOVA/AURORA/VCR system does not require the multi-system selector, as control system selection is not relevant (there is only one control system). You may use Vicon’s proprietary AurorANet 2-wire RS-485 protocol in NOVA/AURORA/VCR systems. Two control (or “pointing”) devices are available for use with the system console, the V1400X-JST Joystick Keypad and the V1400X-DJT Desk-Top Joystick.

  • Page 10: Installation And Programming Overview

    If you chose any other mode and will use multiplexers in your system, you must choose a protocol (A2000 or A99). "A2000 Protocol" refers to Vicon's proprietary 2-wire RS-485 AurorANet protocol. You may connect AurorANet devices directly to the system console. Examples of typical devices employing AurorANet are the AurorA2000 multiplexer, this version of the system console and the A2K-KBD Remote Keyboard.

  • Page 11: Installation: Standalone System

    Installation: Standalone System Make connections as shown in the figure and tables below. Refer to the Reference chapter for cable recommendations. Connect the appropriate power supply to this connector: Connect to Connect to switcher V1400X-PS for 120 VAC V1400X-DJT or card cage's Control V1400X-PS-230 for 230 VAC.
  • Page 12 Receiver Receiver Receiver Receiver Receiver Receiver Distribution Line Control RS-422 V1400X-JST V1400X–DJT Device TILT CAMERA CLEAR MONITOR ZOOM FOCUS Device IRIS V1400X-DJT System Console RS-232 RS-232 Device Switcher Card Cage (without CPU card) Figure 3 Sample Standalone System Installation: Standalone System • 5 XX090-02-00 Rev 1102 System Console...

  • Page 13: Installation: Aurora/Vcr Only

    VCRs and/or AurorA99/AurorA Ground multiplexers. RS-232 For A2000 Protocol: Connect directly Pin No. Signal Name to RS-485 devices using Vicon's AurorANet protocol. Note that the V800MIU-3 uses AurorANet protocol and must be used to connect to AurorA99/AurorA multiplexers and Ground VCRs.
  • Page 14 A2K-KBD V800KBD A2K-KBD AurorA2000 Multiplexer RS-232 RS-232 AurorA Multiplexer AurorA Multiplexer V800MIU-3 V800MIU-3 AurorA99 Multiplexer AurorA99 Multiplexer RS-232 RS-232 System Console System Console Device Device Device Device CAMERA CLEAR MONITOR CAMERA CLEAR MONITOR RS-232 RS-232 Device Device System Console System Console V1400X–DJT V1400X–DJT TILT...

  • Page 15: Installation: Nova/Aurora/Vcr

    Power supply with cable supplied. the back of the video printer. Note: To connect multiple System Consoles using RS-422, you will need to use one or more of Vicon’s Fail-Safe Devices. Refer to Instruction Manual X983 for more information. Figure 6 NOVA/AURORA/VCR Installation 8 •...
  • Page 16 A2K-KBD AurorA2000 Multiplexer RS-232 AurorA Multiplexer V800MIU-3 AurorA99 Multiplexer RS-232 Using AurorANet "A2000" Protocol NOVA V1422 RS-422 V1400X-JST Device Device V1400X–DJT CAMERA CLEAR MONITOR TILT RS-232 ZOOM FOCUS Device IRIS V1400X-DJT System Console AurorA Multiplexer V800MIU-3 AurorA99 Multiplexer NOVA V1422 RS-485 RS-422 Using "A99"...

  • Page 17: Installation: Mss/Nova/Aurora/Vcr

    Make connections as shown in the figure and tables below (see Reference for cable recommendations). Note: To connect multiple System Consoles using RS-422, you will need to use one or more of Vicon’s Fail-Safe Devices. Refer to Instruction Manual X983 for more information.
  • Page 18 A2K-KBD Connects to a Maximum of 8 NOVA Control Systems (CPUs) AurorA2000 Multiplexer Using AurorANet "A2000" Protocol AurorA Multiplexer POWER V800MIU-3 Multi-System Selector AurorA99 Multiplexer RS-422 V1400X-JST Device Device V1400X–DJT CAMERA CLEAR MONITOR TILT RS-232 ZOOM FOCUS Device IRIS V1400X-DJT System Console V800KBD Connects to a Maximum of 8 NOVA Control Systems (CPUs)

  • Page 19: The Auroranet Bus

    The AurorANet Bus AurorANet is a proprietary 2-wire RS-485 protocol used to communicate between Vicon devices such as AurorA2000 multiplexers, AurorAcorD digital recorders, system consoles and V800MIU-3A Multi-Output Interface Devices. To maintain the proper voltage level on the AurorANet, you must define the position of each device in the communications line.
  • Page 20 Note: Use the AurorANet Quick Guide for detailed connections to all AurorANet devices. DIP switch located on bottom panel. End-of-Line Pole 1 OFF Poles 2-4 ON V1400X-DVC-3 MECHANICAL PAN TILT ZOOM V1400X-DVC-3 AURORACORD PWR /COM CAUT ION JOY STIC K...

  • Page 21: Joystick Devices

    Joystick Devices You may use the V1400X-DJT Desk-Top Joystick or the V1400X-JST Joystick Keypad with the system console (these devices are sold separately). Note: The use of a joystick device is optional. You can select cameras and perform other functions from the system console’s keys without joystick devices.

  • Page 22: V1400X-Jst Joystick Keypad

    V1400X-JST Joystick Keypad The V1400X-JST Joystick Keypad is a trackball pointing device in an ergonomic “mouse” shape. It provides pan, tilt, lens and cursor control (in multiplexer programming menus). Two sets of identical lens control buttons customize the joystick keypad for right- or left-handed users. Set the switch located on the bottom (arrows point to the right or left).

  • Page 23: Passcodes & User Ids

    Passcodes & User IDs Defining the ID & Passcode Note: Only managers may access these settings. There are two types of operators for the system console, managers and users. Both require a user ID. You may also define passcodes, but this is not required. A manager can access all six topics from the Main Setup screen.

  • Page 24: Changing Your Passcode

    Changing Your Passcode A manager can change the passcodes for all users, including the passcode for the manager ID. A standard user can only change his own passcode. To do so, perform the following steps. 1. Enter the Main Setup screen by holding the Shift ( ) key down while pressing the F5 key. 2.

  • Page 25: Preliminary Steps

    Preliminary Steps Controlling Screen Brightness and Contrast Perform the following steps to adjust screen brightness and contrast. 1. Press and hold the Shift ( ) key and then press the F7 key to display the Screen Control screen. 2. Press and hold the up/down brightness and contrast soft keys to adjust the LCD. 3.

  • Page 26: Viewing The Current Status

    Viewing the Current Status The Main Setup screen is used to access programming screens and to view the current status. Press and hold the Shift ( ) key and then press F5 to access the screen. The current device, keypad settings, mode and other settings are shown at the top of the screen.

  • Page 27: Defining Auxiliary Devices

    ADJUST BOX ADJUST RANGE JOYSTICK ADJUSTMENT SET CENTER SET UP pan = t i l t = SET RIGHT SET LEFT DISABLE JOYSTICK SET DEFAULTS SET DOWN current pan c u r re n t t i l t = Defining Auxiliary Devices Two auxiliary devices may be connected to the system console (these are referred to as “local”...

  • Page 28: Communication Settings

    Communication Settings Setting Keypad Addresses Note: Only managers may access these settings. To set keypad addresses: 1. Press and hold the Shift ( ) key and then press the F5 key to display the Main Setup screen. 2. Then press the Keypad soft key. The Select Keypad Function screen will display. Use the arrow keys to change selection followed by the ENTER key or press EXIT to return to the previous screen.

  • Page 29: Defining The Rs-485 Protocol

    Defining the RS-485 Protocol Note: Only managers may access these settings. You must select one of two RS-485 protocols, A99 or A2000. The "A2000" protocol refers to Vicon's proprietary RS-485 AurorANet protocol. Typical AurorANet devices include the AurorA2000 multiplexer, V800MIU-3, A2K-KBD and the system console. To set the protocol: 1.

  • Page 30: Setting Baud Rates

    7. If you select A2000 Protocol, you must define the system console as a master/slave or as the system controller. The system controller polls all of the other devices on the network. Note that: • there must be one system controller •...
  • Page 31 Use the arrow keys to change selection followed by the ENTER key or press EXIT to return to the previous screen. Select RS422 Baud Rate DISABLED 4800 BPS 9600 BPS 19200 BPS Note: In standalone mode, the RS-485 baud rate must be set to 4800 bps. When using Multi-Output Interfaces (MIUs), the RS-485 baud rate must be set to 9600 bps (you may use MIUs in AURORA/VCR ONLY, NOVA/AURORA/VCR or MSS/NOVA/AURORA/VCR systems).

  • Page 32: System Settings

    System Settings Note: Only managers may access these settings. Selecting the Mode 1. Press and hold the Shift ( ) key and then press the F5 key to display the Main Setup screen. 2. Then press the System soft key. The Select System Category screen will display. Use the arrow keys to change selection followed by the ENTER key or press EXIT to return to the previous screen.

  • Page 33: Defining The Mode

    Defining the Mode Standalone As standalone systems do not include Aurora99/AurorA multiplexers, VCR or NOVA control systems, the last four selections on the Select System Category screen do not apply. Choose the Exit soft key. NOVA/AURORA/VCR After selecting NOVA/AURORA/VCR as the mode as discussed in the previous section, the Select System Category screen will be onscreen.

  • Page 34: Aurora/Vcr Only

    3. If the configuration shown is incorrect, select the No soft key to display a new message at the bottom of the screen. As directed, enter the NOVA unit number of the system to be corrected and press Enter. Note that the control system number is the number of the Multi-System Selector “station”...

  • Page 35: Defining Aurora Systems

    5. The default V800MIU-3 addresses are 16 through 23 for VCRs 1 through 8, respectively. These defaults mirror the DIP switch settings discussed in the MIU instruction manual. You may edit these addresses as long as the addresses at the MIU and at the system console are consistent and each VCR has a unique address.

  • Page 36: Controlling Auroracords From A System Console

    8. Press the Yes soft key when your settings are correct to return to the Select System Category screen. Controlling AurorAcorDs from a System Console Because the AurorAcorD is both a multiplexer and a digital recorder, you must set both the VCR and the AurorA2000 addresses to the address of the AurorAcorD when using a System Console to control the AurorAcorD.
  • Page 37 2. Then press the Alarm soft key. The Select Alarm Category screen will display. Use the arrow keys to change selection followed by the ENTER key or press EXIT to return to the previous screen. Select Alarm Category BUZZER CONTROL ALARM CONTROL INSTALL DEFAULTS 3.

  • Page 38: Returning To Preset 1 In An Alarm Condition

    Returning to Preset 1 in an Alarm Condition Note: This function is only applicable in standalone mode. You can specify that the currently selected pan-and-tilt device return to preset position 1 when an alarm is activated at a receiver. To do so, perform the following steps: 1.

  • Page 39: Download/Upload

    7. The next screen will allow you to define a baud rate, 8 data bits, 1 stop bit, None for parity and None for flow control. Vicon recommends a baud rate of 38,400 baud. You must use 8 data bits, 1 stop bit and no parity.

  • Page 40: Operation: 1300 & 1400 Series

    11. Set the baud rate to match the baud rate set in HyperTerminal above and return to the Select RS232 Category screen. 12. Then select the function that you want to perform: downloading/uploading the software or configuration file. The system console will display the transfer screen. 13.

  • Page 41: System

    System If you are using more than one control system, the Multi-System Selector will be part of your CCTV site and a System soft key label will display on your system console. The system number is defined by the connection to the Multi-System Selector “station”...

  • Page 42: Autoiris

    Note: Only managers can store a preset. To store a preset: 1. Pan-and-tilt to the desired position. Then enter the preset number. 2. Hold the Shift ( ) key down and press the Preset key. Autoiris To activate the autoiris function: Press the Autoiris soft key.

  • Page 43: Auxiliary Devices

    Auxiliary Devices To activate or deactivate auxiliary devices connected to the control system: 1. Enter the device number. 2. Press Aux to toggle the activation/deactivation of the device. The aux number displays in the status line if the device is on. To activate or deactivate local auxiliary devices connected to the system console: 1.

  • Page 44: Operation: 1300 Series Only

    Operation: 1300 Series Only Bypass To bypass cameras in a sequence pattern: 1. Enter the number of the camera you wish to bypass. 2. Press the Bypass soft key. To bypass all cameras in a sequence pattern: 1. Enter “9999”. 2.

  • Page 45: Alarm Dwell

    Alarm Dwell To set the alarm dwell time: 1. Enter a number for the dwell time (1 - 60 seconds). 2. Hold the bottom right soft key down and press the Dwell soft key at the same time. Operation: 1400 Series Only Tours To start a tour: 1.

  • Page 46: Crosspoint Reset

    1. Press the Alarm soft key. This acknowledges the currently-selected monitor, if it is an alarm monitor. If the monitor is not an alarm monitor, the lowest-numbered alarm monitor has been selected and you must press the Alarm key again to acknowledge the alarm. Up and down arrow soft keys will display to allow you to scroll through alarm titles when multiple alarms are active.

  • Page 47: Unit

    4. Define joystick control. Then use the system console to perform any operation in this chapter. If you are using an AurorAcorD, use the VCR screen to access additional controls. Note that multiple speed shuttle control is not available using the system console to operate an AurorAcorD. RECORD PLAY HELP...

  • Page 48: Joystick Control

    1. Press the Monitor key. 2. Enter the monitor number (“1” or “2”). 3. Then press the Monitor key again. To select a monitor (AurorA2000 and AurorAcorD): 1. Press the Spot soft key to toggle between the spot monitor and the multipicture display monitor. Joystick Control To define joystick control: Press the joystick control soft key to toggle settings.

  • Page 49: Multipicture Display

    Multipicture Display AurorA99 and AurorA multiplexers may display video from up to 16 cameras. Which video will display in which window is defined during AurorA99/AurorA programming. To select multipicture display (AurorA99 multiplexers): 1. Enter “1” and press the Monitor key to select the multipicture display monitor. 2.

  • Page 50: Recording Video

    Recording Video Note: This section is only relevant for simplex models. Duplex models record continuously. To record video (AurorA99 multiplexers): 1. Press the Mode soft key. The Mode key and the Format key share a label. Press the Shift ( ) key to toggle to the Mode label if necessary.

  • Page 51: Sequencing Video

    8. Press and hold the Shift ( ) key and then press F3 to return to the AurorA screen. Press the Monitor key to exit the AurorA99/AurorA menus. To play back video (AurorA2000 and AurorAcorD): 1. Press the Play soft key. 2.

  • Page 52: Electronic Pan, Tilt, Zoom

    Electronic Pan, Tilt, Zoom 1. Enter the camera number. 2. Press the Camera key to select a camera in full screen format. 3. Zoom in using the V1400X-DJT or V1400X-JST (this activates EPTZ). 4. Then zoom in, zoom out, pan and tilt in the scene using the V1400X-JST or V1400X-DJT. 5.

  • Page 53: Help

    Help To access help on the current screen (AurorA99 multiplexers): 1. Press the ? key to display the first page of on-line help for the currently viewed screen. 2. Press the ? key again to view the next help page (if applicable) or any other key to exit the on-line help. To access help on the current screen (AurorA2000 and AurorAcorD), press the Help soft key.

  • Page 54: Mode

    Mode To increment or decrement the record/play mode, press the “+” or “-” soft keys. Look at your VCR’s display screen to determine which mode is currently selected. To play back a tape encoded in an AurorA99 or AurorA, select a nonlinear playback mode (you would typically not choose a speed listed with an “L”, or you may need to check your VCR documentation for specific nonlinear playback mode names).

  • Page 55: Frame Shift (Jog)

    Frame Shift (Jog) Note: The tape must first be paused before using the frame shift function. Note: In addition to VCRs, this function also applies to AurorAcorDs. The VCR and AurorAcorD addresses must be set to the same address, as discussed in the Programming chapter. For example, pressing “+” for a VCR whose Unit field is set to 1 will move forward through a tape by one field.

  • Page 56: Operation: Macros

    Operation: Macros Creating a Macro Note: Only managers may access this screen and create macros. Macros provide a quick method of performing several operations with one keystroke. You may create up to 64 macros, each with up to 16 keystrokes. Each macro may have a user-defined title of up to 15 characters. For example, you may define a macro to recall preset 10 on camera 14 and then activate auxiliary device 1.

  • Page 57: Running A Macro

    8. To easily define titles which are the same or similar in text, enter the macro number of the macro with the title you wish to copy. Press the Edit soft key. Change the title if necessary, then enter the number of the macro for this new title and press the Save soft key.
  • Page 58 RS-422 PWR/COMM Connector: Connect Response - and Command - together (screws 4 and 5). Connect Response + and Command + together (screws 1 and 8). 2. Re-enter the system console by entering your user ID (and passcode, if necessary). 3. Press and hold the Shift ( ) key and then press the F5 key to enter the Main Setup screen. 4.

  • Page 59: Maintenance

    Reference Software Version Number and Date If you are requested by Vicon Technical Support to provide the software version number and date, you can find this information on the bottom of the diagnostics screen. Contents of System Console Accessory Kit Accessory kit (part number 1299-3012-01) includes the following items.

  • Page 60: Cable Recommendations

    Cable Recommendations RS-422 Cabling Vicon recommends the cables shown in the table below for RS-422 connections. As shown in the table, the appropriate cable depends upon the distance between the RJ45 Termination Box and the RS-422 device. Recommended RS-422 Cable Types...

  • Page 61: Messages

    Messages Monitors Message Displayed when… “Invalid Monitor Number!” you’ve entered a monitor number exceeding the control system’s or multiplexer’s maximum number of monitors. Refer to the appropriate manual for limits. “Not a Sequence Monitor!” you’ve tried to start a sequence on a monitor that was not defined as a sequence monitor.

  • Page 62: Alarms And Communication Failures

    “Communication Failure” a communication failure (such as a disconnected cable) has been received. Technical Information V1400X-DVC-3 System Console Electrical Input Voltage: 12 VAC. AC Input: V1400X-DVC: 120 VAC, remote transformer supplied.

  • Page 63: V1400X-Jst Joystick Keypad

    Mechanical Construction: Top: plastic. Bottom: steel. Finish: Black textured. Dimensions: Height: 4.00 in (102 mm). Width: 10.0 in. (254 mm). Depth: 12.0 in (305 mm). V1400X-JST Joystick Keypad Joystick Travel: 25° from center in all directions. Mechanical Life Cycle: 5 million (minimum). Stick Shaft: ¼"...

  • Page 64: Shipping Instructions

    Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.

  • Page 65: Index

    Home Position Index 1400 Series 38 Installation 1300 & 1400 Series Control 33 AURORA/VCR ONLY 6 Desk-top Joystick 14 Joystick Keypad 15 MSS/NOVA/AURORA/VCR 10 Alarm NOVA/AURORA/VCR 8 1300 Series 37 Standalone 4 1400 Series 38 V1400X-DJT 14 AurorA/AurorA99 Control 39 V1400X-JST 15 Auto Logout 17 Introduction 1...
  • Page 66 1300 Series 34 Programming AurorA Series 45 Quick Setup Screens 44 Receiver Mode 45 Record AurorA Series 43, 47 VCR Series 47 Rewind 47 Salvos 38 Sequence 1300 Series 37 AurorA Series 44 Shipping Instructions 57 Specifications 55 Status 19 Stop 47 System 1300 Series 34...
  • Page 67 Vicon Industries Inc. Offices Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Infofax: 800-287-1207 Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322...
