Operations & Maintenance Manual
6.

TC02 dip-switch settings

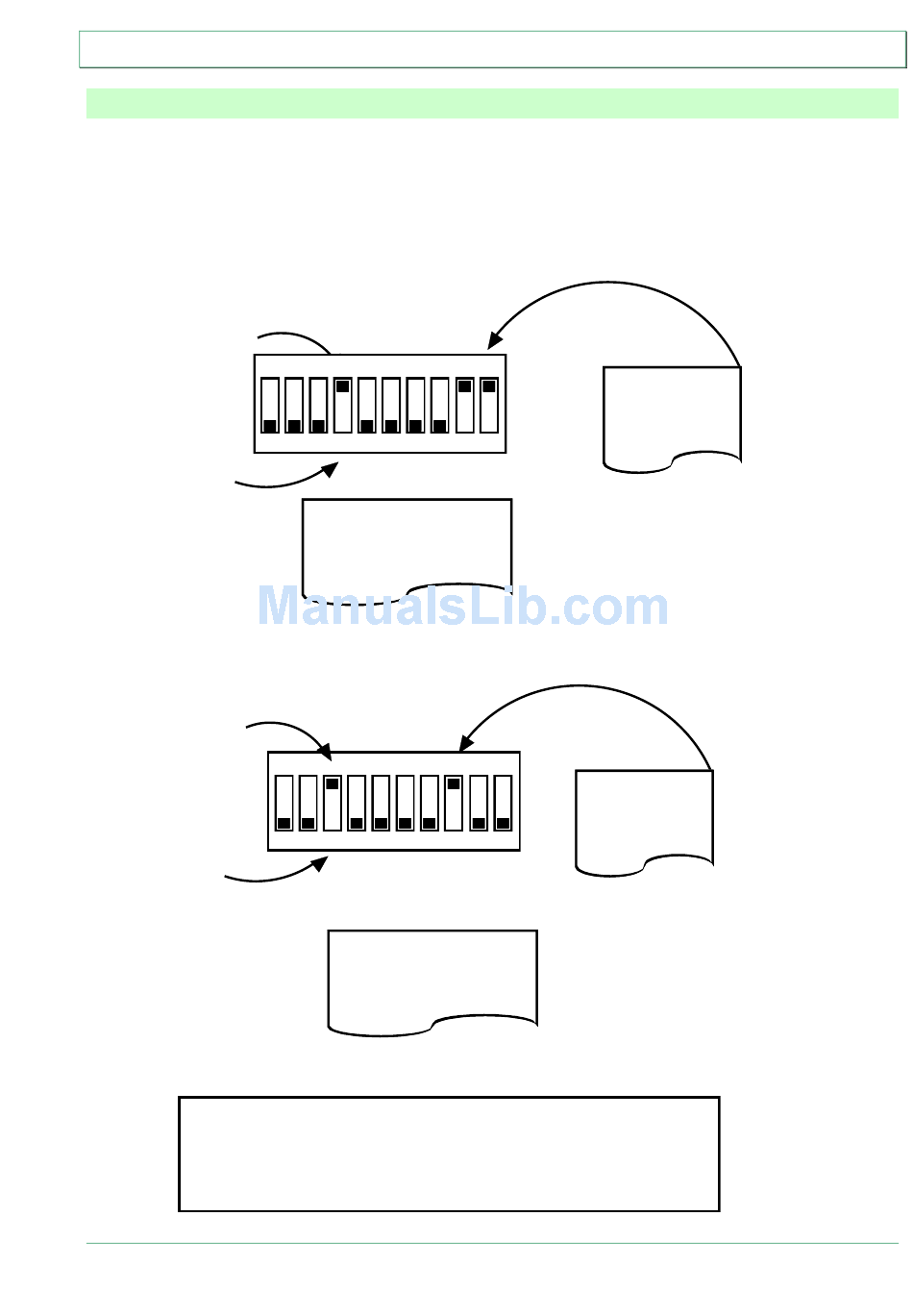

MINI-FCU Dipswitch setting
Master Dipswitch setting
Switch ON position
Switch Number
Slave Dipswitch setting
Switch ON position
Switch Number
Using various combinations of switches to 'on' the requires address
up to a decimal value of 255 may be set see next illustration Dipswitch Settings
Doc: TC02 O&M
Final
Status: issue: 11
ON
1 3 5 7
2 4 6 8
The above shows a Master
Controller setting with a
network address of 8
ON
1 3 5 7
2 4 6
The above shows a Slave
Controller setting with a
network address of 4
Table of Switches 1 to 8
Sw1 = 1, Sw2 = 2, Sw3 = 4, Sw4 = 8, Sw5 = 16
Sw6 = 32, Sw7 = 64, Sw8 = 128.
Page 16 of 20
Switches 9 and 10
Master Setting
both on
9
10
Switch 8
Slave Setting
on
9
8 10
©TB Controls 2011
