Summary of Contents for Icy Box IB-NAS901

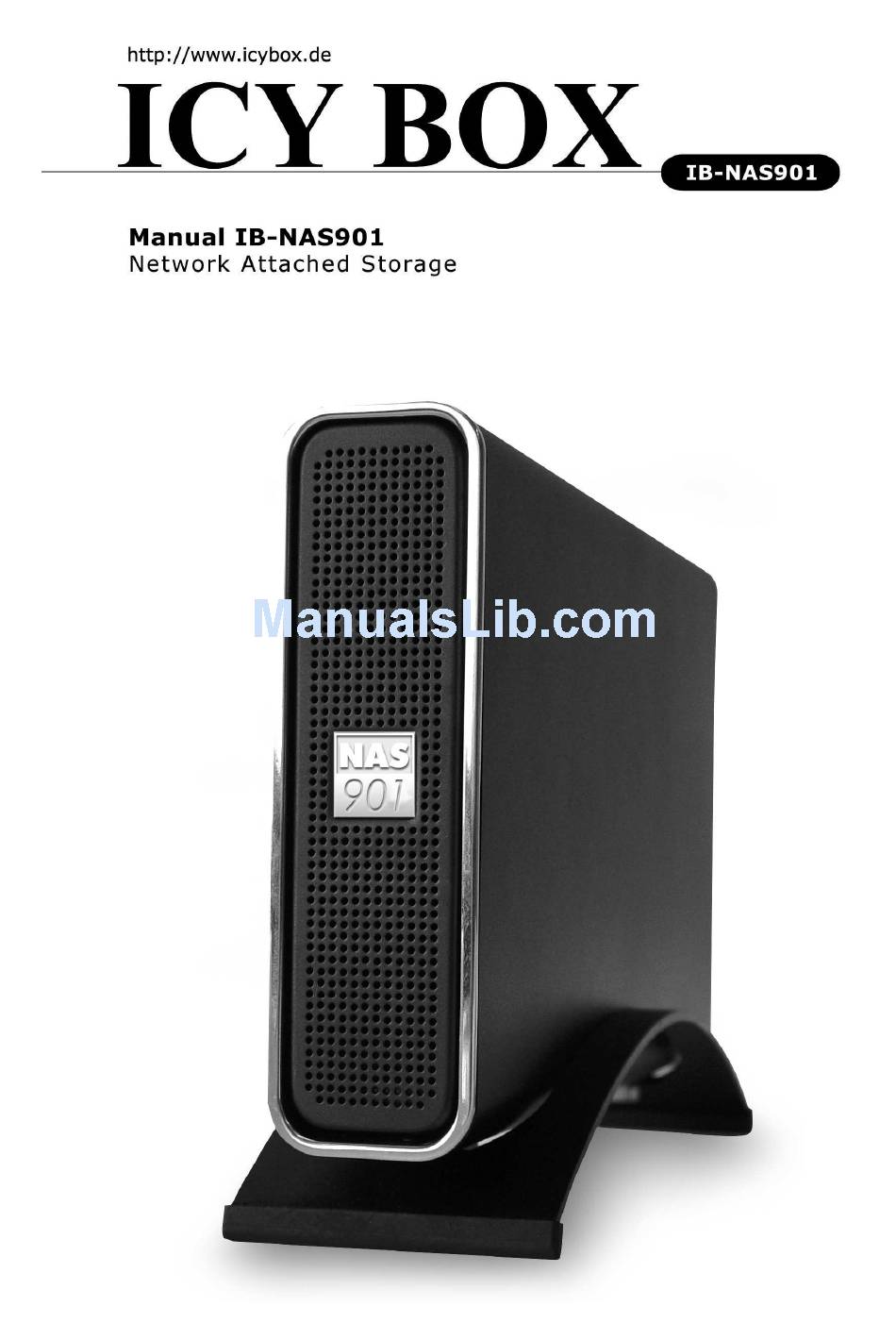

- Page 1 Version 1.1.45 E...
-
Page 2: Table Of Contents
Status – System Information................9 IP Configuration....................9 Maintenance....................10 SMB Administration ..................10 FTP Configuration....................10 Disk Utility .....................11 File Access......................11 Access Files from the IB-NAS901 – Windows ............11 Access Files from the IB-NAS901 – Mac OS ............12 Frequently Asked Questions ................14... -
Page 3: Introduction
IP-Addresses among the network participants. More than a NAS The ICY BOX IB-NAS901 is not only an easy to use network storage device. It is a truly double functional HDD box. It offers a complete USB 2.0 HDD access chipset, offering greater flexibility. -
Page 4: Package Content
Package content • IB-NAS901 • CD-ROM • User guide • RJ-45 Network cable • USB cable • Power adaptor Take a look at the IB-NAS901 Front Back... -
Page 5: Back
USB interface. USB Mode In USB 2.0 High Speed mode, the IB-NAS901 is directly attached to a single computer using the USB port. Max OS X Driver installation is not required for systems using Mac OS 10.1.2 or above. -
Page 6: Windows Xp & Windows Me
Connecting to your Network Connect the power adapter to the back panel of the IB-NAS901 and plug the other end to a wall outlet or power strip. Connect the network cable to the LAN port on the back of the IB-NAS901 and the other end of the network cable to a port on your hub, switch or router. -
Page 7: Setup Ib-Nas901
IP address of the IB-NAS901 in the browser URL address bar. If you do not know the IP address of the IB-NAS901, you will have to do this additional procedure. You will need to connect the IB-NAS901 directly to your computer, input the default IP address 169.254.0.1 in the browser URL address bar to access the web control... -
Page 8: Web Based Setup
An overview description of the functions on the left menu bar: Menu Item Description Status Shows the data related to your IB-NAS901, such as networking status and hard drive information. You may also edit administration and file language settings here. IP Config... -
Page 9: Status - System Information
You may also change the default hostname of your IB-NAS901 here. Keep in mind that after you change the hostname, you will need to use it to access your IB-NAS901. For example, if you changed your hostname to “ FileServer ”, please type “http://FileServer” to access the Web Control Panel after you submitted your changes. -
Page 10: Maintenance
In here, you can create, rename and delete folders/directories in your IB-NAS901. All the folders/directories in the root directory that were previously in your hard drive before it was installed in the IB-NAS901 will also be shown in the “Folder List”. -
Page 11: Disk Utility
File Access Access Files from the IB-NAS901 – Windows In Windows, the data can be accessed by searching for the IB-NAS901 in the “Network Neighborhood” (as a computer with the name “Storage”). Or you can access the data in the IB-NAS901 with the following instructions. -
Page 12: Access Files From The Ib-Nas901 - Mac Os
“SMB Server” in the control panel. Clicking on the corresponding folder will reveal the files in that folder. Access Files from the IB-NAS901 – Mac OS If the client computer is an Apple Macintosh running Mac OS, they will have to follow the procedure below to mount each shared folder as an SMB share to access the data. - Page 13 Type “smb://storage” and click the Connect button. If you change the IB-NAS901 hostname, you will need to replace the word “storage” with it. For example, if you changed your hostname to “FileServer”, please type “smb://FileServer” instead. The next dialogue...
-
Page 14: Frequently Asked Questions
4 GB. In the NAS Mode the limit of a file is 16 GB. If a file is over 4 GB the IB-NAS901 splits it in the NAS Mode into parts under 4 GB and provides them transparently. - Page 15 Manufactured for: RaidSonic Technology GmbH Kurt-Fischer-Straße 50 D-22926 Ahrensburg Germany www.raidsonic.de...
