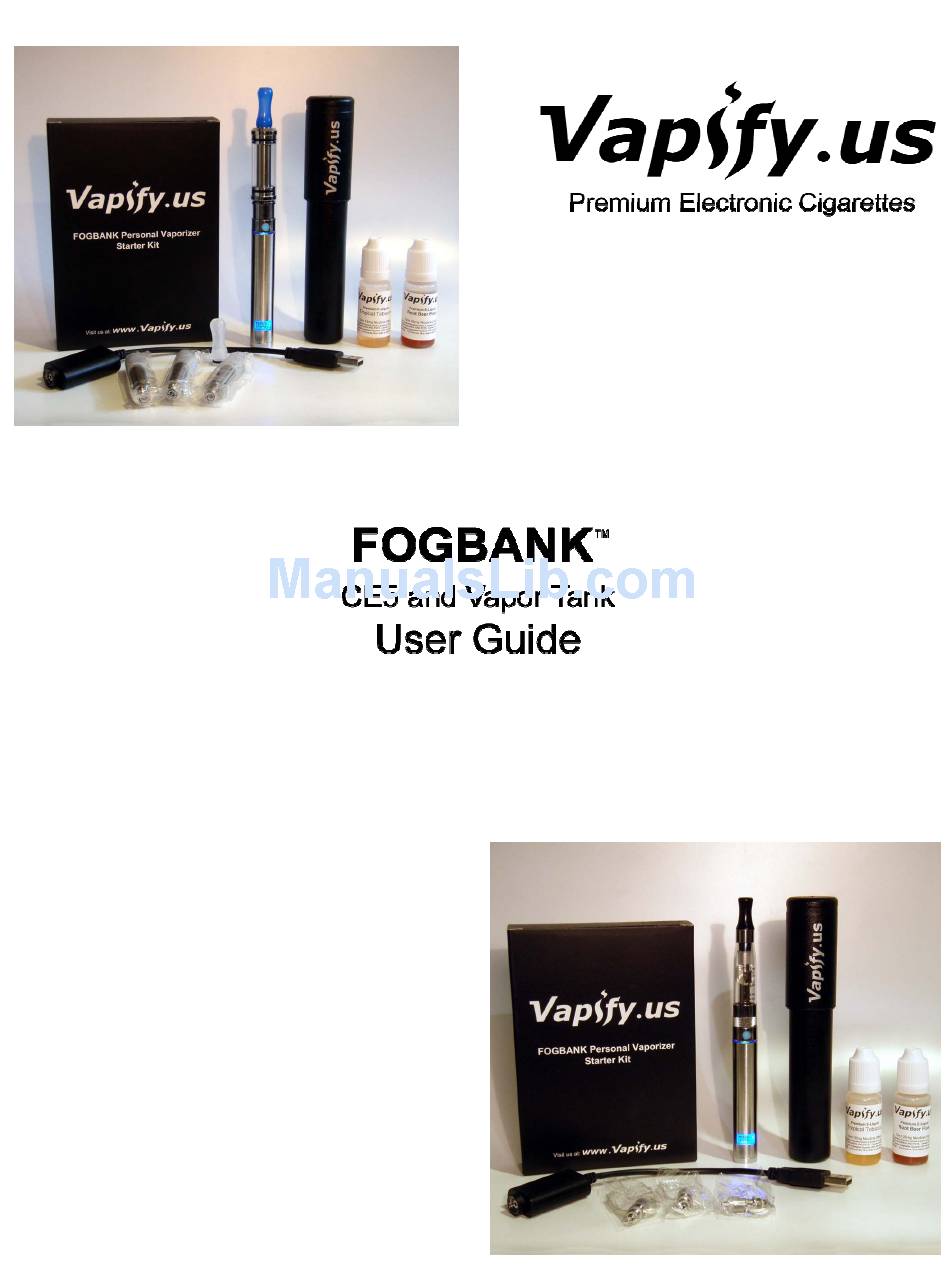

Summary of Contents for Vapify.us Fogbank
- Page 1 v1.3...
- Page 2 © 2013 Vapify LLC. All rights reserved. Disclaimer Information in this manual is protected by copyright laws and is the property of Vapify.us™ and Vapify LLC. Changes to the specifications and features in this manual may be made by Vapify LLC without prior notice.
-
Page 3: Box Contents
FOGBANK™ Vapor Tank Kit Box Contents Fogbank™ advanced battery Vapor Tank Head and Tip USB Charge Cable Support Collar Spare tip 3 replacement cartomizers 2 E-Liquid Polymer Carrying Case * The box contents above are for reference only and the actual items shall depend on the product... - Page 4 FOGBANK™ CE5 Kit Box Contents Fogbank™ advanced battery CE5 Head and Tip USB Charge Cable 3 replacement coils 2 E-Liquid Polymer Carrying Case * The box contents above are for reference only and the actual items shall depend on the product...
- Page 5 Orange, green and blue LEDs to indicate the current mode or function Charging When you first open your FOGBANK™, you should charge the battery. Unscrew the bezel from the bottom of the battery, then screw the battery into the included USB charger. You can plug the USB cable into any standard USB port or charge adapter.
- Page 6 The FOGBANK™ is protected by a battery safety circuit. If the activate button is pushed for longer than 10 seconds while the battery is connected to the CE5 or Vapor Tank, or the battery detects a inconsistent resistance, it will shut down and the transparent ring will blink blue 8 times. This is often an indication of a failing cartomizer, coil, or that it is time for a cleaning.
- Page 7 FOGBANK™ CE5 The CE5 reservoir is made up of 4 components: The tip The reservoir body The lower body And the coil assembly To begin using your CE5, simply unscrew the tip from the body, hold the unit at a 45 degree angle and fill with e-liquid to the fill-line (1.6ml), while being careful not to put liquid down the center air hole.
- Page 8 For additional troubleshooting information and FAQ please refer to the troubleshooting section in this manual or visit our website at http://www.vapify.us.
- Page 9 Vapor Tank Body The cartomizer Stabilizing collar The vapor tank design provides maximum vapor and airflow and is the go-to choice for advanced e-cig users. For users that wish to use a more convenient design, please check out the FOGBANK™ CE5.
- Page 10 To begin using your vapor tank, first remove the tip by gently pulling and twisting, then pull the cartomizer from the bottom of the tank to fully remove it. You can thread the cartomizer into the battery to aid in removal.
- Page 11 Do not drip the e-liquid straight down the cartomizer barrel. This will result in wasted liquid dripping out the bottom of the carto, and a mess. Next, wipe the outside of the cartomizer with a paper towel, and blow on the top of the cartomizer. This action will force the e-liquid down the wicking material into the cartomizer.
- Page 12 Repeat dripping 4 or so drops down the inside edge of the cartomizer. Then blow again from the top of the carto. Repeat these steps several times until liquid begins to come out the small holes on the side of the barrel.
- Page 13 Gently insert the cartomizer into the vapor tank about ¾ of the way. Next, hold the cartomizer and tank at a 45 degree angle and pour e-liquid down the outer edge of the tank until it’s about ¾ full. Then slide the cartomizer the rest of the way into the vapor tank until the bottom flange slides home, and the carto is sticking out the top of the vapor tank.
- Page 14 FOGBANK™ CE5 Troubleshooting Steps The device does not produce vapor, or produces little vapor. Verify that the device is turned on, filled at least half-way, and fully charged. If these conditions are met, take off the CE5 head and inspect the battery connector on the CE5 head and battery contacts. Wipe thoroughly clean the battery connector, and the bottom side of the CE5 with a twisted paper towel.
- Page 15 FOGBANK™ Vapor Tank Troubleshooting Steps I have installed a new cartomizer and followed the loading instructions, but the unit produces little or no vapor. Check that the cartomizer wicking holes are visible and clear for e-liquid flow into the tank. If the cartomizer is installed backwards, these holes may be blocked, which will prevent normal operation.
