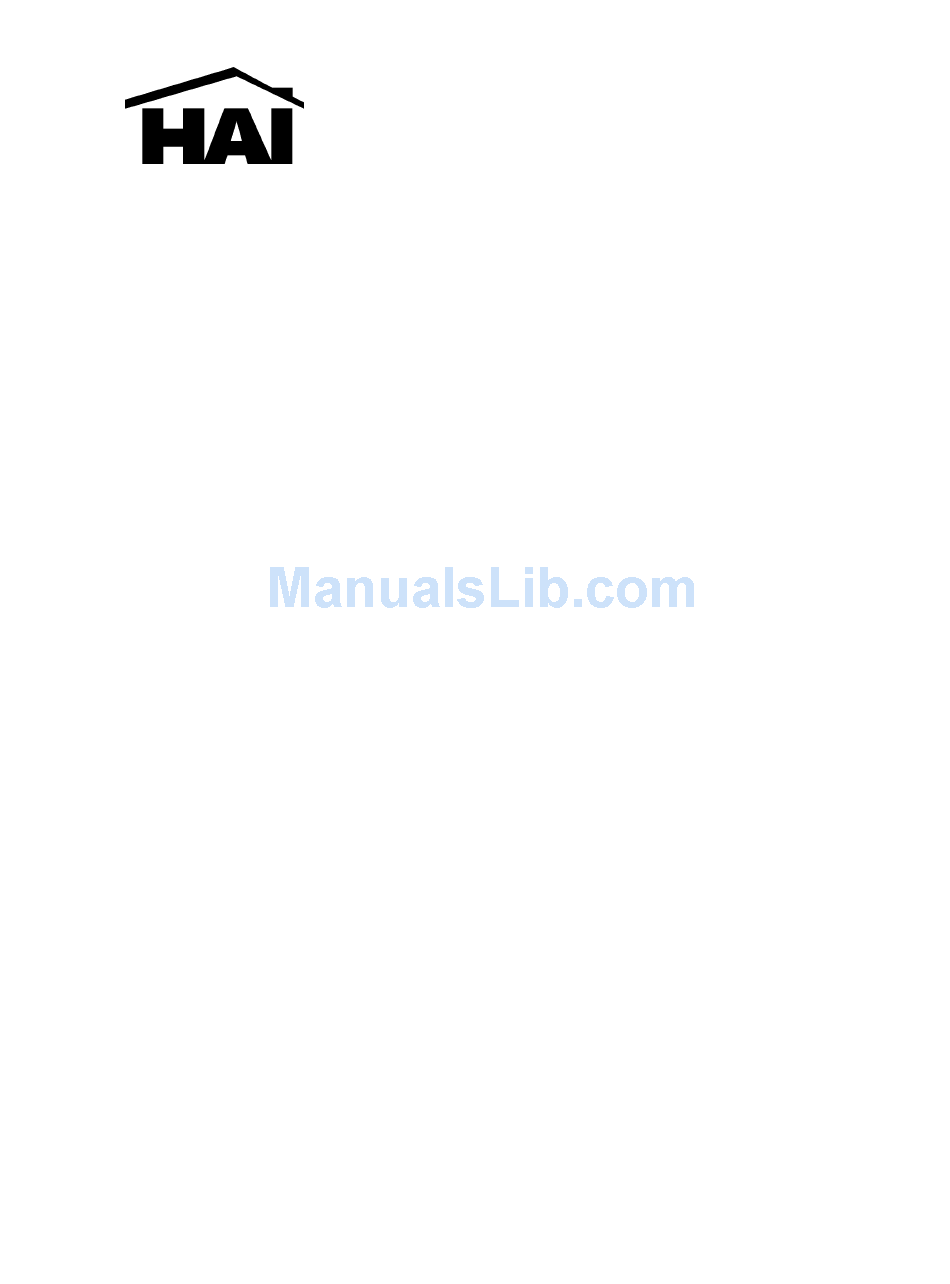

  • Page 1 Home Automation, Inc. Model 53A00-2 OmniTouch 5.7e PoE Touchscreen with Video Installation Manual Document Number 53I00-2 Rev A August, 2009...
  • Page 2: All Rights Reserved

    Copyright © 2009 Home Automation, Inc. ALL RIGHTS RESERVED...
  • Page 3 DESCRIPTION The Model 53A00-2 OmniTouch PoE 5.7e Touchscreen with Video is a colorful network touchscreen interface for HAI controllers and Home Theater Extenders. The OmniTouch 5.7e features customizable graphics for control of lights and small appliances, to monitor and adjust...
  • Page 4: Installation

    INSTALLATION 1) Make the cutout for the touchscreen Hold the template (Installation Template – 53A10-1) against the wall so the top edge is at the appropriate height and parallel to the floor. Using a Punch, or similar instrument, punch through the center of each tick mark (+) on the template. Drill a 1/4"...
  • Page 5 3) Remove the touchscreen assembly from the backbox a. Remove the two screws as shown in Figure 3 (DO NOT REMOVE THE SCREWS ON THE GREEN CIRCUIT BOARD). Retain screws for reassembly. b. Remove the touchscreen assembly as shown in Figure 3. Figure 3 4) Install the backbox into the cutout in the wall a.
  • Page 6 c. Place the assembled unit into the cutout in the wall. d. Turn the retaining flange screws clockwise until they are snug (do not over tighten). WALL Figure 5 5) Connect the communications cable to the touchscreen Insert the 8-position modular cable into the RJ-45 connector (J1) on the touchscreen, through the cutout in the touchscreen backbox (see Figure 6).
  • Page 7 Figure 6 6) Install the touchscreen assembly a. Align the tabs on the touchscreen assembly with the slots on the backbox. Figure 7...
  • Page 8: Removing The Touchscreen

    b. Swing the touchscreen assembly in place and secure to backbox using screws that were removed in Step 3. Figure 8 7) Install the touchscreen faceplate Before installing faceplate, remove the protective film from the LCD area of the touchscreen. Fasten the faceplate onto the touchscreen by hanging the top of the faceplate on the top edge of the touchscreen, then gently snapping the bottom onto the touchscreen.
  • Page 9: Configuring The Touchscreen

    CONFIGURING THE TOUCHSCREEN When power is first connected to the OmniTouch 5.7e touchscreen, if the touchscreen hasn’t previously been connected to the network or hasn’t been configured to communicate with the HAI controller, the touchscreen Configuration Page is displayed. There are several items on the Configuration Page that must be configured. These items are contained in 3 categories: Network, Controller, and Screen Setup.
  • Page 10 If DHCP is disabled, the following network parameters must be configured: 1. Enter the IP address of the OmniTouch 5.7e by pressing the [Edit] button to the right of the “IP Address” edit box. The format of the IP address is a numeric address entered as four numbers separated by periods.
  • Page 11 Controller To connect the OmniTouch 5.7e to an HAI controller, enter the HAI controller network connection information on the page under the “Controller” tab. 1. Enter the IP address of the HAI Controller by pressing the [Edit] button to the right of the “Controller”...
  • Page 12 If the connection is unsuccessful, “Connection Failed” will be displayed. Check the controller’s IP address, port setting, and encryption key. 5. If an HAI controller is not being used, press the [Off] button under “Controller”. This can be used if you are using an OmniTouch 5.7e to communicate with an HTX Home Theater Extender, but are not connecting to or do not have an HAI controller.
  • Page 13 Brightness (0-50): Adjusts the brightness level of the touchscreen display. Sets the length of time (in minutes) that the touchscreen display remains illuminated after the last time a button is pressed on the touchscreen. After the time has expired, the touchscreen display turns off. Backlight Timeout (0-14): Simply touch anywhere on the screen and the display will immediately illuminate.
  • Page 14 After you exit the Configuration Page, when the light level reaches the “light” threshold, the display will illuminate to the brighter settings; when the light level reaches the “dark” threshold, the display will dim to the darker setting. Once configured, to disable the ambient settings so that the screen is always at the same intensity, set the “Brightness”...
  • Page 15: Returning To The Configuration Page

    1. Enter the IP address of the first HAI Camera Server by pressing the [Edit] button to the right of the “Camera Server IP” edit box. The Camera Server’s IP address is used to identify the HAI Camera Server on the network. The format of the IP address is a numeric address entered as four numbers separated by periods.
  • Page 16: Update Port

    UPDATING THE TOUCHSCREEN The USB Update Port on the OmniTouch 5.7e allows you to update the touchscreen to the latest firmware and the HAI default design. This allows you to update the OmniTouch 5.7e when HAI Automation Studio is not available or is unable to connect. Note: If a custom design is loaded in the OmniTouch 5.7e, when it is updated using the USB Update Port, the custom design will be overwritten with the HAI default design.
  • Page 17: Specifications

    RESETTING THE TOUCHSCREEN If for any reason the touchscreen needs to be reset, remove the faceplate and press and hold the reset button marked "SW1" on the circuit board to the right of the LED for 1 second. SPECIFICATIONS Size: Backbox cutout: 5.625"...
  • Page 18: Fcc Notice

    FCC NOTICE This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Verified to comply with the limits of a Class B digital device pursuant to Part 15 of the FCC Rules.
