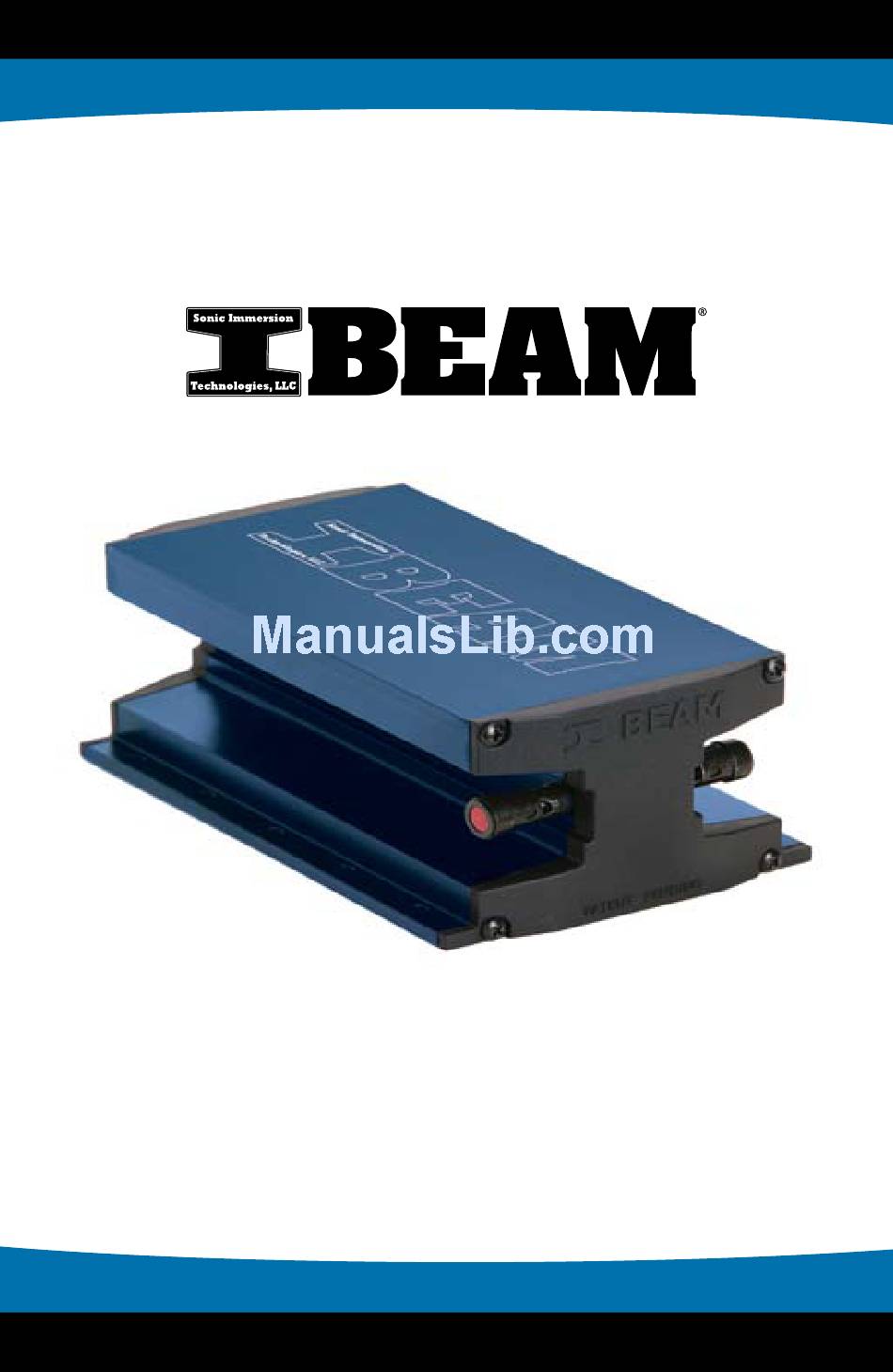

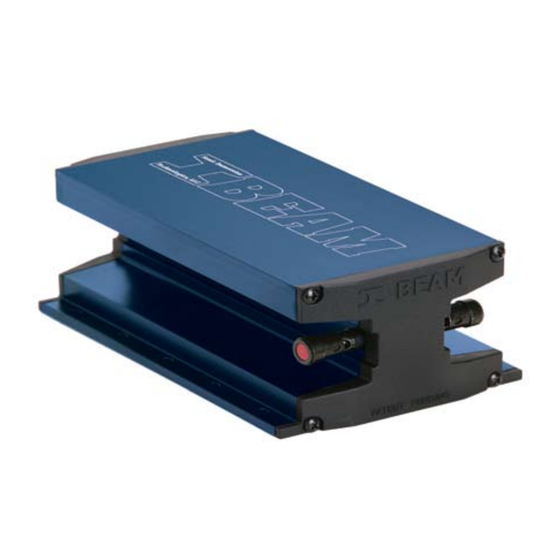

Page 1 Get Ready to Experience High Definition Bass.
Page 3: Table Of Contents
Contents Items you will need ..................4 Introduction & Precautions ................5 Specifications ....................6 Home Theater Mounting .................7 - 8 Home Theater System Connections ..........9 - 10 Automotive Mounting ................. 11 Automotive System Connections ............12 Troubleshooting ..................13 Warranty ....................
Page 4: Items You Will Need
Items you will need Drill Drill bit for pilot holes Phillips head bit w/extension Phillips head screw driver Spool of 12 or 14 gage speaker wire Wire strippers ( 12 or 14 gage )
Page 5: Introduction And Precautions
Introduction and Precautions I BEAM Install Guide ® 1. Welcome Thank you for purchasing the I BEAM VT300. It represents the new world standard in vibro tactile transducer performance. The I BEAM delivers powerful deep bass and accurate broadband sound output. Any sound or movie system will benefit from a properly installed I BEAM.
Page 6: Specifications
Specifications 6.5” 2.75” I BEAM Model # ..............VT300 ® Size (L x W x H) ..........6.5” x 4.25” x 2.75” Weight ..............3.5 lbs (1.6 Kg) Maximum Program Force ....... 220 lbs (978 Newtons) Force / Watt ........2.2 lbs/Watt (9.7 Newtons/Watt) Continuous Power Handling ..........
Page 7: Home Theater Mounting
Mounting Guidelines In many installations the I BEAM can be mounted directly using the 10 built-in through holes. A universal mount bracket for the I BEAM SIT part number #UMP1496, is available when direct mounting is not an option. Home Theater Seat Mounting The contemporary Home Theater Seat will generally accept a direct attachment of the I BEAM using the 10 built-in mounting holes.
Page 8 Home Theater Seat Mounting MOUNTING THE I BEAM Locate solid wood or metal frame underneath couch or chair. A central location is preferred. Attach the I BEAM using 10 screws to the frame. A mounting bracket may be required for some furniture. (screws) Use all 10 screw holes when mounting long ways.
Page 9: Home Theater System Connections
Home Theater Installation (Using Sub Woofer Output) Any 4 ohm stable amplifier that provides a minimum Amplifier of 100 watts RMS is sufficient. Amps 150-300 watts at 4 ohms offers the Line Level Speaker Output finest experience. Input Stereo or Surround Sound Processor Subwoofer Out...
Page 10 Home Theater Installation (Without Sub Woofer Output) Line Level Speaker Output Input Harrison Laboratories, FMOD, 150 LP Stereo or Surround Sound System Line Out Line level output should be controlled by master volume. OPTIONAL CROSSOVER If your amplifier does not have a built-in crossover, this step may be necessary.
Page 11: Automotive Mounting
Car Installation • Contact your automobile manufacturer for specific instructions to remove and reinstall your vehicle’s seats. • Professional Installation recommended for automobile installations, especially when airbags are present. • A Universal Mounting bracket, part number UMP#1496, will most likely be required for car installations. Contact your local dealer, or SIT directly at www.ibeambass.com.
Page 12: Automotive System Connections
Car Installation Multiple I BEAM Units: Be sure polarity of both I BEAM units are the same. Any 4 ohm stable amplifier that provides a minimum of 100 watts Right & Left RMS is sufficient. Amps Speaker Level Outputs 150-300 watts at 4 Full Frequency ohms offer the finest Line Level Outputs...
Page 13: Troubleshooting
Troubleshooting SYMPTOM CAUSE SOLUTION I BEAM stops operating overload protection activated allow fuse to reset (3-5min) ® lower amp settings I BEAM sounds weak low settings increase the amp gain and/or ® raise source input level little bass in source many older recordings lack much deep bass sound No sound from I BEAM...
Page 14: Warranty
During the warranty period Sonic Immersion Technologies (SIT) will repair or replace any non-functioning unit that has not: (1) been modified or altered, or (2) had serial number defaced or removed, or (3) had end caps removed, or (4) suffered fire, water or other catastrophic damage.
