FieldLogix GPS Device Installation Instructions Manual

Gps device

Advertisement

Quick Links

Crimp ring terminal
Soldering tool and solder
Torque Seal
There are 4 components to the GPS device:
A. GPS
Antenna
The above components must be installed in the following order:
A. GPS / Cell combo antenna
B. Power harness
C. GPS device
D. Garmin Navigation Device
GPS / Cell Combo Antenna Installation Procedure
Power Harness Installation Procedure
GPS Device Installation Procedure
Device Testing & Troubleshooting Procedure
GPS Device Installation Instructions
You will need the following tools:
Electrical Tape
Voltage Meter
Wire strippers
B. Power
Harness
Table of Contents
Item
Copyright © 2010 FieldLogix 888-803-0200
support@fieldtechnologies.com
Silicone Glue
Zip Ties
Wire crimpers
C. GPS
D. Navigation
Device
Device
Page
2
3
5
6
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPS Device and is the answer not in the manual?

Questions and answers

Summary of Contents for FieldLogix GPS Device

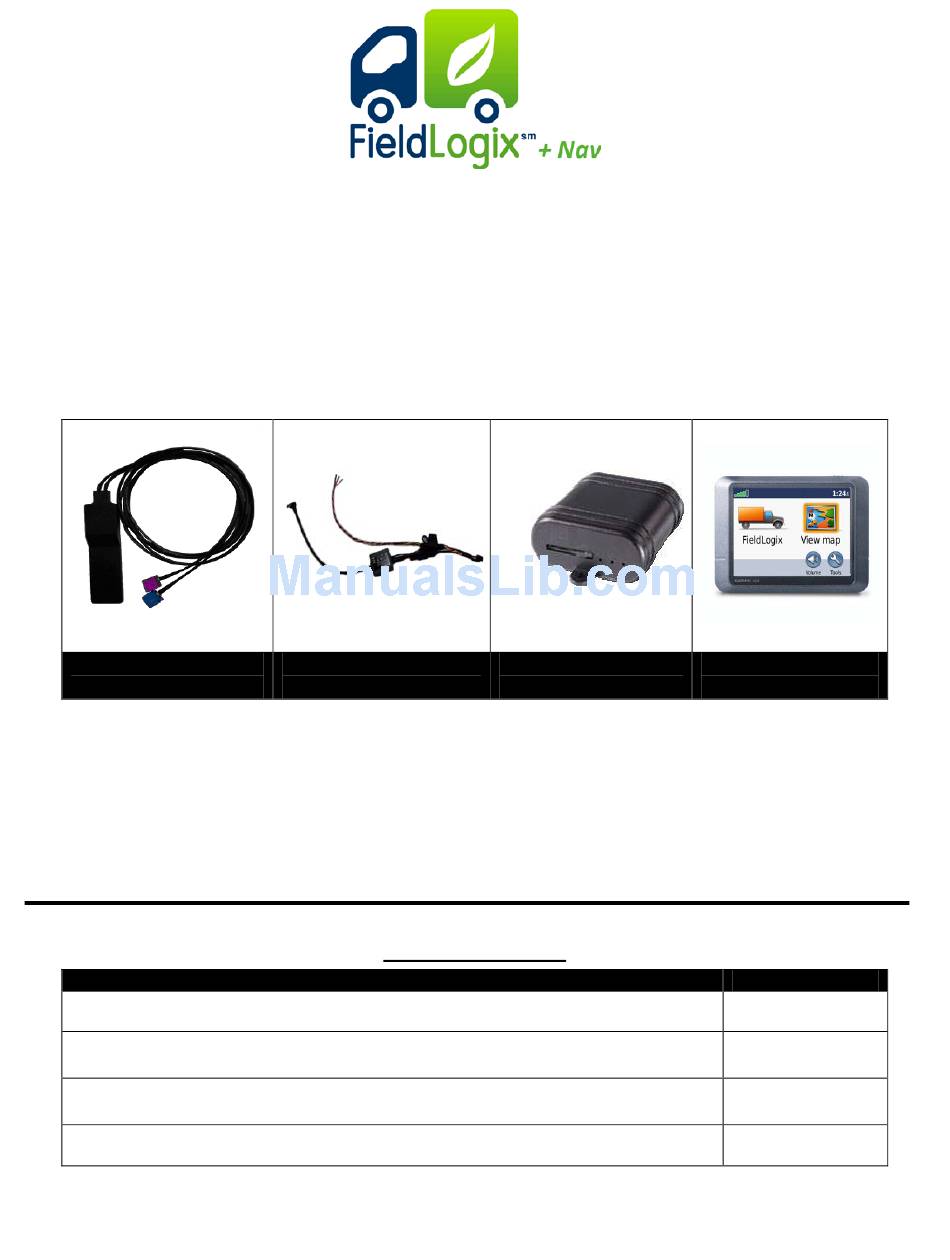

  • Page 1 Voltage Meter • Zip Ties Torque Seal Wire strippers Wire crimpers • • • There are 4 components to the GPS device: A. GPS B. Power C. GPS D. Navigation Antenna Harness Device Device The above components must be installed in the following order: A.
  • Page 2 A. Installing the Combo GPS / Cellular Antenna Mount the antenna in the specified location (see below) and run the antenna leads to the planned location of the GPS device. The standard location is underneath the dashboard. Only perform a roof mount installation if you cannot meet the specifications required in the under dashboard installation or if specified on the work order.
  • Page 3 With the lead still probing the wire, start the vehicle. When the car is cranking, the • wire’s voltage should not drop by more than 2 volts. Turn the key to the “OFF” position, the voltage should drop down to 0. • Copyright © 2010 FieldLogix 888-803-0200 support@fieldtechnologies.com...
  • Page 4 Scrape off any paint at the point of grounding to ensure a good connection. Run the wiring harness’ plug connector to the GPS device and run the Garmin FMI Cable to the desired Garmin Navigation Device location (example: top center of dash) Copyright ©...
  • Page 5 C. Mounting the Devices Find a secure location underneath the dashboard to mount the GPS device. Do not mount device under the hood of the vehicle or in the engine compartment. The heat from any of these locations may cause product failure.
  • Page 6 *Once all three LEDs are lit solid and the Garmin Navigation device is plugged in and mounted, make sure the vehicle is off and call 888-803-0200 Option 4 to test the operation of the devices. DO NOT release the vehicle to the client until the devices have been tested. Copyright © 2010 FieldLogix 888-803-0200 support@fieldtechnologies.com...
  • Page 7 Device is not receiving a USR2 (GPS) will not light up GPS signal 2. Try a different location 3. Move the antenna outside the vehicle to see if the light will become solid. Copyright © 2010 FieldLogix 888-803-0200 support@fieldtechnologies.com...
