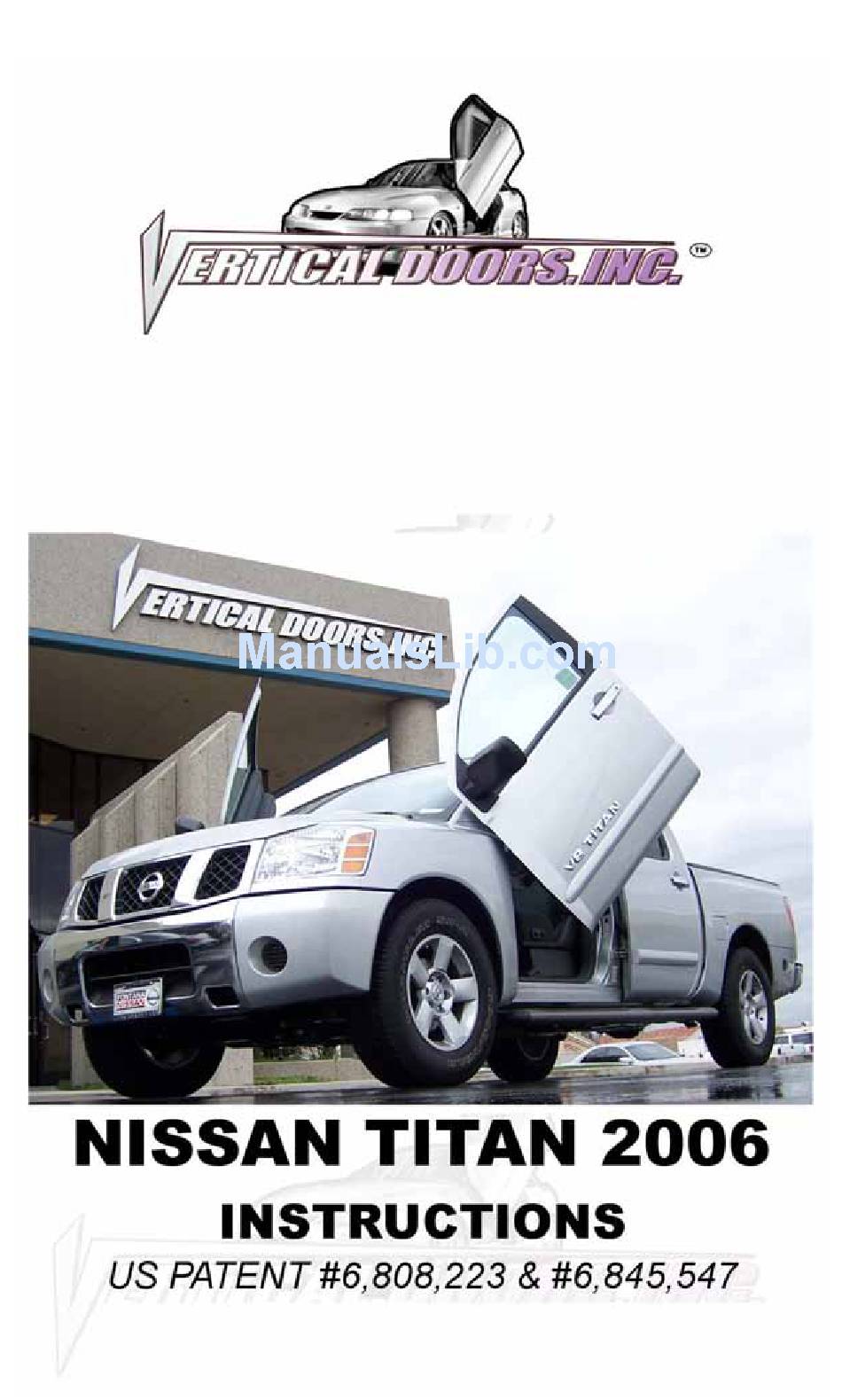

Summary of Contents for Nissan 2006 titan
- Page 2 THIS KIT INCLUDES: 8 M8-1.25X30MM BOLTS RIGHT AND LEFT HINGE WITH WASHERS ASSEMBLY 2 SHOULDER BOLTS WITH 2 SHOCKS 705 PSI WASHERS 2 PINS 8 NUTS WITH WASHERS TOOLS REQUIRED FOR INSTALLATION: AIR RACHET, GRINDER AND CUTTER. 7MM, 8MM,10MM, 11MM, 13MM, SOCKETS AND EXTENSION.
- Page 3 (Note: The pictures on the manual are for reference only they may not match your vehicle.) 1) Disconnect the battery. 2) Remove fender: Remove all the screws from the wheel well. Remove the guard cover and the bolts securing the fender to the chassis.
- Page 4 Use the fork to pry the fender from the headlight trim, this will allow you to pull them apart. Use the fork to pull on the plastic cover at the bottom of the windshield. Remove (1)10mm bolt securing the fender to the body. Open the door and remove (1) 10mm bolt located by the factory hinge.
- Page 5 Now remove the 10mm bolts at on top of the fender, including the 13mm bolt. At this point you will be able to carefully remove the fender. 3) Remove the door catch: Open the door and remove bolts from the body and from the door. Push the door catch inside the door.
- Page 6 4) You will need to more wire slack: Disconnect the wire harnesses from the body and cut the wire boot in half. 5) Close door and use painter’s tape to secure the door in preparation for factory hinge removal. Use a 13mm socket to remove the factory hinges.
- Page 8 7) Once hinge is locked in place, break nut #1 then turn Allen set screw #2 on fig until it hits the block then open the door and continue to adjust until the door matches with the striker, open and close door making sure it closes like factory.
- Page 9 ADD GREASE TO ZERK FITTINGS Note: Do not install fender until the adjustment of the door is accurate, and the set screw is tightly secure. Also make sure everything is tight, adjustment is set and everything is Locktite. 10) Modify factory wire loom: After cutting the factory wire boot in half add after market wire loom to protect exposed wires.
- Page 10 11) Cut the inner lip of your fender to make room for the new Vertical Doors hinge. Note: After you have cut the fender use a sander or grinder and make sure the surface is completely flat. Use the dotted lines as reference. 12) Close the door and replace the fender by reversing step 2.
