r F1.00

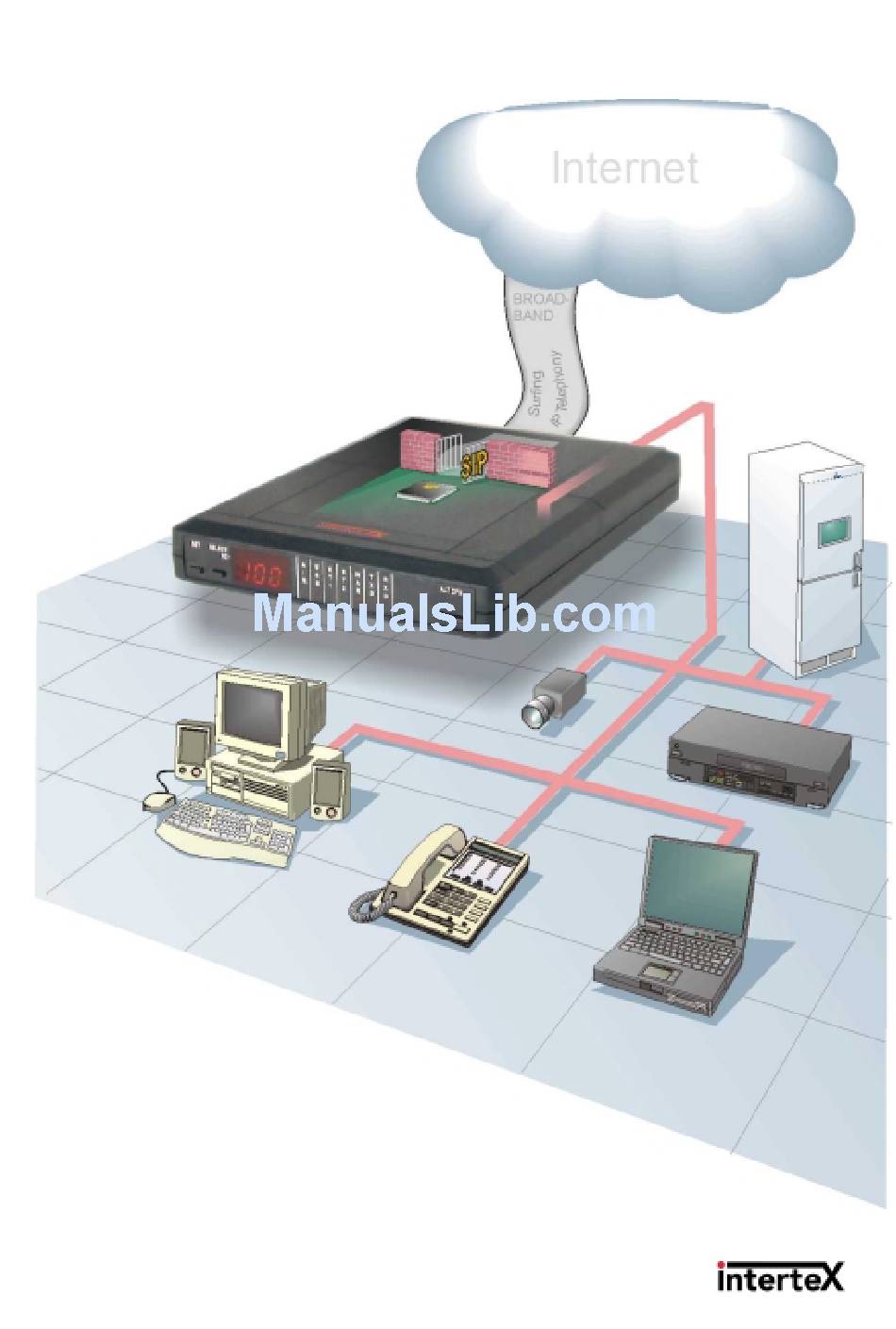

Intertex IX66 Internet Gate

Getting Started

This guide helps you

to install and connect the

Intertex Internet Gate to the Internet.

Through the built in web server, you can

thereafter configure the Internet Gate for your specific

needs. For detailed instructions and explanations, you can

use the complete Online User Guide on the Internet, www.igmanual.com.

Table of Contents

Need help?

Do you have a question about the IX66 and is the answer not in the manual?

Questions and answers

Summary of Contents for Intertex IX66

Page 1: Getting Started
Getting Started This guide helps you to install and connect the Intertex Internet Gate to the Internet. Through the built in web server, you can thereafter configure the Internet Gate for your specific needs. For detailed instructions and explanations, you can...
Page 2: Quick Start
In most cases, the A, B, C steps on this page will get your Internet Gate up and running. Quick Start If you run into problems you find the solution to the most common problems in this guide. Hook up the Cables! NOTE! It is important that your PC is switched off now! •...
Page 3: Check The Internet Connection
1. Reboot your PC, allowing it to get fresh configuration data from your IX66 Internet Gate, and try again! Then you have made it! 2. Reboot your IX66 Internet Gate, and try again! You have installed your 3. Is your firewall correctly configured? Press...
Page 4: Overview - Front Panel
DHP Turn LAN DHCP server of IX66 Internet Gate on/off RST Reset all configuration to factory defaults Diagnostic test TX,RX Both lit: full duplex; Flashing: half duplex Note: on some simpler models of IX66 Internet Gate, some buttons and lamps may be missing.
Page 5: Overview - Back Panel
9V, 600 mA. WAN (Internet). control. Port for firmware 10/100 Mbps Ethernet upgrade. port to be connected to PC or LAN. Note: on some simpler models of IX66 Internet Gate, some connectors may be missing.
Page 6: Package Details
Package Details The following items should be included in your box: !" Getting Started guide (this document) !" IX66 Internet Gate !" Power adapter !" 2 × Ethernet-cable (RJ45/RJ45, straight through) If any of the items above are damaged or missing, please contact your dealer.
Page 7: Detailed Instructions
IX66 Internet Gate, and allow all computers to share the Internet connection. Usually you need a crossover Ethernet cable to connect the hub to port ET1 of your IX66 Internet Gate. But if your hub have a port marked “UPLINK”, you should use a straight ethernet cable.
Page 8 Check your PC’s settings! The IX66 Internet Gate is delivered with factory defaults that fit most users. If your PC have the default network and web settings then everything should work at once. If not, please check your PC’s settings: (The steps described here are for Windows 98.
Page 9 DHCP server in your IX66 Internet Gate collides with: You should turn all other DHCP servers on your LAN off. (Alternatively, you can turn off the built-in DHCP server in your IX66 Internet Gate, and set the IX66 Internet Gate as default gateway in all your PCs’ settings.)
Page 10 To use IX66 Internet Gate with static IP-addressing on LAN If you want your IX66 Internet Gate to be part of an existing network that uses static IP addresses you can change the IP address of your Internet Gate’s LAN port (ET1) with the front panel keys:...
Page 11 Check the proxy settings of your web browser If your web browser is configured to use a proxy server, you might have problems reaching the built-in pages of your IX66 Internet Gate. In that case, turn off usage of the proxy server. Netscape Navigator: Internet Explorer: select Tools, Options..., Connection,...
Page 12 To access the built-in pages inside your IX66 Internet Gate, do the following: 1. Open a web browser, such as Internet Explorer or Netscape Navigator, on your PC. 2. Write the IP address of your IX66 Internet Gate, 192.168.0.1, in the address field of the browser. The first built-in page should appear.
Page 13 Blocked, no traffic allowed You can switch between the different security levels på pressing the ALT CFG button on the front panel of the IX66 Internet Gate, or by changing the setting on the main menu page of the built-in web interface.
Page 14: Technical Specification
Using the Online User Manual Once your Internet connection is up and running, you can easily access the online user manual for complete and up to date information about your Internet Gate. 1. Surf to the built-in web page of your Internet Gate 2.
Page 15: Declaration Of Conformity
EN 45014 The manufacturer Intertex Data AB, Rissneleden 45, 174 44 Sundbyberg, Sweden, herewith declares the firewalls/modems in the Intertex IX66 Internet Gate series are in compliance with the essential requirements and other relevant provisions of the following EC directives: 1999/5/EC Radio &...
Page 16 This manual and any associated artwork, software, and product designs are copyrighted with all rights reserved. Under the copyright laws this manual, artwork, software, and product designs may not be copied, in whole or part, without the written consent of Intertex. Under the law, copying includes translation to another language or format.
