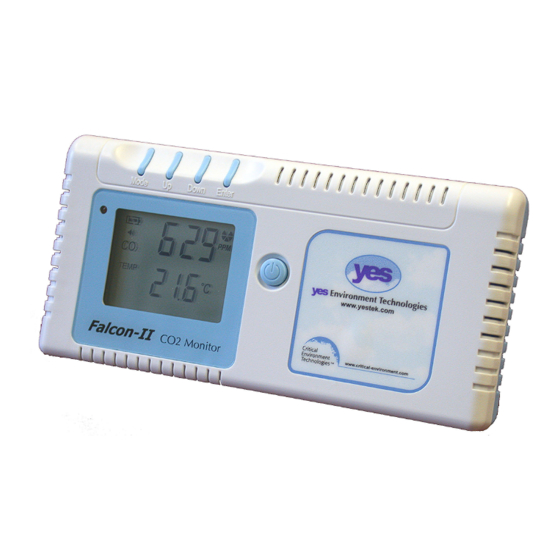

- Page 1 Critical Environment Technologies Canada Inc. Falcon-II Next Generation, Air Quality Monitor CO2 & Temperature OPERATION MANUAL REV: A JUNE-2-2008 #145, 7391 Vantage Way Delta, BC V4G 1M3 Canada Phone: 604-940-7007 Fax: 604-940-7044 www.yestek.com...
-
Page 3: Important Note And Warranty Policy
PURCHASED FROM: ____________________________________________________________________ WARRANTY POLICY CRITICAL ENVIRONMENT TECHNOLOGIES CANADA INC. (FORMERLY YES ENVIRONMENT TECHNOLOGIES INC.) WARRANTS THIS INSTRUMENT TO BE FREE FROM DEFECTS IN MATERIALS AND WORKMANSHIP FOR A PERIOD OF EIGHTEEN MONTHS, INCLUDING CO2 SENSOR, FROM THE DATE OF PURCHASE BY THE ORIGINAL OWNER. -
Page 4: Service Policy And Notices
SERVICE POLICY CRITICAL ENVIRONMENT TECHNOLOGIES CANADA INC. (CETCI) MAINTAINS AN INSTRUMENT SERVICE FACILITY AT THE FACTORY. SOME CETCI DISTRIBUTORS / AGENTS MAY ALSO HAVE REPAIR FACILITIES, HOWEVER, CETCI ASSUMES NO LIABILITY FOR SERVICE PERFORMED BY ANYONE OTHER THAN CETCI PERSONNEL. REPAIRS ARE WARRANTED FOR 90 DAYS AFTER DATE OF SHIPMENT. -
Page 5: Disclaimer And Revisions
DISCLAIMER UNDER CIRCUMSTANCES WILL CRITICAL ENVIRONMENT TECHNOLOGIES CANADA INC. (CETCI) BE LIABLE FOR ANY CLAIMS, LOSSES OR DAMAGES RESULTING FROM OR ARISING OUT OF THE REPAIR OR MODIFICATION OF THIS EQUIPMENT BY A PARTY OTHER THAN CETCI SERVICE TECHNICIANS, OR BY OPERATION OR USE OF THE EQUIPMENT OTHER THAN IN ACCORDANCE WITH THE PRINTED INSTRUCTIONS CONTAINED WITHIN THIS MANUAL OR IF THE EQUIPMENT HAS BEEN IMPROPERLY MAINTAINED OR SUBJECTED TO NEGLECT OR ACCIDENT. -
Page 6: Table Of Contents
INDEX SECTION DESCRIPTION PAGE IMPORTANT NOTE AND WARRANTY POLICY SERVICE POLICY AND NOTICES DISCLAIMER AND REVISIONS INDEX WELCOME GENERAL SPECIFICATIONS 8 - 9 DIMENSIONS INSTRUMENT FEATURES 11-12 OPERATION OPERATING MODES DETAILED OPERATING INSTRUCTIONS 13-16 5.22 OPERATION - MODE ADJUSTMENT 14 - 16 ALTI MODE ALARM MODE OUTSIDE MODE... -
Page 7: Welcome
The FALCON-II is equipped with integral CO2 and temperature sensors to aid in verifying readings providing an indication of air quality. Information readings are temporarily written to built-in memory. -
Page 8: General
1.0 GENERAL The Falcon-II is a rugged, hand-held, battery powered instrument for measuring and displaying Carbon Dioxide (CO2) and Temperature. It operates from internal alkaline batteries or it’s own (supplied) wall adapter. 2.0 SPECIFICATIONS Dimensions 0.96” X 3.19” X 6.50” (24.3mm X 81.1mm X 165 mm) Weight: 9.65 oz (273.6 grams) including batteries... -
Page 9: Specifications 8
2.0 SPECIFICATIONS, CONT’D….. Sensors: CO2 (Carbon Dioxide): NDIR (Non-Dispersive Infrared) Temperature: CO2 SENSOR - NDIR DESCRIPTION Measurement Range 0 - 10,000 ppm Display Resolution 1ppm at 0~1,000ppm; 5ppm at 1,000~2,000ppm; 10ppm at 2,000~4,000ppm, 20ppm at 4,000~6,000ppm, 40ppm at 6,000~10,000ppm Accuracy ±50 ppm or ±5% of reading Repeatability ±20 ppm... -
Page 10: Dimensions
3.0 DIMENSIONS 0.96” 24.3mm 6.50” 165mm 3.19” 81.1mm... -
Page 11: Instrument Features
4.0 INSTRUMENT FEATURES FUNCTION PUSH-BUTTONS: “MODE”, “UP”, “DOWN”, “ENTER”. (left to right) ON / OFF PUSH-BUTTON WALL LCD DISPLAY ADAPTER SOCKET LED INDICATOR TEST GAS INLET OPENING FLIP-DOWN STAND ALKALINE BATTERY ACCESS DOOR... - Page 12 4.0 INSTRUMENT FEATURES, CONT’D….. Changing Alkaline Batteries:...
-
Page 13: Operation
5.0 OPERATION The Falcon-II is a rugged, hand-held, battery powered instrument for measuring and displaying Carbon Dioxide (CO2) and Temperature. It operates from internal alkaline batteries or it’s own (supplied) wall adapter. 5.1 OPERATING MODES MODE DESCRIPTION LCD DISPLAY ALTI... -
Page 14: Detailed Operating Instructions
5.2 DETAILED OPERATING INSTRUCTIONS PowerOn Press the Power button ( to turn on the device after placing 4 AA batteries into ① ) the battery holder or AC adapter plug into the DC socket . Once instrument has been powered up, the CO2 reading will show after 15 seconds of warm up. WarmUp It takes approximately 1-minute before “WARM-UP”... -
Page 15: Outside Mode
5.2 DETAILED OPERATING INSTRUCTIONS, CONT’D….. 5.22 OPERATION - MODE ADJUSTMENT, CONT’D….. 3.0 OUTSIDE Mode NOTE: Ventilation Rate Ventilate rate represents how much air is introduced into the indoor space from the outside. Low values indicate low ventilation rates and potentially poor air quality. High levels indicate excessive ventilation and potential excessive energy usage. -
Page 16: Data Logger Mode
User Mode ② ) , 6.0 MaxMin Mode The Falcon-II has a built-in Max-Min mode, which can provide users with the Maximum and Minimum CO2 readings since the instrument was last switched on. 6.1. Press the Mode button( until MAX MIN flashes.
