Summary of Contents for IDC ecco

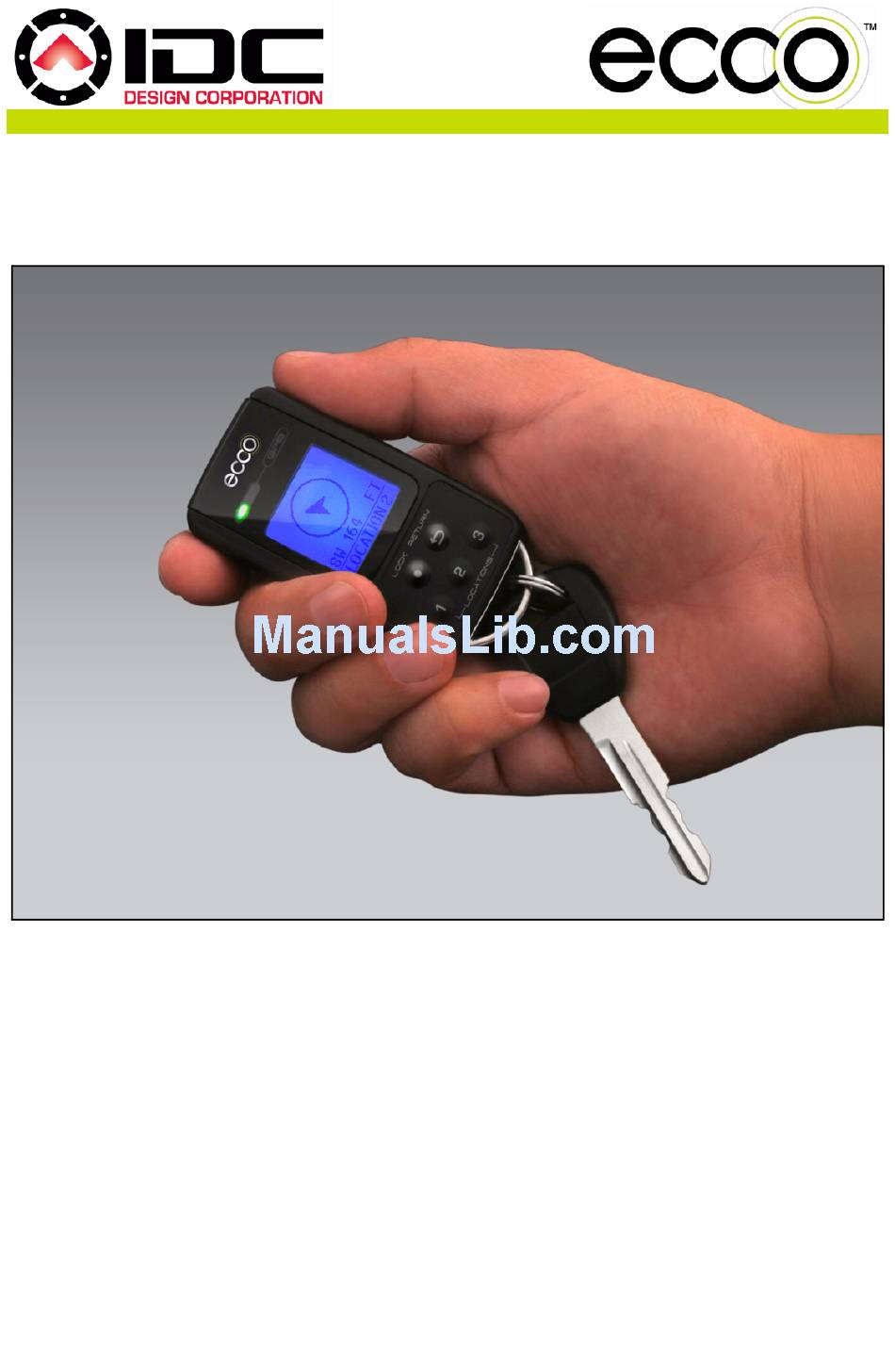

- Page 1 Instruction Guide Personal Pocket GPS Locator FOR MORE HELP AND SUPPORT FOR SERVICE AND INSTRUCTION PLEASE GO TO WWW.IDCGPS.COM Copyright © 2008 IDC Design Corporation. All Rights Reserved.
- Page 2 Vehicle Use Notice IDC is committed to safety and responsible use. Do not use this GPS device to navigate while driving a motor vehicle. Attention to this device while driving can distract the motor vehicle’s operator, creating an unsafe situation.
- Page 3 Store up to 3 locations. 1 also used Shows distance unit in ft/mi or for calibration; 3 also used to change m/km to active location distance unit. Use to attach keys Shows active return location # Copyright © 2008 IDC Design Corporation. All Rights Reserved.
-
Page 4: Before You Begin
Disconnect the charging cable from the USB port (e5). Ecco’s features cannot be accessed while connected to the charging cable. Ecco can detect a low-battery level (below a threshold of 25%); however, the low-battery icon appears on the LCD only during the Ready, Searching, or Return modes. - Page 5 Note: Whenever instructed to "press and hold" a button, press down for at least 3 seconds. While Ecco is in Ready mode, hold it face-up; then press and hold location 1 (e6) until the LCD message Hold flat and press lock appears;...
- Page 6 The LCD message changes to Turn 180° around and press lock. Keep Ecco face-up while turning it completely around toward the opposite direction; then press and release lock button (e3). Copyright © 2008 IDC Design Corporation. All Rights Reserved.
- Page 7 The LCD message changes to Turn over and press lock. Place—but do not press—your finger on the lock button (e3) as you flip Ecco face-down; then press and release lock button (e3). Turn Ecco face-up to read the LCD message Calibrate complete.
- Page 8 Location # locked appears. Proceed to your destination. Note: After 1 minute, Ecco goes to Sleep, but your stored location will not be lost. It will remain in memory until it is replaced with a new locked posi- tion.
-
Page 9: Additional Information
“FAQs” on page 12). Other informa- tion displayed on the LCD includes compass direction (d5) and distance (d6). Note: Ecco remains on and active as long as it is acquiring GPS data to update the direction and distance information and you are moving more than 30 ft or 9 m every 5 minutes. - Page 10 LCD, and the GPS status indi- cator (e2) is a steady red. You can manually put Ecco to Sleep or turn the device Off by pressing power on/off (e1). The difference is the length of time you press and hold the button.
- Page 11 100 km up to 9,999 km kilometer (km) When navigating toward a location, the LCD displays the nearest whole or hundredth of a unit measurement, depending on the distance from the location. Copyright © 2008 IDC Design Corporation. All Rights Reserved.
- Page 12 What can be done To ensure the most effective way for Ecco to search when Ecco has for a satellite signal, hold Ecco face up toward the difficulty finding a open sky.
- Page 13 LCD only during the Ready, Searching, or Return modes. Why aren’t Ecco’s Ecco may need to be charged, or if fully charged, it features acces- may still be connected to the charging cable. None sible? of Ecco’s features are accessible if the charging cable is connected.
- Page 14 Why doesn’t Ecco You can turn Ecco Off only during the Searching turn Off when I mode or start-up. Incidentally, Ecco will time out to hold down the Off after 5 hours and 15 minutes in Sleep mode. Power button? Why don’t the...
-
Page 15: Year Limited Warranty
A product which is defective in material or workman- ship will, at IDC’s option, be replaced or repaired at no charge to you for parts or labor. To obtain this limited warranty service, obtain a Return Materials Authorization (RMA) number prior to shipping by submitting a repair request through IDC’s Web site at... -
Page 16: Battery Warnings
• When storing the unit for an extended time, store within the following temperature range: 14°F — 113°F (-10°C — 45°C). • Do not attempt to remove the battery. To replace battery, contact IDC directly at www.idcgps.com. • Do not dispose of this product in regular waste.
