Aerotech Wireless Clear Call Installation Manual

Wireless intercom

Advertisement

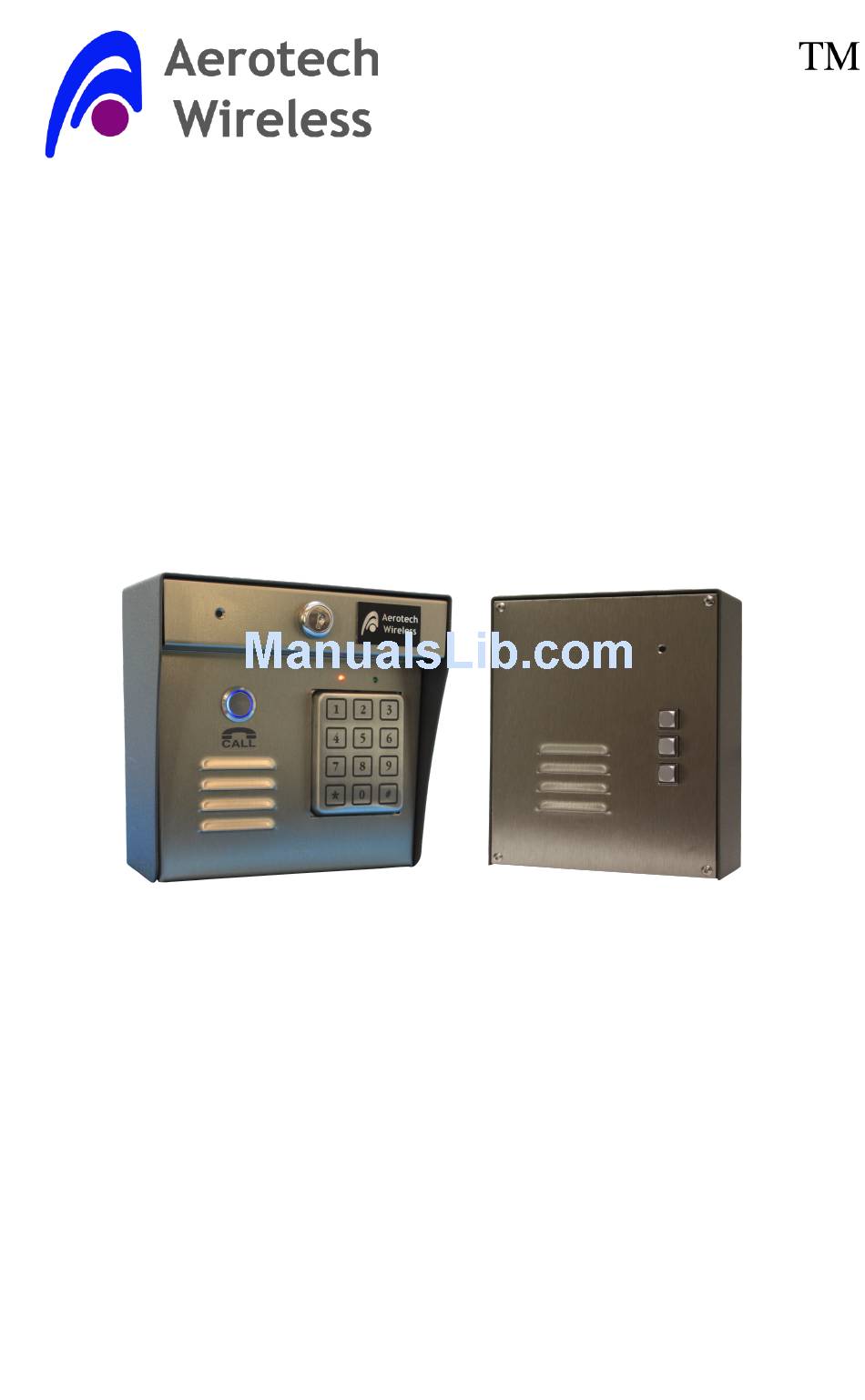

Clear Call

Wireless Intercom

Installation Manual
A facility needs to be evaluated whether it is suitable for wireless application.
Aerotech Wireless, Inc. is not responsible for any mis-application of this product.
Please read the entire manual before installation.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Clear Call and is the answer not in the manual?

Questions and answers

Summary of Contents for Aerotech Wireless Clear Call

  • Page 1: Wireless Intercom

    Clear Call Wireless Intercom Installation Manual A facility needs to be evaluated whether it is suitable for wireless application. Aerotech Wireless, Inc. is not responsible for any mis-application of this product. Please read the entire manual before installation.
  • Page 2: Warranty

    Aerotech Wireless, Inc.’s written consent, outside of Aerotech Wireless, Inc.’s production facility, or altered in any way so as, in the judgment of Aerotech Wireless, Inc., to affect adversely the stability or reliability of the product(s) or has been subject to misuse, negligence, or accident, or has not been operated in accordance with Aerotech Wireless, Inc.’s instructions or has been operated under...
  • Page 3: Table Of Contents

    Table of Contents: Warranty …............... Page 1 Installation Guidelines …..........Page 3 Outdoor Unit Setup …............Page 5 Indoor Installation …............Page 7 Indoor Unit Setup …............Page 9 Trouble Shooting …............Page 11...
  • Page 4: Installation Guidelines

    Installation Guidelines: Antenna installation: 1) Make sure Outdoor Unit antenna in installed min 8 feet above ground. (This ensures good range and avoids antenna vandalism) 2) Ensure antenna is not installed against any metallic surface. To avoid reducing radio range install antenna at least 24” away from steel post or building structure (Figure 1).
  • Page 5 Figure 1 Figure 2...
  • Page 6: Outdoor Unit Setup

    Outdoor Unit Programing: Note: Step numbers correspond to numbers in figure 3. 1) Install Power Transformer provided with system (avoid sharing the power transformers provided, to power other devices) 2) Adjust Speaker Volume 3) Select Radio Channel (0-9) 4) Select Strike Times for Relay 1 and Relay 2 5) Select Access Point Number (1-9 for Outdoor Unit) 6) To verify radio signal quality, turn on Test Switch: - Ensure remote Indoor unit is powered &...
  • Page 7 Figure 3...
  • Page 8: Indoor Installation

    Indoor Installation: Indoor Unit installation: 1) Open enclosure by removing 4 screws. 2) Disconnect 6-inch antenna extension cable inside enclosure. (Figure 3) 3) Remove the front door. 4) Remove knockouts (back or bottom – as necessary) and fish wires through knockout. 5) Mount back enclosure using mounting holes.
  • Page 9 Figure 4...
  • Page 10: Indoor Unit Setup

    Indoor Unit Setup: Note: Step numbers correspond to numbers in figure 5. 1) Install Power Transformer provided with system (avoid sharing power transformers provided, to power other devices) 2) Adjust Speaker Volume 3) Select Radio Channel (0-9) 4) Connect screw terminal to Ground Rod using 12 AWG wire – to ensure surge protection...
  • Page 11 Figure 5 -10-...
  • Page 12: Trouble Shooting

    Trouble Shooting: Unable to call remote unit (from Indoor or Outdoor intercom): 1) Ensure power is applied (check power input voltage using volt meter – needs to be 12V – 16V AC or DC. 2) Ensure TEST Switch in in OFF position in the “RADIO SIGNAL TEST”...
  • Page 13 Figure 6 Figure 7 -12-...
  • Page 14 “Range Testing” Procedure: 1) Position the pair of intercom units in their respective locations (as close to their final location as possible) 2) Power ON only a single pair of units (one Indoor and one Outdoor Intercom units) to perform a “Range Test”. All other Intercom units need to be turned OFF.
  • Page 15 Figure 8 Figure 9 Figure 10 -14-...
  • Page 16 Aerotechwireless.com support@aerotechwireless.com...
