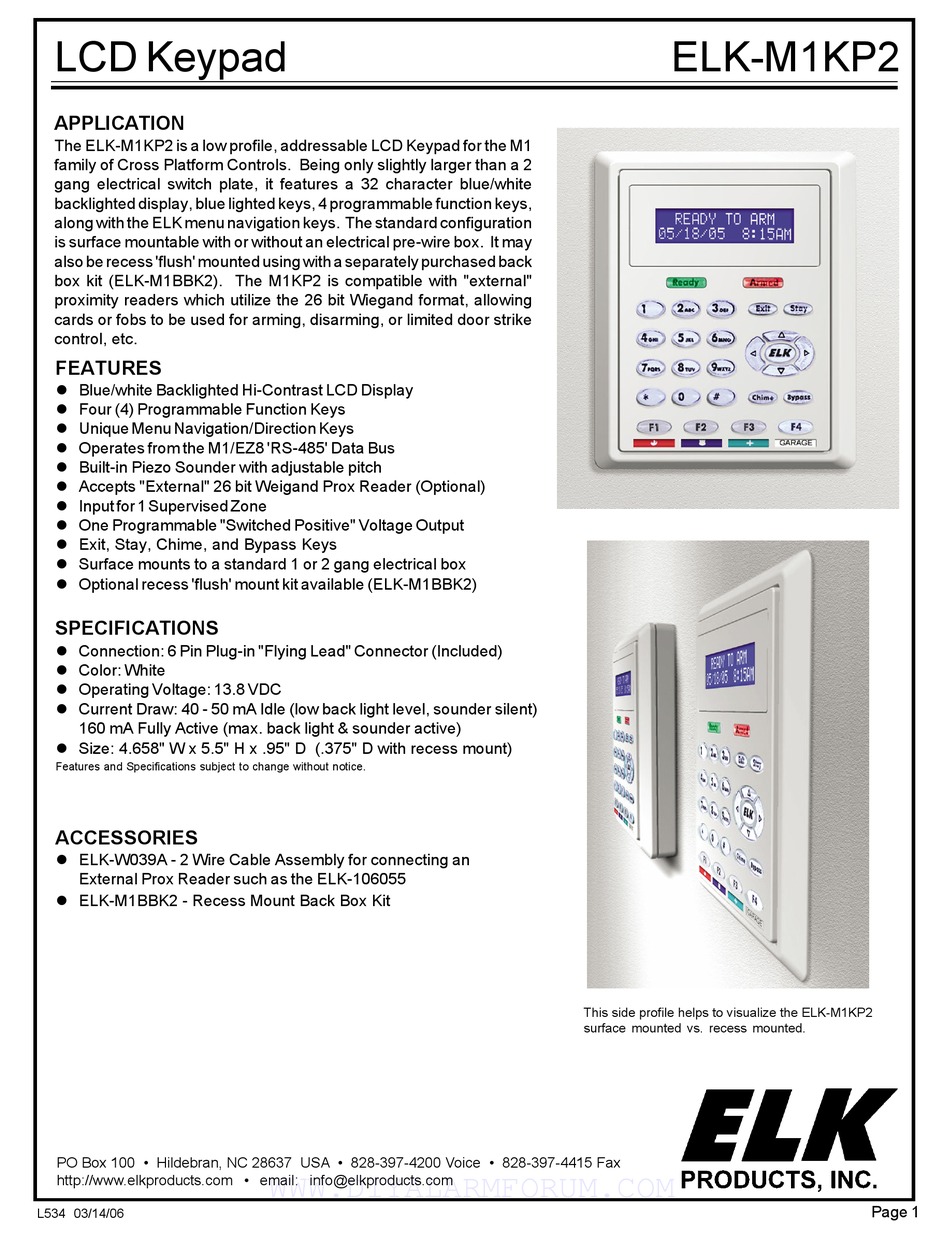

LCD Keypad
APPLICATION
The ELK-M1KP2 is a low profile, addressable LCD Keypad for the M1
family of Cross Platform Controls. Being only slightly larger than a 2
gang electrical switch plate, it features a 32 character blue/white
backlighted display, blue lighted keys, 4 programmable function keys,
along with the ELK menu navigation keys. The standard configuration
is surface mountable with or without an electrical pre-wire box. It may
also be recess 'flush' mounted using with a separately purchased back
box kit (ELK-M1BBK2). The M1KP2 is compatible with "external"
proximity readers which utilize the 26 bit Wiegand format, allowing
cards or fobs to be used for arming, disarming, or limited door strike
control, etc.
FEATURES
! Blue/white Backlighted Hi-Contrast LCD Display
! Four (4) Programmable Function Keys
! Unique Menu Navigation/Direction Keys
! Operates from the M1/EZ8 'RS-485' Data Bus
! Built-in Piezo Sounder with adjustable pitch
! Accepts "External" 26 bit Weigand Prox Reader (Optional)
! Input for 1 Supervised Zone
! One Programmable "Switched Positive" Voltage Output
! Exit, Stay, Chime, and Bypass Keys
! Surface mounts to a standard 1 or 2 gang electrical box
! Optional recess 'flush' mount kit available (ELK-M1BBK2)
SPECIFICATIONS
! Connection: 6 Pin Plug-in "Flying Lead" Connector (Included)
! Color: White
! Operating Voltage: 13.8 VDC
! Current Draw: 40 - 50 mA Idle (low back light level, sounder silent)
160 mA Fully Active (max. back light & sounder active)
! Size: 4.658" W x 5.5" H x .95" D (.375" D with recess mount)
Features and Specifications subject to change without notice.
ACCESSORIES
! ELK-W039A - 2 Wire Cable Assembly for connecting an
External Prox Reader such as the ELK-106055
! ELK-M1BBK2 - Recess Mount Back Box Kit
PO Box 100 • Hildebran, NC 28637 USA • 828-397-4200 Voice • 828-397-4415 Fax
http://www.elkproducts.com • email: info@elkproducts.com
L534 03/14/06
WWW.DIYALARMFORUM.COM
ELK-M1KP2
This side profile helps to visualize the ELK-M1KP2
surface mounted vs. recess mounted.
