SEON SA-MIC Remote Microphone Setup Manual

Service and Warranty

If your product is to be returned to Seon Design for service, please call toll
free 877-630-7366, or 604-524-6437 and ask for a Return Authorization (RA)
number. An RA number allows the Service Technicians to better track your
product when it comes in for service. Please show the RA number on the
outside of the package. ANY PRODUCT SENT TO SEON DESIGN
WITHOUT AN RA NUMBER MAY BE REFUSED.
Please refer to the Warranty form provided with your product to review the
terms of warranty service, contact and shipping information, as well as other
important issues regarding the service and operation of your product.
© 2003 Seon Design Inc. All rights reserved.
Document Part Number: 700-0010-01
Features
The SA-MIC is a high quality, impact resistant remote microphone
that installs easily into a variety of locations. With the use of the base
adapter gasket, the SA-MIC can be installed with the cable concealed
or surface-run.
Installation
1 The first step in installing the SA-MIC is to decide if the cable
will be concealed into the panel or wall behind the microphone, or
if the cable will be run along the mounting surface. If the cable is
to be surface-run, then the base adapter gasket should be cut with a
pair of scissors or a sharp knife at the edge of the cable grommet
hole. See Figure 1 at the right.
2 Figure 2 below shows the assembly of the SA-MIC. Use the
mounting template shown in Figure 3 to drill pilot holes for the
#10 mounting screws included in the hardware kit. Also, if the
cable is to be concealed, drill a hole in the mounting surface for
the cable connectors to pass through.
3 For easier installation, the cable can be removed from the
microphone by using a small slot screwdriver to undo the
connections from the terminal blocks. Refer to Figure 4 for the
wiring connections to the terminal blocks on the SA-MIC circuit
board.
4 Mount the SA-MIC base using the two #10 rubber washers and
two #10 x 3/4" sheet metal screws provided. Make sure the gasket
is properly aligned.
5 Install the SA-MIC cover using the two #6-32 x 1/4" machine
screws provided. Install one side first, but do not tighten the
screw. Install the screw in the second side, and then tighten both
screws.
SA-MIC Remote Microphone

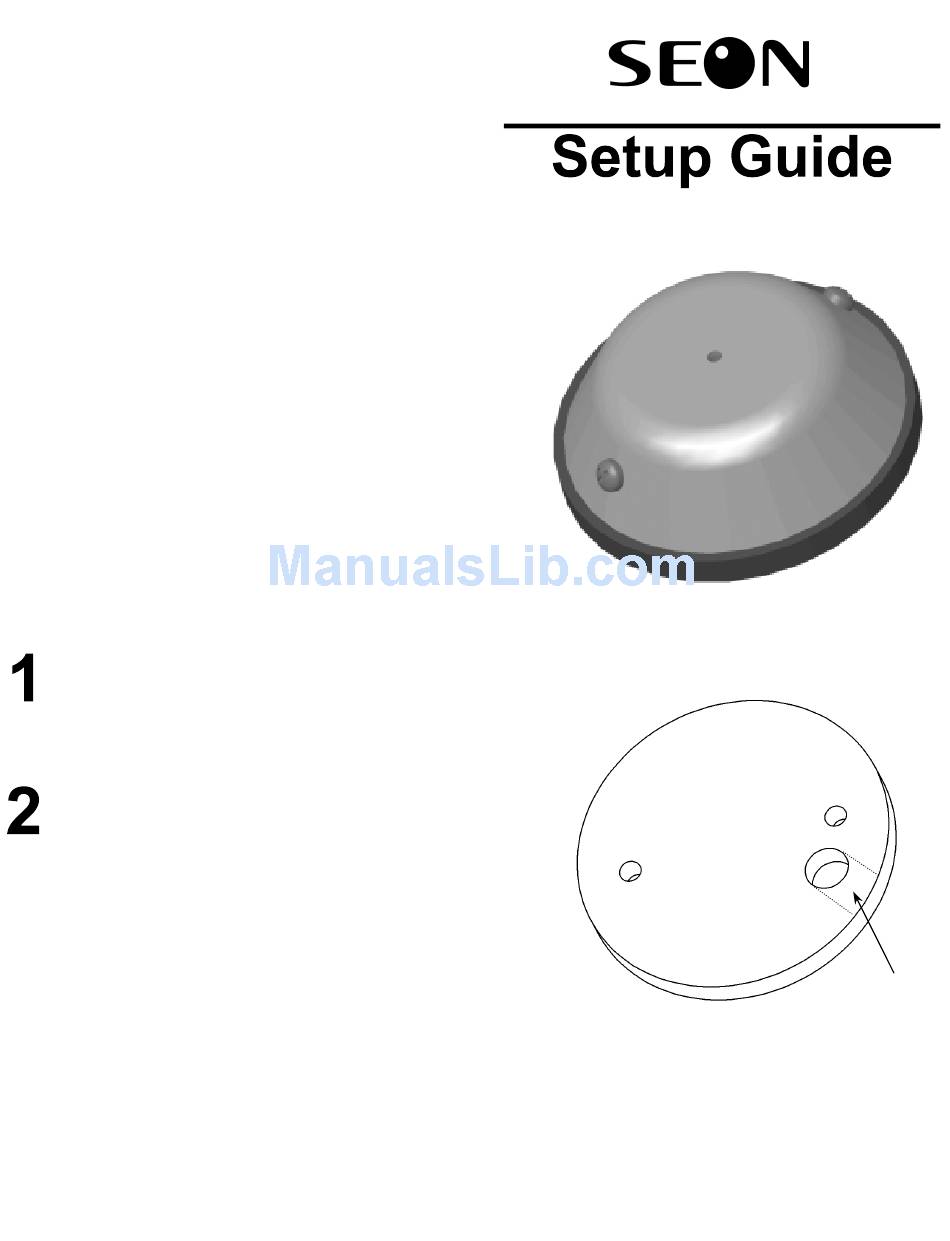

Figure 1: Base Adapter Gasket
Cut Gasket Here To
Surface-Run Cable
