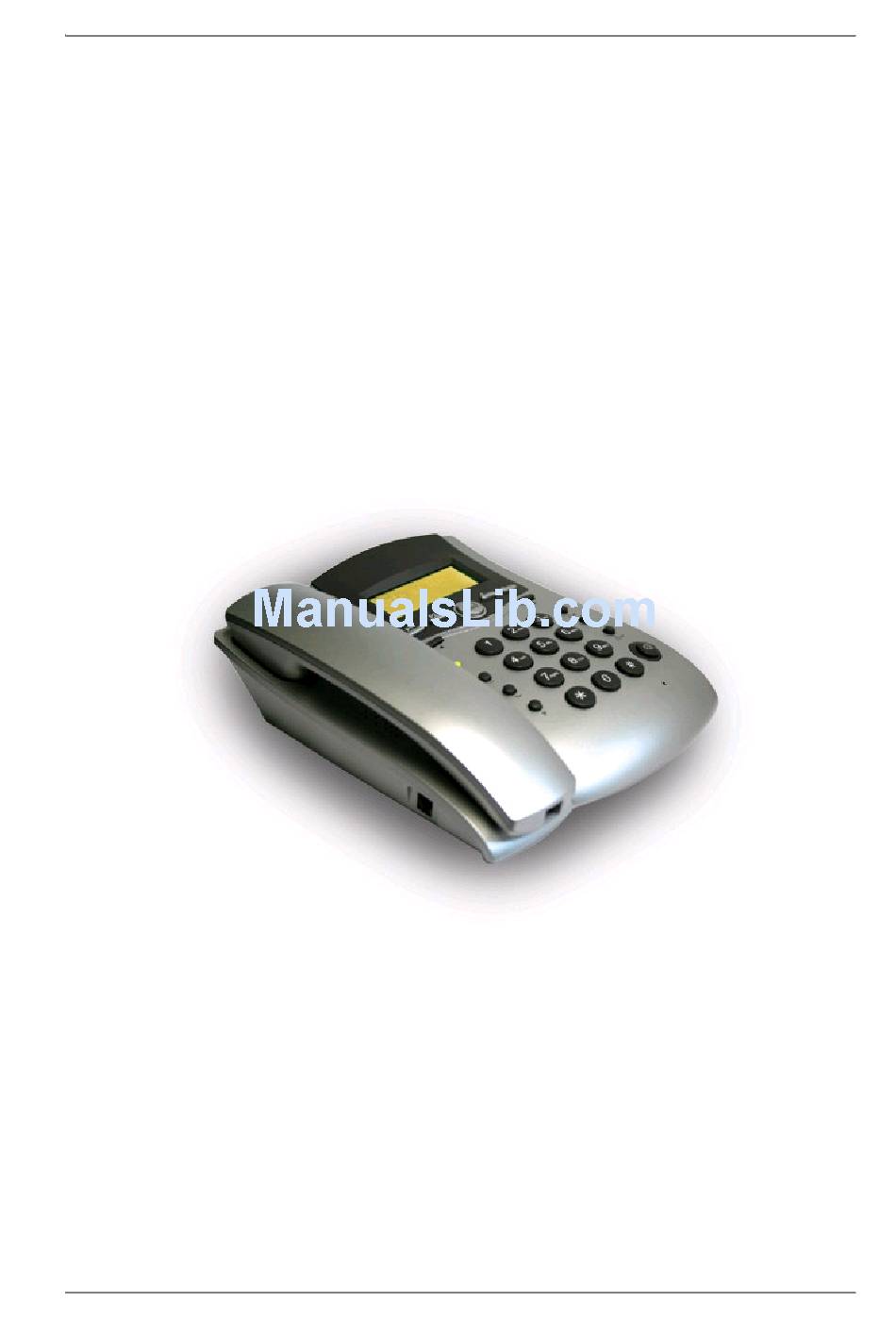

Page 1 Global IP Telecommunications G300 Voice over IP Telefone www.globaliptel.com © 2004-2005 Global IP Telecommunications. All Rights Reserved. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 3: Table Of Contents
Setup by phone Configuration Configuration with WEB browser Network settings Service provider Phone Audio Password and time Phone book Update firmware and ring tone Call records Receive a call Placing a call Legal note © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 5: Preface
Global IP Telecommunications Preface Thanks for buying G300 from Global IP Telecommunications. We would like to give you a quick start guide with the following pages. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 6: Unpacking And Installation
Hub or a Switch. Now please switch on the phone by sliding the on/off switch at the back of phone towards the middle of backside. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 7: The Phone And Its Functions
+: Increase volume (navigate the menu) -: Decrease volume : Cancel / Backspace : Redial : Flash : Transfer : Hook Flash : Access dialed numbers list : Access received numbers list : Access missed calls list © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 8 1. On/Off switch 2. Power 3. RJ-45 port for connecting phoen with network 4. Additional RJ-45 port for connecting computer to phone and thus to network Konfiguration of phone by phone menu or WEB © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 9: Konfiguration Of Phone By Phone Menu Or Web Interface
You can configure phone by integrated menu or by using a browser. It is recommended to use Microsoft Internet Explorer if you want to configure phone by WEB interface. MAC users can download Microsoft Internet Explorer from http://www.microsoft.com/mac/products/ie/. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 10: Setup With Phone Menu
|1 [inband audio] - account |1 [faststart] |2 [signal keypad] - pin |2 [advanced] |3 [rfc 2833] - registerport - signalport - controlport - rtpport - rtptos - registerttl - localtype - jittersize © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 11 - upgradeaddr |2[output all] - sntpip |3[remote debug] - timezone |4[no check] - daylight Exit: Safe: Auto test settings: Load settings: Store settings: Default settings: Speeddial settings: - enter numers and names © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 12: Setup By Web Interface
Select the way you want to handle NAT. Mostly "auto" or "STUN" is used. NAT address: Enter STUN-Server address and port if "STUN" selected. NAT ttl: Select interval for sending keep alive packet to NAT device. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 13 Password: AGC ein- und ausschalten. Password repetition: VEC ein- und ausschalten. Supper password: Mirkrofonlautstärke am Hörer einrichten. Supper password Lautstärke am Hörer einrichten. etit DEBUG mode: Einrichten der Lautstärke für die Freisprechfunktion. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 14 Search for Firmware file you have saved to your computer and update phone by clicking "Update Firmware". Ring tone update: Search for Ring tone you have saved to your computer and update ring tone by clicking "Update ring tone". © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 15: Place And Receive Calls And Look At Call Lists
"+" and "-", too. Dialed numbers: Press "Dialed" if you want to see your dialed numbers. You can call a listed number by pressing "#" if VoIP provider supports calling with SIP-format. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 16: Main Technical Data
Operating temperature: 0° - 40° C (32° - 104° F) Storage temperature: -30° - 65° C (-22° to 149° F) Relative humidity: 10 - 90% (no dew!) Atmosphere pressure: 86 - 106Kpa © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 17: Note
Further information are available at www.globaliptel.com. Please contact your VoIP provider if you do have questions according to how to configure your account. We can not support you with generell network problems. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 18: Preface
Using IP phone, you can save dramatically on international calls and long distance calls. G300 IP Phone has 2 x 16 characters LCD with backlit and supports being set by either keypad or Internet Explorer.
Page 19: Suitable Use Of G300 Voip Phone
WITH A WRONG FIRMWARE YOU CAN MAKE THE PHONE UNUSABLE OR YOU CAN DESTROY IT. WE ARE EXEMPT FROM LIABILITY FOR FIRMWARE UPDATES WHO ARE MADE BY CUSTOMERS. FIRMWARE UPDATES WILL BE DONE BY YOUR OWN RISK. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 20: The Phone And Its Functions
+: Increase volume (navigate the menu) -: Decrease volume : Cancel / Backspace : Redial : Flash : Transfer : Hook Flash : Access dialed numbers list : Access received numbers list : Access missed calls list © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 21 Global IP Telecommunications 1. On/Off switch 2. Power 3. RJ-45 port for connecting phoen with network 4. Additional RJ-45 port for connecting computer to phone and thus to network © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 22: Performance And Features
Working status indicating Lamp and LCD jacklight Volume of handset's mikrophone and speaker and hand free speaker adjustable 14 function keys for operating and setting phone besides standard keys 0-9, # and *. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 23: Main Technical Index
40 records Power loss: 2.7W (max) Adapter: Input AC 220V Output DC 9V 500mA Employing condition: Ambience temperature 0-40° C / 32°-104°F Relative humidity 10-95% Atmosphere pressure 86-106Kpa; Overall size: 215×190×70 mm (L×W×H). © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 24: Standard And Protocol
PPPoE: Point to Point Protocol Over Ethernet DNS: Domain Name Service NTS: Network Time service Telnet: Remote Host log on Protocol HTTP: Hyper Text transfer Protocol Build in H.323 proxy support (with special H.323 firmware only) Automatische Proxysuche. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 25: Electric Requirements
Global IP Telecommunications Electric requirements Voltage: 9V DC Power: 0.5W (max.) Power adapter: Input 230V, 500mA Network interface: 2 RJ-45 Ethernet ports © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 26: Operating Requirements
Global IP Telecommunications Operating requirements Operating temperature: 0 to 50° C (32° to 122° F) Storage temperature: -30° to 65° C (-22° to 149° F) Humidity: 10 to 90% (no dew) © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 27: Installation
4. Switch on the phone Switch on the phone by sliding the switch which is located at the back side of the phone to the left. Ensure that LED and display indicate activity. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 28: Setup By Phone
- dtmf ------------------------------------0 [control string] - calltype ----------0 [normal] |1 [inband audio] - account |1 [faststart] |2 [signal keypad] - pin |2 [advanced] |3 [rfc 2833] - registerport - signalport - controlport © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 30 Store settings: Default settings: Speeddial settings: - enter numers and names 4) Appendix Here you can see the characters you will receive by pressing a key for one to five times. Press key © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 31 Global IP Telecommunications Space '/& Switch between uppercase and lowercase We recommend to restart system after having changed settings. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 32: Configuration
Global IP Telecommunications Configuration There are three ways to configure this IP Phone: Phone keypad set, web browser and Telnet commands. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 33: Configuration With Web Browser
Please note, that you will have to enter your individual password if you have updated the password with you individual one. The following window will appear if you have entered a valid password and clicked "Login": © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 34: Network Settings
MAC address: MAC address is the physical address supplied by the Ethernet NIC. Your IP phone is shipped from the factory with a unique algorism MAC address printed on the back of the base. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 35: Service Provider
Please enter Outbound Proxy's URI if specified by your provider. Standard port is 5060. IAX2: Open source linux PBX protocoll. Phone number or GUI: Enter your phone number or display name here. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 36 SIP users will use "user name". Call type: Select either "normal" or "advanced". DTMF signal transmission: Set DTMF signal sending way by selecting control string, inband audio, signal keypad or rfc 2833 from dropdown list.. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 37: Nat
Enter STUN-Server's URI (e.g. IP:Port or Domain:Port) if "STUN" selected. Default STUN port is 3478. NAT ttl: Send keep alive for port mapping. You can choose a value between 10 and 60 seconds. Default is 20. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 38: Phone
Phone number to forward to: Enter phone number you want to foward to.  Ring type: Select ring tone. Additional ring tones are available at www.globaliptel.com. Please refer to chapter "Update firmware". © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 39 To disable auto answer function, please set this parameter as  Now you can make the phone to divert calls "if power off", "on no answer", "allways" and "if busy" by checking the boxes. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 40: Audio
With g.723.1 selected in audio type dropdown list, enable/disable g.723.1 high rate by checking / unchecking this option. Volume settings: Microphone, Hand set and Speaker: Adjust the volume to a comfortable level. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 41: Password And Time
Daylight saving: You can enable/disable daylight saving by checking the box. Time zone: Select time zone from drop down menu. Save/Reboot: Klick it if you want to save settings and restart system. System restart is necessary to apply new settings. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 42: Phone Book
You can access the phone book by the hyperlink at the right of the web settings dialog page. Here you can enter names and number. If you want to place direct IP-to-IP calls, please enter a * instead of an . while entering an IP. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 43: Update Firmware And Ring Tone
Update firmware and ring tone Download firmware from www.globaliptel.com Third party firmware is not supported and can damage your phone. You are only allowed to use Global IP Telecommunications firmware which is approved for your device. Install new firmware or new ring tone Open update page and "search"...
Page 44: Call Records
When you see a number you want to dial, please press "#" to place a call directly. Phone saves up to 120 records. When the entries arrives 120, the latest record will cover the first one. The record will be lost when the phone restarts or turned on. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 45: Receive A Call
IP Network Phone acts as an ordinary PSTN phone. You can answer the call by either Picking up the hand set activating speaker / hand free mode. When you communicate with the other party without lifting the handset, please do not exceed 40 cm from speaker. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 46: Placing A Call
IP-to-IP call is that you will have to enter the other party's IP if you are part of the same network. Please note that you will have to enter a * instead of a . while entering the IP. © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 47: Legal Note
Global IP Telecommunications, Ltd. All rights reserved. Company and product names mentioned herein may be the trademarks of their respective owners. Global IP Telecommunications, Ltd. • 69 Great Hampton Street • Birmingham / West Midlands • United Kingdom Sales & Support: PrimeWorx Online-Products GmbH •...
Page 48 Preface 5, 18 - R - Receive a call 45 - S - Service provider 35 Setup by phone 28 Setup by WEB interface 12 Setup with phone menu 10 Standard and protocol 24 © 2004-2005 Global IP Telecommunications. All Rights Reserved.
Page 49 Global IP Telecommunications Suitable use of G300 VoIP Phone 19 - T - The phone and its functions 7, 20 The phone and its functions 7, 20 - U - Unpacking and installation 6 Update firmware and ring tone 43...
