Summary of Contents for Deff DDA-DAC1U

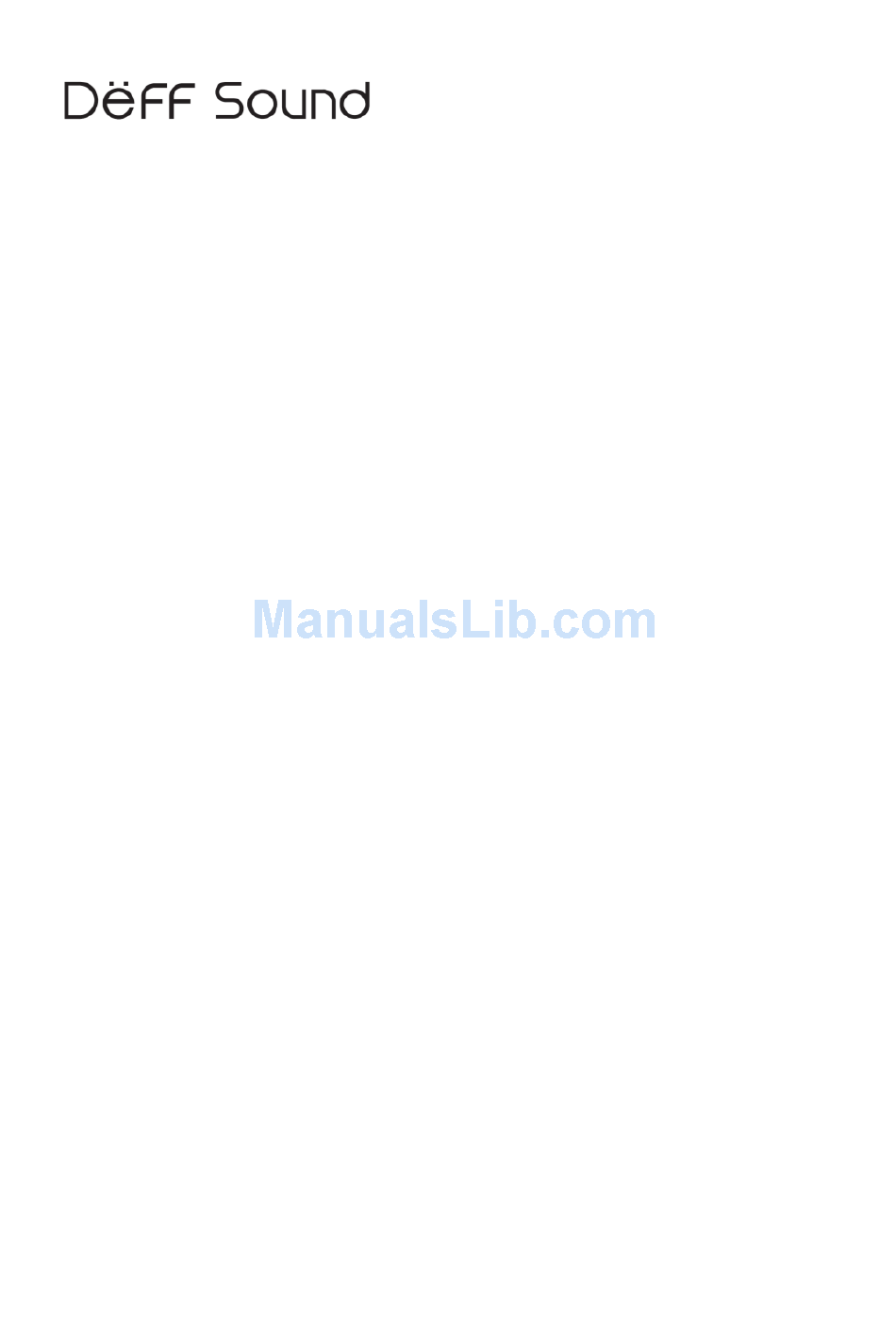

- Page 1 USB Audio DAC ＆ Headphone Amplifier DDA-DAC1U Owner's Manual © 2014 Deff Corporation. All rights reserved.
-
Page 2: Product Feature
Product Feature ■DSD playback support USB DAC＆Headphone amplifier High perfomance USB Audio LSI enable 24bit/96HKz PCM playback、more over 2.8GHｚ（2.8224MHz）Fromat DSD Playback ■SNR115dB Line out SNR 115dB（A-weight Filter)、Hi SNR , it is just same level as Hi-Fi Audio system ■High perfomance OS-CON Low-ESR, Conductive polymer aluminum solid electrolytic condenser OS-CON brings extreme low distortion. -
Page 3: License And Trademark Information
■Headphone output ：50 mW (32Ω） ■Support OS：Windows XP/ Vista / Windows 7 / 8 /8.1 Mac OS X ■Dimension ：W 110.0 x D 107.9 x H 35.6 mm ■DDA-DAC1U USB Audio DAC ＆ Headphone Amplifier ■User Manual ■USB Cable ■RCA Cable ■Optical Cable... - Page 4 Connections ■Connecting the each devices Mini System AV Receiver Optical Out Optical In Portable Music Device ４...
-
Page 5: Front Panel
Connector and Switch ■Front Panel ② ⑤ ①Standard size Headphone Jack ① ③ ④ ②Stereo mini Headphone Jack ③Selector Headphone out / Line out / Front In ④Mobile monitor ⑤Power indicator Turn on when USB connect to PC ■Rear Panel ⑦Line out ⑦... -

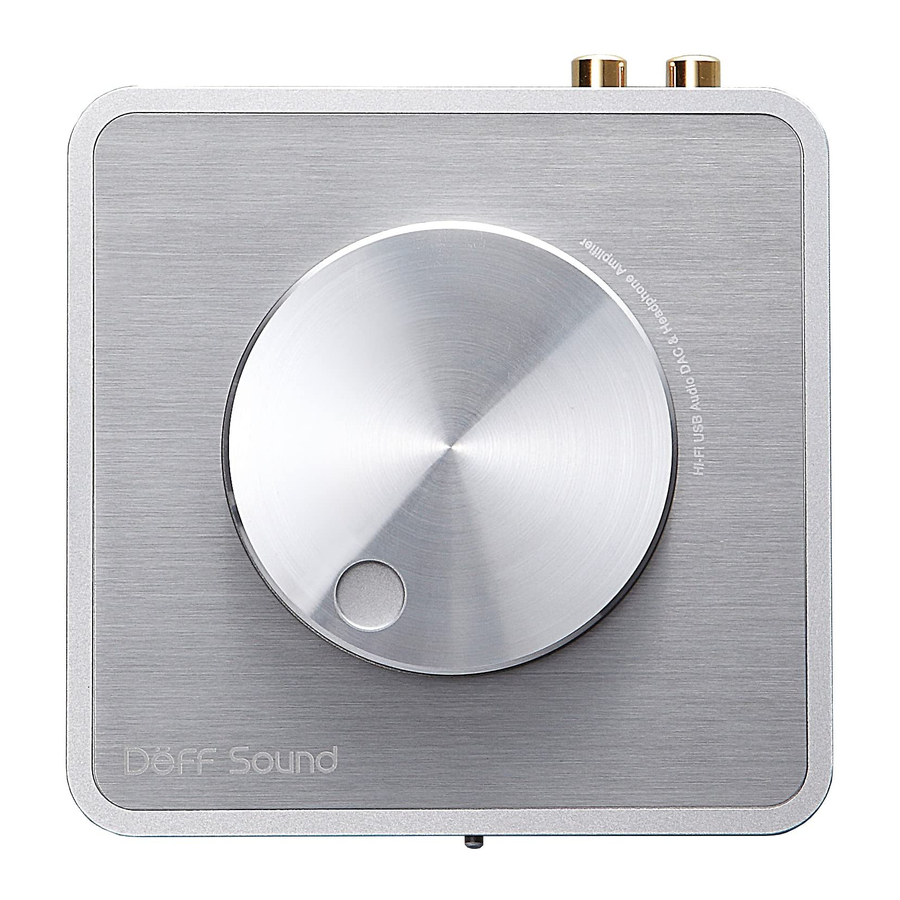

Page 6: Top Panel
Volume ■Top Panel ⑫ ⑫Volume Remark: Line out and Optical Out are fixed , not variable. Selector and Signal Flow Selector Position Input Output Signal Flow -> Optical Out ○ -> Line out × -> Headphone ○ Optical In -> ○... - Page 7 Setting ■Windows Image capture sample: Windows 7 (Japanese ) Playback device selection Support format check Samplingrate select Exclusive (WASAPI) setting ７...
- Page 8 Setting ■MacOS X Image capture sample: MacOS X Mountain Lion (Japanese) Sound setting Audio MIDI Setting ８...
