Summary of Contents for DuraPro PalmPRO

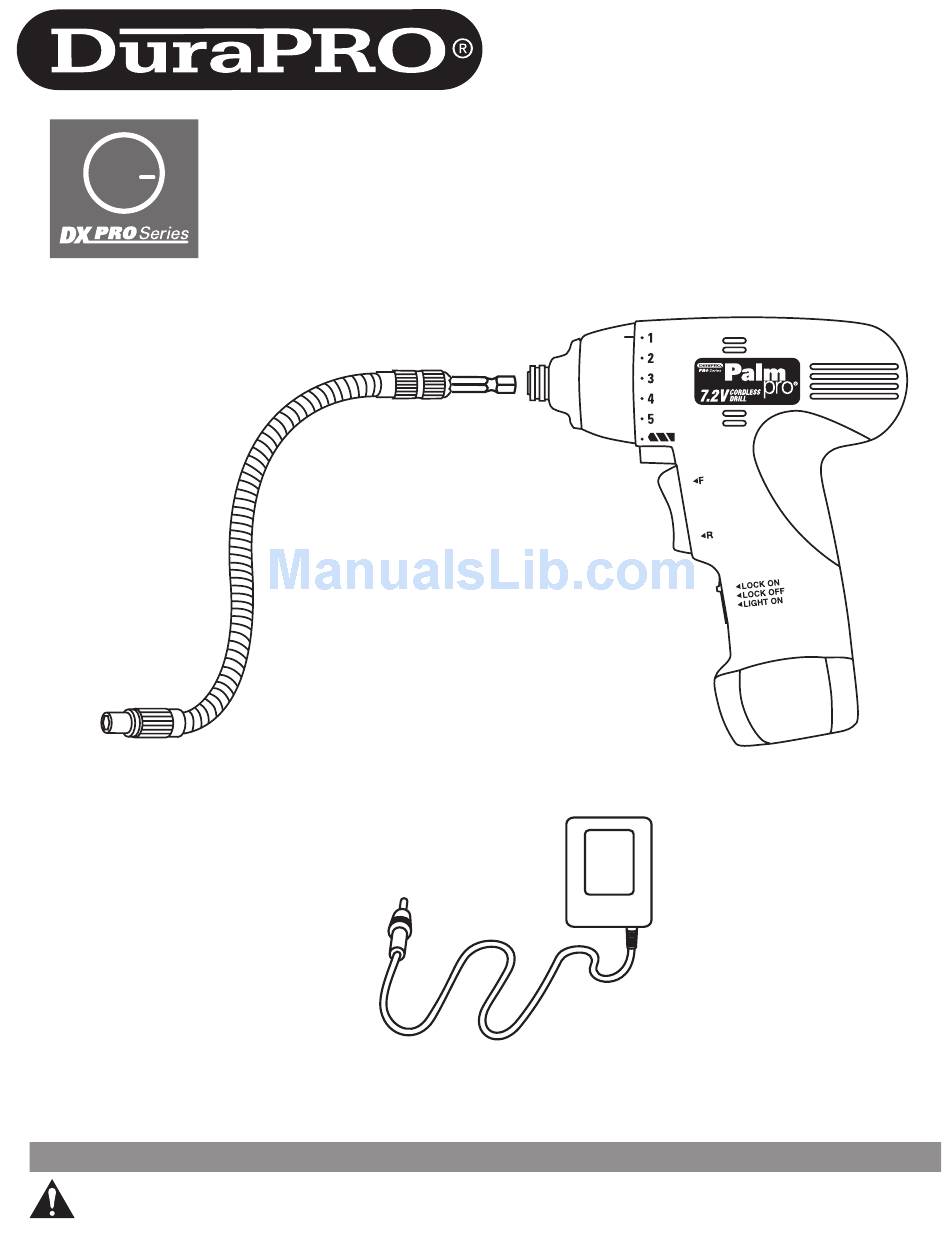

- Page 1 ® Tools That Work For You CORDLESS ® PalmPRO DX PRO SERIES Drill/Driver set 06-145 AEC - 3590 OPERATOR’S MANUAL SAVE THIS MANUAL FOR FUTURE REFERENCE WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using this product.
- Page 2 THORIZED SERVICE CENTER for repair. When servicing, use only identical replacement parts. Innovative Concepts Corporation Customer Service Torrington, CT 06790 U.S.A. 860-482-0512 9a-5p M-F, EST DuraPRO is a registered trademark of ICC Innovative Concepts Corporation Visit us at www.durapro.com Recyclable 0406 MADE IN TAIWAN...
- Page 3 SYMBOLS IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage (potential) Amperes Current Hertz Frequency...
-
Page 4: Work Area
GENERAL SAFETY RULES — FOR ALL BATTERY OPERATED TOOLS WARNING: Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fi re and/or serious personal injury. SAVE THESE INSTRUCTIONS WORK AREA TOOL USE AND CARE Keep your work area clean and well lit. - Page 5 An extension cord should not be used. The EPA certifi ed RBRC Battery Recycling Seal on the nickel-cadmium (Ni-Cd) battery indicates DuraPRO ® Do not recharge battery in damp or wet environment. Do not expose voluntarily participating in an industry program to collect charger to rain or snow.
- Page 6 CAUTION: To prevent damage to the battery, remove the PalmPRO from the charger immediately if no LED comes on. Return the PalmPRO The tool will become slightly warm to the touch while charging. This is and charger to your nearest service center for checking or replacing.
-
Page 7: General Maintenance
SAFETY RULES FOR CORDLESS DRIVERS Know your power tool. Read operator’s manual carefully. Learn its applica- Be prepared for a reaction torque when “seating” or removing a fastener. tions and limitations, as well as the specifi c potential hazards related to this The screwdriver housing may tend to twist in the opposite direction of bit tool. - Page 8 STORAGE No Load Speed ....450 revolutions/min. When not in use, remove bit from PalmPRO. LED LIGHT Charger Input ....120 V, 60 Hz, AC only This tool features an integrated LED light for low-light use.
- Page 9 ASSEMBLY UNPACKING WARNING: If any parts are missing do not operate this tool • This product has been shipped completely assembled. until the missing parts are replaced. Failure to do so could • Carefully remove the tool and any accessories from the box. Make sure result in possible serious personal injury.
- Page 10 OPERATION TO SET THE TORQUE LEVEL: While grasping the main housing of the PalmPRO with one hand, grasp the torque level adjustment ring with your other hand and turn it until the torque level indicator is aligned with the desired number or the drilling icon. It may take a little force to turn the ring, especially the fi...
Need help?
Do you have a question about the PalmPRO and is the answer not in the manual?
Questions and answers
Drill will not charge
The DuraPro PalmPRO drill may not charge for several reasons:
1. Battery Not Fully Charged Before First Use – The battery must be charged for 10 hours before the first use.
2. Insufficient Charging Time – After normal usage, a minimum of 3 hours is required for a full recharge.
3. Incorrect Charger – Only the included 7.2V charger should be used.
4. No LED Indicator – If no LED light turns on during charging, the charger or battery may be faulty. Remove the tool from the charger immediately and take it to a service center.
5. Damaged Battery Case – If the battery case is cracked or damaged, it should not be inserted into the charger.
6. Exposure to Moisture – Charging in a damp or wet environment can prevent proper charging and increase the risk of electric shock.
7. Use of an Extension Cord – An extension cord should not be used with the charger.
If none of these issues apply, the tool or charger may need to be checked or replaced by a service center.
This answer is automatically generated
It is not getting charged but the light glow
The DuraPro PalmPRO may not be charging even though the light is glowing because the battery case could be cracked or otherwise damaged. If this happens, the battery should not be inserted into the charger, as it will not function properly and could increase the risk of electric shock.
This answer is automatically generated
