Summary of Contents for IQ iQ play2
- Page 1 QUICK START GUIDE USING ADVANCED G2 TECHNOLOGY...
-
Page 2: Table Of Contents
Page No. INTRODUCTION Key Features - iO TALK2 Key Features - iO PLAY2 GETTING STARTED Pairing and Connecting a Phone Pairing and Connecting a Second Phone Connecting an iPod or iPhone Connecting an Auxiliary Device Connecting an Audio Device via Bluetooth OPERATION Hands Free (HFP) Functions Music Streaming (A2DP &... - Page 3 Page No. iO ACCESSORIES Bluetooth Dongles iO Charging Kits Replacement Screen Steering Wheel Control Interface Vehicle Specific Harnesses (SOT Leads) PRODUCT REGISTRATION Benefits MORE INFORMATION User Manual Contact Us www.my-io.com...
-
Page 4: Introduction
Thank you for purchasing an iO G2 handsfree music streaming device. iO G2 is the next generation of iO product which introduces significant improvements in functionality to enhance sound quality, driver safety and ease of use. This technology enables you to play music stored from most portable mobile devices as well as make and receive mobile calls safely from within your vehicle. -
Page 5: Key Features - Io Play2
Key Features Multipoint Pro™ - Connect up to Reversing Aid compatible 2 devices at any one time Specially designed technology Removable OLED screen for your portable Satellite Navigation voice instructions Text to Speech - Phonebook, Menu, Text Messages and iPod Make and receive handsfree album/track mobile phone calls wirelessly... -
Page 6: En Getting Started
Pairing and Connecting a Phone (when Bluetooth visibility is turned on in your iO G2 device menu): Your iO G2 device has the ability to have 5 devices paired to it at any one time. If you wish to pair an additional device you will need to manually delete a device from the paired devices list first. -
Page 7: Pairing And Connecting A Second Phone
check your phone’s user manual for further information. Fig.1 – One phone connected Pairing and Connecting a Second Phone Your iO G2 device has the ability to connect two phones simultaneously. To accomplish this follow the same procedure as previously mentioned to pair the first phone. -
Page 8: Connecting An Ipod Or Iphone
Connecting an iPod or iPhone (PLAY2 ONLY) via the iPod connection cable. Your iPod/iPhone will plug in directly to your iO PLAY2 system via the supplied iPod accessory cable. Once connected you will be able to play and control ‘iPod’ your device by accessing the menu. -
Page 9: Connecting An Audio Device Via Bluetooth
Connecting an Audio Device via Bluetooth For pairing a device such as the optional IO-BTA3-5 3.5mm dongle via Bluetooth please refer to the accessory’s user manual. Once the devices are paired they will connect automatically each time your iO G2 device is powered up. Note: To enable pairing, your iO G2 device must have Bluetooth visibility turned Menu Settings... -
Page 10: Operation

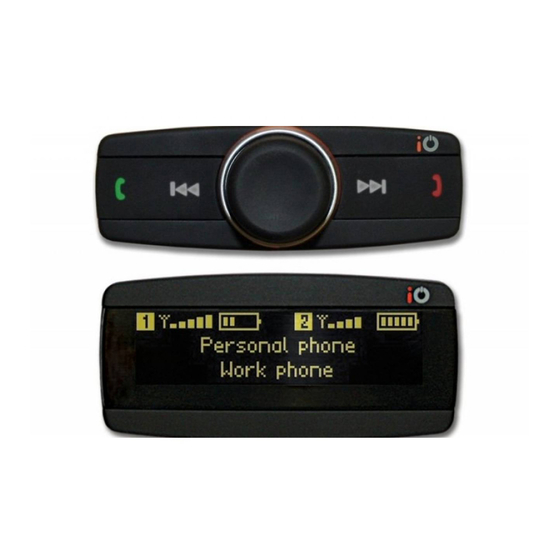

Hands Free (HFP) Functions The diagram below illustrates the controller functions when connected with your mobile phone on the HFP (Hands Free Profile). Volume Up / Down (rotate) Transfer Call to Handset (hold for 3 secs during call) Enter Manual Dial Screen Show Menu (hold for 3 secs) Last Number Redial (hold for 3 secs) -
Page 11: Your Home Screen
Your Home Screen This is the screen that is displayed when your iO G2 device is in idle state with a phone connected. (Fig.3) Fig.3 – Home Screen The Home Screen shows the information about each phone that is connected to your iO G2 device including charge level, signal strength and network information (if only one handset is connected). -
Page 12: Making And Receiving A Call
Fig.4 – Playing music whilst in the Home Screen In addition to the standard information you will also have five icons to mimic the button functions of the music playing device (Fig.4). To access the menu when a music device is playing just press and hold the ‘Car Stereo’... - Page 13 highlighted then push the rotary button to dial (Fig.5). If you have two phones connected you will need to select which handset’s phonebook you wish to access. Menu Phonebook Choose Letter Choose Name Choose Number Push to Dial Fig.5 – Phonebook Call History Dialling ‘Call History’...
-
Page 14: Voice Dialling
Manual Dialling ‘Phonebook’ To manually dial from your iO G2 device, enter the menu and use the number entry screen located under the icon. If two phones are connected you will be given the option to select which phonebook to access or which phone to manually dial from. -
Page 15: Transferring A Call Between Your Io G2 Device And A Handset
Fig.8 – Voice Dialling active When prompted you should clearly state the name of the contact that you wish to call. This will then start the dialling process for your chosen contact. The voice dialling process will be activated in the same way as your handset so if confirmation of the desired contact is required on your handset then this will be the case when using your iO G2 device. -
Page 16: Swapping Between Held Or Incoming Calls
Swapping Between Held or Incoming Calls iO G2 devices have the ability to handle multiple calls simultaneously but this feature is only available on one handset at a time. If you have a current active call on either connected handset and a second call is received on the same handset you will be notified by a low “beep”... -
Page 17: Call Privacy
Call Privacy To mute the microphone during a call click the green button. This will then mean that the other party will not be able to hear you although you will still be able to hear them. To un-mute the microphone, click the green button again. -
Page 18: Swapping Between The Stereo And Your Io G2 Device
‘A2DP Music’ enter the menu to start playback. In this case you can initiate playback by just pressing play on the phone. Fig.12 – Bluetooth source Menu Bluetooth Select Phone If your handset supports the AVRCP (Audio Video Remote Control Profile) function then you will also be able to control the play/pause and track up/down functions from your iO G2 device. - Page 19 www.my-io.com...
-
Page 20: Legals
Warranty Armour Automotive Ltd. warrants this product to be free from defects in material and workmanship under normal use for a period of 12 months from the date of original purchase. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, Armour Automotive will repair or replace (at its discretion) the defective product with an equivalent products. -
Page 21: Copyright
Copyright Copyright 2011; Armour Automotive Ltd. All rights reserved. The total or even partial reproduction, transmission or storage of this guide in any form or by any process whatsoever (electronic, mechanical, photocopy, recording or otherwise) is strictly prohibited without prior consent from Armour Automotive Ltd. -
Page 22: Declaration Of Conformity
Declaration of Conformity Armour Automotive Ltd. of Bordon, Hampshire, UK hereby declare that the device described in this guide is in compliance with the essential requirements and other relevant provisions of the European Directive 1999/5/EC (R&TTE). The declaration of conformity (DoC) concerned has been signed. -
Page 23: Correct Disposal Of This Product (Weee)
Correct Disposal of this Product (WEEE) (Waste Electrical Electronic Equipment – WEEE) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. -
Page 24: Io Accessories
The iO brand also encompasses a range of accessories to enhance the use of your iO G2 device e.g. aiding installations, increase functionality, replacement parts and device charging). These accessories are avaialble from any authorised iO retailer. Bluetooth Dongles These are Bluetooth stereo (A2DP) Music Streaming Adaptors for wirelessly streaming your music tracks or Sat Nav voice instructions through your iO G2 device,... -
Page 25: Vehicle Specific Harnesses (Sot Leads)
Vehicle Specific Harnesses (SOT Leads) A SOT Interface Lead (supplied by Autoleads) allows iO Products to be installed into vehicles with different types of Plug & Play connectors. We have a comprehensive range of interface leads for all types of different automotive original equipment audio systems and applications. -
Page 26: Product Registration
Receive greater benefits by registering your iO product in 3 easy steps. Benefits >> Instant Access to online product support. >> Provides Warranty and after sales service. >> Exclusive online login to www.my-io.com. Step 1 Visit www.my-io.com/register Step 2 Log-in or register for an account. Step 3 Enter the serial number and product details found on the box and follow the registration steps. -
Page 27: More Information
User Manual For more information on installation, features and usage of your iO G2 device, please view or download the Full User Manual which can be found at www. my-io.com Contact Us Web: www.my-io.com Technical Email: tech@armourauto.com Technical Help Line: 0900 1020 119* Opening hours:9:00am - 5:00pm Mon-Thu, 9:00am - 4.30pm Fri *Calls cost 60p per minute.
